Victron Energy Blue Smart IP22 Charger 24V/16(1) 120V NEMA 5-15 - single output

Datasheets

Manual

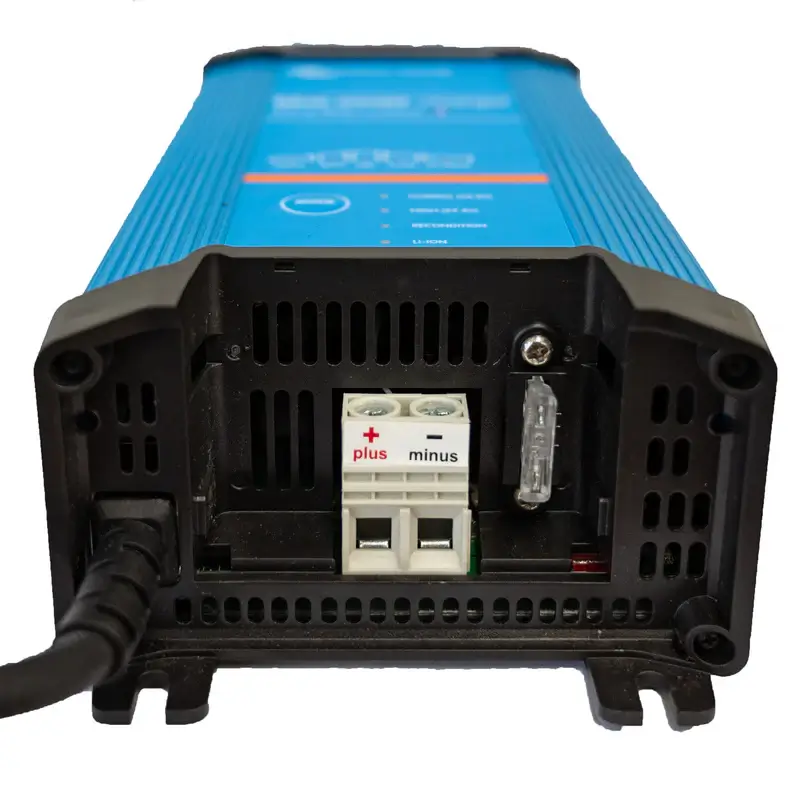

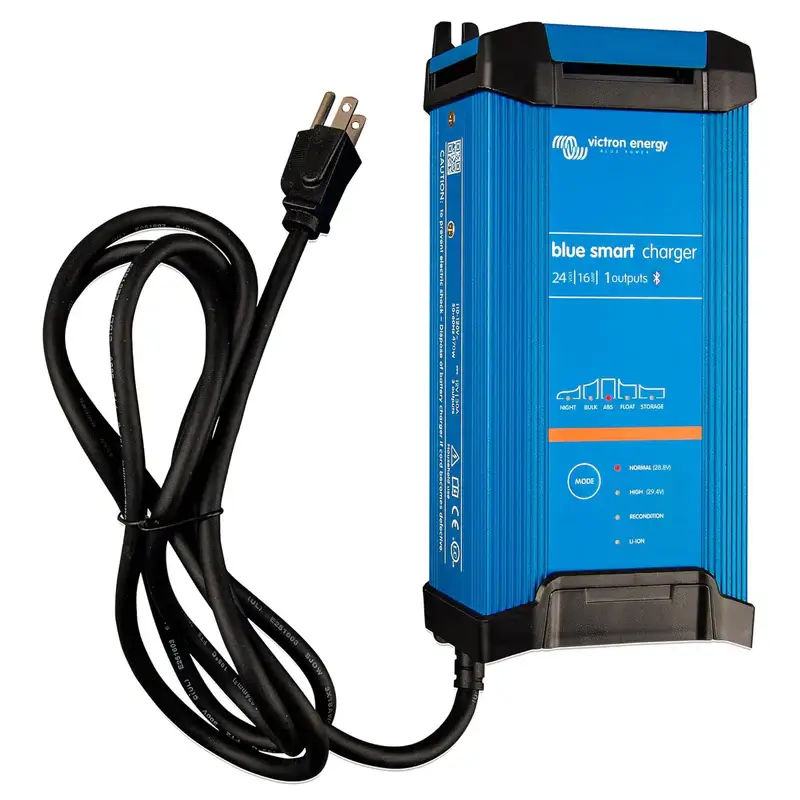

Victron Energy Blue Smart IP22 Charger 24V/16A

Advanced Charging with Bluetooth Monitoring and Adaptive Technology

Charge your 24V batteries efficiently and intelligently with the Victron Energy Blue Smart IP22 24V/16A battery charger. Engineered with adaptive charging algorithms, integrated Bluetooth, and industry-leading efficiency, this charger ensures optimal performance for a wide range of battery types—while extending their lifespan.

Key Features:

• Bluetooth Smart Monitoring
  View voltage, current, and charge history, update firmware, and configure settings wirelessly via the VictronConnect app.
• High Efficiency – Up to 94%
  Generates minimal heat and consumes as little as 0.5W in standby, making it significantly more energy-efficient than conventional chargers.
• Adaptive 6-Stage Charging
  Automatically adjusts based on battery condition: Test, Bulk, Absorption, Recondition, Float, and Storage modes ensure safe and thorough charging every cycle.
• Fully Programmable Charge Algorithm
  Fine-tune absorption, float, and storage voltages, temperature compensation, and reconditioning settings via the app—including an Expert Mode for advanced customization.
• Storage Mode Function
  Reduces float voltage during periods of inactivity to minimize corrosion and extend battery life—perfect for seasonal or backup systems.
• Li-ion Compatible
  Includes a dedicated algorithm for lithium batteries, with full support for deep discharge recovery and internal disconnect re-engagement.
• Silent Operation (Night/Low Mode)
  Reduce output and operate silently when needed—ideal for noise-sensitive environments like RVs, boats, or bedrooms.
• Overheat Protection
  Maintains operation by reducing output current as temperatures rise, without risking charger failure.
• Comprehensive LED Indicators
  Eleven LED indicators provide clear visual feedback for charge status and user-selected modes.

Smart Networking & System Integration:

• VE.Smart Networking Support
  Wirelessly link to Victron devices like Smart Battery Sense, SmartShunt, or Smart Battery Monitor for voltage, temperature, and current compensation.
• Parallel Charging
  Sync up to ten IP22 chargers to act as a single high-capacity charger, ensuring synchronized charging stages, redundancy, and installation flexibility.

Whether you're charging deep cycle AGM, GEL, LiFePO4, or standard flooded batteries, the Blue Smart IP22 24V/16A provides unmatched performance, adaptability, and reliability—perfect for marine, RV, off-grid, and workshop applications.
