Customers must use the cutout template below prior to ordering their window to ensure the window will fit properly and work with their build. On Ram ProMaster fits drivers side only.

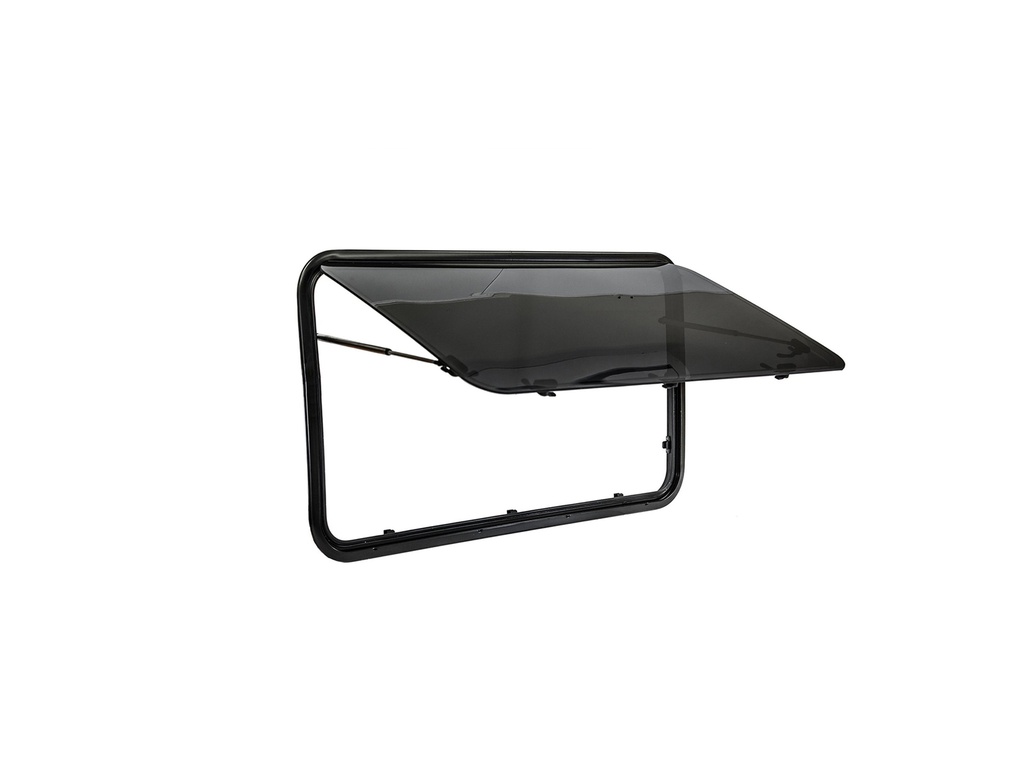

Broad Arrow Curved Dual-Glazed Cassette Window (1097 x 597 mm)

The Broad Arrow Curved Dual-Glazed Cassette Window is a large-format DOT-approved van window designed for improved insulation, privacy, and integrated shading. Its slightly curved acrylic construction is engineered to better match van body contours, delivering a cleaner exterior finish and more reliable sealing performance.

This cassette-style window integrates a bug screen and pleated blind system within a durable aluminum frame. It is specifically designed for high-quality camper van conversions where precise template-based installation and model-specific fitment are required.

Features

  • Dual-glazed acrylic construction for insulation and durability

  • Cassette-style system with integrated bug screen and pleated blind

  • Slightly curved design for improved fit on van body contours

  • Aluminum frame for strength and long-term corrosion resistance

  • DOT-approved glazing for safety compliance

  • Includes wooden mounting ring for installation support

  • Designed for wall thickness: 26–50 mm

  • Visible light transmission: 10%

  • Model-specific fitment for Promaster driver side applications

  • Manufactured in China

Specifications

  • Window type: Large Curved Dual-Glazed Cassette Window

  • Size (W x H): 1097 x 597 mm

  • Cut-out size: 1100 x 600 mm

  • Overall size: 1127 x 627 mm

  • Interior blind size: 1127 x 640 mm

  • Glass type: Acrylic Dual Glazed

  • Frame material: Aluminum

  • Wall thickness compatibility: 26–50 mm

  • Light transmission: 10%

  • Country of manufacture: China

  • Certification: DOT Compliant (DOT-1006 AS-5, M-134205PM)

Compatibility & Installation

  • Designed specifically for Ram ProMaster driver-side installation only

  • Requires precise cut-out template before installation

  • Suitable for camper van side wall applications

  • Sliding door installations require careful clearance verification

  • Interior cassette system (blind and screen) may interfere with bed pods, flares, or interior/exterior extensions

  • Slight variation in acrylic curvature may occur due to manufacturing, without affecting sealing or performance

  • Not equivalent to tempered glass due to flexible acrylic construction

Important notice ! ! !
Delivery delays may apply. If the window is not in stock, a minimum delivery time of 2 to 3 weeks is required, subject to supplier availability.
It is the customer’s responsibility to contact us to verify item availability prior to purchase.
In the event of an unjustified refund request, a 15% fee may be charged.
Installation Services I would like it installed ( Give us a call or an Email ) or I will do it Myself
