Broad Arrow Curved Window 497×297

Customers must use the cutout template below prior to ordering their window to ensure the window will fit properly and work with their build.

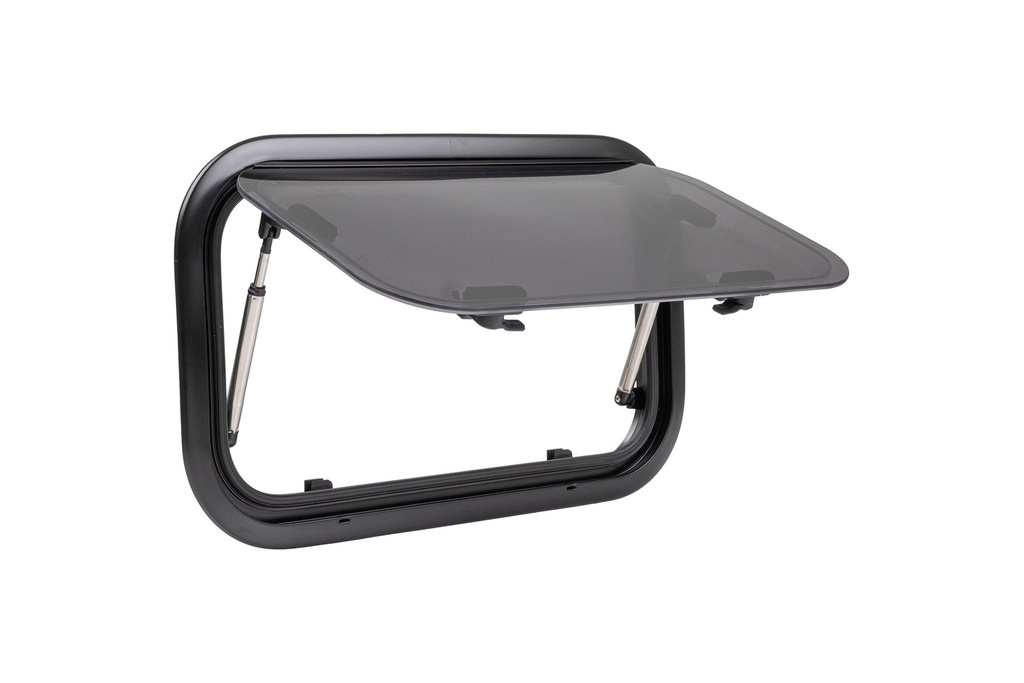

Broad Arrow Dual-Glazed Cassette Window (497 x 297 mm)

The Broad Arrow Dual-Glazed Cassette Window is a DOT-approved camper van window designed for improved insulation, privacy, and integrated shading. Its slightly curved acrylic construction is engineered to better match van body contours, providing a cleaner exterior fit and enhanced sealing performance.

This cassette-style window includes an integrated bug screen and pleated blind system, along with a durable aluminum frame. It is intended for van conversions requiring precise, template-based installation and dependable all-weather performance.

Features

• Dual-glazed acrylic construction for insulation and durability

• Cassette-style system with integrated bug screen and pleated blind

• Slightly curved design to better match van body contours

• Aluminum frame for strength and corrosion resistance

• DOT-approved glazing for safety compliance

• Includes wooden mounting ring for installation support

• Designed for wall thickness: 26–50 mm

• Visible light transmission: 10%

• Manufactured in China

Specifications

• Window type: Rectangular Dual-Glazed Cassette Window

• Size (W x H): 497 x 297 mm

• Cut-out size: 500 x 300 mm

• Overall size: 527 x 327 mm

• Interior blind size: 527 x 340 mm

• Glass type: Acrylic Dual Glazed

• Frame material: Aluminum

• Wall thickness compatibility: 26–50 mm

• Light transmission: 10%

• Country of manufacture: China

• Certification: DOT Approved

Compatibility & Installation

• Requires use of a cut-out template prior to installation for accurate fitment

• Suitable for camper van side wall applications

• Designed for sliding door installations, but clearance must be verified carefully

• Interior cassette system may interfere with bed pods, flares, or interior/exterior extensions

• Slight variations in acrylic curvature may occur due to manufacturing, without affecting sealing or performance

• Not equivalent to tempered glass due to flexible acrylic construction

Important notice ! ! !

Delivery delays may apply. If the window is not in stock, a minimum delivery time of 2 to 3 weeks is required, subject to supplier availability.

It is the customer’s responsibility to contact us to verify item availability prior to purchase.

In the event of an unjustified refund request, a 15% fee may be charged.
