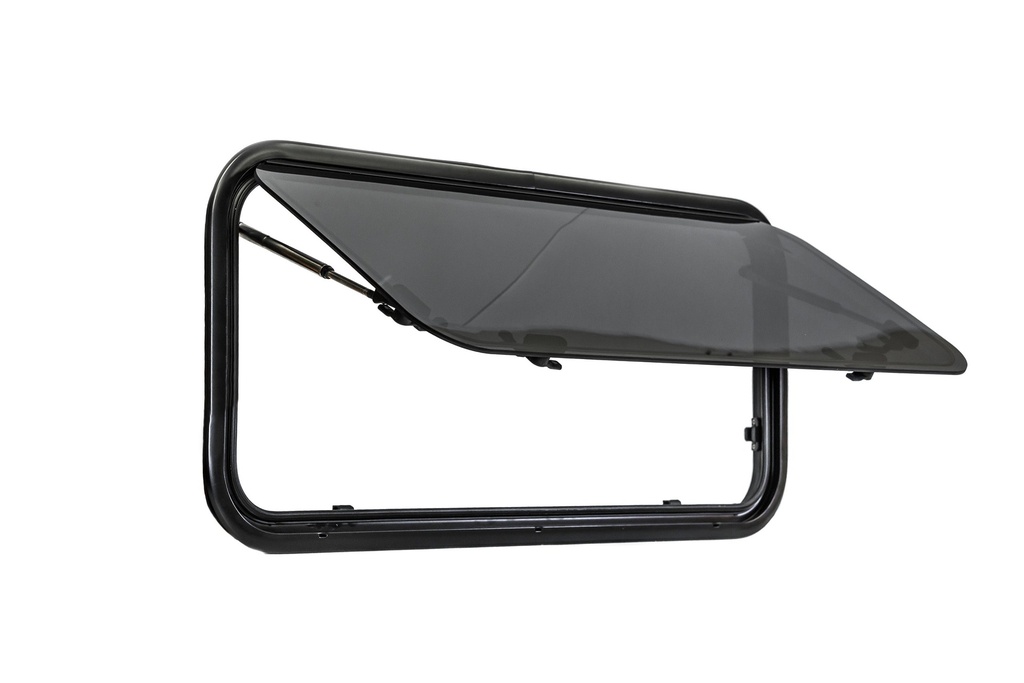

Broad Arrow Curved Window 897×397

Customers must use the cutout template below prior to ordering their window to ensure the window will fit properly and work with their build.

Broad Arrow Curved Dual-Glazed Cassette Window (897 x 397 mm)

The Broad Arrow Curved Dual-Glazed Cassette Window is designed for camper van conversions that require enhanced insulation, privacy, and integrated ventilation. Its slightly curved profile is engineered to better match modern van body contours, providing a clean appearance and dependable weather resistance.

Constructed with DOT-approved dual-glazed acrylic and a durable aluminum frame, this window includes an integrated cassette system featuring a pleated blind and bug screen. The included wooden mounting ring simplifies installation while helping achieve a professional finish.

Features

• DOT-approved dual-glazed acrylic window

• Slightly curved design for improved fit on van body panels

• Integrated cassette system with bug screen and pleated blind

• Durable aluminum frame construction

• Includes wooden mounting ring

• Compatible with wall thicknesses from 26–50 mm

• Improves insulation, privacy, and interior comfort

• Visible light transmission: 10%

• Manufactured in China

Specifications

• Window type: Curved Dual-Glazed Cassette Window

• Window size (W x H): 897 x 397 mm

• Cut-out dimensions: 900 x 400 mm

• Overall dimensions: 927 x 427 mm

• Interior blind dimensions: 927 x 440 mm

• Glass type: Dual-Glazed Acrylic

• Frame material: Aluminum

• Wall thickness compatibility: 26–50 mm

• Light transmission: 10%

• Country of manufacture: China

Compatibility & Installation

• Designed for camper van side-wall installations

• Includes a wooden mounting ring for secure installation

• Suitable for sliding door applications when sufficient clearance is available

• Verify clearance between the interior cassette system and any bed pods, flares, body extensions, or aftermarket accessories before installation

• Interior bug screen and pleated blind assembly may interfere with certain vehicle-side modifications

• Minor variations in acrylic curvature may occur during manufacturing without affecting sealing or performance

• Acrylic glazing provides different flexibility and insulation characteristics than tempered glass
