Broad Arrow Curved Window 815×312

Requires use of provided cut-out template prior to installation to ensure accurate fit

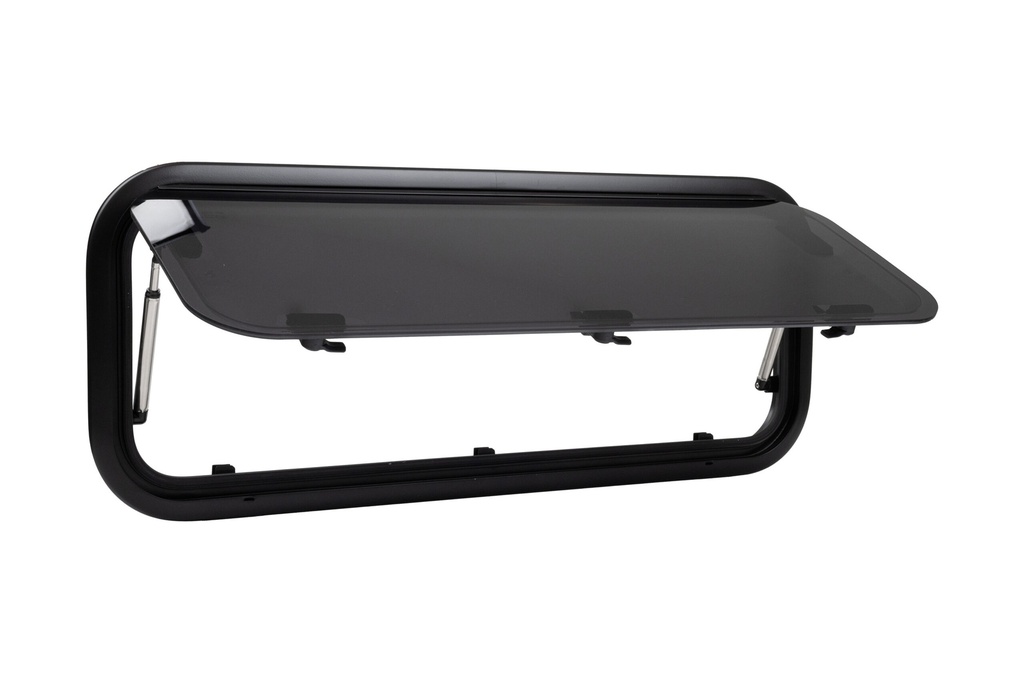

Broad Arrow Curved Dual-Glazed Cassette Window (815 x 312 mm)

The Broad Arrow Curved Dual-Glazed Cassette Window is designed for camper van conversions requiring a premium fit, improved insulation, and integrated privacy systems. Its slightly curved acrylic construction is engineered to better match van body contours, providing a clean exterior appearance and improved sealing performance.

This DOT-approved window features dual-glazed acrylic panels, an integrated cassette system with bug screen and pleated blind, and a durable aluminum frame. It is intended for professional and DIY van builds where precise measurements and template-based installation are essential.

Features

• Dual-glazed acrylic construction for improved insulation and durability

• Slightly curved design to better match van body contours

• Integrated cassette system with bug screen and pleated blackout blind

• Aluminum frame for strength and long-term performance

• DOT-approved glazing for safety compliance

• Includes wooden mounting ring for installation support

• Designed for wall thickness: 26–50 mm

• Visible light transmission: 10%

• Manufactured in China

Specifications

• Window type: Curved Dual-Glazed Cassette Window

• Size (W x H): 815 x 312 mm

• Cut-out size: 818 x 315 mm

• Overall size: 845 x 342 mm

• Interior blind size: 845 x 355 mm

• Wall thickness compatibility: 26–50 mm

• Glass type: Acrylic Dual Glazed

• Frame material: Aluminum

• Light transmission: 10%

• Country of manufacture: China

Important notice ! ! !

​Delivery delays may apply. If the window is not in stock, a minimum delivery time of 2 to 3 weeks is required, subject to supplier availability.

It is the customer’s responsibility to contact us to verify item availability prior to purchase.

In the event of an unjustified refund request, a 15% fee may be charged.
