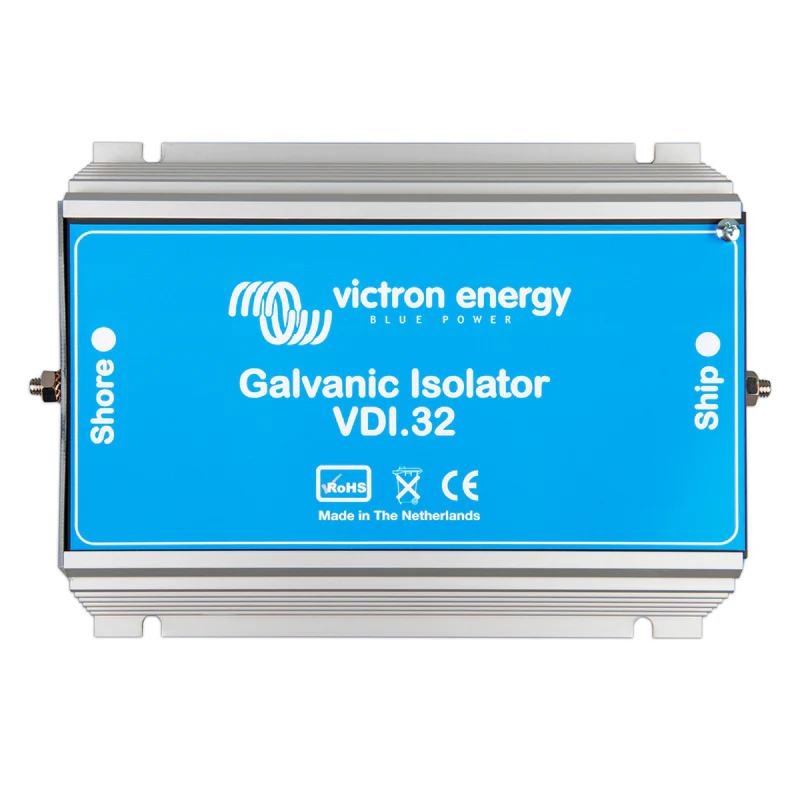

The Victron VDI-32 galvanic isolator helps prevent electrolytic corrosion on boats connected to shore power. It blocks low-voltage DC currents through the shore power grounding connection while allowing AC fault current to pass so the safety protection can operate.
FEATURES
Helps protect underwater metal components from galvanic corrosion
Blocks low-voltage DC currents at approximately 1.4V
Allows AC current and fault current to pass
Sealed, maintenance-free construction
IP67-rated protection
SPECIFICATIONS
Maximum current: 32A
Peak current: 3,200A for 20ms
Connections: M6 terminals
Housing: Anodized aluminium, fully potted
Dimensions: 63 × 164 × 200mm
Weight: 2kg
IMPORTANT
Install in series with the green safety grounding conductor. All vessel grounding connections must pass through the isolator.
Mount vertically in a well-ventilated, heat-resistant area, leaving at least 10cm of clearance around the unit.
Installation must comply with applicable electrical regulations and should be performed by a qualified installer.
