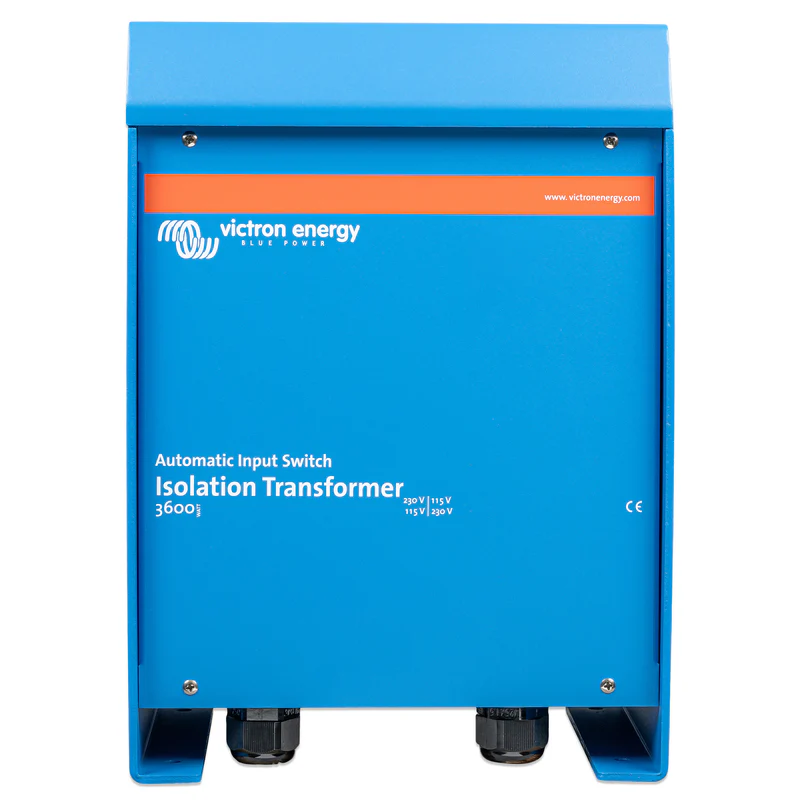

Victron Energy Isolation Transformer - 3600W 115/230V

Technical Specifications

User manual

Victron Energy Isolation Transformer – 3600W Auto 115/230V

Essential Protection Against Galvanic Corrosion and Ground Fault Hazards

Designed for professional marine electrical systems, the Victron 3600W Isolation Transformer ensures complete safety by eliminating electrical continuity between your vessel and shore power. Its toroidal transformer design provides quiet operation and high efficiency, while soft start circuitry prevents shore circuit breakers from tripping during plug-in.

Key Features:

• Prevents Galvanic Corrosion
  Completely isolates shore ground from onboard AC systems, protecting metal components like shafts and propellers—even on non-metal hulls.
• Ensures Electrical Safety
  Enables proper function of GFCIs and fuses by bonding the neutral output to onboard ground, preventing unsafe situations caused by ground faults or improper wiring.
• Automatic Voltage Selection (Auto 115/230V)
  Automatically switches input mode depending on shore voltage:
  • 88–130V input = 115V output
  • 185–250V input = 230V output
  (AC output voltage is raised slightly by a 1:1.05 ratio)
• Soft Start Feature
  Reduces inrush current to avoid tripping shore power fuses when connecting the transformer.
• Toroidal Coil Design
  Offers quiet, efficient operation with reduced electromagnetic interference.
• Marine-Grade Safety Compliance
  Ideal for all boat types—prevents sacrificial anode wear and protects all submerged or exposed metal parts.

Specifications:

• Power: 3600 VA (Watts)
• Input Voltage Range: 88–130V / 185–250V AC (auto-detect)
• Output Voltage: 115V or 230V AC
• Frequency: 50/60 Hz
• Ratio: 1:1.05 (slight boost at output)

Why Install a Victron Isolation Transformer?

✔️ Eliminate electrolytic corrosion

✔️ Comply with safety standards

✔️ Enable fault protection devices

✔️ Preserve onboard metal systems
