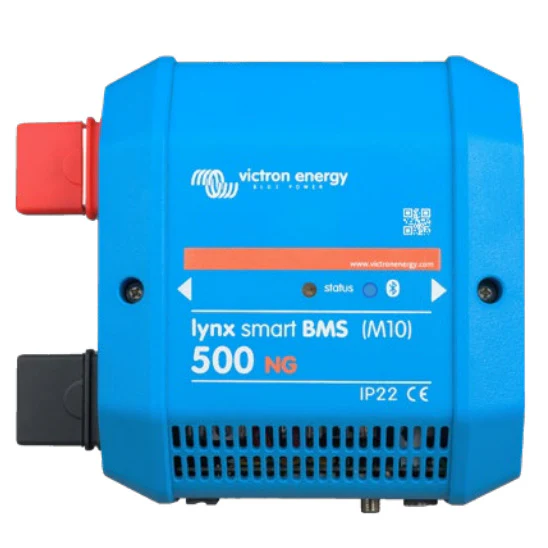

Lynx Smart BMS 500 NG de Victron Energy

Victron Lynx Smart BMS NG 500A – Advanced Battery Management for Lithium NG Batteries

Engineered by Victron Energy – Reliable Power Solutions for Off-Grid, Marine, and Vehicle Applications

The Victron Lynx Smart BMS NG is the most advanced battery management system specifically designed for Victron Lithium NG batteries. Whether you're operating a 12V, 24V, or 48V system, this smart BMS ensures safe, efficient, and intelligent energy management in demanding off-grid, mobile, and marine environments.

Integrating seamlessly into the Victron Lynx Distributor System (M10), the Lynx Smart BMS NG 500A offers full system monitoring, robust battery protection, and extensive connectivity options. It is the go-to solution for anyone seeking advanced features, real-time diagnostics, and future-ready energy architecture.

🔧 Key Features

• Full Compatibility with Victron Lithium NG Batteries
  Works with 12.8V, 25.6V, and 51.2V Lithium NG batteries in series or parallel configurations (up to 50 batteries per BMS).
• High-Capacity System Design
  Supports battery banks up to 384 kWh. Add multiple Lynx BMS units in parallel redundancy mode for even more capacity and fault tolerance.
• Built-In 500A Contactor
  Acts as a secondary safety switch, providing safe disconnection of batteries in case of system failure and allowing full remote control of the system.
• Pre-Charge Circuit
  Safely connects high-capacitance loads (e.g., inverters) without damaging system components — no need for external pre-charge hardware.

📱 Smart Monitoring & Control

• VictronConnect App (Bluetooth)
  Easily monitor key metrics including SoC, voltage, current, temperatures, and cell health via smartphone or tablet.
• GX Device Integration (VE.Can)
  Full compatibility with Cerbo GX, Ekrano GX, and VRM Portal for centralized system control and remote monitoring.
• Instant Readout Diagnostics
  Quickly assess system health and performance at a glance with built-in LED diagnostics.
• Lynx Distributor Fuse Monitoring
  Monitor up to 4 Lynx Distributor fuses for real-time alerts on fuse status and faults.

⚡ Advanced System Controls

• DVCC & Closed Loop Control
  Automatically regulates Victron solar charge controllers, inverters, and Orion XS DC-DC chargers based on battery status.
• ATC/ATD Signal Ports
  Control third-party loads or chargers via remote on/off ports using voltage-controlled logic.
• Programmable Relay
  Use for alarms or to safely disengage alternators before battery disconnection.
• AUX Terminal Output
  Power GX devices even during system shutdowns (1.1A @ system voltage) with built-in auto-cutoff after low-voltage triggers.

🔌 Communications & Compatibility

• VE.Can Interface
  Simple plug-and-play integration using RJ45 cables.
• NMEA 2000 Ready
  Seamlessly connects to marine network systems (with optional VE.Can to NMEA 2000 cable).
• Expandable & Redundant
  Connect up to 5 Lynx Smart BMS units in parallel for large, fail-safe battery banks.

📦 Product Details

• Model: Victron Lynx Smart BMS NG 500A
• Part Number: LYN034160310
• Current Rating: 500A
• Battery Compatibility: Victron Lithium NG (12.8V, 25.6V, 51.2V)
• System Voltage: 12V / 24V / 48V
• Connectivity: Bluetooth, VE.Can, NMEA 2000
• Integrated Contactors: Yes (500A)
• Pre-Charge Circuit: Included
• Fuse Monitoring: Compatible with Lynx Distributors
• Mounting: Lynx M10 rail integration
• Status: Currently backordered – Ships when restocked

Ideal For:

• Mobile Power Systems (Vans, RVs)
• Marine Installations
• Industrial Backup Systems
• Off-Grid Homes & Cabins

The Victron Lynx Smart BMS NG isn’t just a battery management device — it’s the heart of your smart power system. Ensure safe, scalable, and intelligent energy storage for your next adventure or project.
