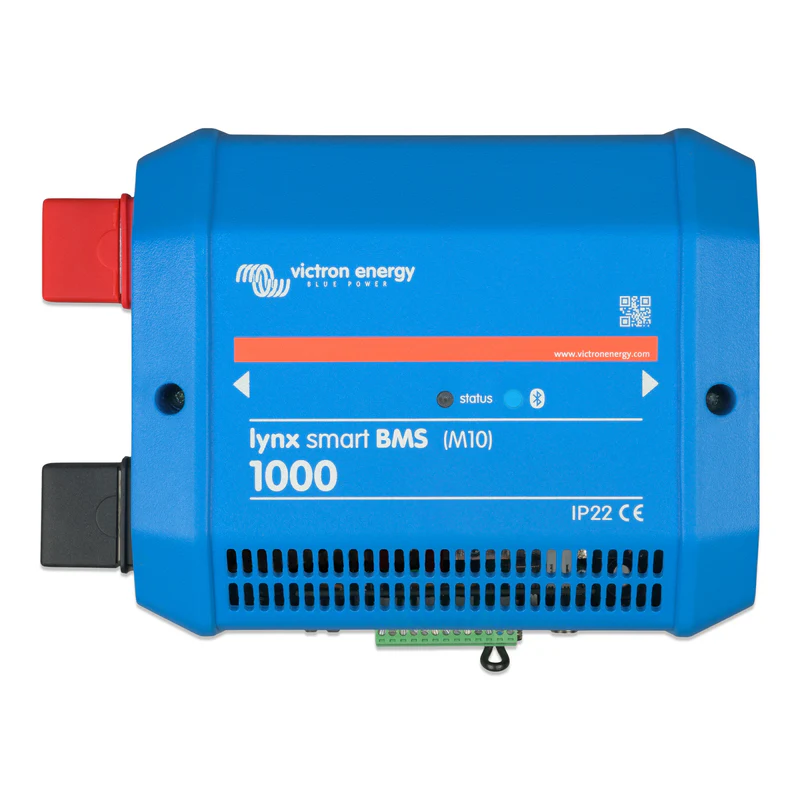

Victron Energy Lynx Smart BMS 1000

Download Data Sheet  View User Manual

The Victron Lynx Smart BMS 1000 is a battery management system designed for Victron Lithium Battery Smart batteries. It combines battery monitoring, safety protection and system control in a modular Lynx distribution system for 12V, 24V or 48V installations.

FEATURES

• Built-in 1000A safety contactor with integrated pre-charge circuit

• Bluetooth monitoring and configuration through VictronConnect

• Integrated battery monitor with state of charge, voltage and current data

• ATC/ATD control contacts and pre-alarm signal

• VE.Can communication with GX devices and NMEA 2000 networks

• Programmable relay and 1.1A auxiliary power output

• Monitors fuses in up to 4 connected Lynx Distributors

• Supports parallel redundancy with up to 5 Lynx Smart BMS units

SPECIFICATIONS

• System voltage: 12V, 24V or 48V

• Supply voltage range: 9–60V DC

• Contactor rating: 1000A continuous; 1200A for 5 minutes

• Busbar connections: M10

• Auxiliary output: 1.1A continuous

• Programmable relay: 2A at 60V DC maximum

• Protection rating: IP22

• Dimensions: 230 × 180 × 100mm

• Weight: 2.7kg

• Operating temperature: -40°C to +60°C

IMPORTANT

• Designed exclusively for Victron Lithium Battery Smart batteries.

• Requires a compatible GX device for DVCC closed-loop control of compatible Victron chargers and inverter/chargers.

• No reverse-polarity protection. Verify all connections before powering the system.
