NW Conversions 20 Gallon Galley Water Tank (Fresh/Grey)

https://canadarv.com/web/image/product.template/7057/image_1920?unique=21ac8bc

Specifications

  • Capacity: 20 gallons

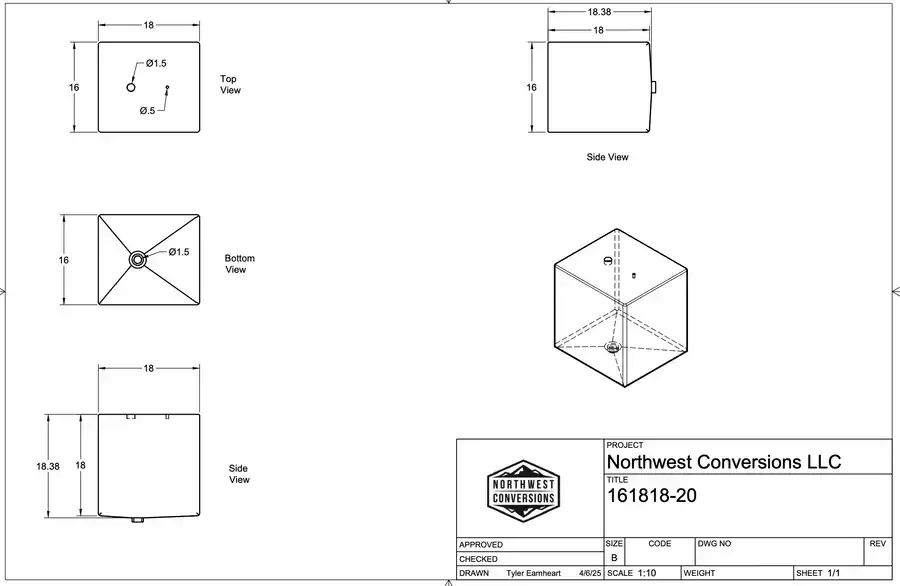

  • Dimensions: 16” L × 16” W × 18” H

  • Weight: 16 lbs

  • Material: BPA-free, food-grade polyethylene

  • Venting: Gravity fill/vent required (do not pressurize)

  • Compatibility: Fits Sprinter, Transit, ProMaster, and other RV or custom build platforms

500.00 $ 500.0 CAD 500.00 $

Contact us for quote

  • Shipping option

This combination does not exist.

Contact Us

Terms and Conditions
Return within 30 days for most orders
Free delivery on most orders

NW Conversions 20 Gallon Galley Water Tank (Fresh/Grey)

Introduction

The 20-gallon galley water tank provides ample fresh or grey water storage while efficiently using limited interior space. Its compact design fits neatly into galley cabinets, bench seats, or custom storage cavities, making it ideal for Sprinter, Transit, and ProMaster van conversions or other RV builds.

Features

  • Space-Saving Design: Box-shaped 16” × 16” × 18” footprint optimized for tight areas such as kitchen galleys or interior cavities.

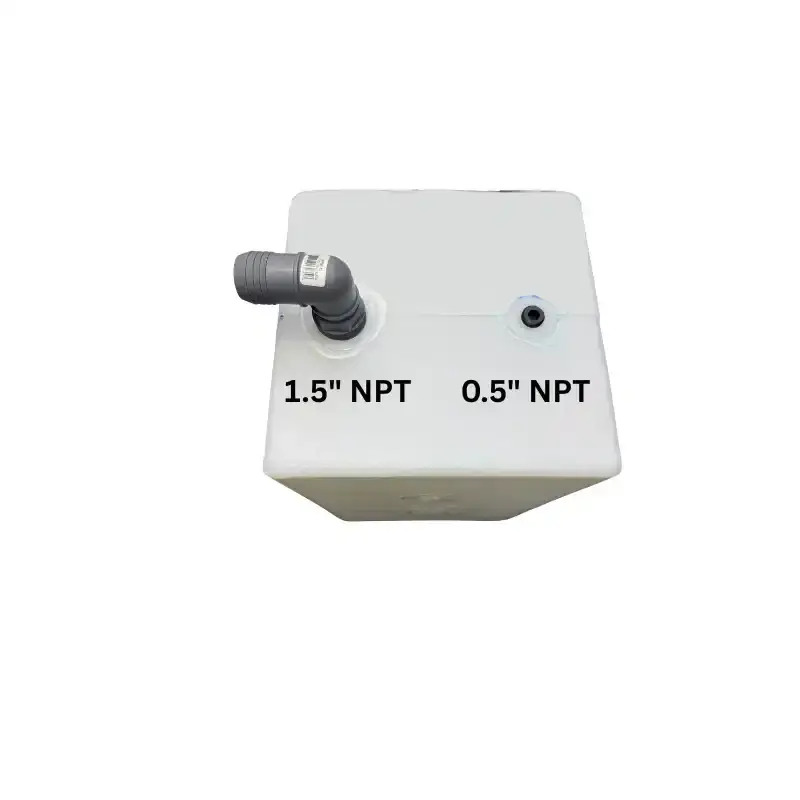

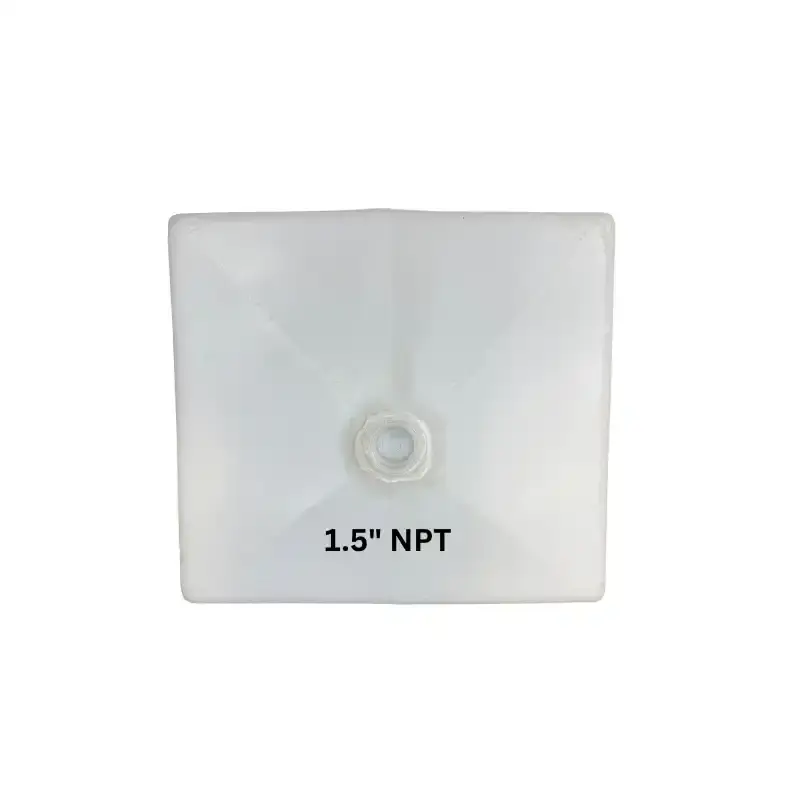

  • Versatile Plumbing: Equipped with standard ½” and 1.5” NPT fittings for easy connection to fill lines, pumps, or level sensors.

  • Certified & Safe: Rotomolded from BPA-free, food-grade polyethylene; IAPMO TS 4 tested, TEI listed, and RVIA+ certified.

  • Lightweight & Durable: Weighs only 16 lbs while withstanding vibrations and daily use on the road.

  • Made in the USA: High-quality domestic construction ensures long-term reliability.

Optional Notes

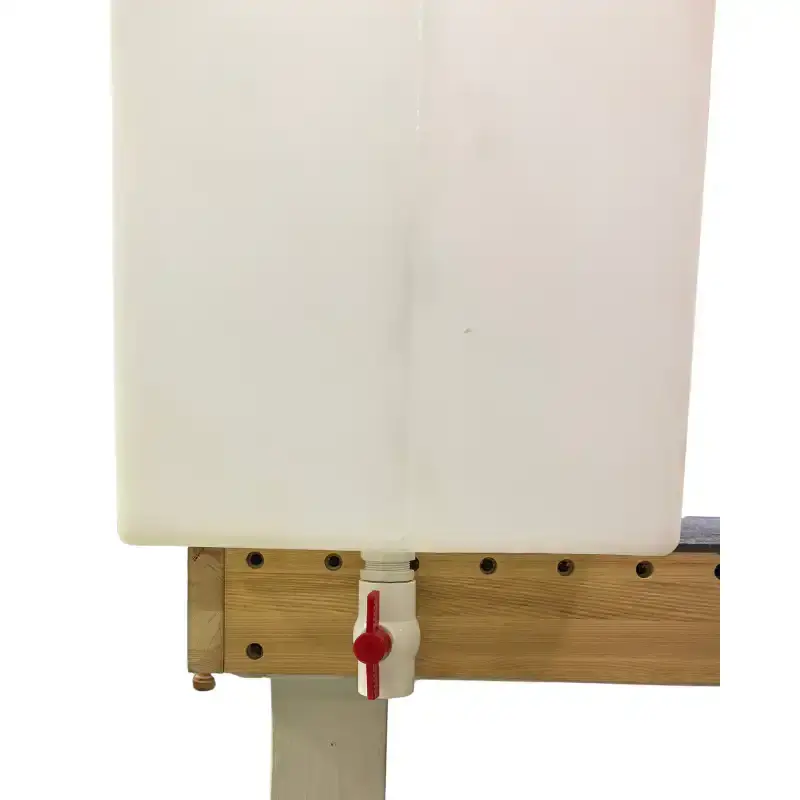

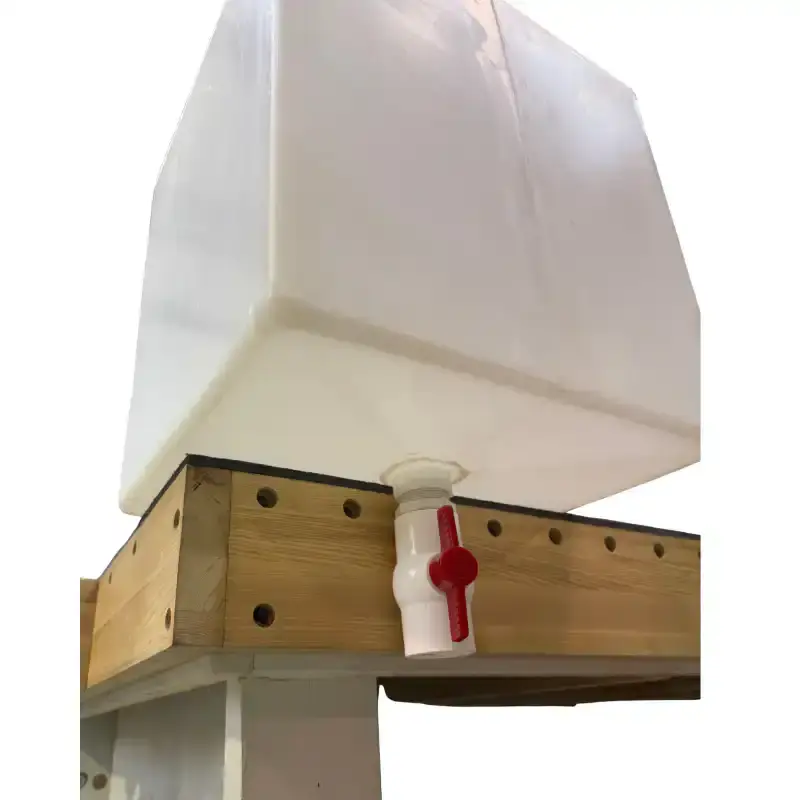

  • Can drain through subfloor with a ball valve or connect to an undermount tank for expanded water storage.

  • Ideal for DIY van builders, professional upfitters, and compact RV conversions.

  • Perfect for kitchens, wet bars, or small galley setups requiring fresh or grey water storage.
