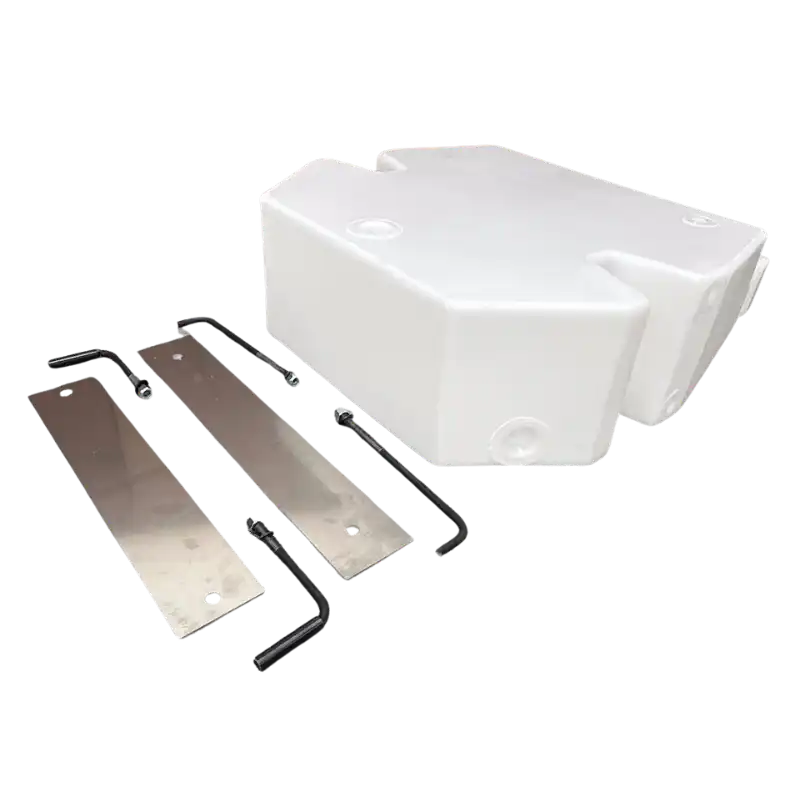

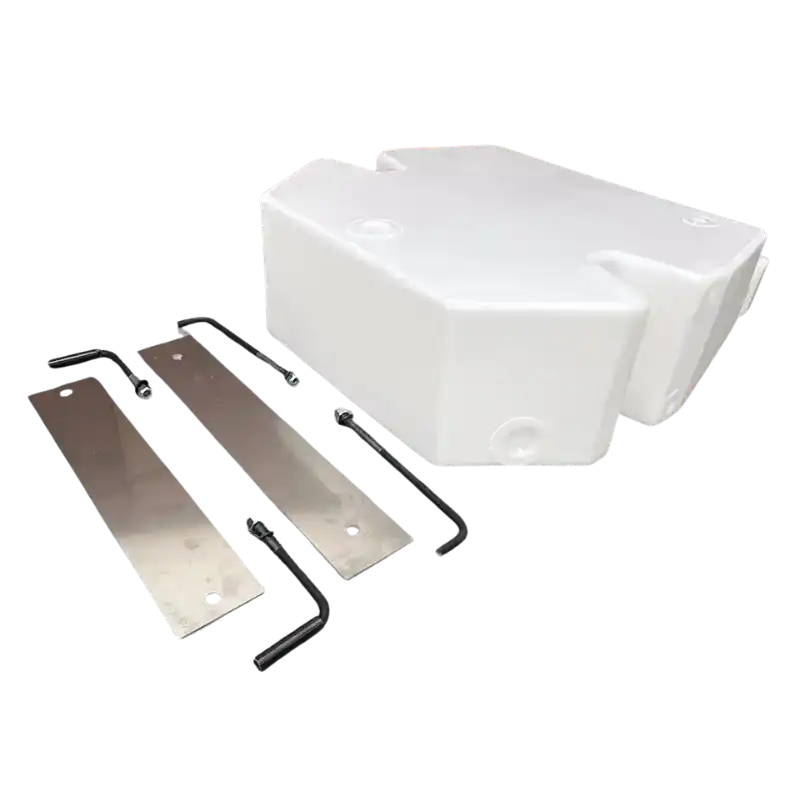

NW Conversions 24 Gallon Ford Transit Spare Tire Tank (TR-ST-24)

Convert the Ford Transit’s factory spare tire location into additional water storage with this purpose-built 24-gallon tank. Designed to use the supplied mounting hardware for a clean, secure installation, it allows the spare tire to be relocated to the rear door while adding substantial water capacity without taking up interior living space.

The tank can be used for fresh or grey water and is made from BPA-free, food-grade polyethylene. It is IAPMO TS-4 and TEI Listed, RVIA Approved, and made in the USA.

FEATURES & SPECIFICATIONS

• 24 US gallons capacity
• Fresh water or grey water

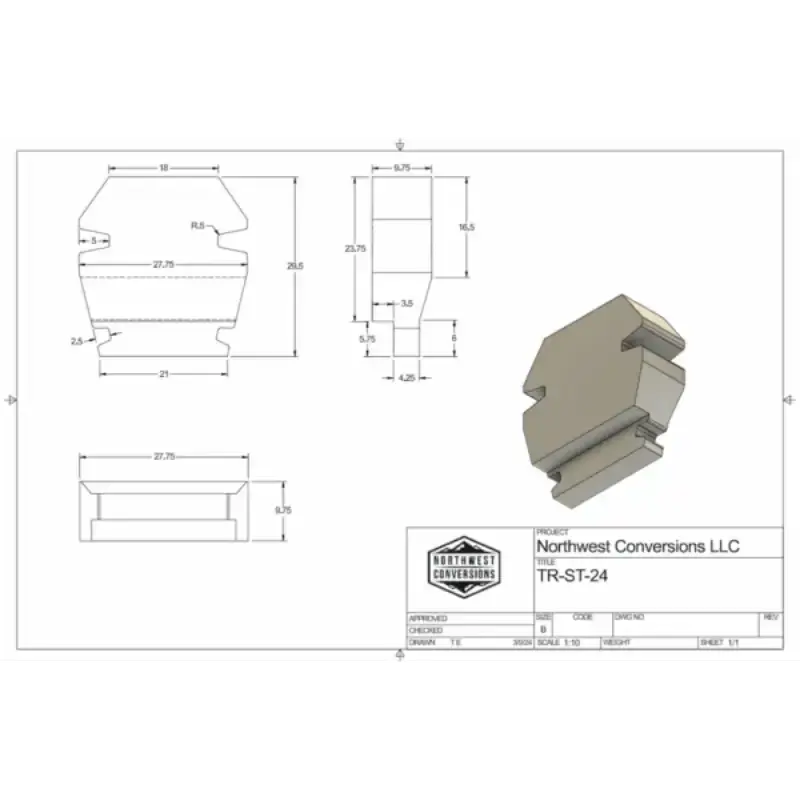

• Nominal dimensions: 29.5" L × 27.75" W × 9.75" H
• Actual dimensions may vary by up to 1.5%
• Dry weight: 22 lb
• Filled weight: 222 lb
• Recommended water level sensor: KUS S5U-9
• BPA-free, food-grade polyethylene
• IAPMO TS-4 / TEI Listed / RVIA Approved
• Made in the USA

MOUNTING & PORTS

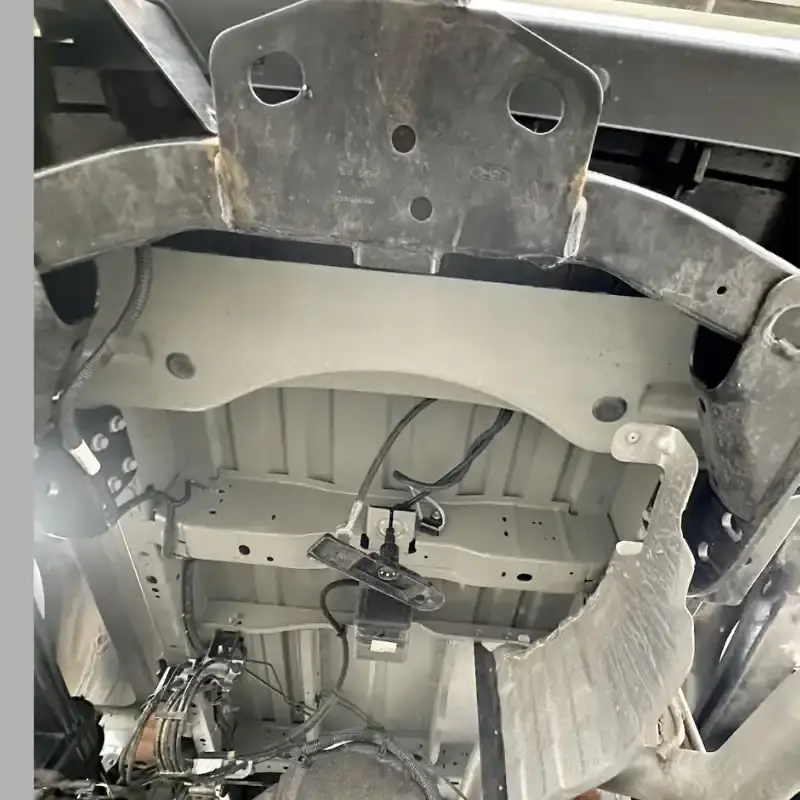

• Designed for the Ford Transit factory spare tire location

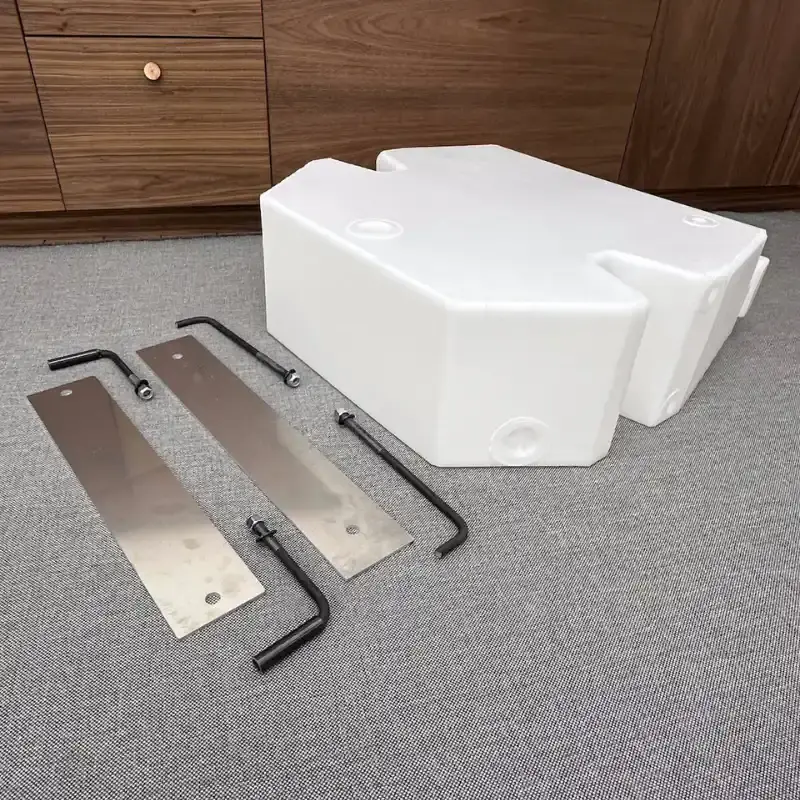

• 1/2" mounting hardware and mounting plates included
• Not designed for pressurized systems; must be properly vented
• Driver side: 2 × 1.5" NPT + 2 × 1/2" NPT
• Top: 1 × 1.5" NPT + 1 × 1/2" NPT for a float sensor or vent
