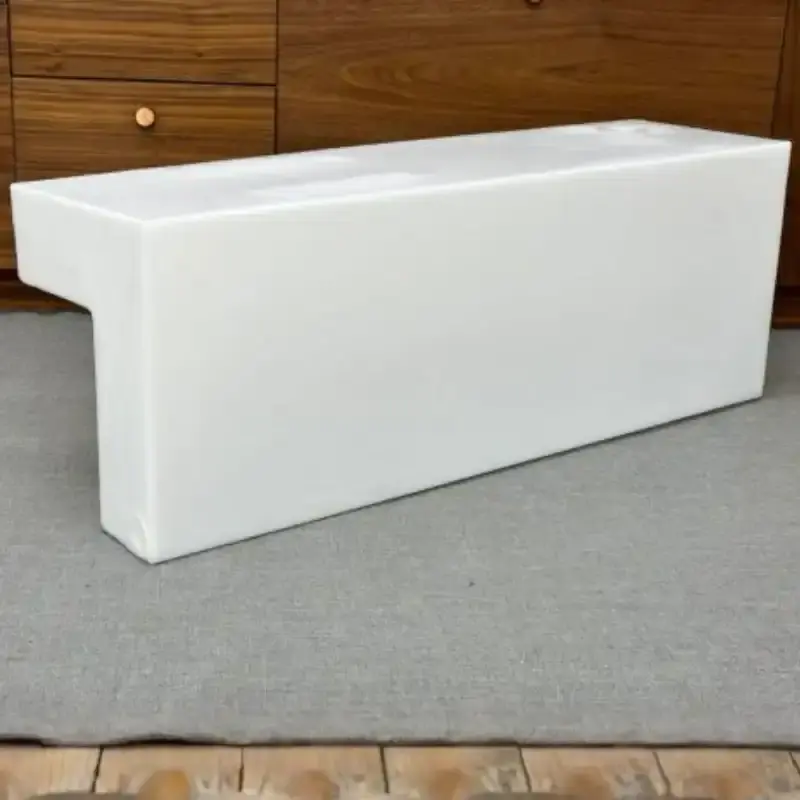

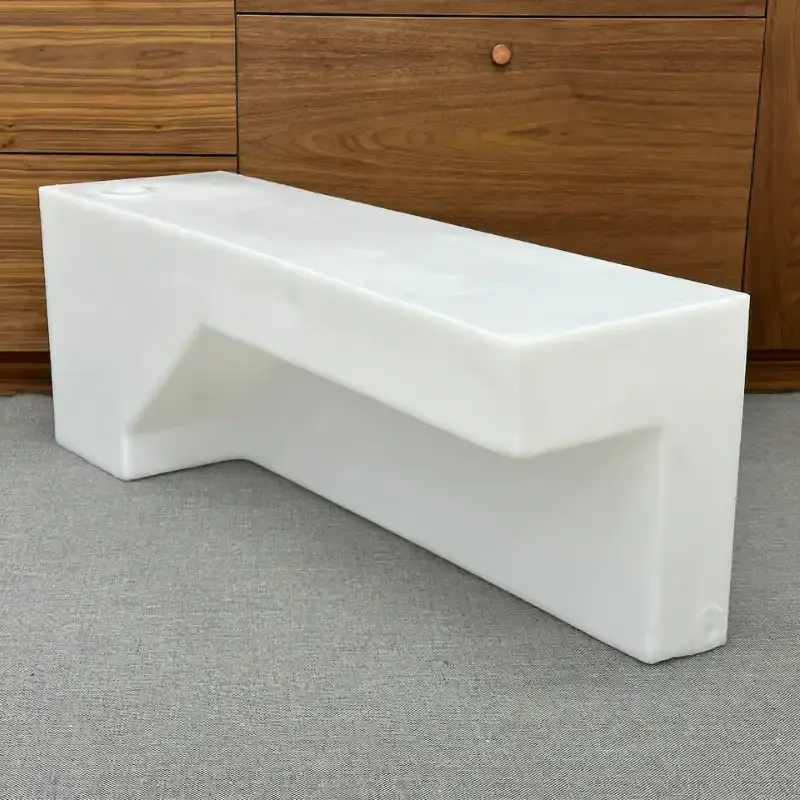

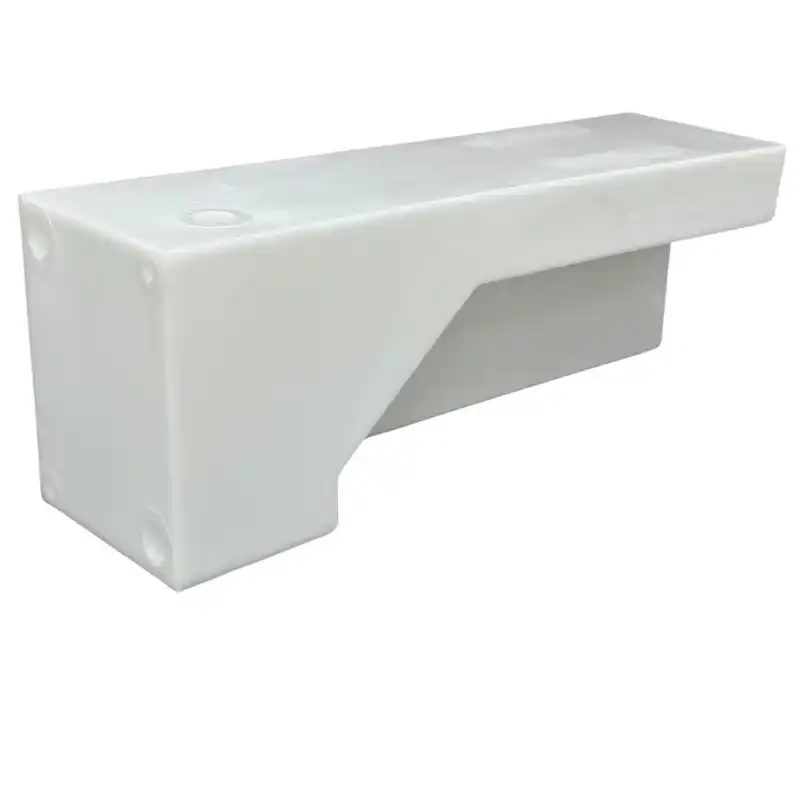

NW Conversions 24 Gallon Ford Transit Wheel Well Water Tank - Right (TR-R-24)

The TR-R-24 is designed specifically for the Ford Transit, fitting into the wheel well area to add water storage while preserving your interior floor space. Its offset design positions the tank toward the rear of the wheel well on the passenger side or toward the front on the driver side.

Made from BPA-free, food-grade polyethylene, the tank provides 24 gallons of water capacity and is designed for non-pressurized systems. It must be properly vented and includes adjustable straps and mounting brackets for installation.

FEATURES & SPECIFICATIONS

• 24 US gallons capacity

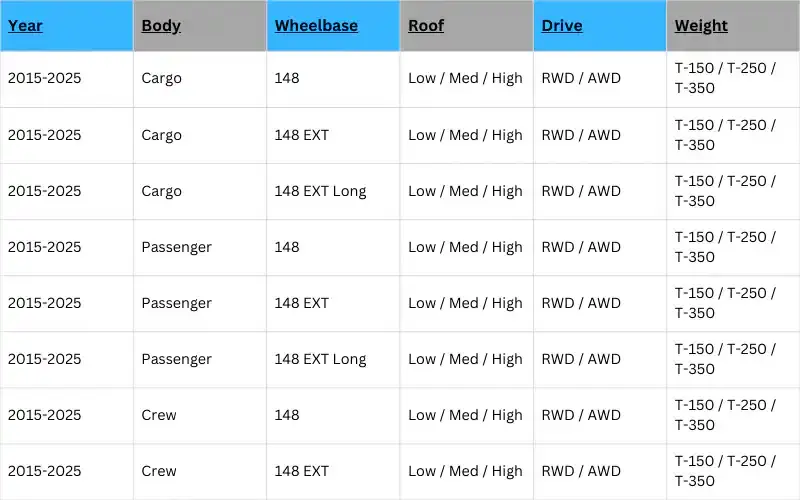

• Designed specifically for the Ford Transit

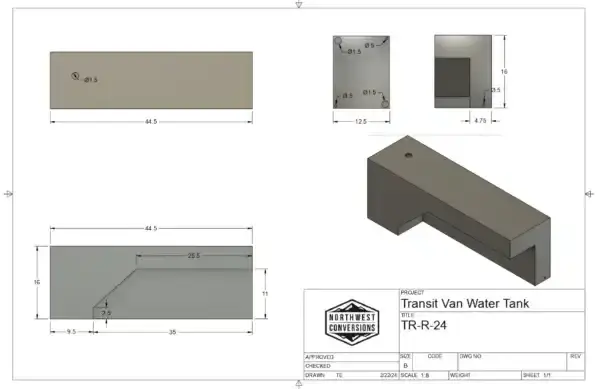

• Nominal dimensions: 44.5" L × 12.5" W × 16" H
• Actual dimensions may vary by up to 1.5%
• Dry weight: 22 lb
• Filled weight: 222 lb
• Recommended water level sensor: KUS S5U-15
• BPA-free, food-grade polyethylene
• IAPMO TS-4 certified / TEI Listed / RVIA Approved
• Made in the USA
• Not designed for pressurized systems; must be vented

MOUNTING & PORTS

• 2 adjustable straps and 4 mounting brackets included
• Rectangular end: 2 × 1.5" NPT ports, pre-marked for drilling, plus 2 × 1/2" NPT ports
• Open end: 1 × 1/2" NPT port
• Top: 1 × 1.5" NPT port, pre-marked for drilling, for filling or a level sensor

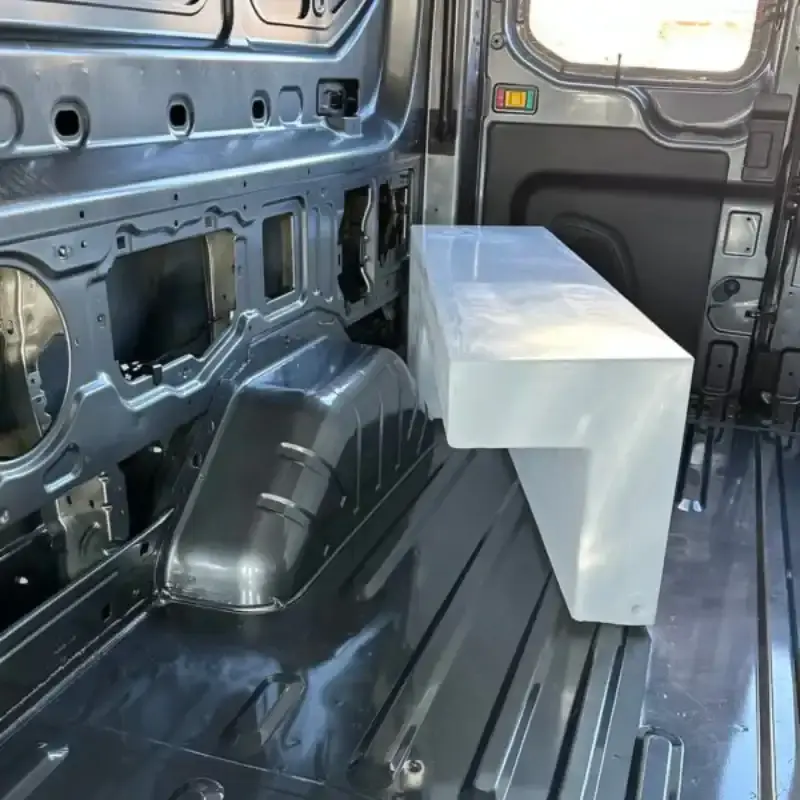

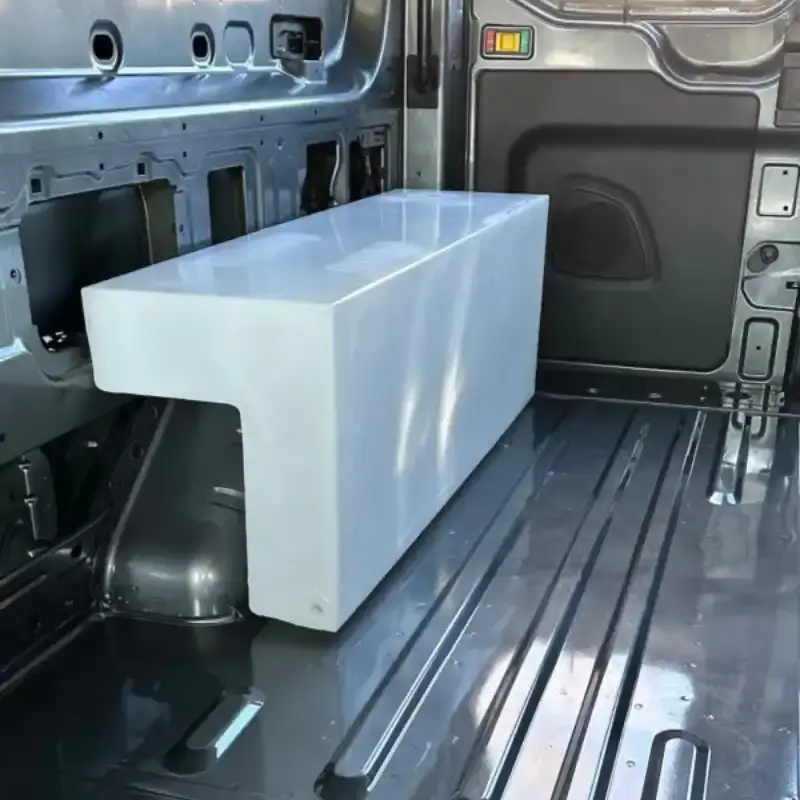

• Passenger side: tank sits primarily toward the rear of the wheel well
• Driver side: tank sits primarily toward the front of the wheel well
• May also fit other vehicle makes and models
