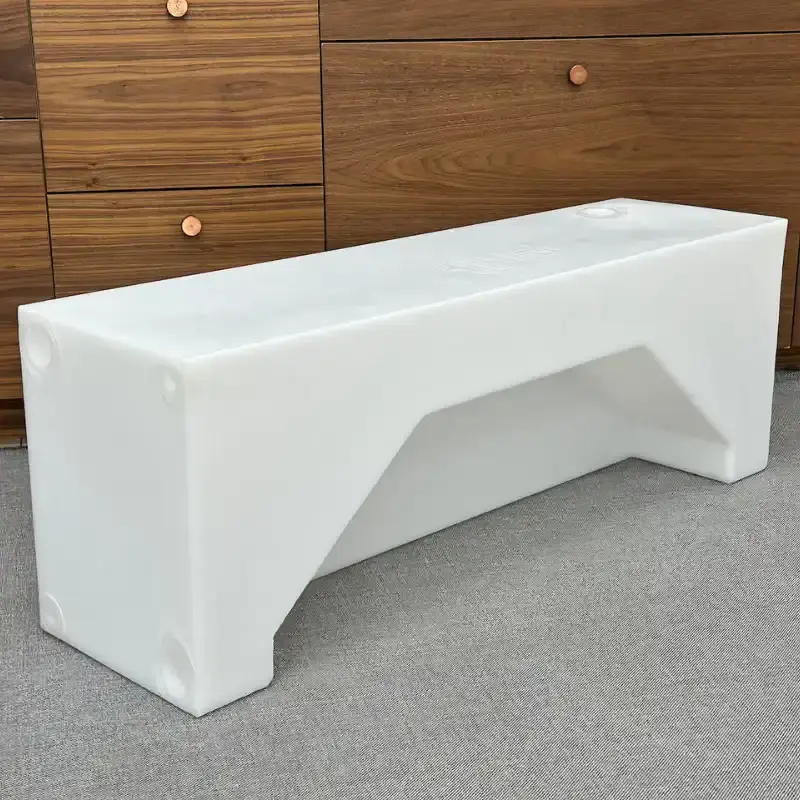

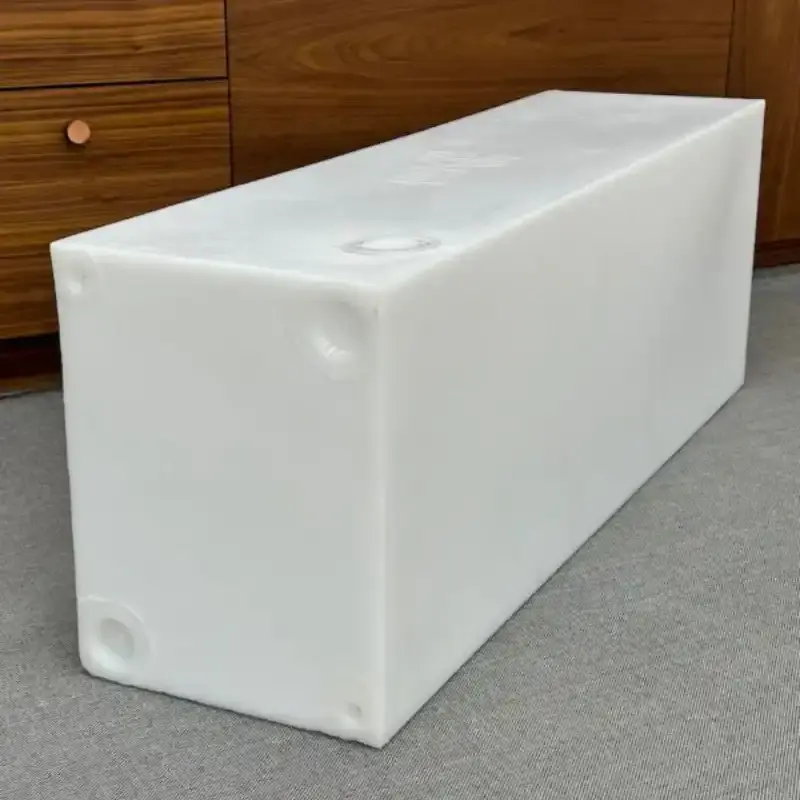

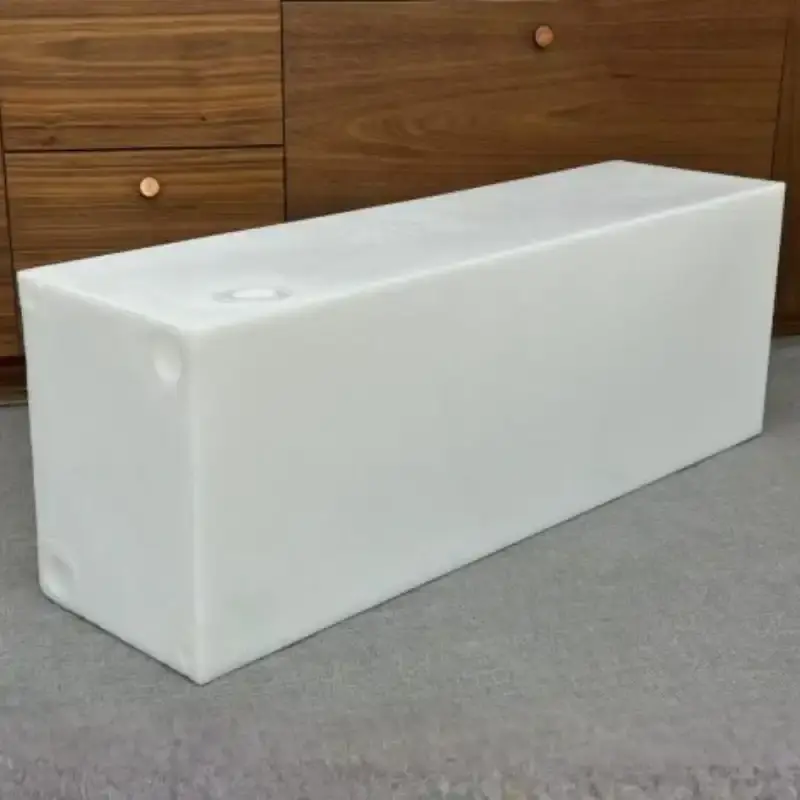

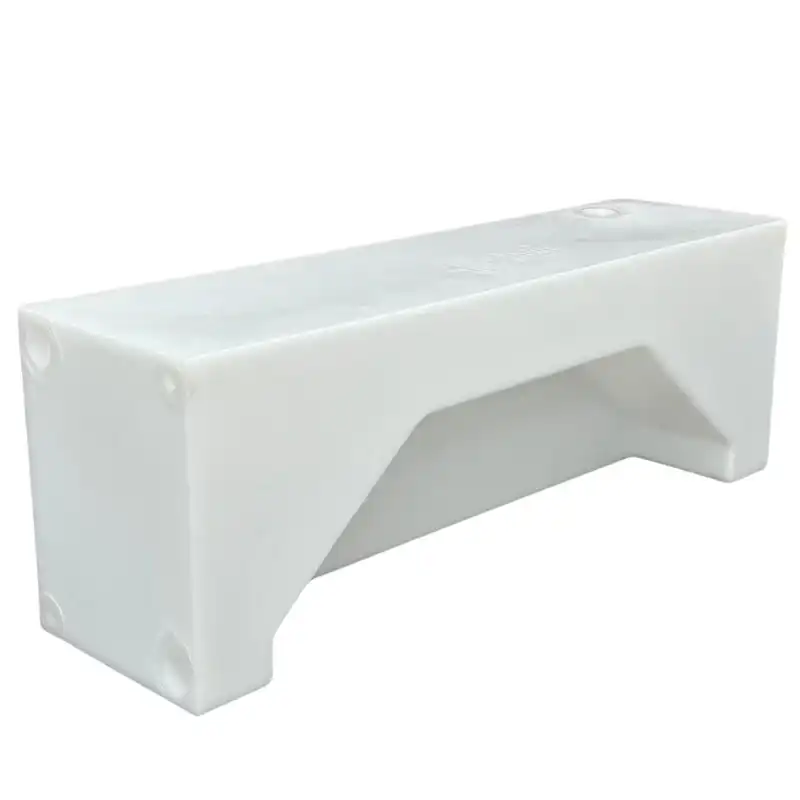

NW Conversions 25 Gallon Ford Transit Wheel Well Water Tank - Center (TR-C-24)

The TR-C-24 is designed specifically for the Ford Transit, fitting over the wheel well to add water storage while preserving your interior floor space. Its centered design allows the tank to be positioned on either the driver or passenger side of the van.

Made from BPA-free, food-grade polyethylene, the tank provides 24 gallons of water capacity and is designed for fresh or grey water applications. It is non-pressurized and must be properly vented.

FEATURES & SPECIFICATIONS

• 24 US gallons capacity
• Designed specifically for the Ford Transit
• Can be positioned on the driver or passenger side

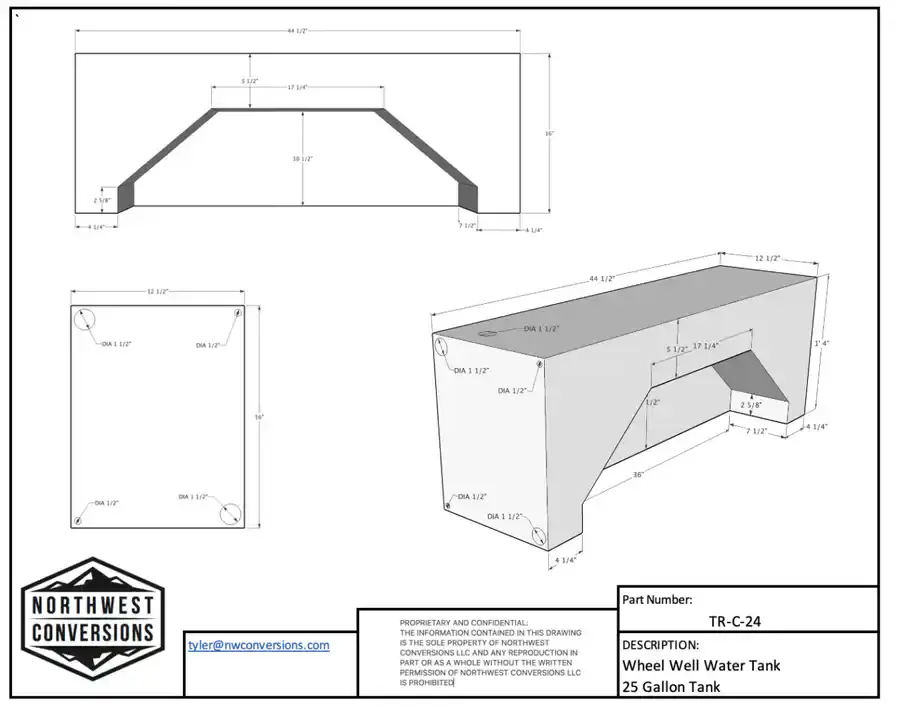

• Nominal dimensions: 44.5" L × 12.5" W × 16" H
• Actual dimensions may vary by up to 1.5%
• Dry weight: 22 lb
• Filled weight: 222 lb
• Recommended water level sensor: KUS S5U-15
• BPA-free, food-grade polyethylene
• IAPMO TS-4 certified / TEI Listed / RVIA Approved
• Made in the USA
• Not designed for pressurized systems; must be vented

MOUNTING & PORTS

• 2 adjustable straps and 4 mounting brackets included
• 2 × 1.5" NPT ports on each end, pre-marked for drilling
• 2 × 1/2" NPT ports on each end
• 1 × 1.5" NPT port on top, pre-marked for drilling, for filling or a level sensor
