Victron Energy – Orion-Tr Smart 12/12-30A (360W) Isolated DC-DC Charger
100% original guarantee
Return within 30 days for most orders
Free delivery on most orders

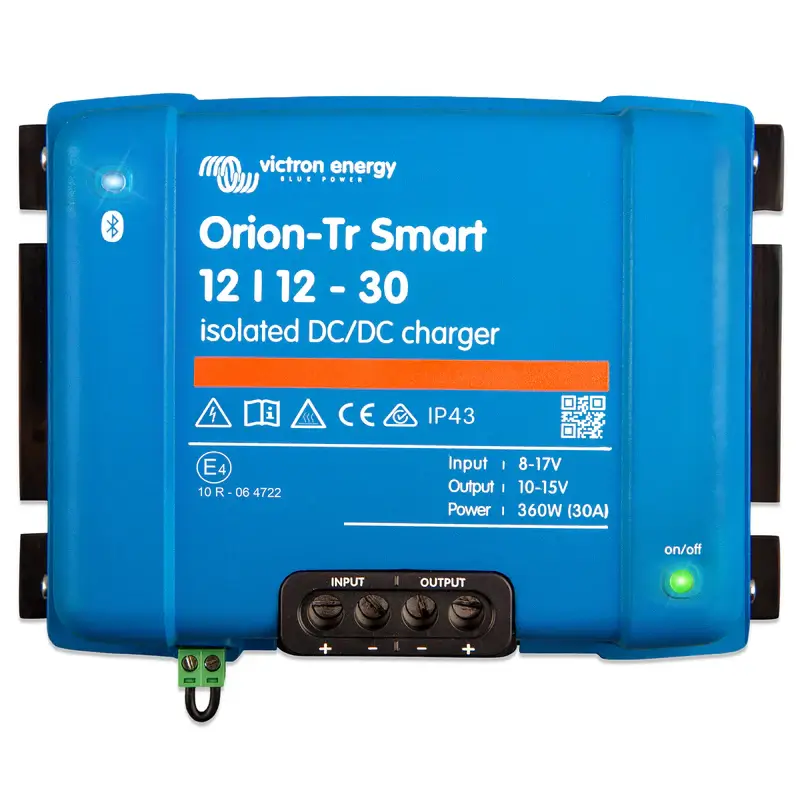

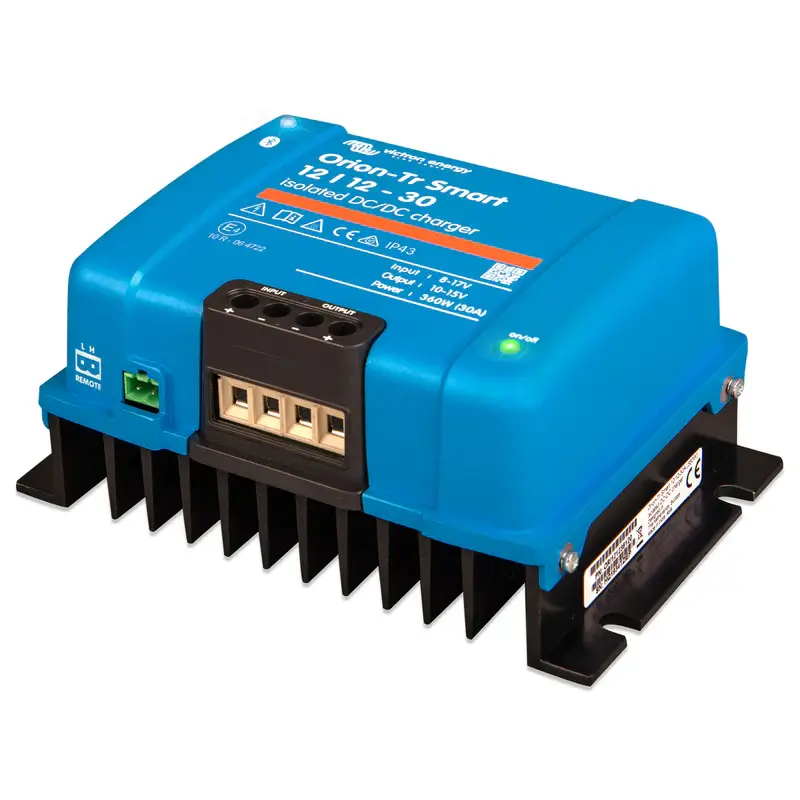

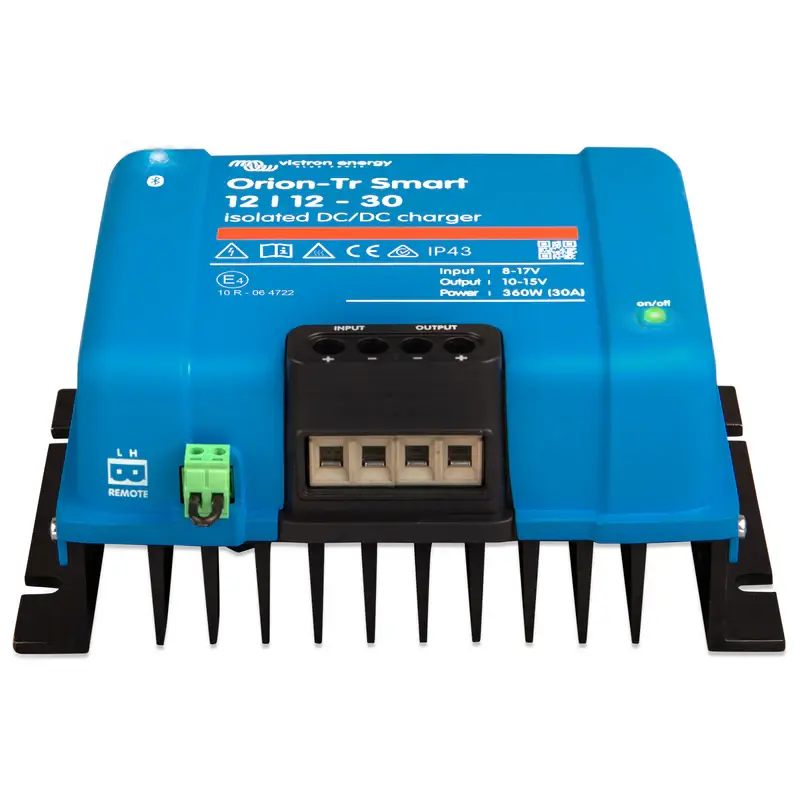

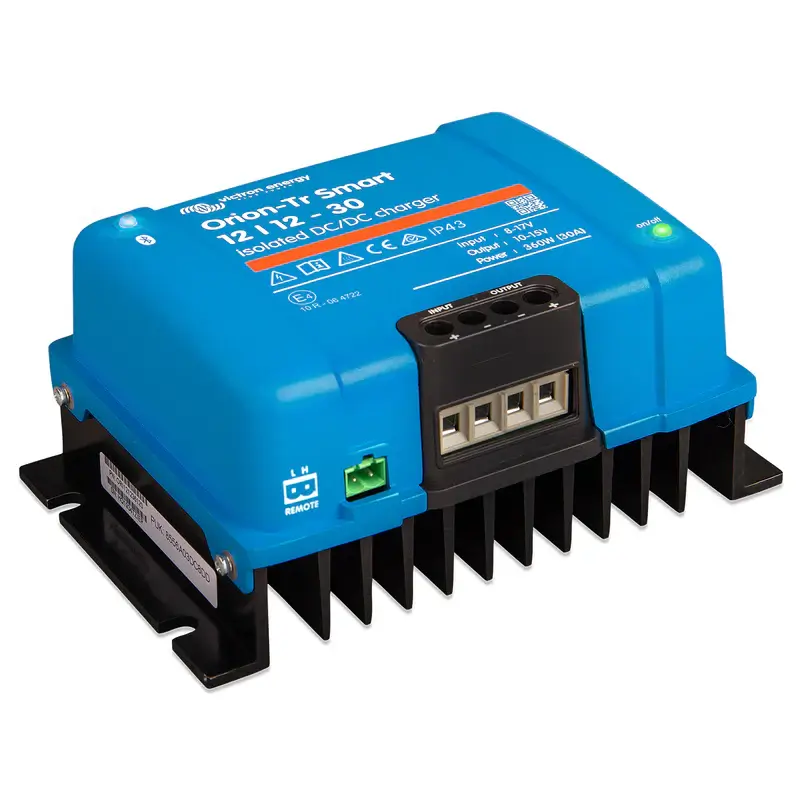

Victron Orion-Tr Smart 12/12-30A (360W) Isolated DC-DC Charger
The Victron Orion-Tr Smart 12/12-30A (360W) is a high-performance, isolated DC-DC charger designed for dual battery systems in vehicles, boats, and RVs. It efficiently charges a 12V service battery from a 12V starter battery, ensuring optimal performance even in demanding conditions.
Key Features:
- Adaptive 3-Stage Charging: Utilizes bulk, absorption, and float stages to maximize battery life and efficiency.
- Bluetooth Smart Enabled: Monitor and configure settings via the VictronConnect app on your smartphone or tablet.
- Engine Shutdown Detection: Prevents unwanted discharge of the starter battery by ceasing charging when the engine is off.
- Fully Programmable: Customizable charging algorithms or fixed output voltage settings to suit various battery types.
- High Temperature Protection: Operates safely up to 55°C ambient temperature, with full rated output up to 40°C.
- IP43 Protection Rating: Suitable for installation in mobile and residential applications when mounted with screw terminals facing downwards.
- Parallel Capable: Multiple units can be connected in parallel to increase output current, providing scalable power solutions.
Specifications:
- Model: ORI121236120
- Input Voltage Range: 10–17 V DC
- Output Voltage: 12.2 V DC (adjustable between 10–15 V)
- Rated Power: 360W (30A)
- Under Voltage Shutdown: 7.0 V
- Under Voltage Restart: 7.5 V
- Weight: Approximately 1.92 kg
- Dimensions: L 160 mm × W 97 mm × H 38 mm
Applications:
Ideal for use in vehicles with smart alternators (Euro 5 and Euro 6 engines), boats, RVs, and other mobile setups requiring reliable and efficient charging solutions.
