Victron Energy Orion 12/24-10 DC-DC Converter

Download Datasheet View Manual

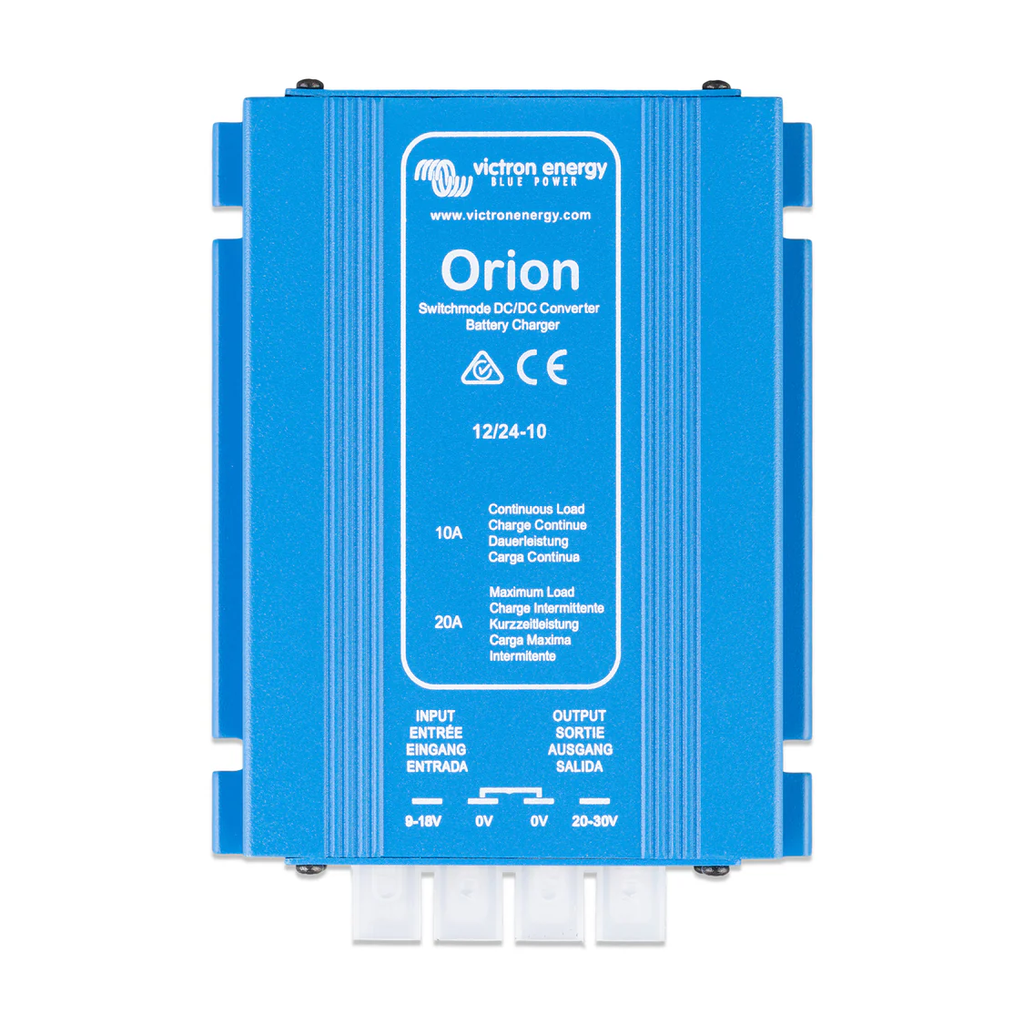

The Victron Energy Orion 12/24-10 DC-DC Converter converts a 12V DC power source into an adjustable 24V output for compatible equipment and electrical systems. Its compact, non-isolated design delivers up to 10A of continuous output, with adjustable voltage settings that also allow it to be used for buffer charging compatible 24V batteries.

FEATURES

• Voltage conversion: Converts 12V DC input to adjustable 20–30V DC output

• 10A continuous output current, with up to 20A maximum

• Factory output setting of 26.4V

• High efficiency of up to 95%

• Adjustable output allows buffer charging of compatible batteries

• Multiple units can be connected in parallel to increase output current

• Compact design with 6.3mm insulated Faston connections

SPECIFICATIONS

• Model: Orion 12/24-10

• Input voltage range: 9–18V DC

• Undervoltage shutdown: 8V

• Undervoltage restart: 10V

• Output voltage: Adjustable from 20–30V DC

• Factory output setting: 26.4V

• Continuous output current: 10A

• Maximum output current: 20A

• Efficiency: 95%

• No-load current: Less than 15mA

• Galvanic isolation: None

• Operating temperature: -20°C to +55°C

• Temperature derating: 3% per °C above 40°C

• DC connections: 6.3mm Faston terminals

• Dimensions: 45 × 90 × 125mm (1.8 × 3.5 × 4.9 in)

• Weight: 0.4kg (0.9lb)

• Warranty: 5-year limited warranty

IMPORTANT

• This is a 12V-to-24V converter, not a 24V-to-12V converter.

• The unit is non-isolated; input and output do not have galvanic isolation.

• The output voltage must be adjusted to match the requirements of the connected equipment or battery.

• Buffer charging requires an appropriate voltage setting for the battery being charged.

• This model does not include a remote on/off connector.
