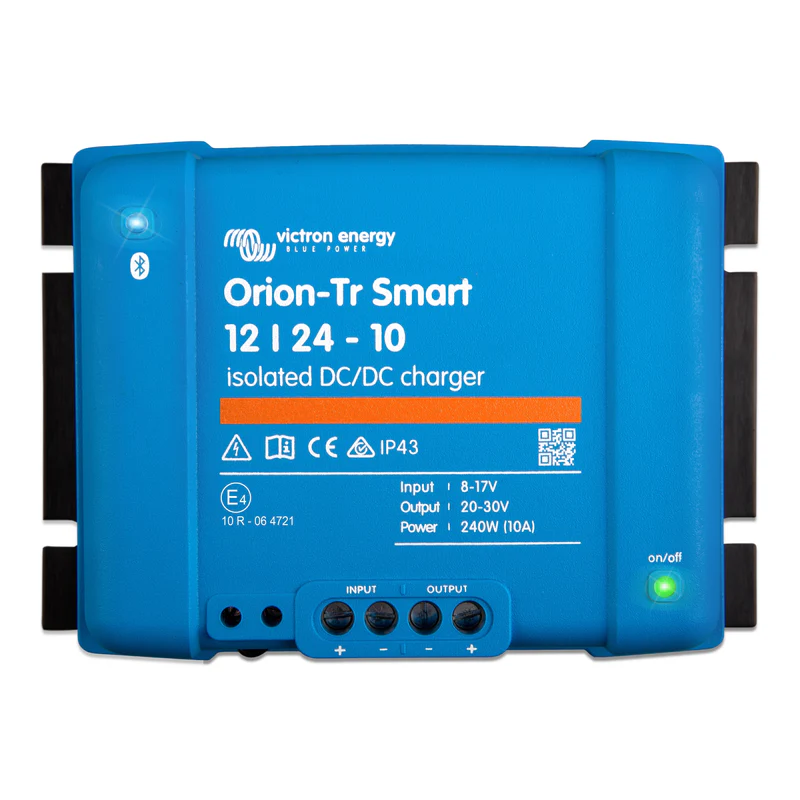

Victron Energy Orion-Tr Smart 12/24-10A (240W) Isolated DC-DC Charger

Technical Specifications  User manual

Victron Energy Orion-Tr Smart DC-DC Charger 12V/24V-10A Isolated – 360W

Smart, Efficient, and Safe Charging for 24V Battery Systems

Ensure safe and optimized charging of your 24V battery bank with the Victron Energy Orion-Tr Smart DC-DC Charger 12V/24V-10A Isolated. This compact and powerful charger is ideal for vehicles, boats, and off-grid systems using smart alternators or experiencing voltage drops over long cable runs.

Key Features:

• Smart Isolated DC-DC Charging
  Safely charges a 24V service battery from a 12V source using a fully isolated design, preventing unwanted electrical interference.
• Bluetooth Connectivity
  Configure, monitor, and update via the VictronConnect app—no wires or external interfaces required.
• Fully Programmable
  • Customizable charging algorithms
  • Adjustable output voltage
  • Engine running detection for smart alternators (Euro 5/6)
• Adaptive 3-Stage Charging
  Optimizes charge time and battery health with bulk, absorption, and float stages. Fixed absorption time for lithium batteries.
• Engine Shutdown Detection
  Stops charging when the engine is off, protecting the starter battery from unintended drain.
• Parallel Operation Supported
  Combine multiple units to increase output current as needed.
• Remote On/Off Function
  Integrate with external switches or relays for added control.
• Rugged & Reliable
  • IP43-rated when installed with terminals facing downward
  • Short-circuit proof
  • Output current reduces in high temperatures for added safety

Technical Specifications:

• Input Voltage: 12V DC
• Output Voltage: 24V DC
• Output Current: 10A
• Max Output Power: 360W
• Galvanically Isolated: Yes
• Protection Rating: IP43
• Communication: Bluetooth Smart
• Terminals: Screw (no special tools required)
• Dimensions: Compact form factor, easy to install

Ideal For:

✔️ RVs, boats, service vehicles

✔️ 12V to 24V battery conversions

✔️ Smart alternator-equipped systems
