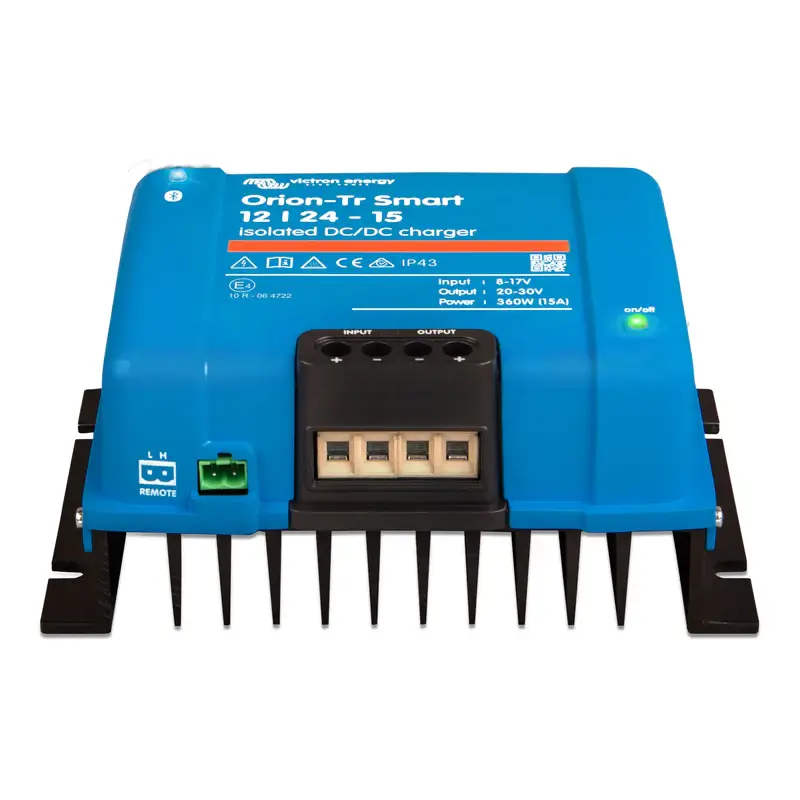

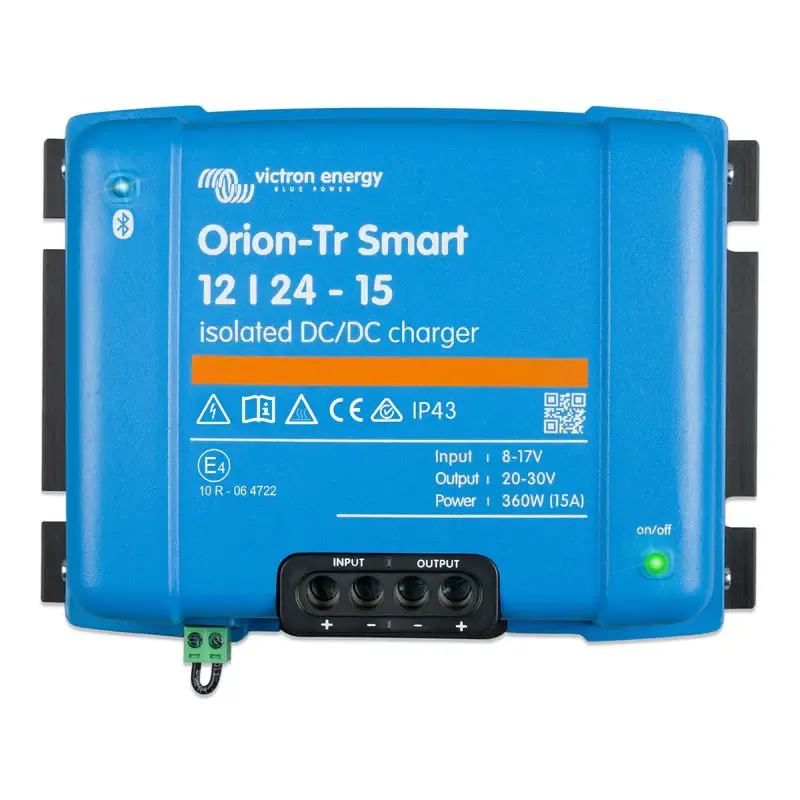

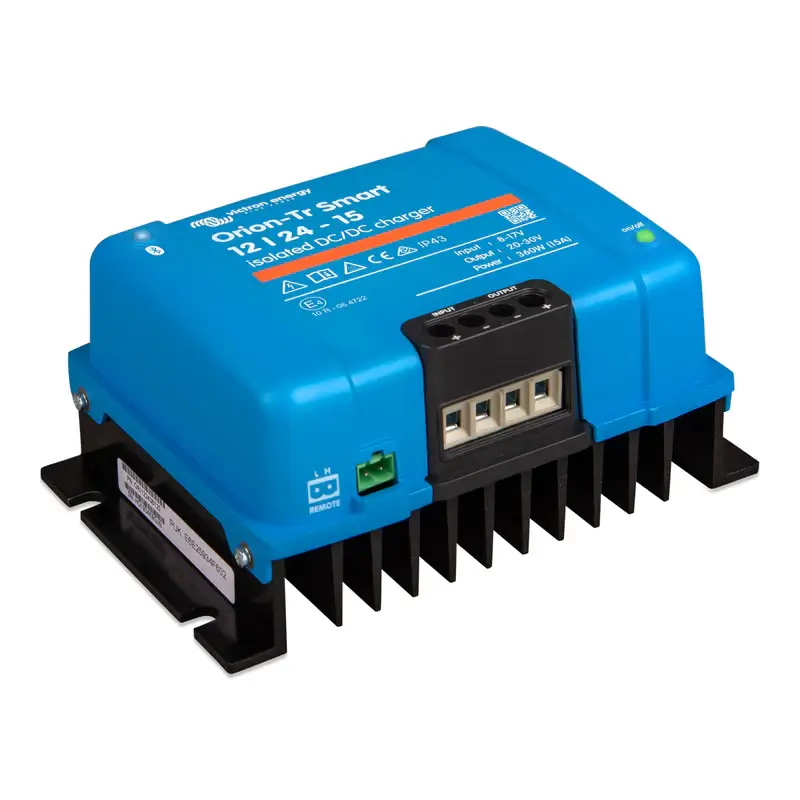

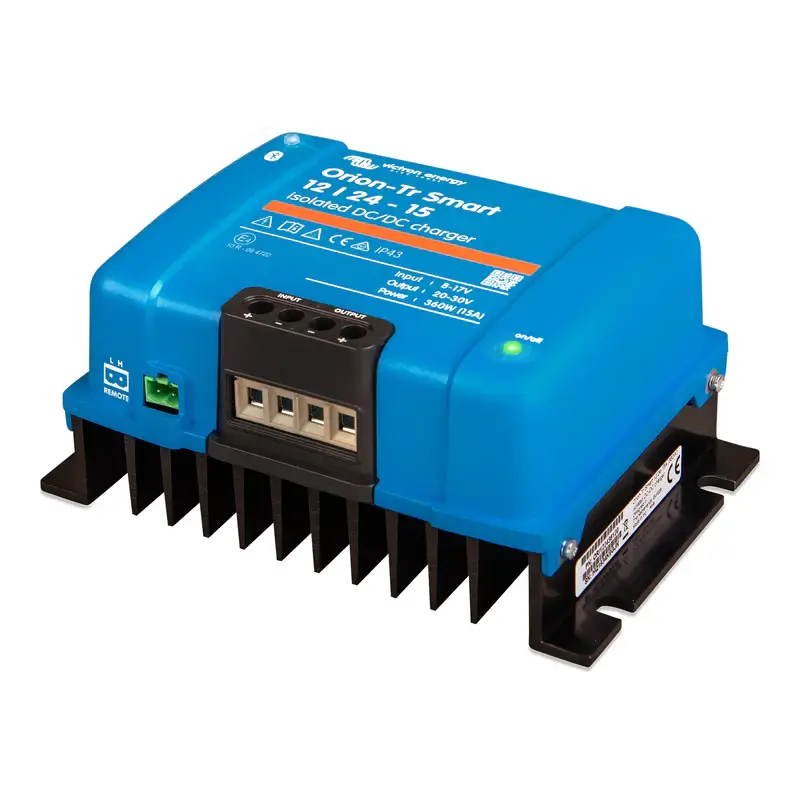

Victron Energy Orion-Tr Smart 12/24-15A (360W) Isolated DC-DC Charger

https://canadarv.com/web/image/product.template/5886/image_1920?unique=f71a9d6

341.33 $ 341.33 CAD 341.33 $

Contact us for quote

This combination does not exist.

Contact Us

Terms and Conditions
Return within 30 days for most orders
Free delivery on most orders

Technical Specifications  User manual

Victron Energy Orion-Tr Smart DC-DC Charger 12V/24V-15A Isolated

Efficient Charging for Dual Battery Systems in RVs, Boats & Vehicles

Ensure safe, efficient, and intelligent charging of your 24V battery bank with the Victron Energy Orion-Tr Smart DC-DC Charger (12V to 24V, 15A, Isolated). This advanced charger is designed to handle modern energy demands, especially in systems using Euro 5/6 smart alternators, long cable runs, or dual-battery setups in RVs, boats, and off-grid vehicles.

Key Features:

  • Smart Charging Control via Bluetooth
    Monitor and configure charging parameters using the VictronConnect app on your smartphone or tablet. View real-time status, alarms, and system health data instantly.
  • Isolated Design for Enhanced Safety
    Electrical isolation between input and output improves system safety and protects sensitive electronics.
  • Fully Programmable Charging Algorithm
    Supports both custom and preset charging profiles, including lithium and lead-acid chemistries.
  • Adaptive 3-Stage Charging
    Bulk, Absorption, and Float modes intelligently adapt to battery condition to ensure optimal charging and battery longevity.
  • Smart Alternator Compatible
    Works seamlessly with Euro 5/6 vehicles. Prevents service battery drain when the engine is off with built-in engine run detection.
  • Remote On/Off Control
    Enables integration with ignition systems or remote switches without needing high-current wiring.
  • Scalable Output
    Parallel multiple units for higher current output.
  • Built-In Safety Protections
    Short-circuit proof, high-temperature protection, and IP43 weather-resistant when installed with terminals facing downward.

Specifications:

  • Input Voltage: 12V DC
  • Output Voltage: 24V DC
  • Output Current: 15A
  • Power Rating: 360W
  • Protection Class: IP43
  • Bluetooth Enabled: Yes
  • Mounting: Screw terminals (no special tools required)
  • Fuse: Internal (non-replaceable)

Ideal for:

RV, camper, van conversion, marine systems, and off-grid applications requiring 12V to 24V step-up charging.
