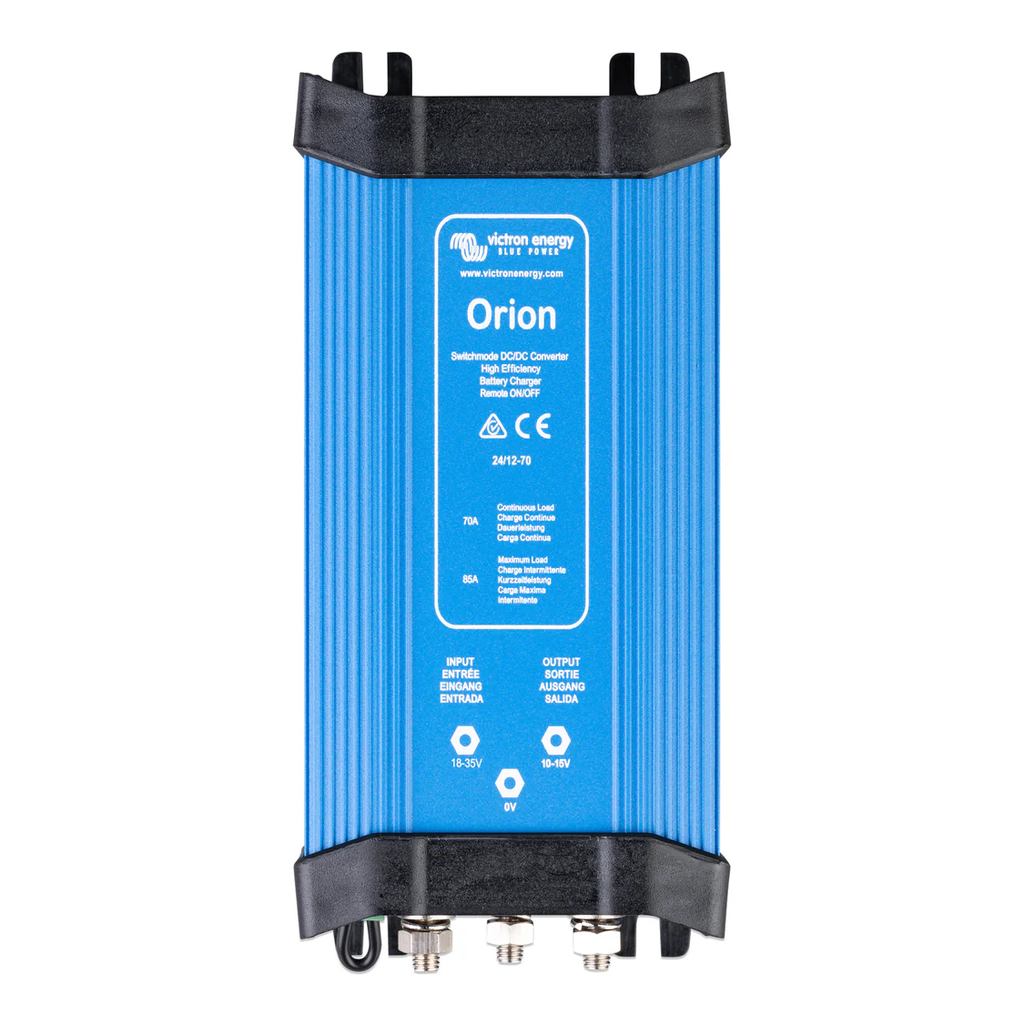

Victron Energy Orion 24/12-70A DC-DC Converter

Victron Energy Orion 24/12-70A DC-DC Converter – Non-Isolated, High Power (IP20)

The Victron Orion 24/12-70A DC-DC Converter is a powerful and efficient solution designed to step down 24V DC input to a stable 12V DC output, delivering up to 70A of current. Engineered for high-demand applications, it is ideal for vehicles, boats, and off-grid systems where dependable 12V power is required from a 24V system.

Key Features:

• High Output Power: Supports up to 70A, perfect for heavy 12V loads.
• Remote On/Off Control: Easily integrates with ignition or engine run/stop switches, eliminating the need for high-current wiring switches.
• Adjustable Output: Functions as a battery charger for 12V batteries within a 24V setup—ideal for starter or auxiliary batteries.
• Parallel Capability: Combine up to five units in parallel to increase output current for larger system demands.
• Simple Installation: Comes with four Insulated Faston Female Crimp 6.3mm connectors for quick setup.

Applications:

• Automotive, marine, and RV power systems
• Off-grid solar and backup power installations
• Dual battery setups (starter and auxiliary)

Technical Specifications:

• Input Voltage: 24V DC
• Output Voltage: 12V DC (adjustable)
• Maximum Output Current: 70A
• Cooling: Passive
• Protection Rating: IP20
• Remote On/Off: Yes
• Parallel Capable: Yes, up to 5 units
