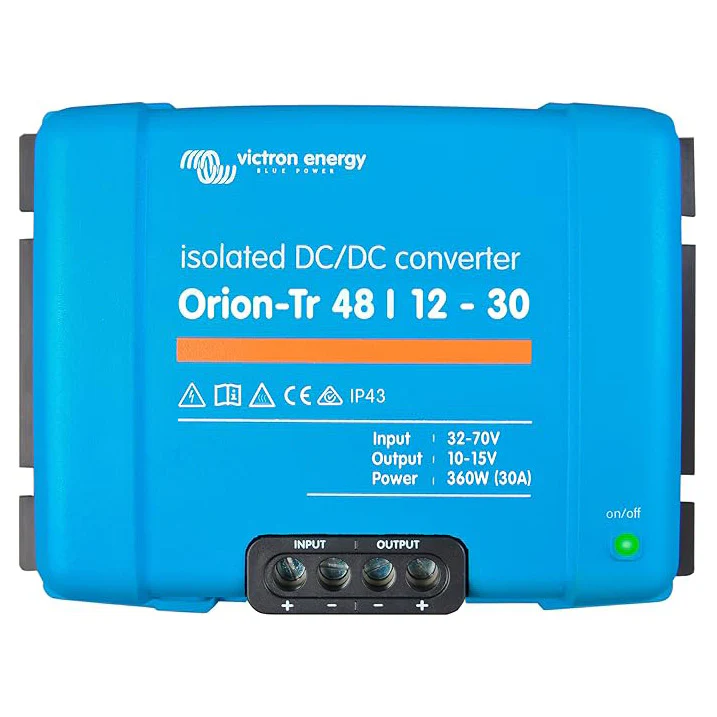

Victron Energy Orion-Tr 48/12-30A (360W) – Isolated DC-DC Converter
Powerful 48V to 12V Conversion for Mobile and Off-Grid Systems
The Victron Orion-Tr 48/12-30A is a high-performance isolated DC-DC converter designed to step down 48V DC to 12V DC with a maximum output of 30 amps and 360 watts. Ideal for demanding electrical systems in vehicles, marine setups, and off-grid installations, it ensures consistent and stable 12V power delivery under all conditions.
Key Features:
- Isolated Design – Electrical isolation prevents ground loop issues and enhances safety
- Remote On/Off Terminal – Enables switching with a low-power signal or ignition switch; no high-current switch needed
- Parallel Capable – Connect multiple units in parallel to increase total output current
- High Temperature Protection – Output is automatically derated in high ambient temperatures to prevent overheating
- IP43 Rated – Resistant to dust and splashes when mounted with terminals facing downward
- Screw Terminals – No special tools required for installation
- Non-Replaceable Input Fuse – For added internal protection (not present on 48V input models)
- Adjustable Output Voltage – Allows voltage fine-tuning (not designed for battery charging)
⚠️ For battery charging applications, consider using the Victron Orion-Tr Smart series instead.
Technical Specifications:
- Input Voltage: 48V DC
- Output Voltage: 12V DC (adjustable)
- Output Current: 30A
- Power Output: 360W
- Isolation: Yes
- IP Rating: IP43
- Connector Type: Screw terminals
- Mounting Orientation: Terminals must face downward for IP rating
Ideal Applications:
✔ RV and vehicle electrical systems
✔ Boats and marine electronics
✔ Remote off-grid power setups
✔ DC loads requiring a stable 12V supply from 48V sources
Built for reliability in tough environments, the Victron Orion-Tr 48/12-30A delivers stable 12V power with flexible installation options and protective features.
