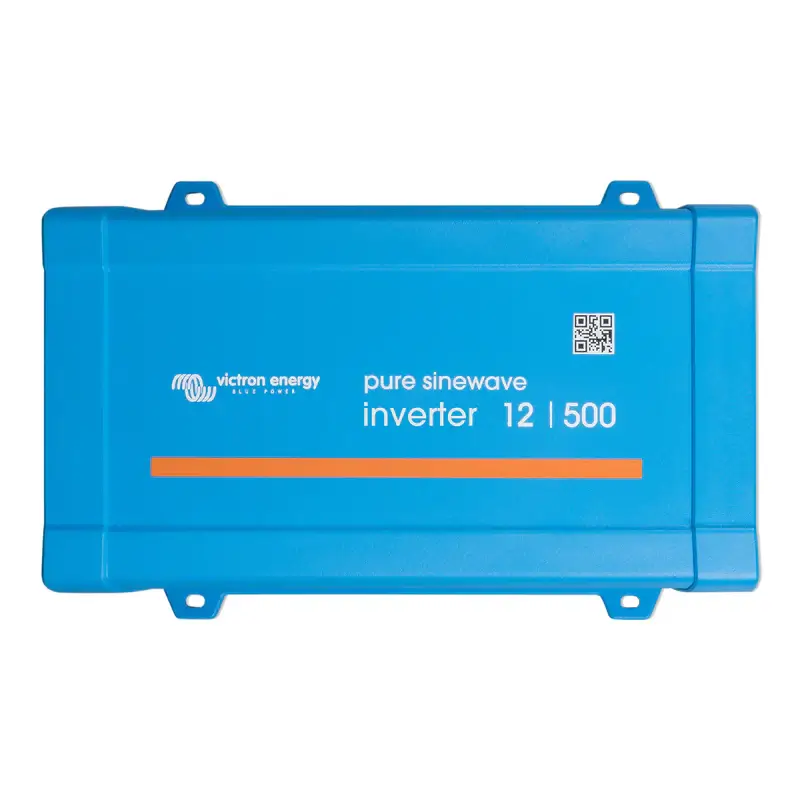

Victron Energy 12/500 120V VE.Direct NEMA 5-15R Phoenix Inverter

Datasheets   Manual

Victron Energy Pure Sine Wave Inverter – Reliable 12V/24V/48V DC to 230V/120V AC Power Conversion

The Victron Energy Inverter enables you to run household appliances and sensitive electronic equipment using 12V, 24V, or 48V DC battery systems. Ideal for off-grid, automotive, and marine applications, it converts DC power into a stable 230V or 120V AC output, ensuring smooth operation for a wide range of devices.

Key Features

✔ VE.Direct Communication Port

• Connects to PC via VE.Direct to USB interface
• Wireless access with smartphones/tablets using VE.Direct Bluetooth Smart Dongle

✔ Fully Configurable Parameters

• Adjustable low battery voltage alarms and cut-off levels
• Programmable output voltage (210–245V) and frequency (50Hz/60Hz)
• Dynamic cut-off adapts to varying load levels
• ECO mode configuration for energy-saving standby operation

✔ Real-Time Monitoring

• View input/output voltage, load percentage, and active alarms

✔ Proven Reliability

• Full-bridge with toroidal transformer design
• Short-circuit proof and protected against over-temperature

✔ High Start-Up Power

• Capable of starting power-hungry loads like LED drivers, halogen lights, and small power tools

✔ ECO Mode Operation

• Switches to standby when load drops below a set threshold (min. 15W)
• Periodic load sensing ensures quick reactivation when demand resumes

✔ Remote On/Off Control

• Supports remote switching via a two-pole connector

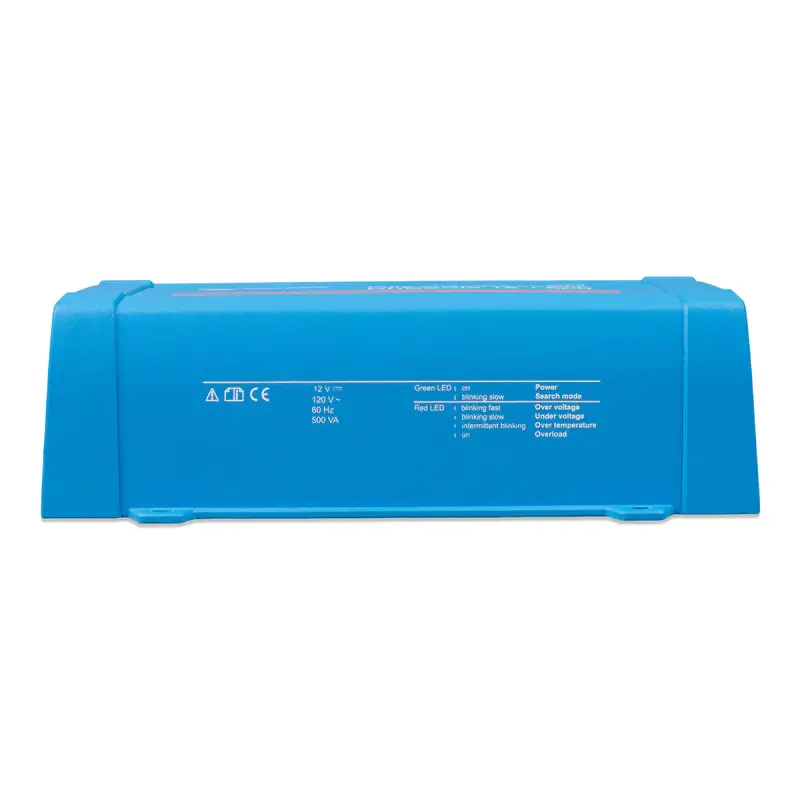

✔ LED Diagnostic Indicators

• Provides status and error feedback (see manual for details)

✔ Compatible with Filax Automatic Transfer Switch

• Enables seamless transfer between inverter and external AC source (ideal for sensitive electronics)

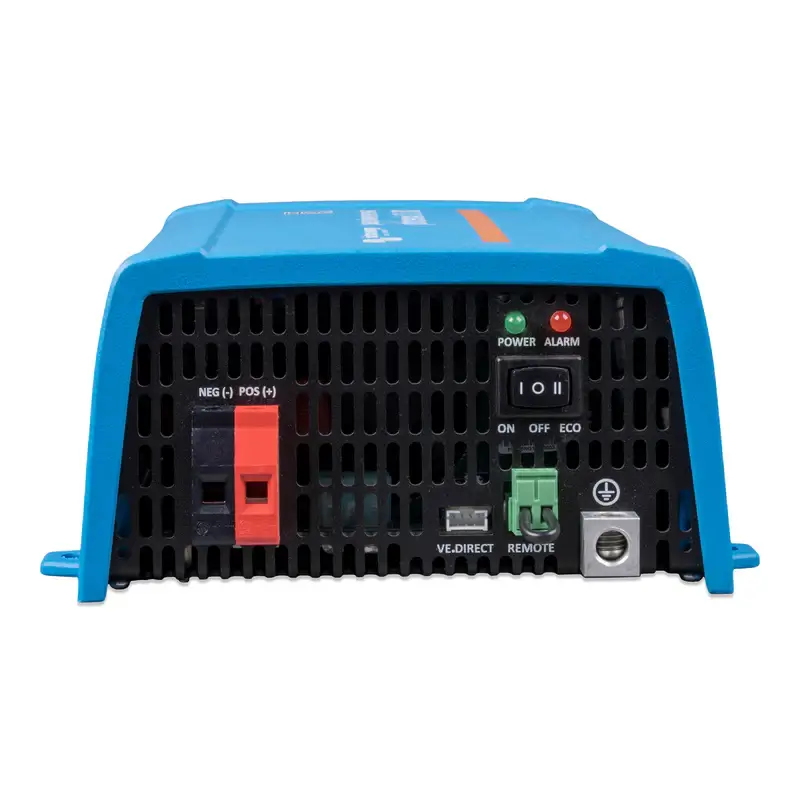

✔ Easy DC Connection

• Screw terminals require no special tools for installation

Applications

• Camper vans, RVs, and off-grid homes
• Marine power systems
• Remote cabins and mobile workstations
• Backup power for sensitive electronics
