Victron Energy 24/500 120V VE.Direct NEMA GFCI Phoenix Inverter

Datasheets  Manual

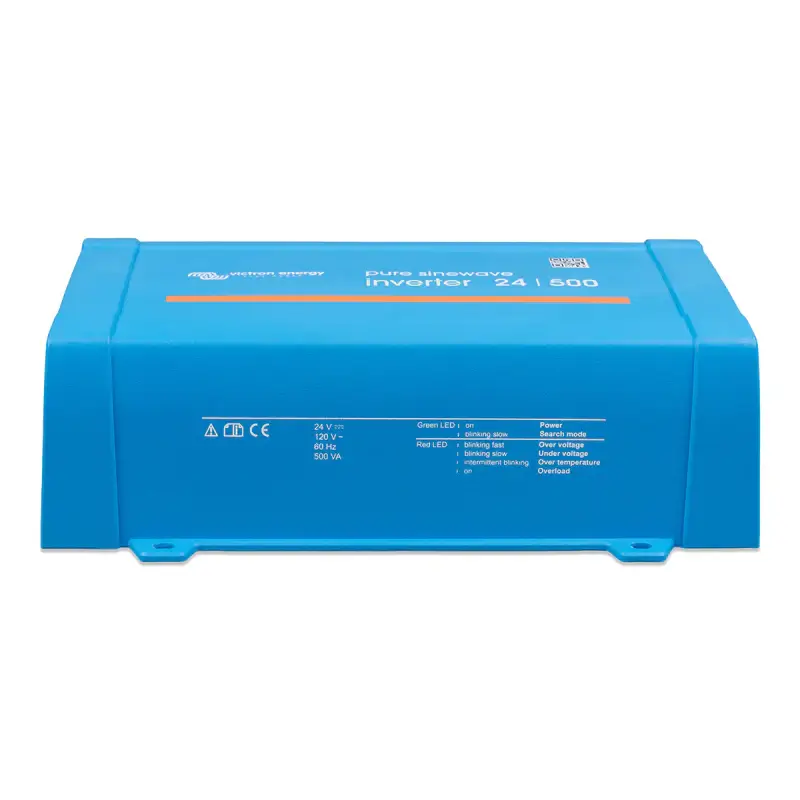

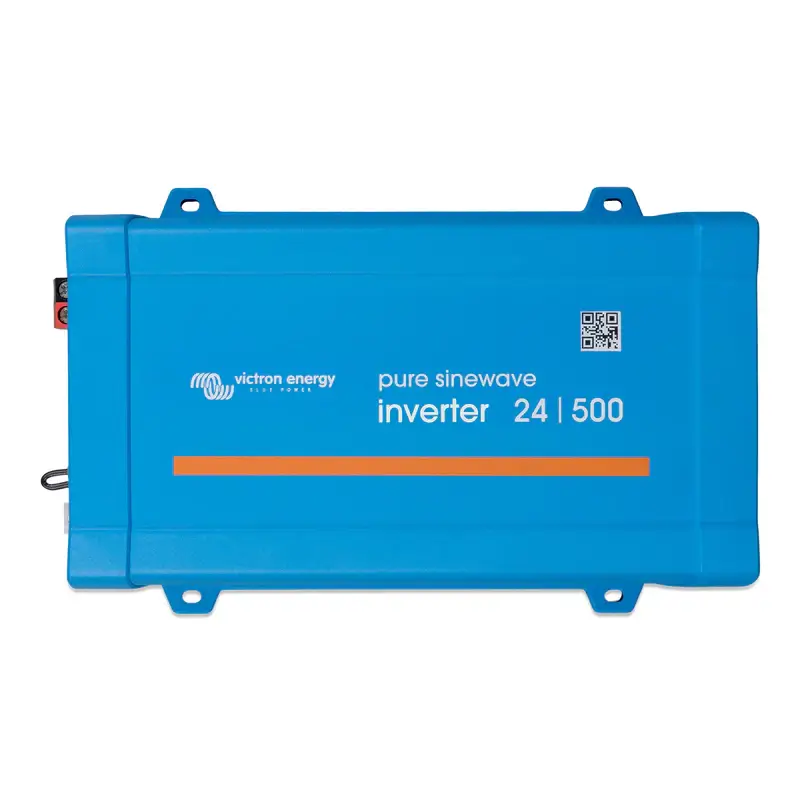

The Victron Energy Phoenix Inverter 24/500 converts 24V DC battery power into 120V AC pure sine wave electricity for RVs, campervans, marine applications, and off-grid systems. Its compact design, high startup power, and configurable operating settings make it suitable for powering electronics, appliances, and tools.

FEATURES

• Input voltage: 24V DC

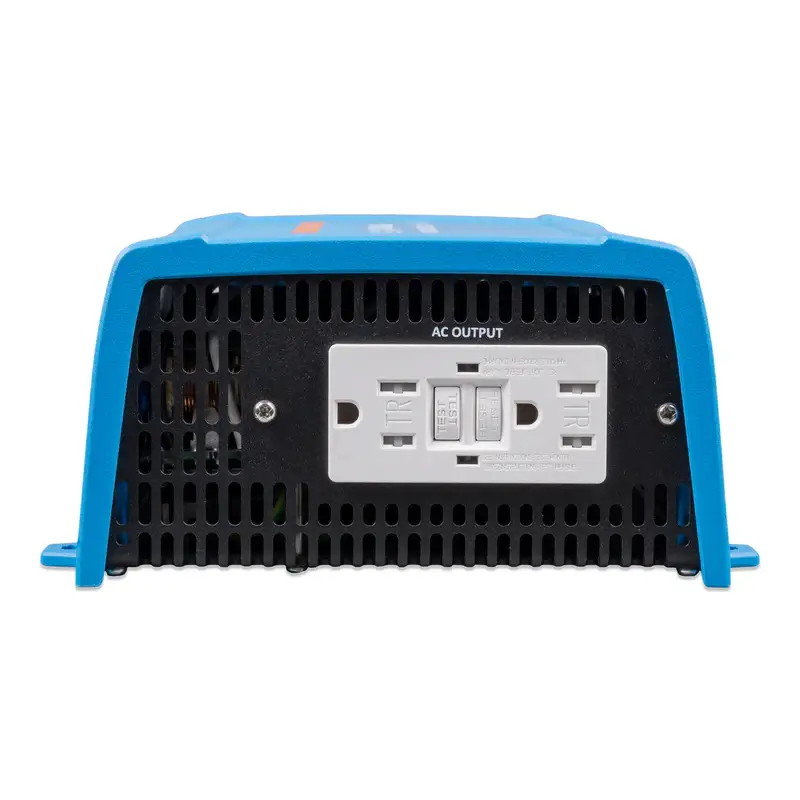

• AC output: 120V pure sine wave

• Communication: VE.Direct port for monitoring and configuration

• Adjustable settings: Low-battery alarms and shutdown thresholds, output frequency (50/60Hz), ECO mode, and dynamic load-dependent shutdown levels

• Monitoring: View input/output voltage, load percentage, and alarms through compatible monitoring equipment

• ECO mode: Reduces standby consumption by switching to standby when the load falls below a configurable threshold

• High startup power: Helps start equipment such as LED drivers, halogen lamps, and power tools

• Protection: Short-circuit and overheating protection

• Remote control: Compatible with a remote on/off switch

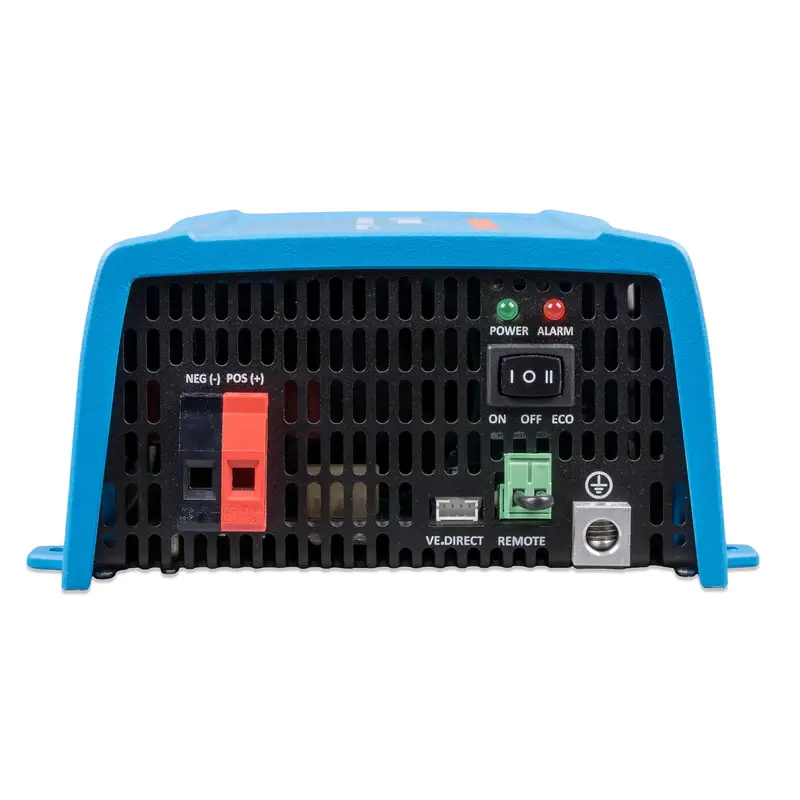

• DC connection: Screw terminals

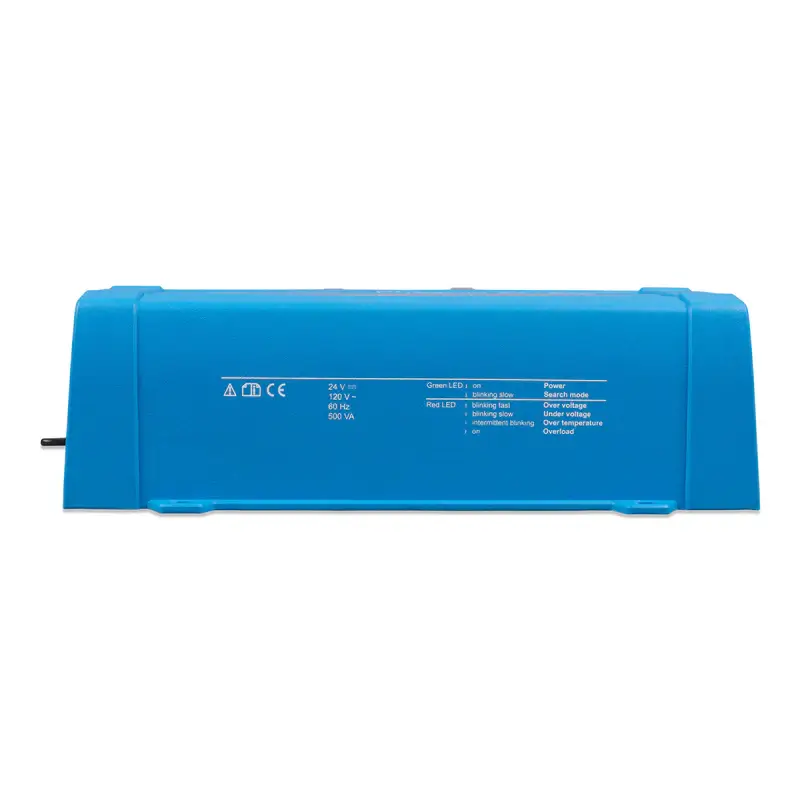

• Status indicators: Integrated LEDs for basic operating and fault diagnosis

• Optional transfer switch: Compatible with the Victron Filax 2 for automatic transfer between inverter and external AC power

MONITORING AND ACCESSORIES

• Connect to a computer using a VE.Direct-to-USB interface cable.

• Connect to compatible mobile devices using a VE.Direct Bluetooth Smart dongle.

• Use compatible monitoring equipment to view operating data and configure inverter settings.

• The Filax 2 automatic transfer switch is sold separately.

APPLICATIONS

• RVs and campervans

• Marine electrical systems

• Off-grid and solar-powered installations

• Laptops, small appliances, electronics, and compatible power tools
