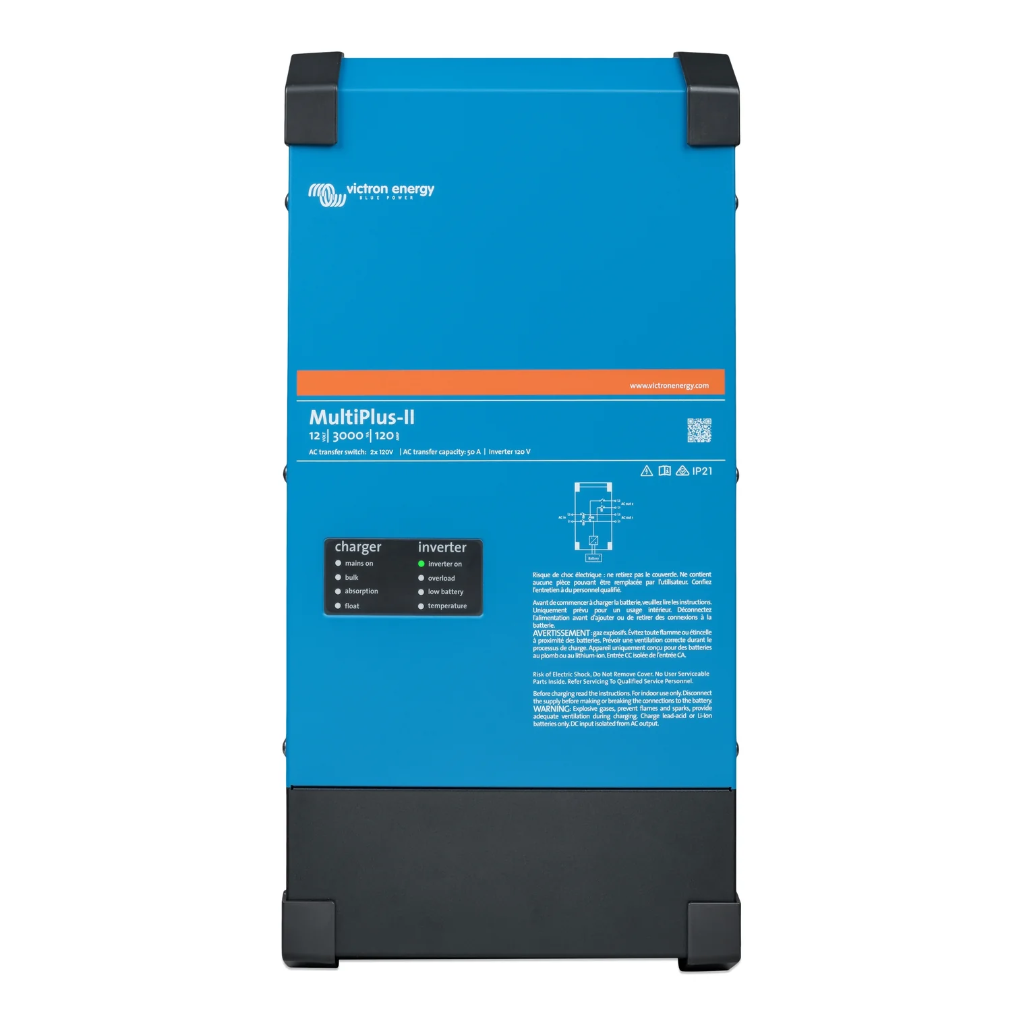

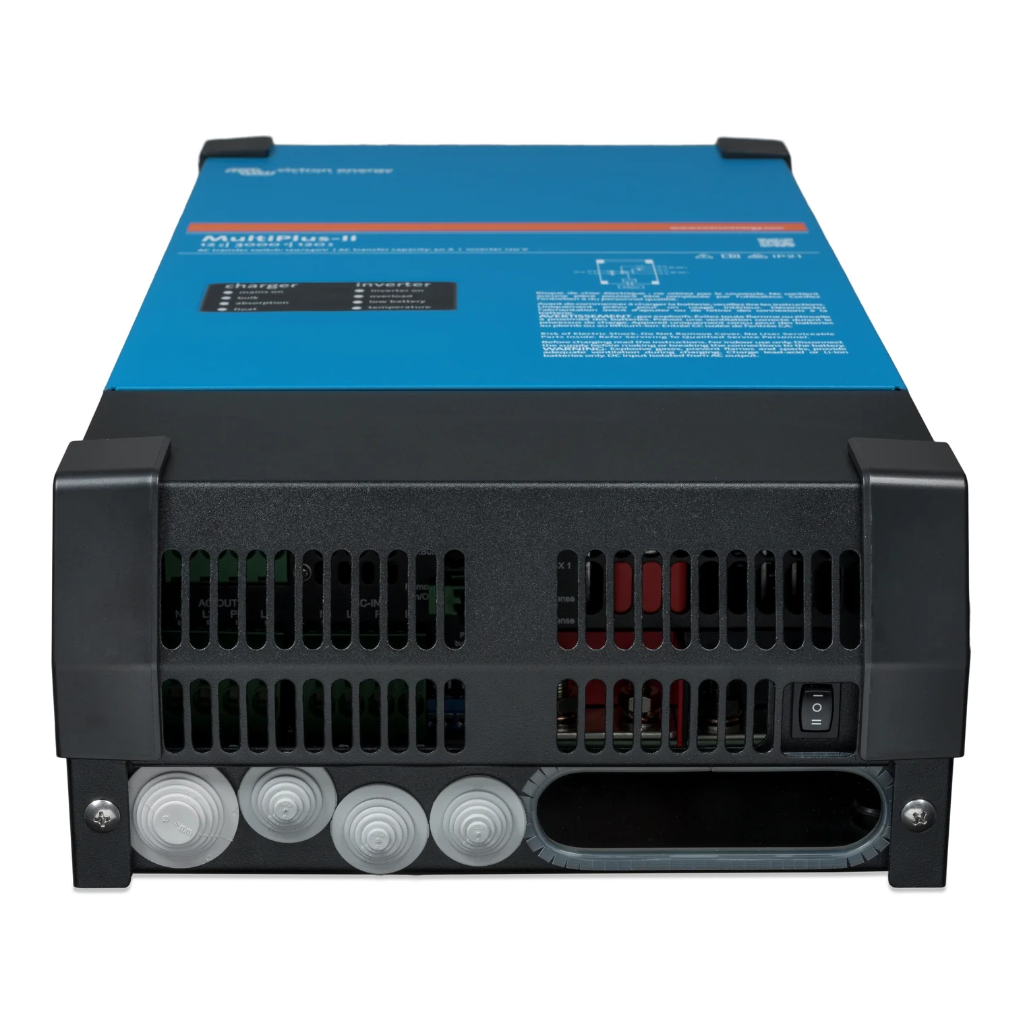

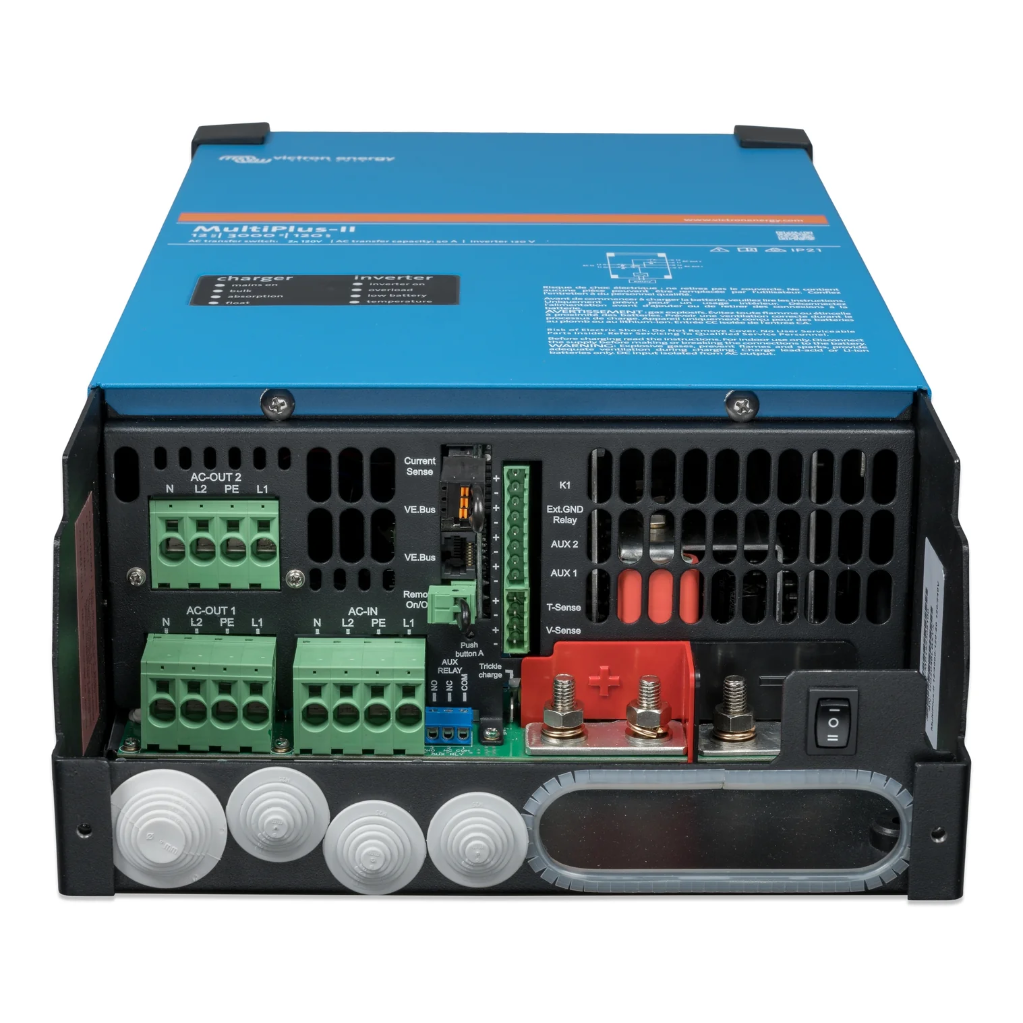

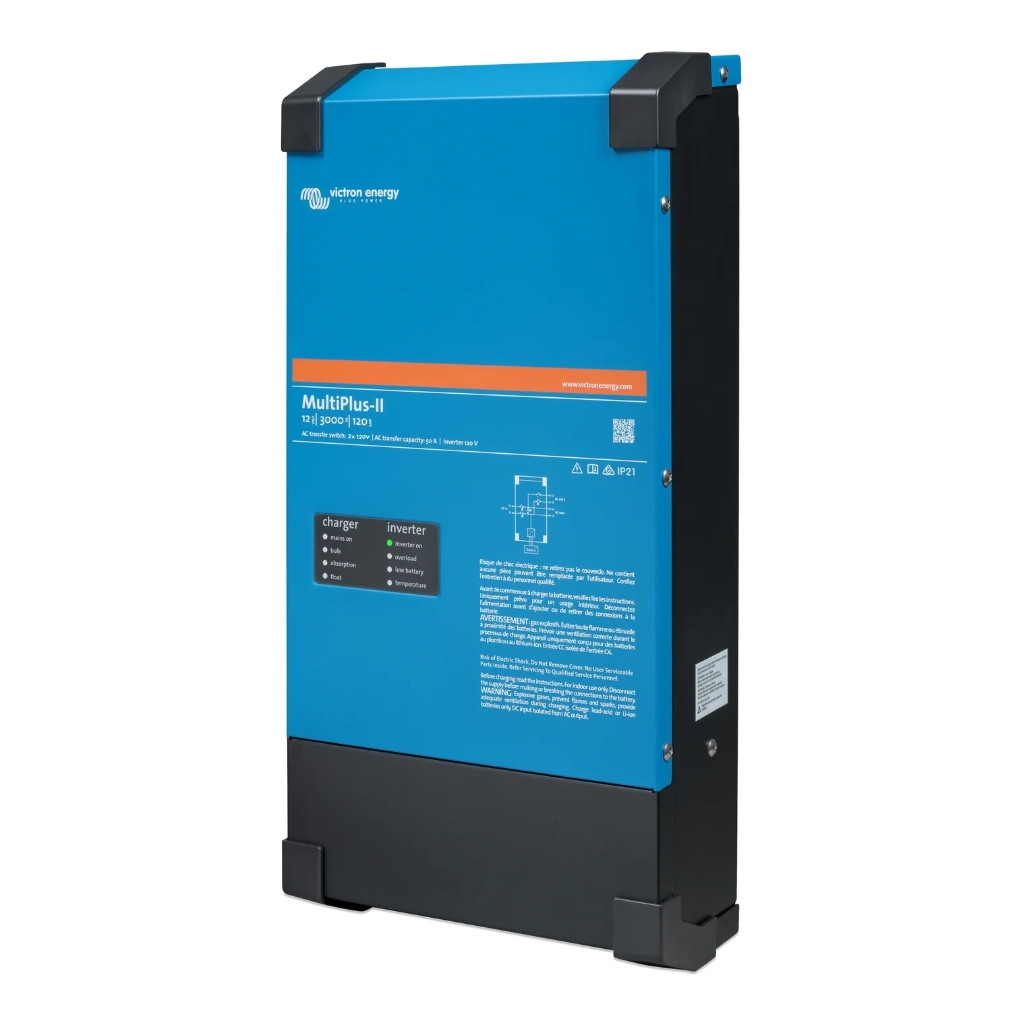

Victron Energy MultiPlus-II 12/3000/120-50 2x120V (UL certified) Inverter/Charger

Victron Energy Multiplus-II Introduction

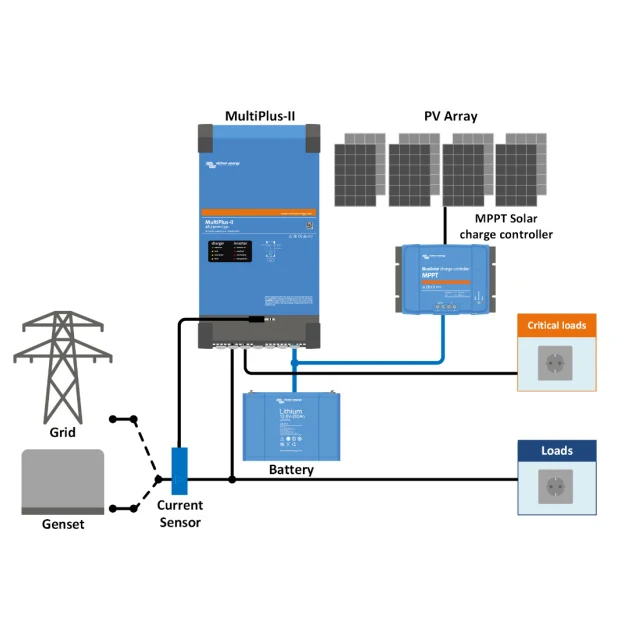

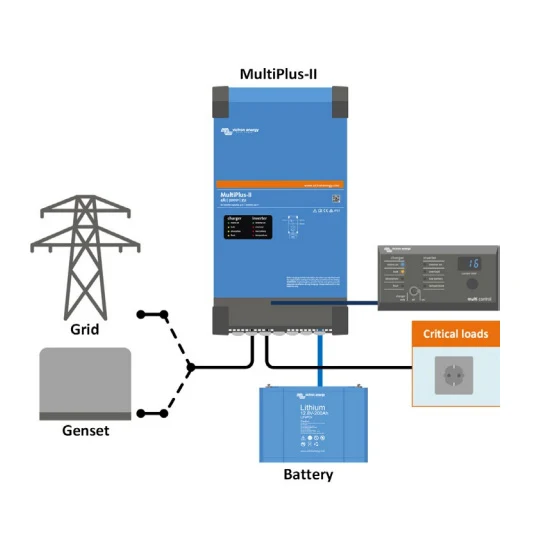

The Victron Energy MultiPlus-II 12/3000/120-50 2x120V combines a pure sine wave inverter, an adaptive battery charger, and a high-speed AC transfer switch in one compact unit. Designed for mobile, marine, and off-grid power systems, it supports both 120V single-phase and 120/240V split-phase AC installations.

FEATURES

• Continuous output power: 2400W at 25°C; 2200W at 40°C; 1700W at 65°C

• Peak power: 5500W

• DC input voltage: 12V

• AC output: 120V, 60Hz in inverter mode

• Battery charger: 120A with adaptive charging technology

• AC input: One input; accepts 120V single-phase or 120/240V split-phase power

• Transfer switch: 50A

• AC outputs: Two 120V outputs; the auxiliary output operates only when external AC power is available

• PowerControl and PowerAssist: Help manage limited shore or generator power and supplement it with battery power when needed

• System integration: VE.Bus communication; supports parallel, split-phase, and three-phase configurations

• DC protection: 400A, as listed by the supplier

• Suggested battery capacity: 400–1200Ah

DIMENSIONS AND WEIGHT

• Dimensions (H × W × D): 578 × 275 × 148mm (22.8 × 10.8 × 5.8in)

• Weight: 22kg (48lb)

• Certification: UL 458
