Victron Energy MultiPlus-II 24/5000/120-95 Inverter/Charger

Victron Energy Multiplus-II Introduction

The Victron Energy MultiPlus-II 24/5000/120-95 combines a pure sine wave inverter, an adaptive battery charger, and a high-capacity AC transfer switch. Designed for mobile, marine, and off-grid power systems, it provides reliable AC power and helps manage limited shore or generator power.

FEATURES

• Continuous output power: 4000W at 25°C; 3700W at 40°C; 3000W at 65°C

• Peak power: 9000W

• DC input voltage: 24V

• AC output: 120V, 60Hz

• Battery charger: 120A with adaptive charging technology

• AC input: One 120V input, with a maximum input current of 95A

• Transfer switch: 95A, with transfer time under 20 milliseconds

• AC outputs: Two 120V outputs; the second operates only when external AC power is available

• PowerControl and PowerAssist: Help manage limited shore or generator power and supplement it with battery power during peak demand

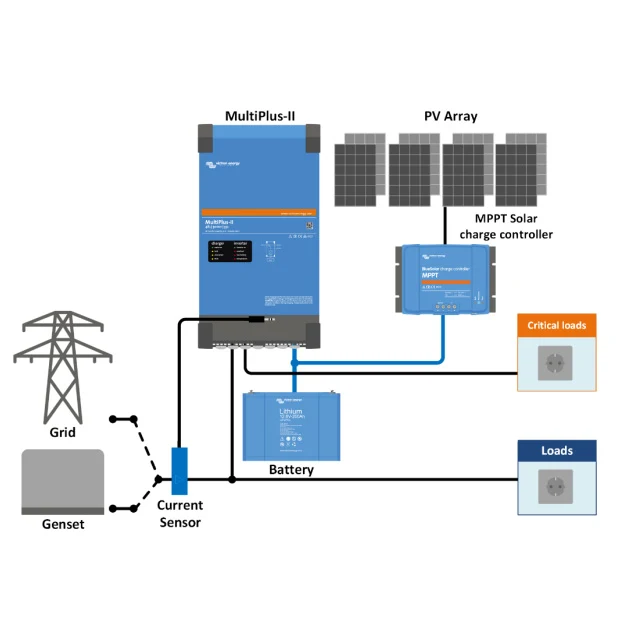

• System integration: VE.Bus communication; supports parallel, split-phase, and three-phase configurations

• DC protection: 400A, as listed by the supplier

• Suggested battery capacity: 400–1200Ah

DIMENSIONS AND WEIGHT

• Dimensions (H × W × D): 627 × 350 × 150mm (24.7 × 13.8 × 5.9in)

• Weight: 29kg (64lb)

• Certification: UL 458
