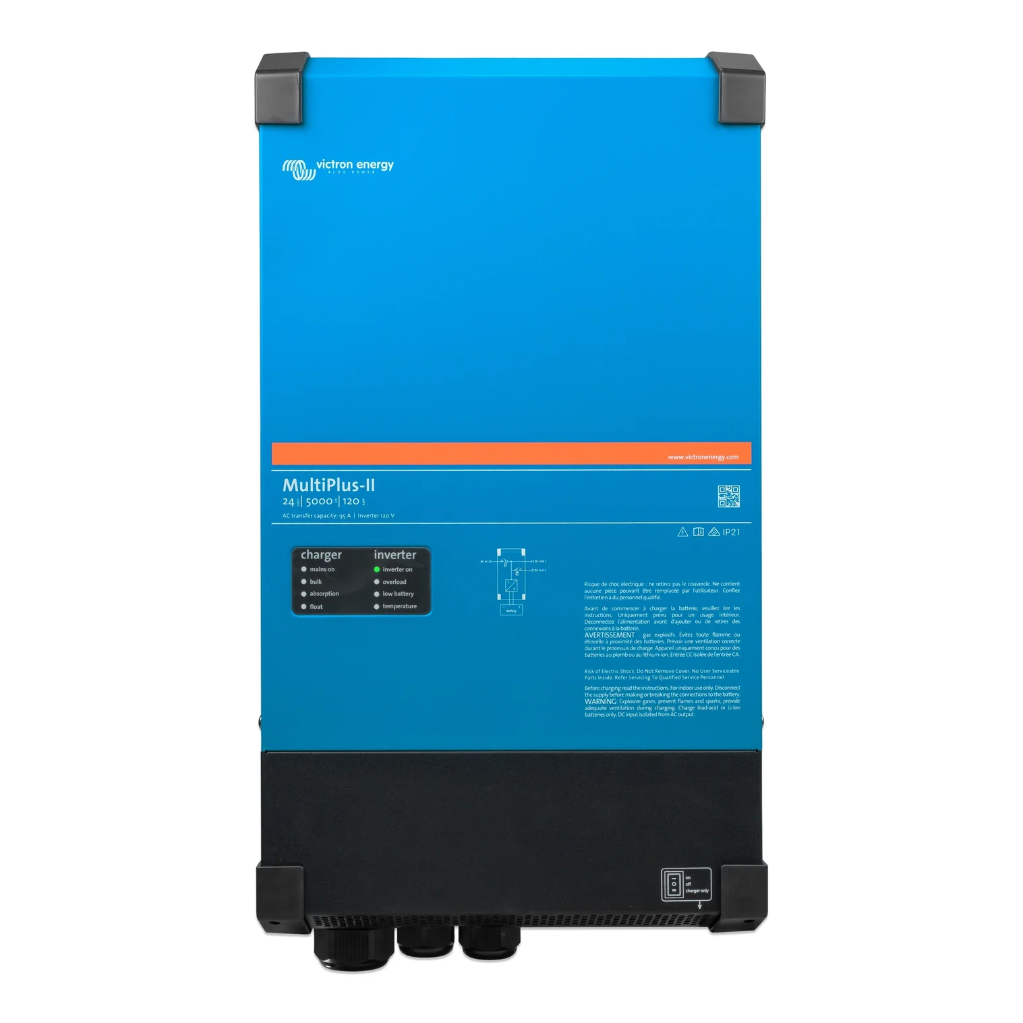

Victron Energy MultiPlus-II 24/5000/120-95 Inverter/Charger | PMP242505110
The MultiPlus-II combines the functions of the MultiPlus inverter/charger and the MultiGrid.
It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A).
Here is the summary of the Victron MultiPlus Inverter/Charger Models based on their specifications:
Specification | 12V Model | 12V Model | 24V Model | 24V Model |
---|---|---|---|---|
DC Input Voltage | 12V | 12V | 24V | 24V |
AC Output Voltage | 120V | 120V | 120V | 120V |
Continuous Power | 2400W at 25°C | 2400W at 25°C | 2400W at 25°C | 2400W at 25°C |
Peak Power | 5500W | 5500W | 5500W | 5500W |
DC Charge Current | 120A | 120A | 70A | 70A |
Number of AC Inputs | 1 X 120V | 1 X 120V | 1 X 120V | 1 X 120V |
Transfer Switch | 50A | 50A | 50A | 50A |
Number of AC Outputs | 2 X 120V | 2 X 120V | 2 X 120V | 2 X 120V |
Dimensions (H x W x D) | 22.8 X 10.9 X 5.8 in (578 x 277 x 148 mm) | 23 X 11 X 6 in (578 x 275 x 148 mm) | 21.1 X 10.9 X 5.8 in (536 x 277 x 147 mm) | 23 X 11 X 6 in (578 x 275 x 148 mm) |
Weight | 42 lbs / 19 kg | 48 lbs / 22 kg | 42 lbs / 19 kg | 48 lbs / 22 kg |
Communication Port(s) | VE.Bus | VE.Bus | VE.Bus | VE.Bus |

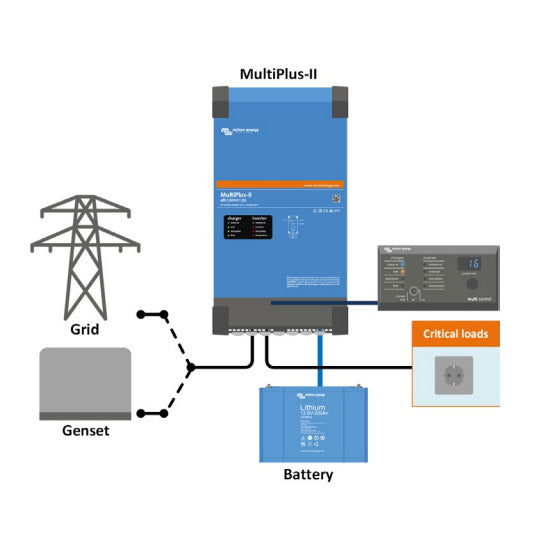

Standard marine, mobile or off-grid application
Loads that should shut down when AC input power is not available can be connected to a second output (not shown). These loads will be taken into account by the PowerControl and PowerAssist function in order to limit AC input current to a safe value when AC power is available.The MultiPlus-II is a highly versatile solution, especially with its ability to handle both grid and off-grid systems effectively.
Its integration of advanced features like PowerControl, PowerAssist, and seamless switching between grid power and battery reserves is great for optimizing energy use and ensuring continuous power, even during outages.
-

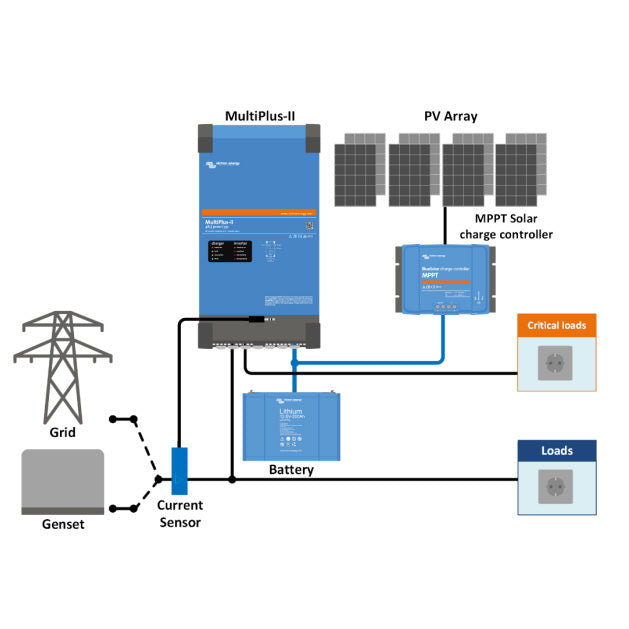

Grid Parallel Topology with MPPT Solar Charge Controller:
- Uses external AC current sensor or power meter to optimize self-consumption.
- Prevents grid feed and continues supplying critical loads during a power outage.
-
MultiPlus with ESS Functionality:
- Adds an external current sensor option for improved PowerControl and PowerAssist.
- Manages grid or generator power efficiently, ensuring no overloads.
-
PowerControl and PowerAssist:
- Allows maximum grid/generator current to be set, optimizing the use of available power.
- PowerAssist supplements generator or grid power with battery power when needed.
-
Solar Energy Integration:
- Compatible with off-grid and grid-connected solar systems.
- Provides AC power during grid failure using stored solar energy.
-
Two AC Outputs:
- Ensures uninterrupted power to critical loads during grid failure.
- Second output for non-critical loads (e.g., water heaters) that won’t deplete the battery.
-
Scalable Power:
- Parallel, split-phase, and three-phase configurations allow for scalable power output (up to 15 kW/18 kVA with 6 units).
-
Remote Configuring and Monitoring:
- On-site settings adjustments via VEConfigure software.
- Remote access to system data through VRM (Victron Remote Management) for real-time monitoring and changes.
This type of flexibility is especially beneficial for energy storage systems and integrating renewable sources like solar. It's good to know that you have such scalability for different power needs.
