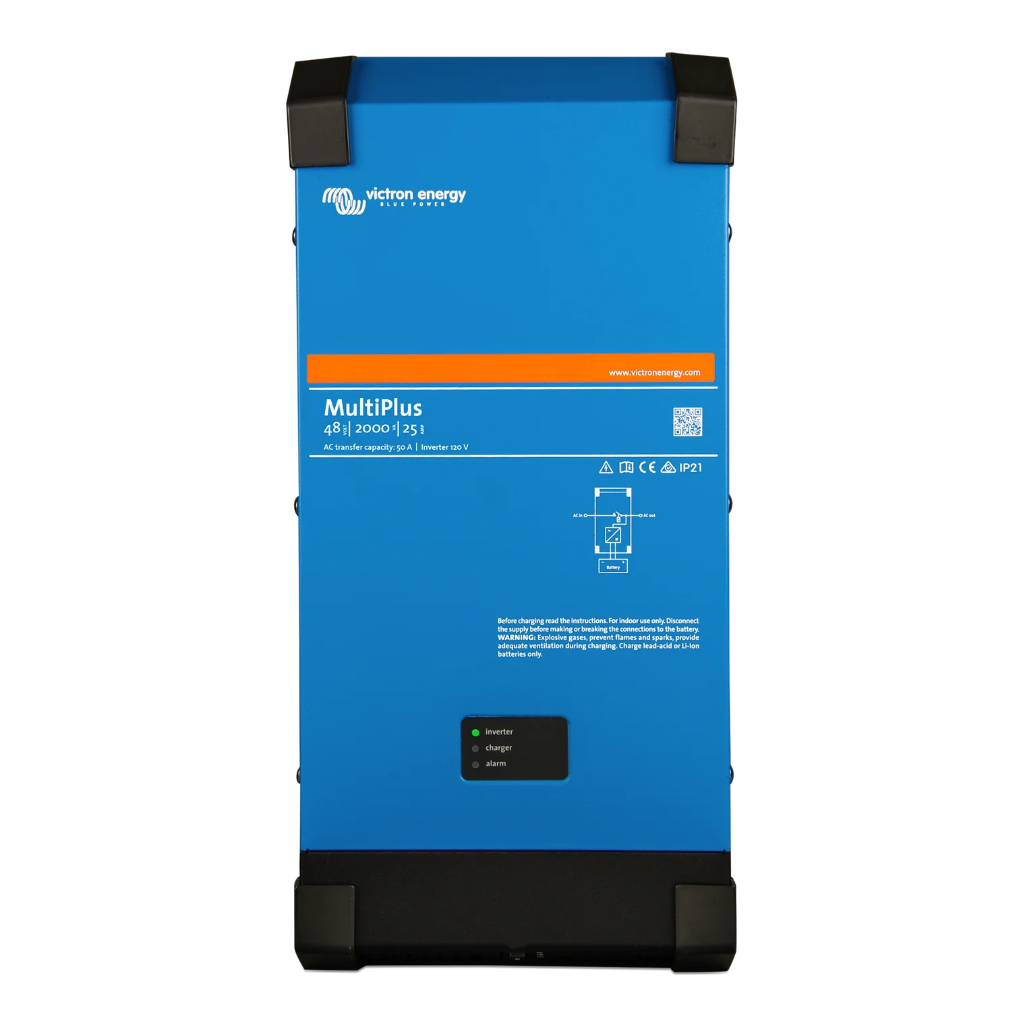

Victron Energy MultiPlus 48/2000/25-50 120V VE.Bus Inverter/Charger

Reduce power consumption of an inverter in standby

The Victron Energy MultiPlus 48/2000/25-50 combines a pure sine wave inverter, an adaptive battery charger, and a high-speed AC transfer switch in one compact unit. It automatically switches to battery power when shore or generator power is interrupted, helping maintain continuous power to connected equipment.

FEATURES

• Inverter output: 1600W continuous at 25°C; 3500W peak for 3 seconds

• Input voltage: 48V DC

• Output voltage: 120V AC

• Battery charger: 25A with adaptive charging technology

• AC input: One 120V input

• Transfer switch: 50A, with transfer time under 20 milliseconds

• AC outputs: Two 120V outputs

• PowerControl and PowerAssist: Helps manage limited shore or generator power and supplements it with battery power during peak demand

• System integration: VE.Bus communication; supports parallel and three-phase configurations

• Protection: 100A DC protection

• Suggested battery capacity: 100–250Ah

DIMENSIONS AND WEIGHT

• Dimensions (H × W × D): 506 × 236 × 147mm (19.9 × 9.3 × 5.8in)

• Weight: 15.5kg (34.2lb)

• Certification: UL-certified version
