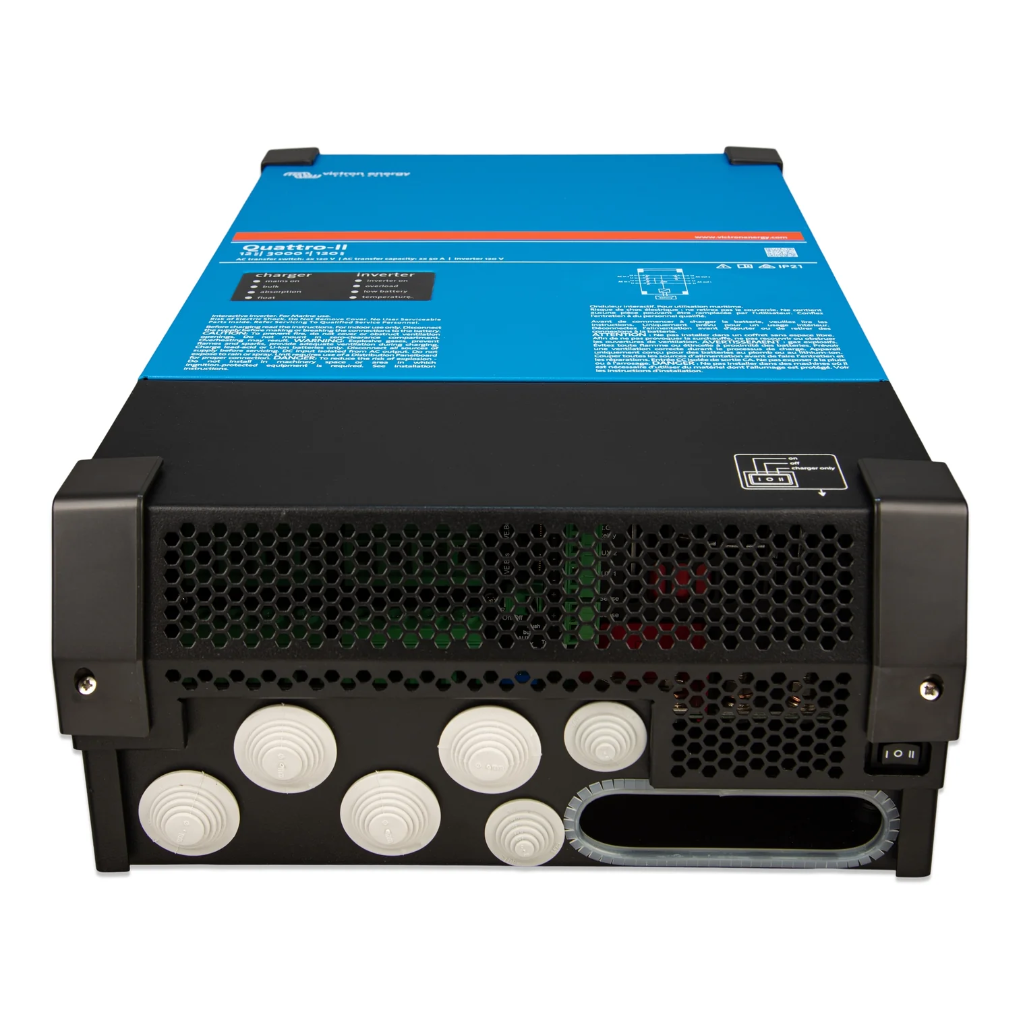

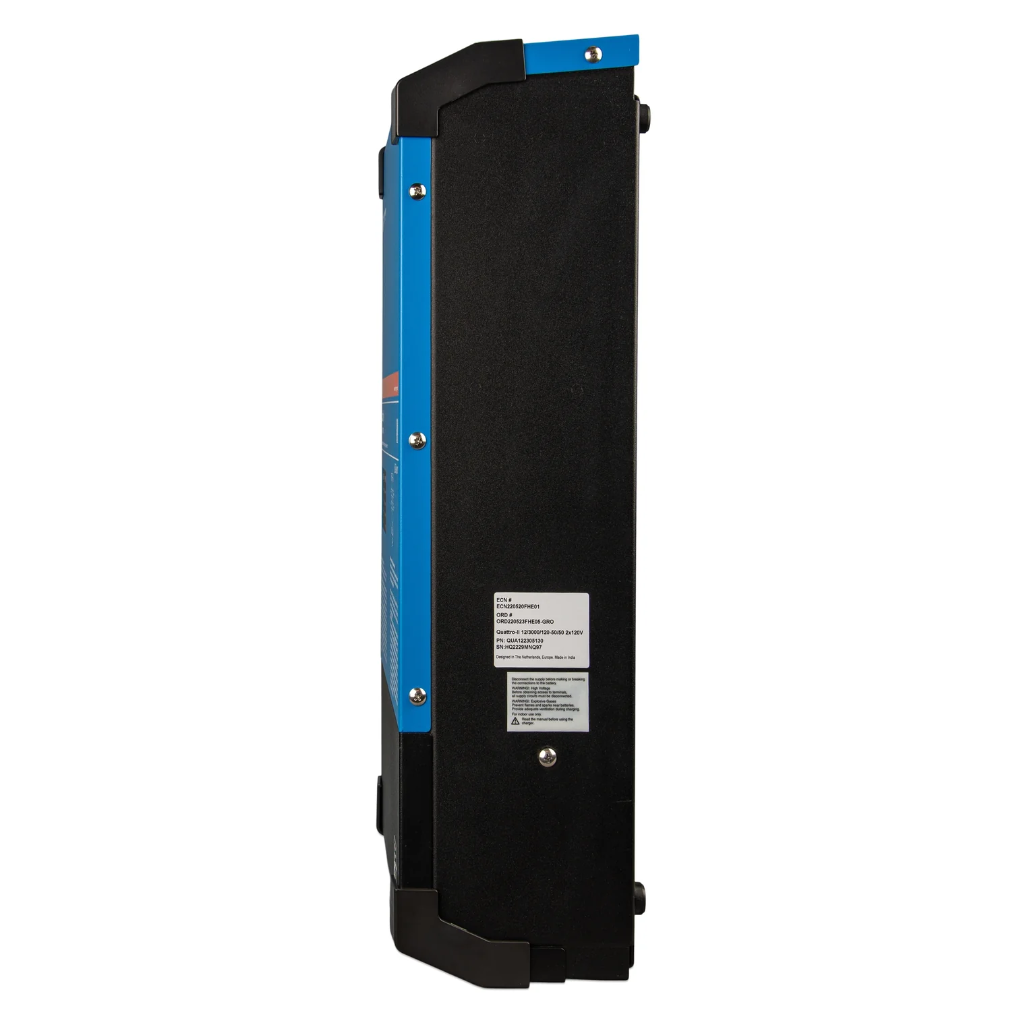

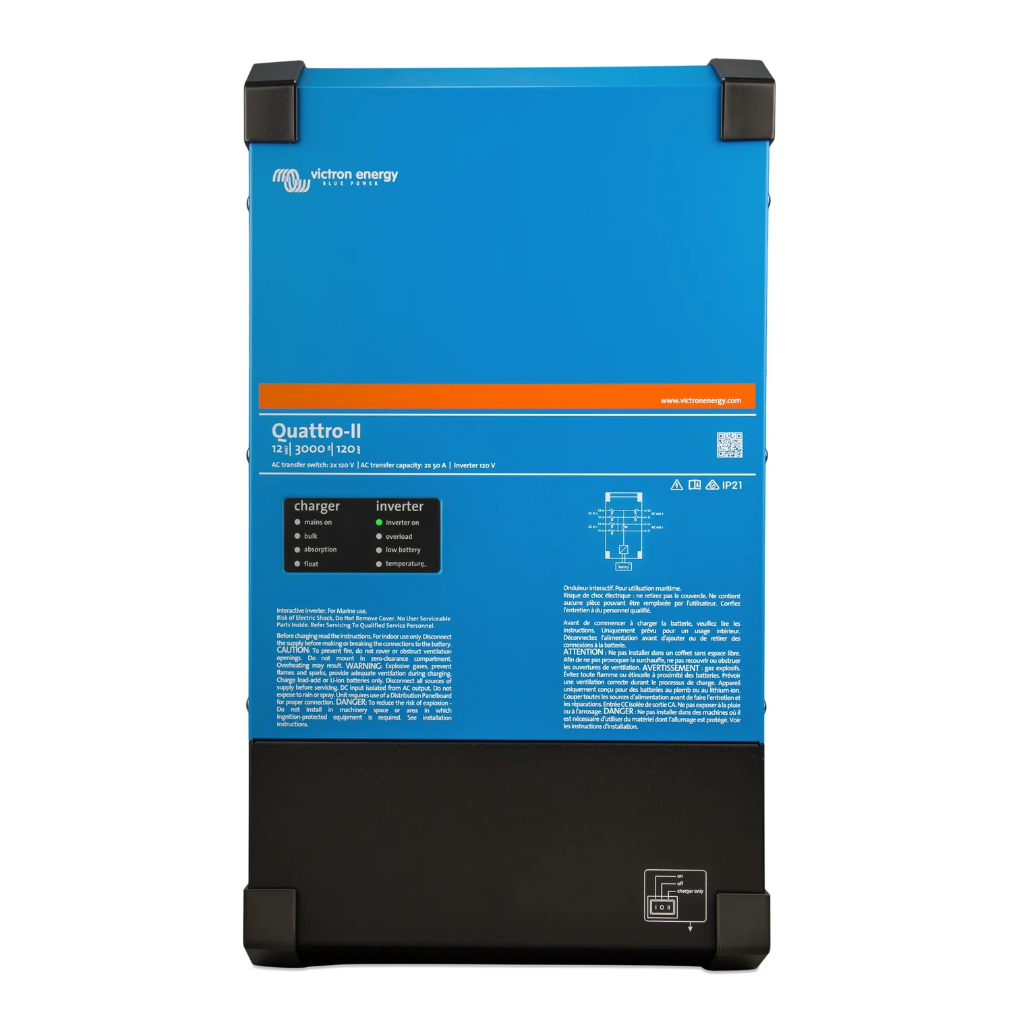

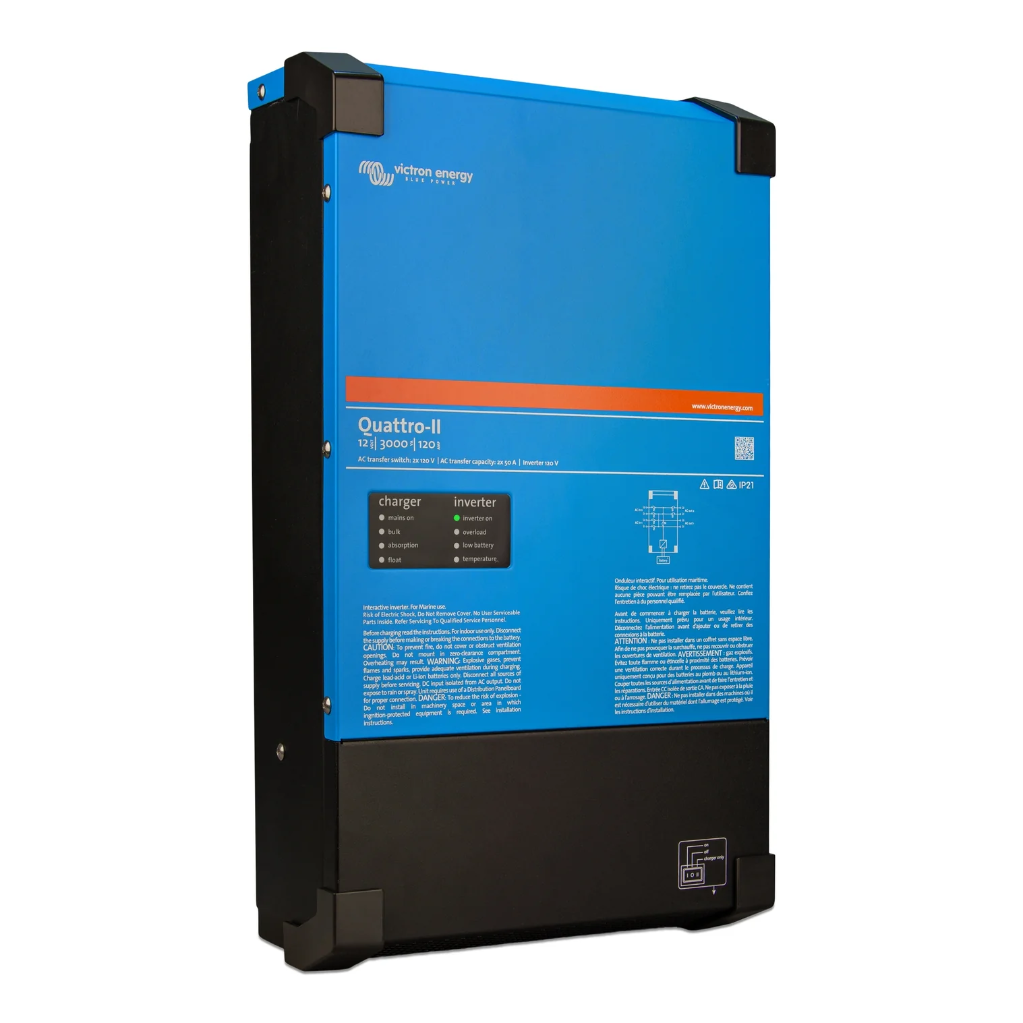

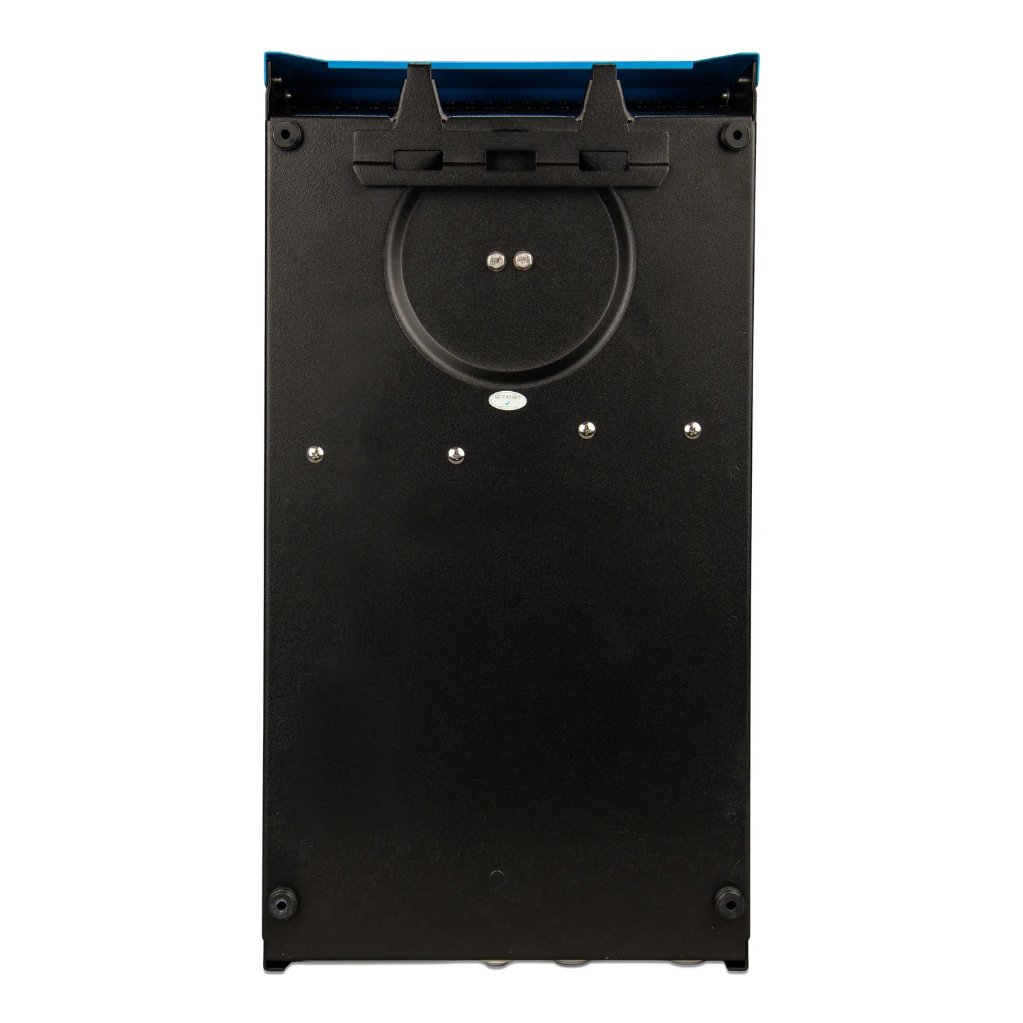

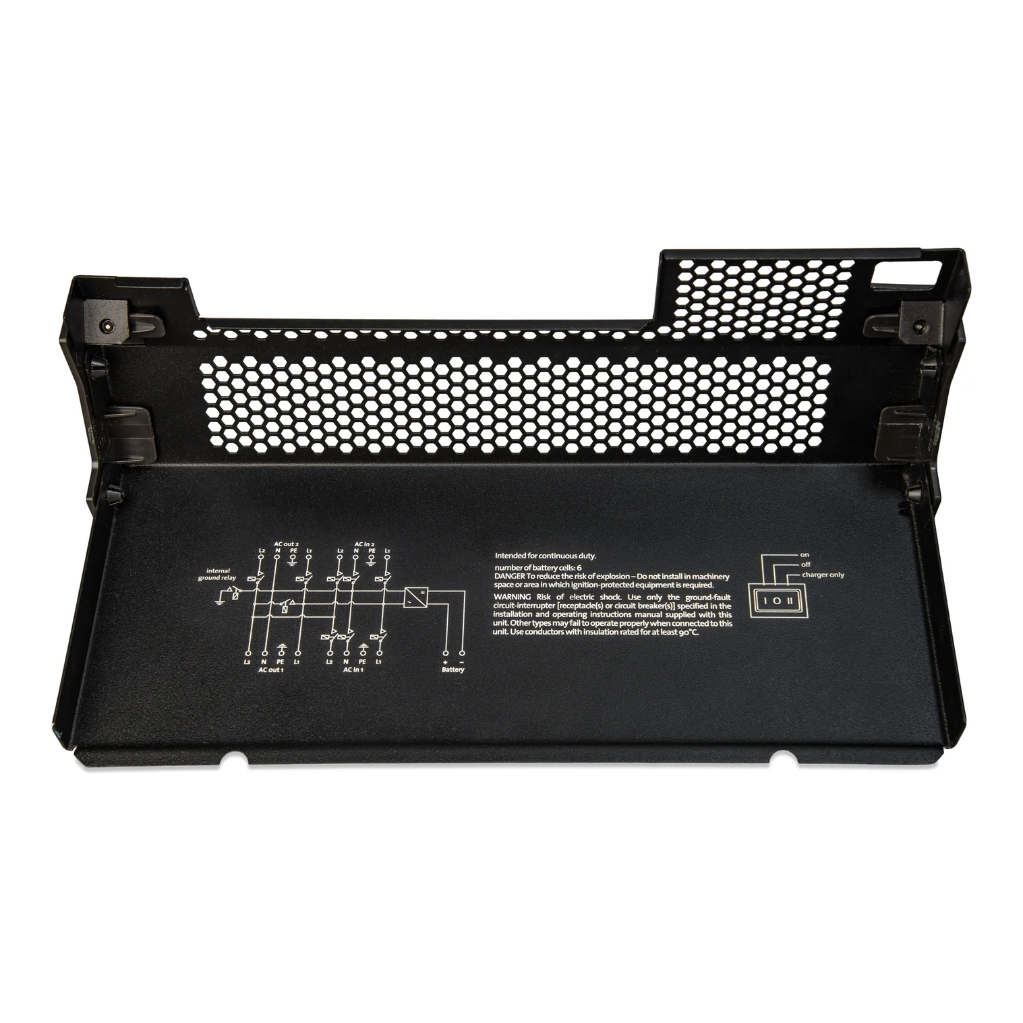

Victron Energy Quattro-II 12/3000/120-50/50 2x120V Inverter/Charger

Configure Victron Energy VE.Bus product

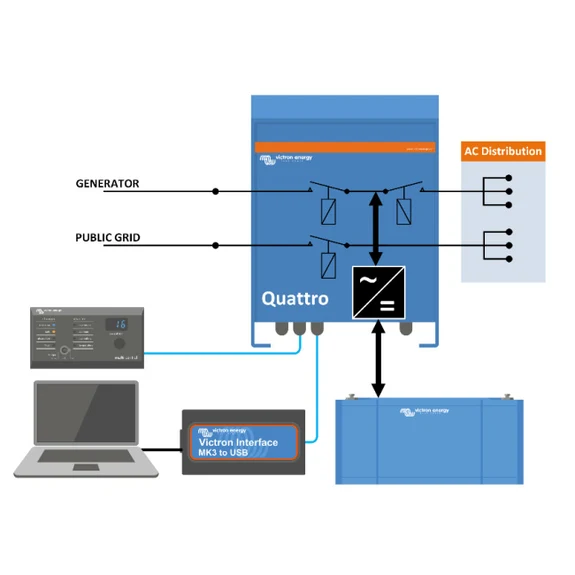

The Victron Energy Quattro-II 12/3000/120-50/50 combines a pure sine wave inverter, an adaptive battery charger, and an integrated transfer switch. It accepts power from two independent AC sources, such as shore power and a generator, and automatically switches to the available source. Designed for North American 120/240V split-phase systems, it also provides 120V AC power when operating from batteries.

FEATURES

• Continuous output power: 2400W at 25°C; 2200W at 40°C; 1700W at 65°C

• Peak power: 5500W

• DC input voltage: 12V

• AC output: 120V, 60Hz in inverter mode

• Battery charger: 120A with adaptive charging technology

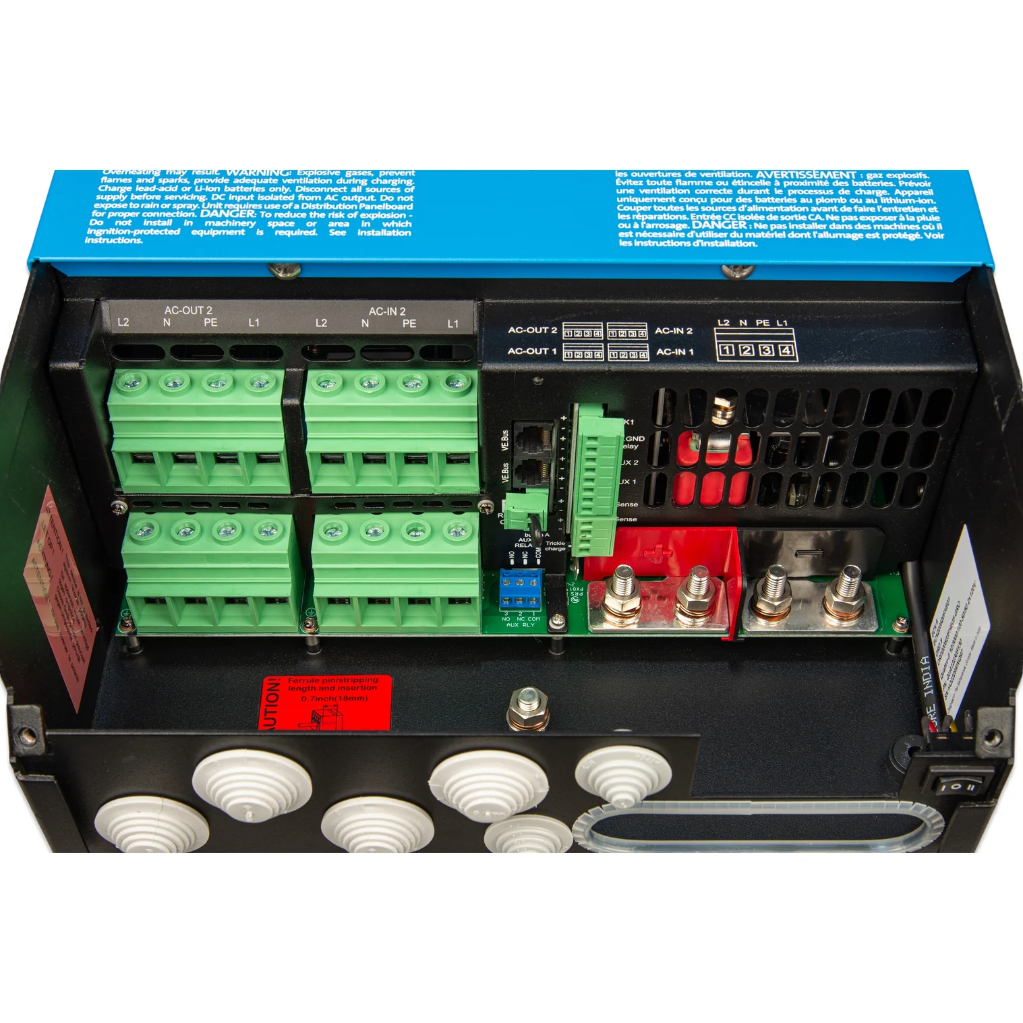

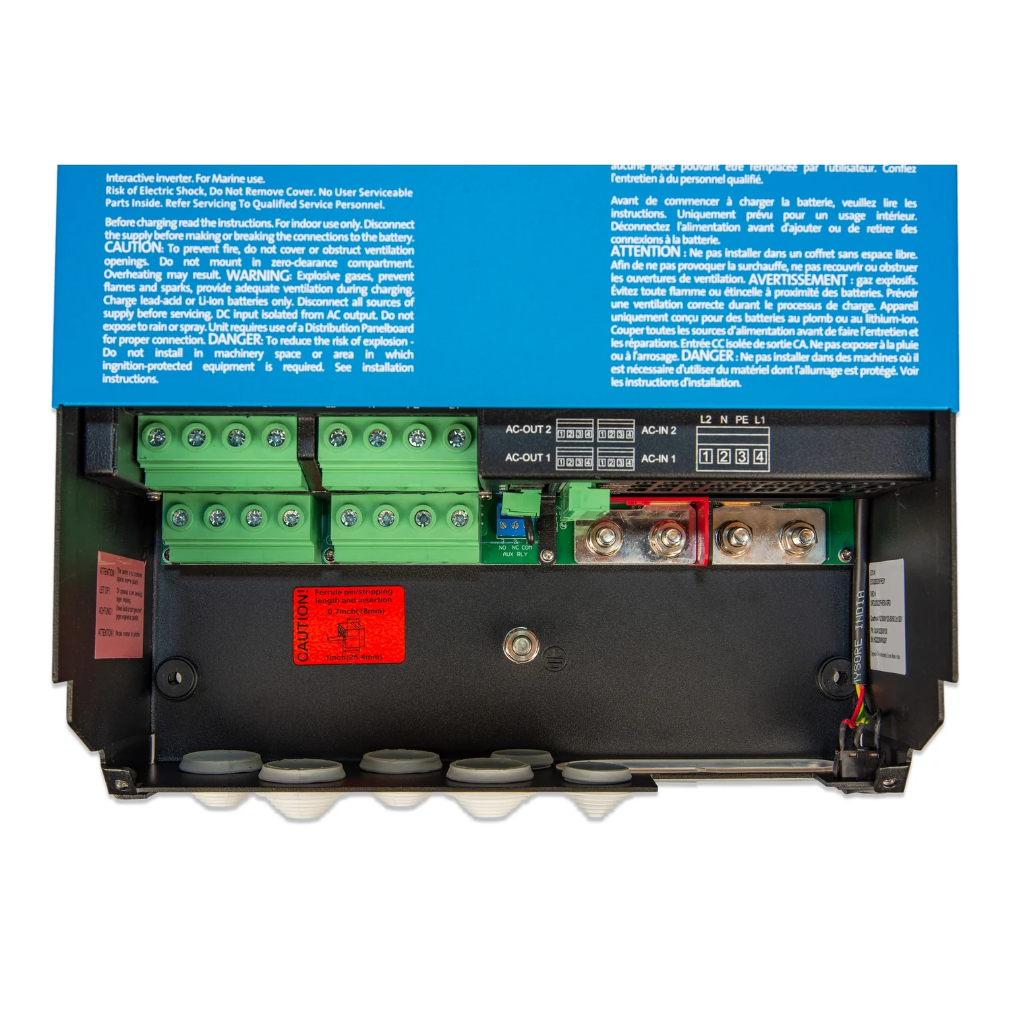

• AC inputs: Two independent inputs for shore power, a generator, or other AC sources

• Transfer switch: 50A per line

• AC outputs: Two 120V outputs; the auxiliary output operates only when external AC power is available

• PowerControl and PowerAssist: Help manage limited shore or generator power and supplement it with battery power when needed

• Split-phase operation: Supports 120/240V AC when connected to a suitable split-phase source

• System integration: VE.Bus communication; supports parallel and three-phase configurations

• DC protection: 400A, as listed by the supplier

• Suggested battery capacity: 400–1200Ah

DIMENSIONS AND WEIGHT

• Dimensions (H × W × D): 579 × 319 × 168mm (23 × 13 × 7in)

• Weight: 22.8kg (50lb)
