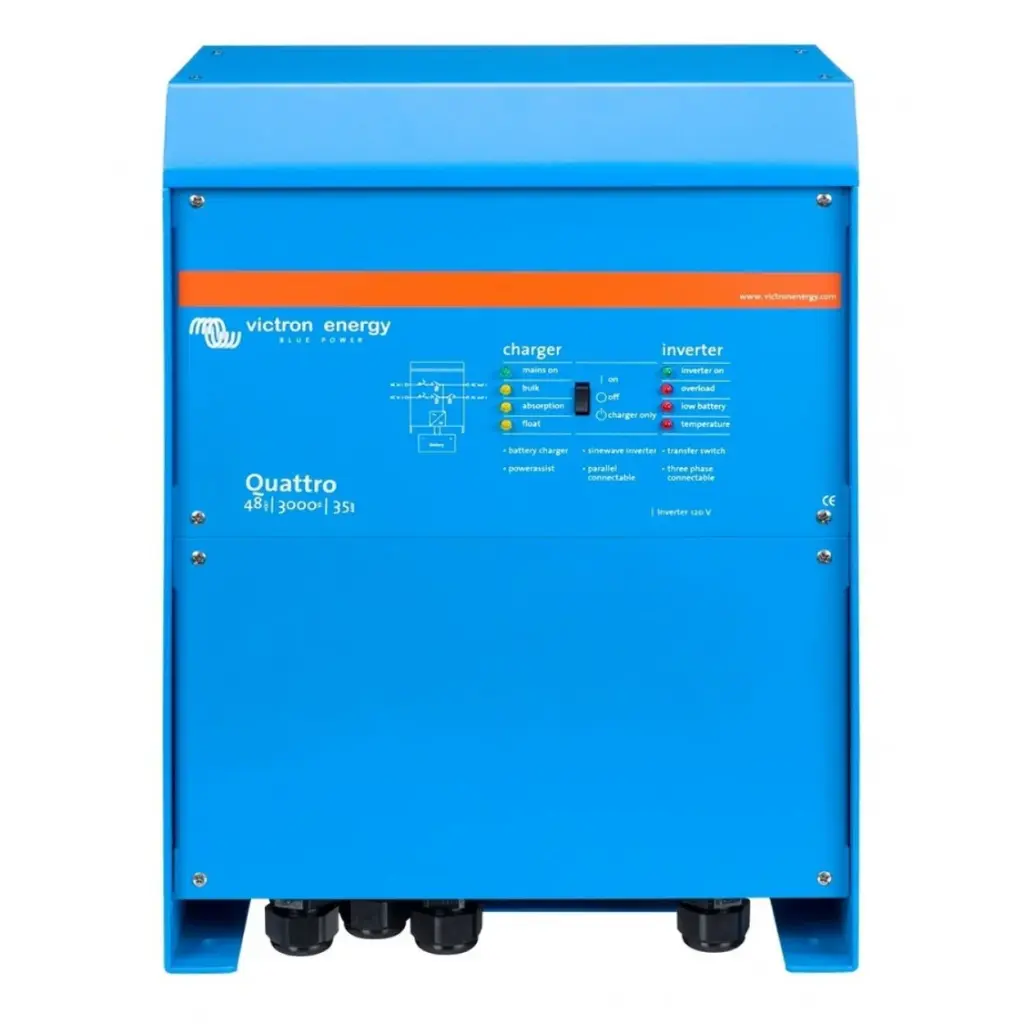

Victron Energy Quattro 48/3000/35-50/50 120V VE.Bus Inverter/Charger

Datasheets  Manual

The Victron Energy Quattro 48/3000 combines a pure sine wave inverter, battery charger, and automatic transfer switch in one unit. Designed for 48V battery systems, it converts DC power into 120V AC electricity and can charge the battery bank from either of two independent AC power sources, such as shore power or a generator.

FEATURES

• DC input voltage: 48V

• AC output: 120V, 60Hz

• Continuous output power: 2400W at 25°C; 2200W at 40°C; 1700W at 65°C

• Peak power: 6000W

• Battery charging current: 35A

• AC inputs: Two independent 120V sources

• Transfer switch: Integrated, 50A per AC input

• AC outputs: Two outputs, including a main output with uninterrupted power transfer

• PowerControl and PowerAssist: Help manage limited AC power and supplement the available supply using battery power

• Communication: VE.Bus port for remote monitoring, parallel operation, split-phase or three-phase systems, and system integration

• Protection rating: IP21

• Operating temperature: -40°C to +65°C

OPERATION AND INTEGRATION

• Automatically selects the active AC source from the two available inputs.

• Transfers the main output to inverter power when shore or generator power is interrupted, with a transfer time under 20 milliseconds.

• Supports parallel operation and integration into larger power systems.

• Includes an auxiliary output and programmable relays for system control.

DIMENSIONS AND WEIGHT

• Dimensions (H × W × D): 14.3 × 10.2 × 8.6 in (362 × 258 × 218 mm)

• Weight: 42 lb (19 kg)
