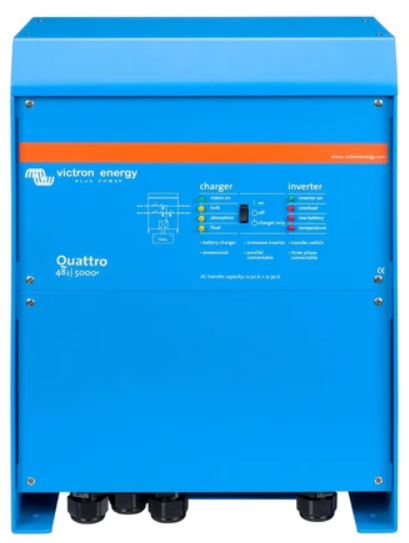

The Victron Energy Quattro 48/5000/70-100/100 120V VE.Bus Inverter/Charger (QUA485021100) combines a pure sine wave inverter and battery charger into one integrated unit. Designed for off-grid and backup power systems, it supports two independent 120V AC power sources, such as shore power and a generator, and automatically switches to the active source. Its PowerAssist technology, adaptive charging, and advanced system integration capabilities provide flexible and reliable power management.
FEATURES
Pure Sine Wave Inverter: Delivers 120V AC output with 4,000W continuous power at 25°C and 10,000W peak power (3 seconds).
Dual AC Inputs: Accepts two independent 120V AC sources with an integrated automatic transfer switch (2 × 100A).
Dual AC Outputs: Provides two 120V AC outputs. The main output features uninterrupted power transfer in less than 20 milliseconds when the AC source is disconnected.
Advanced Charging: Features a 70A battery charger with adaptive charging and hybrid PowerAssist technology.
System Integration: Supports parallel, split-phase, and three-phase operation through VE.Bus communication.
SPECIFICATIONS
DC Input Voltage: 48V
AC Output Voltage: 120V
Continuous Power: 4,000W at 25°C
Peak Power: 10,000W (3 seconds)
DC Charge Current: 70A
Suggested Battery Capacity: 200–800Ah
DC Protection: 200A
Communication: VE.Bus
Dimensions (H × W × D): 17.5 × 13.0 × 9.6 in (444 × 328 × 240 mm)
Weight: 66 lb (30 kg)
Recommended Cable Gauge: 1 × AWG 2/0 for cable runs under 5 m; 2 × AWG 2/0 for runs between 5 and 10 m.
Warranty: 5-year limited factory warranty.
