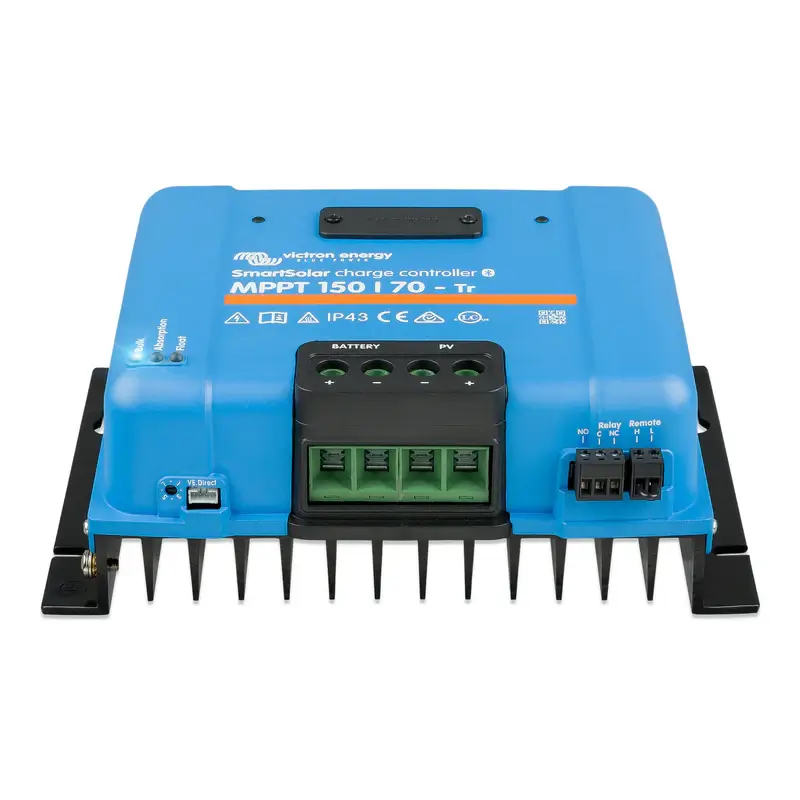

Victron Energy SmartSolar MPPT 150/70-Tr Solar Charge Controller

Datasheets

Manual

Victron Energy SmartSolar MPPT Charge Controller – Advanced Solar Charging with Bluetooth Monitoring

Harness maximum solar efficiency with the Victron SmartSolar MPPT charge controller. Designed to optimize power harvest, even under challenging conditions like partial shading or cloudy skies, this ultra-fast MPPT controller intelligently charges your battery bank to extend its lifespan and ensure system reliability.

Key Features:

• Built-In Bluetooth Smart Technology

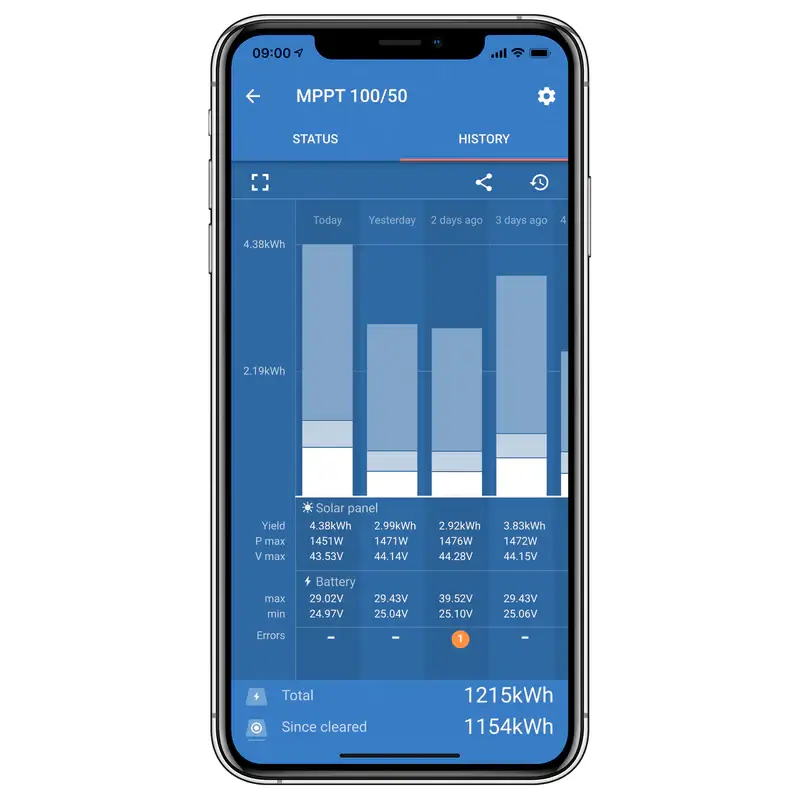

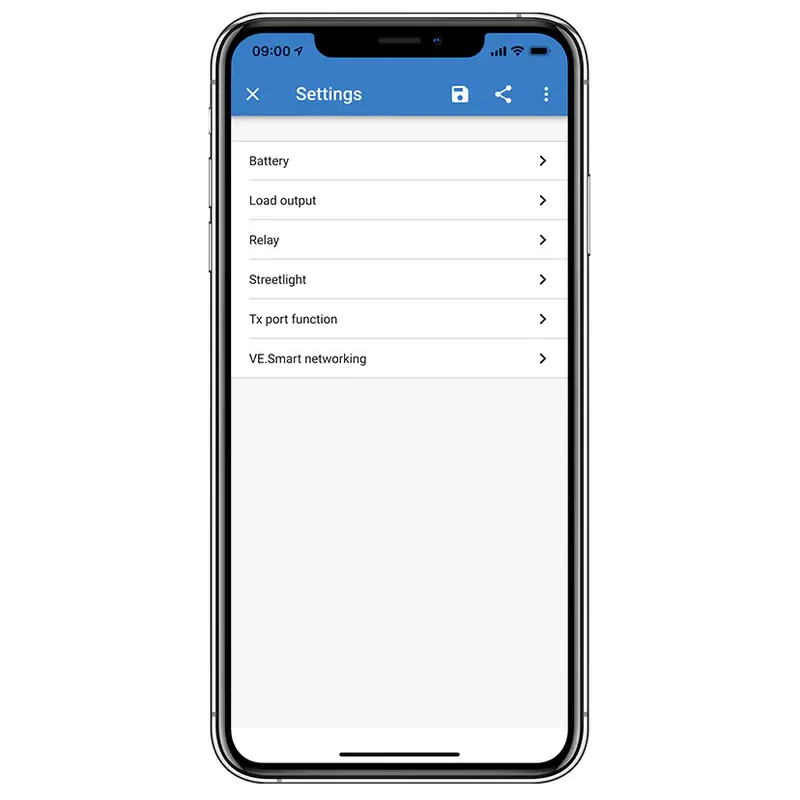

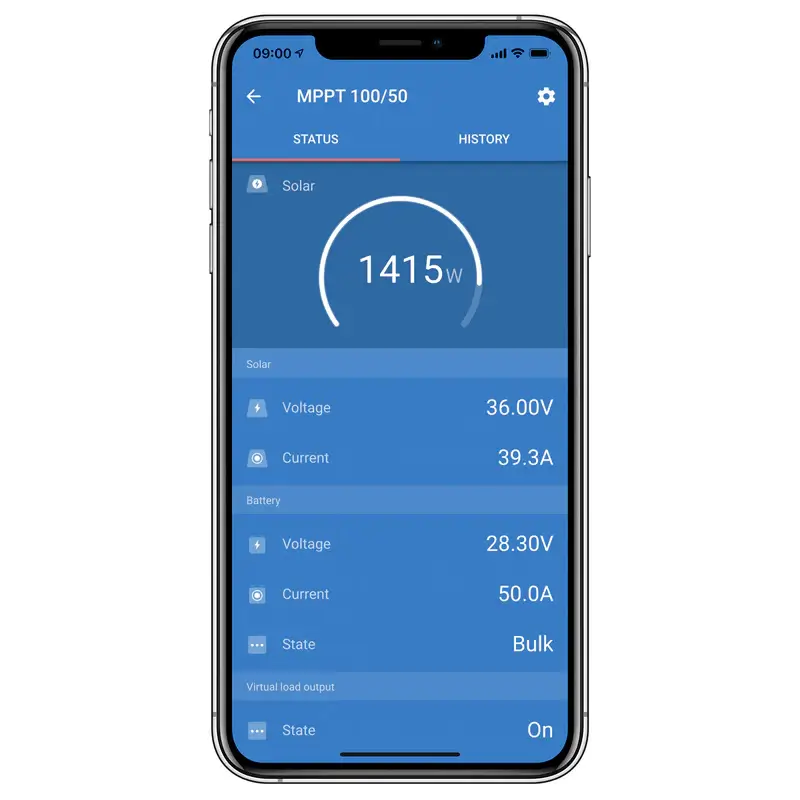

  Configure, monitor, and update your controller wirelessly using the VictronConnect app on your smartphone or tablet.
• Ultra-Fast MPPT Tracking
  Improves energy harvest by up to 30% compared to PWM and up to 10% over slower MPPT units—ideal for changing light conditions.
• Advanced MPP Detection for Partial Shading
  Smart tracking algorithm locks onto the optimal power point, avoiding energy loss in shaded scenarios.
• Exceptional Efficiency
  No cooling fan required—conversion efficiency exceeds 98% for near-silent, high-performance operation.
• Flexible Charging Profiles
  Fully programmable via software, or choose from 8 preset algorithms using a simple rotary dial.
• Comprehensive Electronic Protections
  Built-in safeguards against:
  • Over-temperature
  • Power derating under high heat
  • PV short circuit
  • PV reverse polarity
  • PV reverse current
• Temperature Compensation
  Internal temperature sensor adjusts charge voltage to optimize performance in varying climates.
• Smart Battery Integration
  Seamlessly connects with Smart Battery Sense, SmartShunt, or BMV-712 to wirelessly measure voltage, temperature, and current for adaptive charging.
• Parallel Charging via Bluetooth
  Synchronize up to 10 controllers wirelessly for increased power and redundancy.
• Battery Recovery Function
  Capable of recharging even fully depleted batteries, including Li-ion batteries with internal disconnect.
• Connectivity & Control

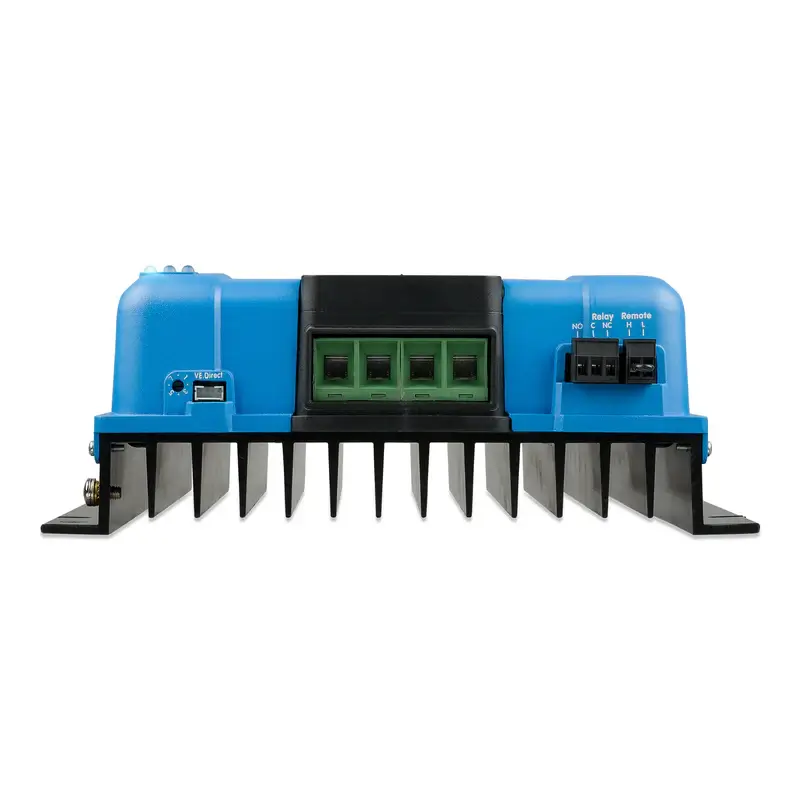

  • VE.Direct Port: For integration with Victron GX monitoring systems.
  • Remote On/Off Input: For BMS or system controller integration.
  • Programmable Relay: Trigger alarms or external events based on user-defined conditions.
• Optional Plug-In LCD Display
  Add the SmartSolar LCD display for real-time controller feedback—no tools required.

Applications:

Ideal for off-grid solar, RV, marine, and remote energy systems where optimal charging performance and remote management are key.
