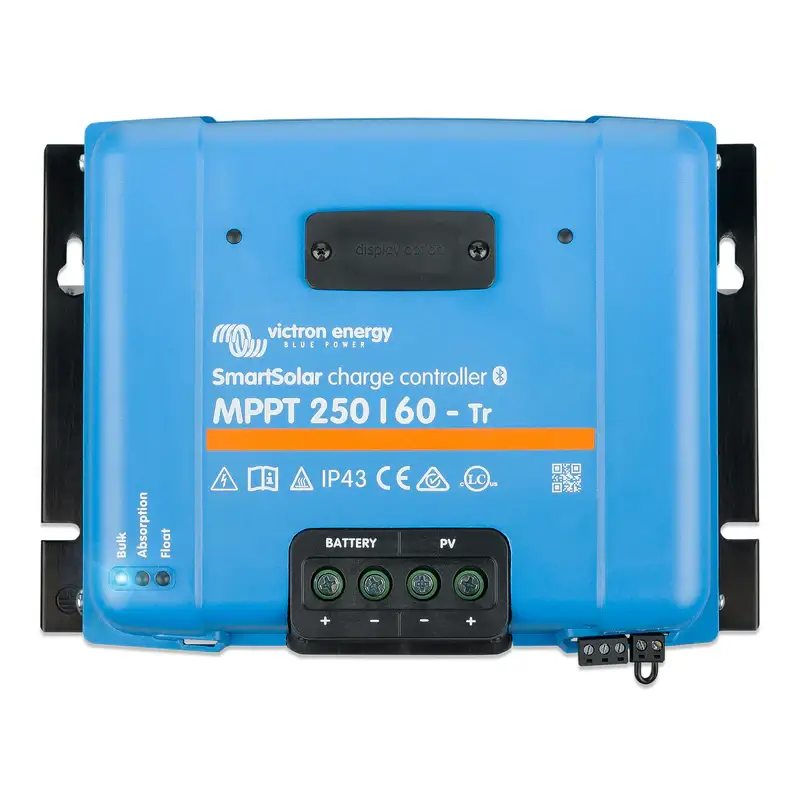

SmartSolar MPPT 250/60-Tr Solar Charge Controller

Datasheets  Manual

The Victron Energy SmartSolar MPPT 250/60-Tr is a high-efficiency solar charge controller designed to maximize energy harvested from solar panels and charge 12V, 24V, 36V, or 48V battery systems. Its built-in Bluetooth enables wireless configuration and monitoring through the VictronConnect app, while advanced MPPT technology continuously optimizes solar production as sunlight conditions change.

FEATURES

• 60A charging current: Supports high-capacity battery systems.

• 250V maximum PV voltage: Accepts solar arrays with an open-circuit voltage up to 250V.

• High conversion efficiency: Peak efficiency of 99%.

• Built-in Bluetooth: Configure, monitor, update, and synchronize compatible SmartSolar controllers.

• VE.Direct communication: Connects to compatible Victron GX devices and monitoring equipment.

• Flexible charging: Eight preset charging algorithms or a customizable profile.

• Electronic protection: Protection against PV reverse polarity, output short circuits, and overheating.

• Temperature compensation: Integrated temperature sensor adjusts charging voltage.

• Remote control: Includes remote on/off terminals and a programmable relay.

• Battery recovery: Can initiate charging when a battery has been deeply discharged, under supported conditions.

SPECIFICATIONS

• Maximum charging current: 60A

• Compatible battery voltages: 12V, 24V, 36V, or 48V; 36V requires manual selection

• Maximum PV open-circuit voltage: 250V absolute maximum; 245V maximum for startup and operation

• Maximum PV short-circuit current: 60A

• Nominal PV power:

  • 12V battery: 860W

  • 24V battery: 1,720W

  • 36V battery: 2,580W

  • 48V battery: 3,440W

• Peak efficiency: 99%

• Communication: Bluetooth and VE.Direct

• PV and battery terminals: Up to 35mm² / AWG 2

• Operating temperature: -30°C to +60°C; full rated output up to 40°C

• Protection rating: IP43 (electronics); IP22 (connection area)

• Dimensions (H × W × D): 185 × 250 × 95mm (7.3 × 9.8 × 3.7in)

• Weight: 3kg (6.6lb)

• Warranty: 5-year limited warranty

IMPORTANT: The PV voltage must remain within the controller's limits, including during cold weather when panel voltage rises. The controller limits excess input power, but exceeding its voltage or electrical limits can cause damage. Confirm the solar array's open-circuit voltage and short-circuit current before installation.
