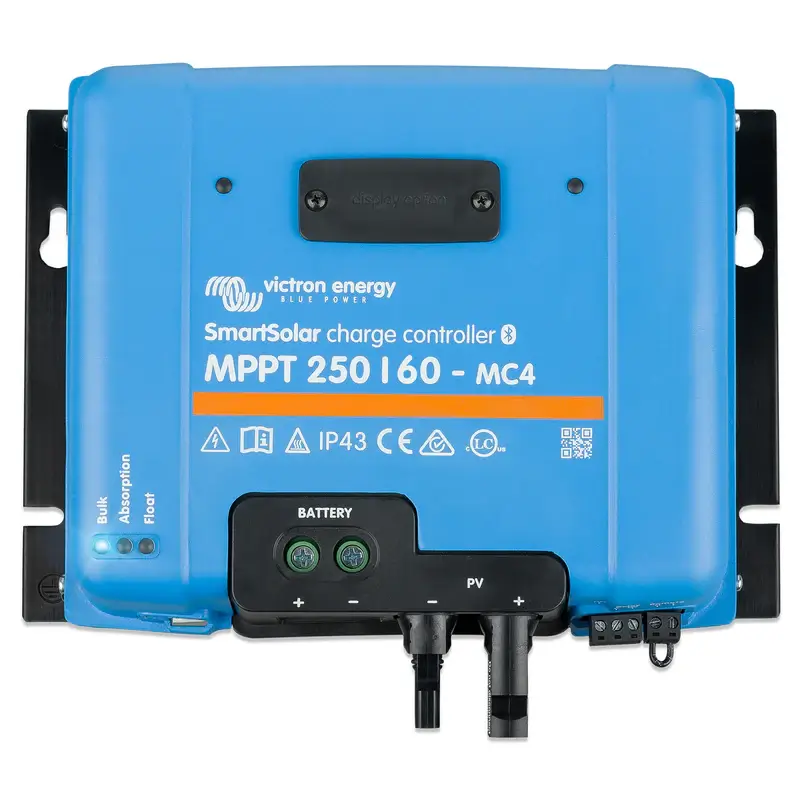

Victron Energy SmartSolar MPPT 250/60-MC4 Solar Charge Controller

Datasheets  Manual

BlueSolar and SmartSolar MPPT Charge Controllers Overview

The Victron Energy SmartSolar MPPT 250/60-MC4 efficiently converts solar energy to charge your battery bank. Its ultra-fast Maximum Power Point Tracking (MPPT) technology optimizes energy harvesting, even in changing light conditions, while built-in Bluetooth enables wireless setup, monitoring and configuration.

FEATURES

• Maximum charge current: 60A

• Maximum PV open-circuit voltage: 250V

• Compatible with 12V, 24V and 48V battery systems; 36V requires manual configuration

• Built-in Bluetooth and VE.Direct communication

• Maximum efficiency: 99%

• Advanced tracking for partially shaded solar panels

• Programmable charging algorithm with 8 preset options

• Electronic protection against overheating, PV short circuits and reverse polarity

• Supports synchronized charging with up to 10 compatible units

• Recovery function for deeply discharged batteries

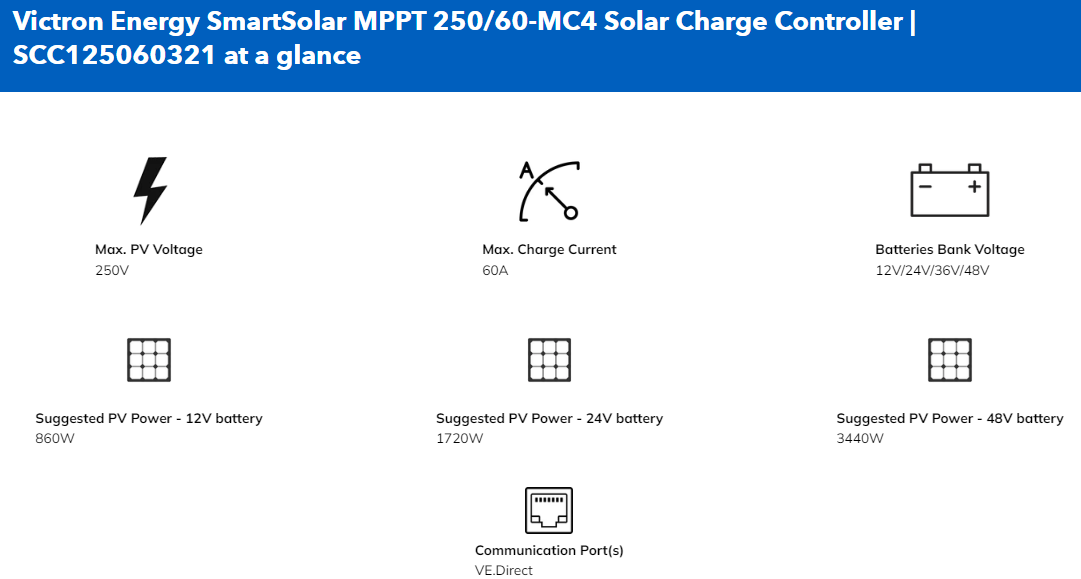

SOLAR INPUT CAPACITY

• 12V battery bank: 860W

• 24V battery bank: 1,720W

• 48V battery bank: 3,440W

SPECIFICATIONS

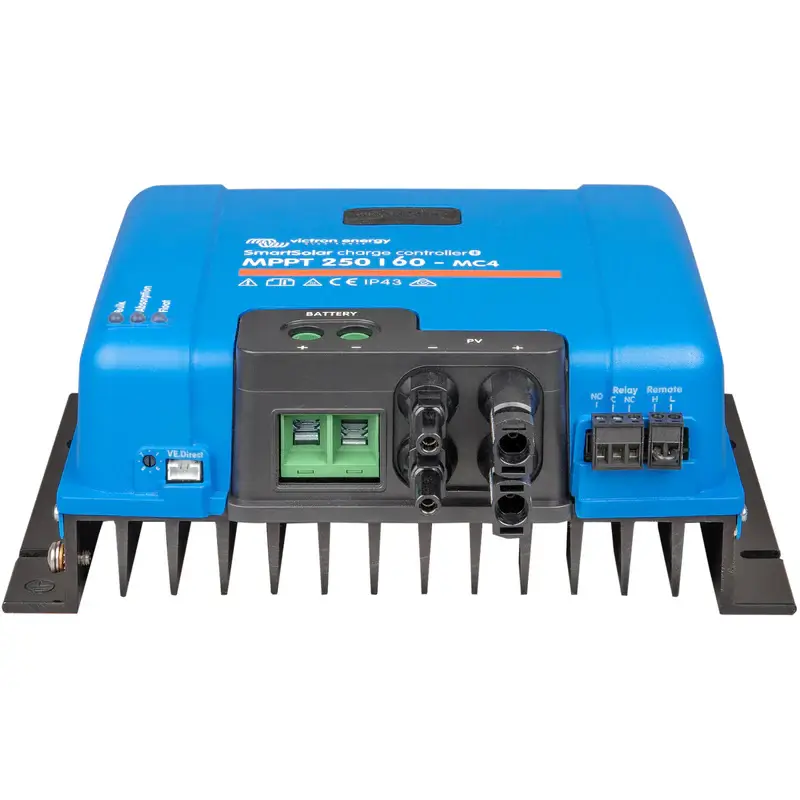

• Solar connections: 2 pairs of MC4 connectors

• Battery connections: 35 mm² / AWG 2 terminals

• Dimensions: 8.46 × 9.84 × 3.74 in (H × W × D)

• Weight: 6.6 lb

• Warranty: 5-year limited warranty
