Victron Energy MPPT Control

User manual

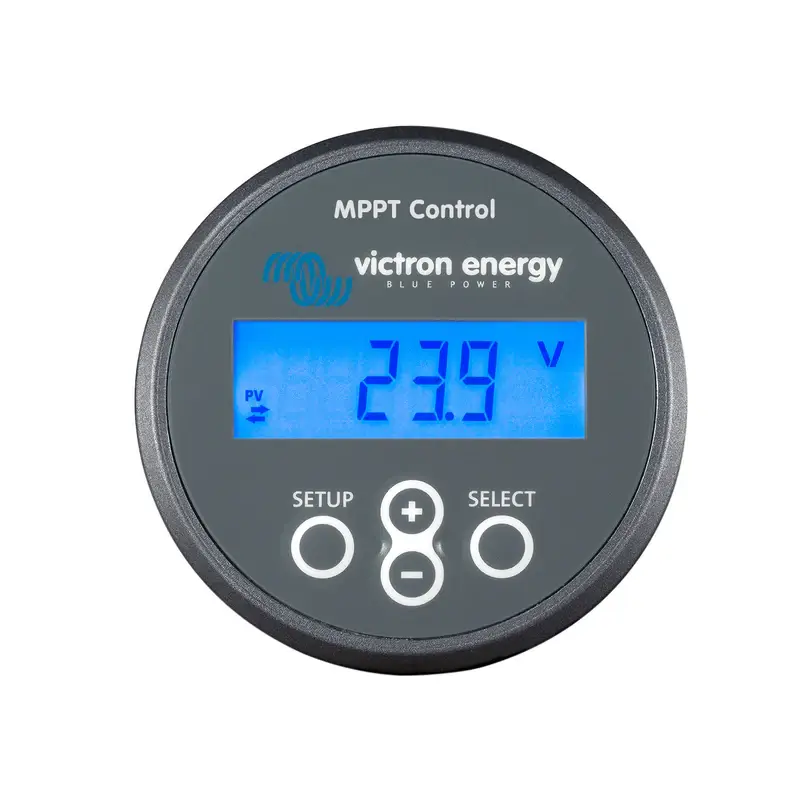

The Victron Energy MPPT Control Display (SCC900500000) allows users to monitor and configure compatible BlueSolar and SmartSolar MPPT solar charge controllers through a dedicated display. It provides real-time information on solar panel power, battery voltage, charging current, and load output, as well as access to historical performance data. Housed in the familiar BMV-700 series enclosure, it offers a clean, professional appearance when integrated into an electrical control panel.

FEATURES

• Live System Monitoring: Displays solar panel power, energy yield, battery voltage, charging current, charging status, and load output information.

• Historical Data: Provides access to cumulative lifetime values and 30-day performance history.

• MPPT Configuration: Allows users to view and adjust compatible solar charge controller settings directly from the display.

• Broad Compatibility: Works with Victron Energy BlueSolar and SmartSolar MPPT controllers equipped with a VE.Direct port.

• Compact Display: Features a backlit screen with a BMV-700 series-style housing for flush-mounted installation.

SPECIFICATIONS & INSTALLATION

• Power Supply: 6.5–95V DC when powered by battery or 5V DC through VE.Direct.

• Power Consumption: Less than 0.05W with the backlight off.

• Operating Temperature: -20°C to +50°C.

• Front Display Diameter: 63mm (2.5").

• Front Bezel Dimensions: 69 × 69mm.

• Mounting Dimensions: 52mm diameter × 31mm depth.

• Weight: 50g.

• Included Accessories: 1.5m fused power cable.

• Installation: Flush-mounted. Requires a VE.Direct communication cable, sold separately, to connect to the solar charge controller.

• Warranty: 5-year limited factory warranty.
