SmartSolar Pluggable Display

User Manual: View PDF

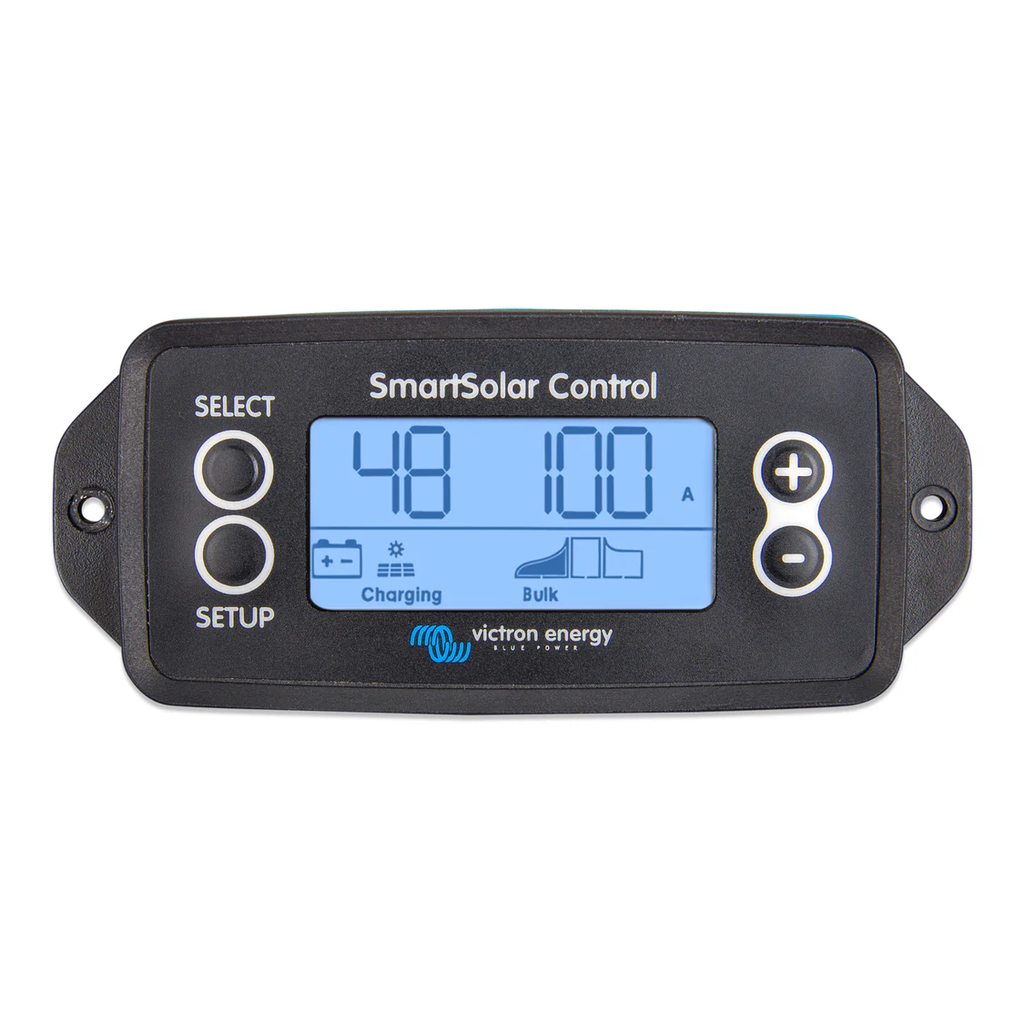

The Victron SmartSolar Control Display is an optional plug-in LCD screen for compatible SmartSolar and BlueSolar MPPT charge controllers. It provides direct access to live operating information, historical data and controller settings without requiring a smartphone.

FEATURES

• Plug-in LCD display that connects directly to the front of the charge controller

• Displays solar panel power, voltage, current and energy yield

• Monitors battery voltage, current and charging stage

• Shows load output status and current on controllers equipped with a load output

• Provides 30-day historical data and cumulative operating records

• Allows users to view and adjust compatible charge controller settings

• Can be installed permanently or used as a temporary display

• Hot-swappable: can be connected or removed while the controller is operating

SPECIFICATIONS

• Display type: LCD

• Connector: RS232, 9-pin

• Dimensions: 116 × 50 × 25mm

• Weight: 66g

• Warranty: 5-year limited warranty

COMPATIBILITY

Compatible with the following Victron MPPT controller ranges:

• SmartSolar MPPT 150/45 to 250/100

• SmartSolar MPPT 150/70 to 250/100 VE.Can

• BlueSolar MPPT 150/70 to 250/100 VE.Can

IMPORTANT

• This is an optional accessory; it is not included with the charge controller.

• Verify that your controller has a front display port marked “display option” before ordering.
