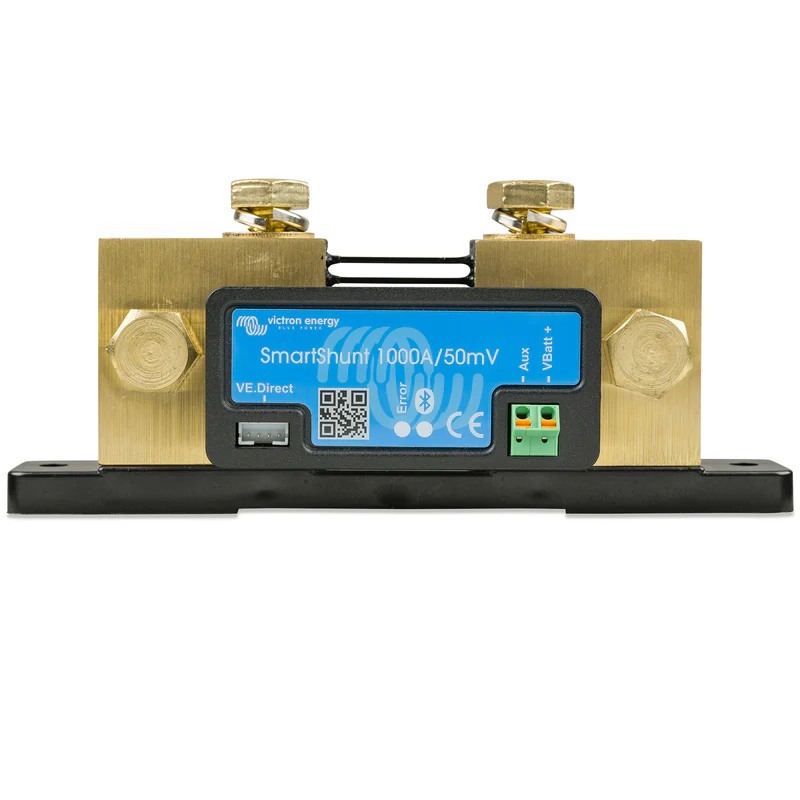

Victron Energy SmartShunt 1000A

Smart Battery Shunt 1000A Datasheet   SmartShunt and BMV Manual

The Victron SmartShunt is an all-in-one battery monitor without a built-in display. It connects to the VictronConnect app through Bluetooth, providing battery information such as state of charge, current, voltage, remaining time and historical data.

FEATURES

• 1000A/50mV precision shunt

• Built-in Bluetooth with VictronConnect app

• VE.Direct port for connection to a GX device

• Auxiliary input for monitoring a second battery, battery midpoint or optional temperature sensor

• Configurable battery capacity and monitoring settings

SPECIFICATIONS

• Supply voltage: 6.5–70V DC

• Battery capacity setting: 1–9,999Ah

• Current measurement accuracy: ±0.4%

• Voltage measurement accuracy: ±0.3%

• Shunt connections: M10

• Protection rating: IP21

• Operating temperature: -40°C to +50°C

• Dimensions: 68 × 168 × 75mm

• Temperature sensor: Optional (ASS000100000)

IMPORTANT

• No built-in display, programmable relay or programmable audible/visual alarm.

• Temperature monitoring requires the optional temperature sensor.

• A separate VE.Direct cable is required to connect to a GX device.
