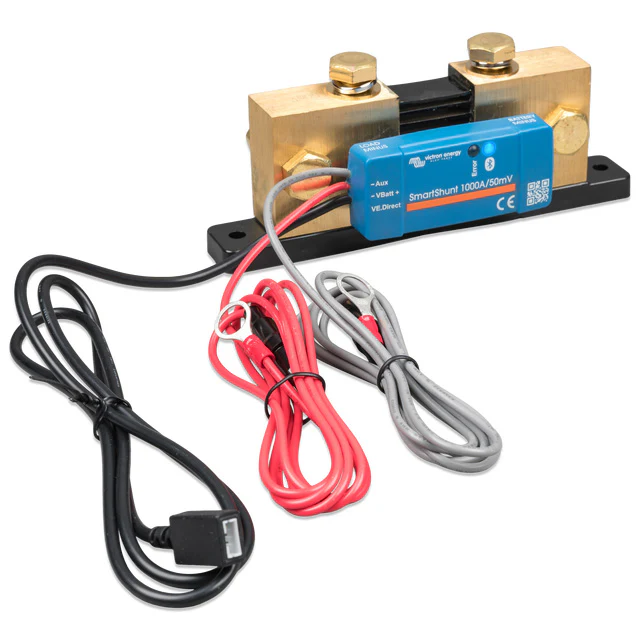

The Victron SmartShunt IP65 is a compact battery monitor that tracks current, voltage, state of charge and remaining battery time. With built-in Bluetooth and no display, it connects to the VictronConnect app for convenient monitoring from your phone or tablet.
FEATURES
1000A/50mV shunt for accurate battery monitoring
Built-in Bluetooth with VictronConnect app
VE.Direct port for connection to a GX device
Auxiliary input for monitoring a second battery, battery midpoint or optional temperature sensor
IP65-rated, dust-tight and protected against water jets
SPECIFICATIONS
Supply voltage: 6.5–70V DC
Battery capacity setting: 1–9,999Ah
Measurement accuracy: ±0.4% current; ±0.3% voltage
Dimensions: 68 × 168 × 75mm
Connections: M10 shunt terminals
Operating temperature: -40°C to +50°C
IMPORTANT
No built-in screen, audible alarm or programmable relay. Alarms are displayed through VictronConnect or a connected GX device.
Temperature monitoring requires the optional temperature sensor (ASS000100000).
A separate VE.Direct cable is required to connect to a GX device.
