Sprinter Van Bull Bar

https://canadarv.com/web/image/product.template/7133/image_1920?unique=2b74751

Features

  • Enhances front-end protection and off-road styling
  • Bolt-on installation with no cutting or drilling required
  • Designed to pair with front skid plate systems for full coverage
  • Built-in multi-zone lighting integration system
  • Maintains full functionality of factory sensors and cameras
  • Upper tube supports clamp-mounted auxiliary lights
  • Middle bracket supports up to 6” diameter lighting units (mount-specific drilling required)
  • Lower mounts designed for compact auxiliary light pods
  • Heavy-duty aluminum tubing construction for strength and reduced weight
  • Exterior-grade UV-resistant powder-coated finish
  • Compatible with overland and adventure van builds

2,307.69 $ 2307.69 CAD 2,307.69 $

Contact us for quote

This combination does not exist.

Contact Us

Terms and Conditions
Return within 30 days for most orders
Free delivery on most orders

Installation Guide

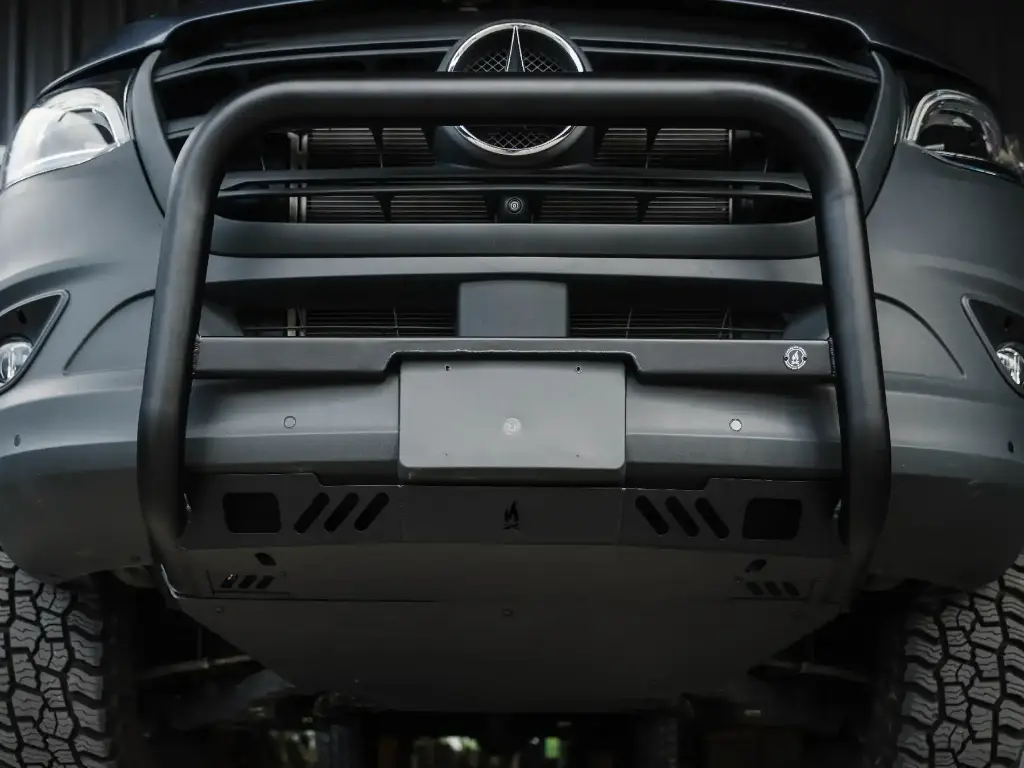

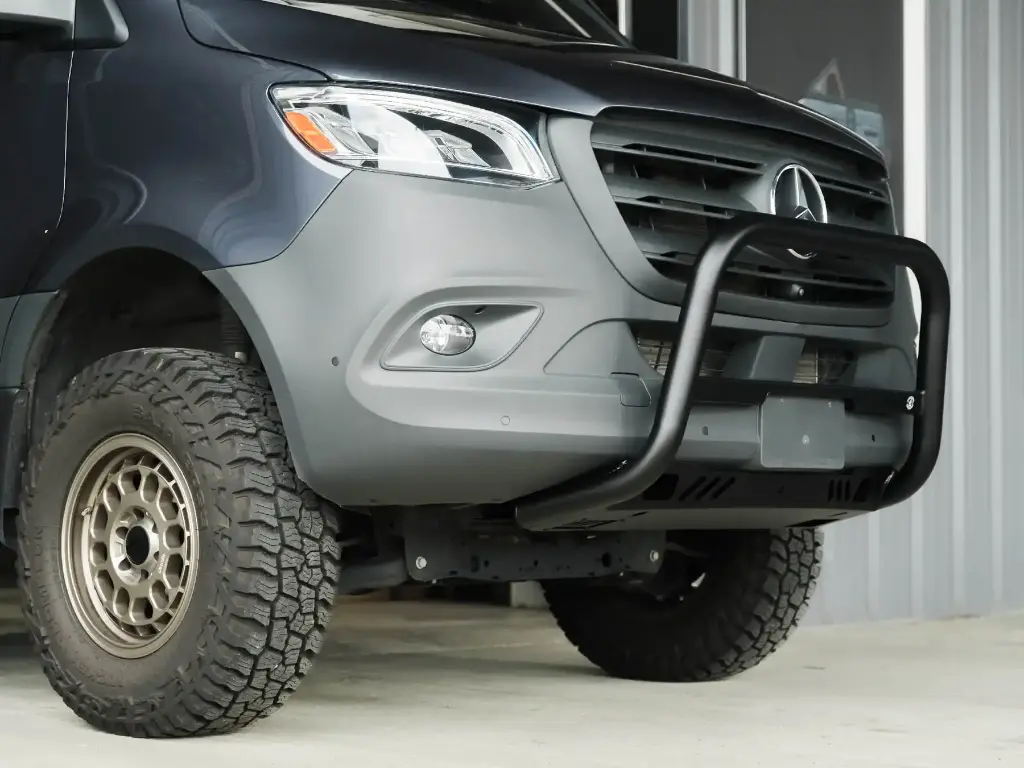

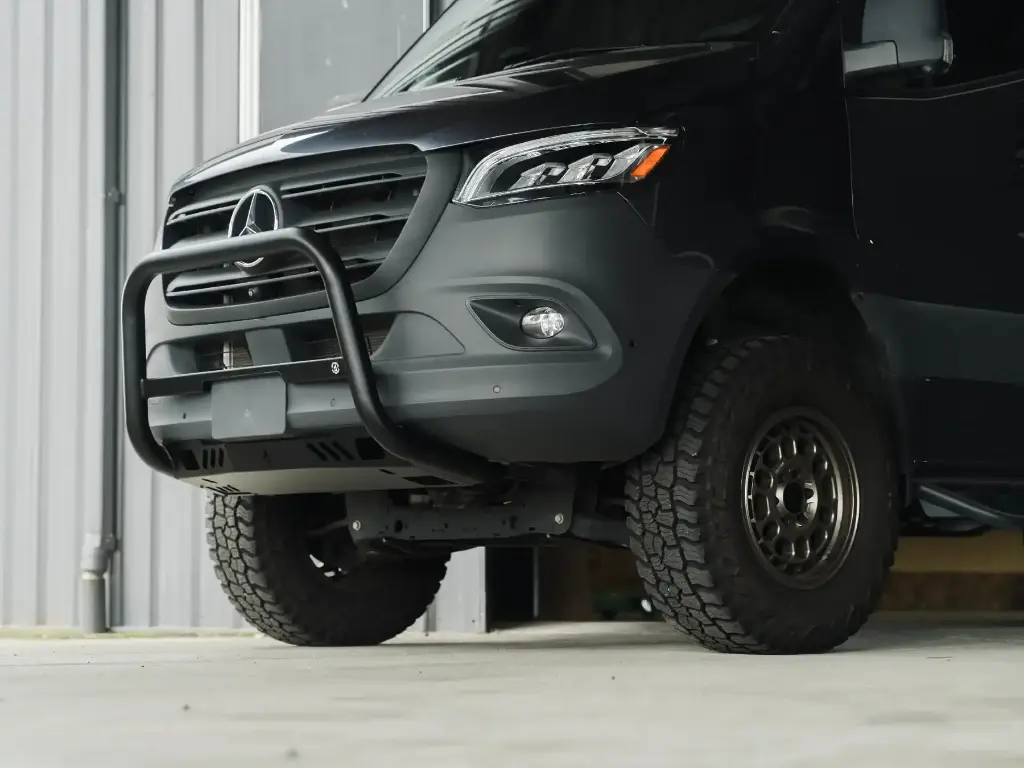

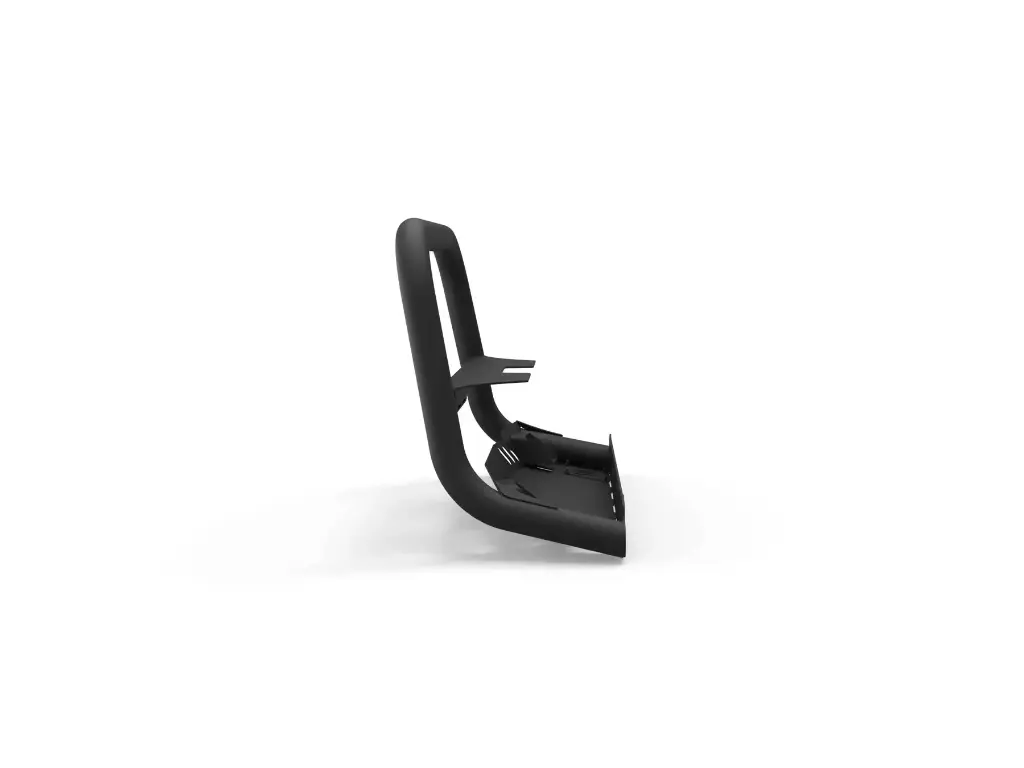

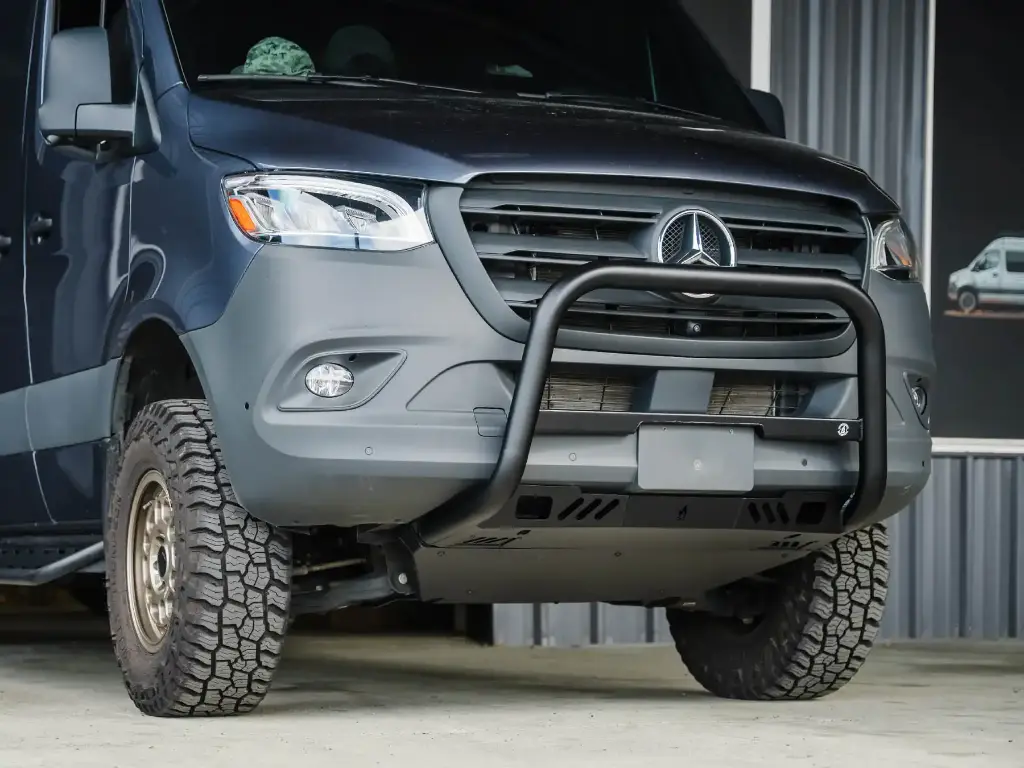

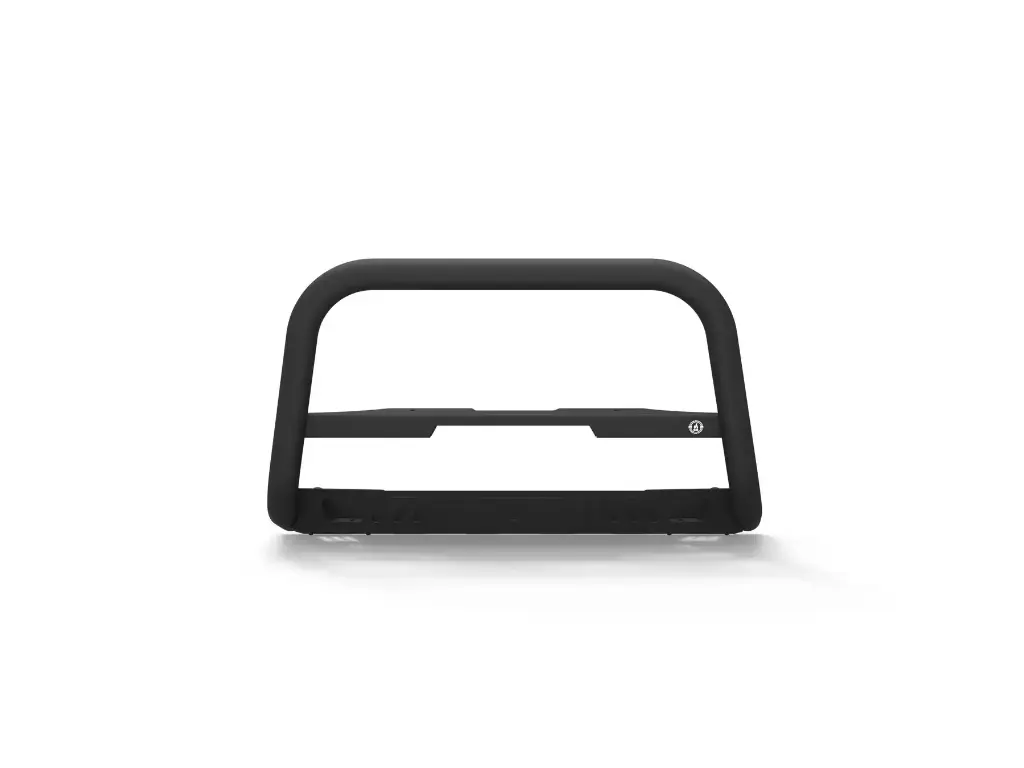

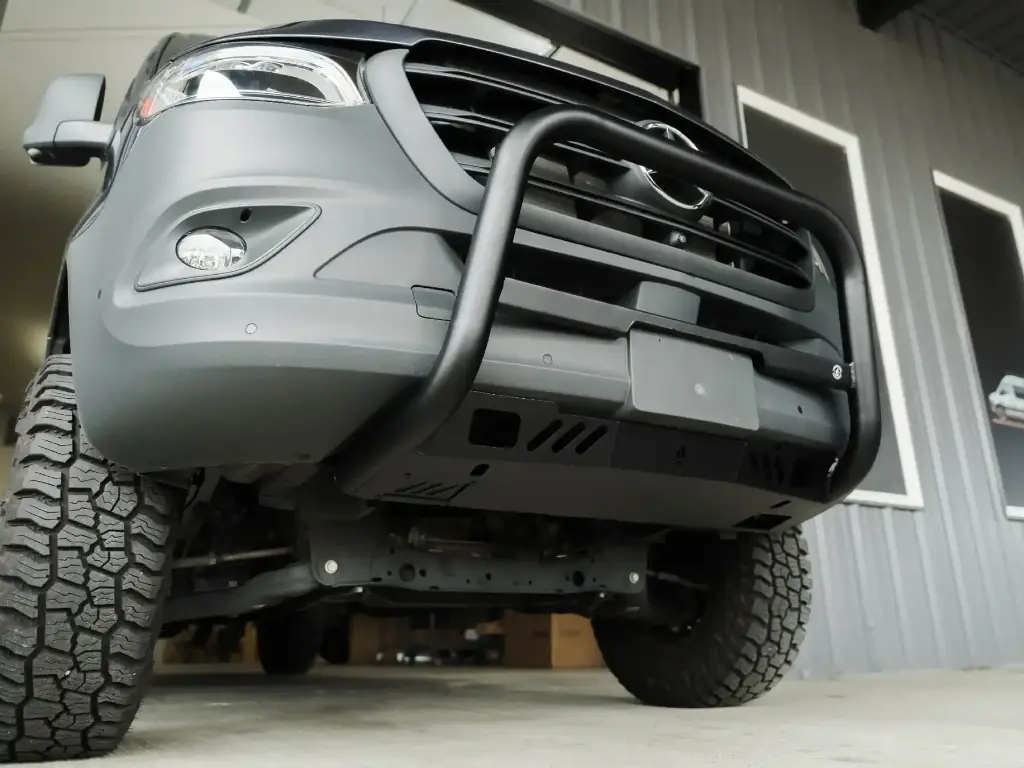

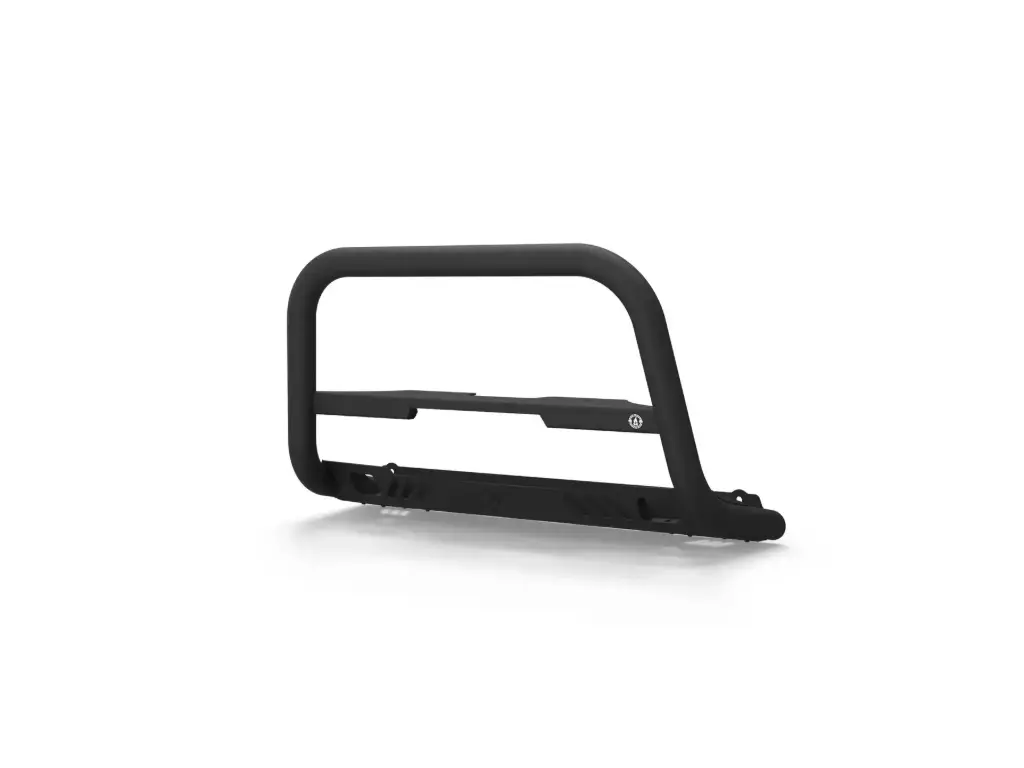

Sprinter Van Bull Bar – Front-End Protection & Lighting Mount System

A front-end bull bar system designed for Mercedes Sprinter vans, combining off-road protection with versatile auxiliary lighting mounting options. Built to enhance both function and style, it provides a strong mounting structure while maintaining full sensor and camera usability.

Engineered for bolt-on installation and compatibility with skid plate systems for complete front-end coverage.

Specifications

  • Product Type: Front bull bar / lighting mount system
  • Application: Front-end protection and auxiliary lighting mount
  • Vehicle Compatibility:
    • 2019+ Mercedes-Benz Sprinter vans (4WD / AWD)
  • Material: 2.5” aluminum tubing
  • Finish: Exterior-grade UV-resistant powder coat
  • Installation Type: Bolt-on (no cutting or drilling required)
  • Mounting System: Direct over-run bracket mount or frame rail support brackets

Lighting Zones

  • Upper tube: clamp-mounted auxiliary lights (2.5” clamps)
  • Middle bracket: lights up to 6” diameter (drilling required)
  • Lower mounts: compatible with compact light pods

Compatibility Notes

  • 3500 models require over-run brackets or frame rail support brackets
  • Compatible with matching skid plate system for full front-end protection

Unit of Measure: Each

Width: 62.79" (1595mm)

Crossbar Length: 62.40" (1585mm)

130 HR Transit: 104.72" (266.0cm)

148 MR Transit: 132.3" (336.0cm)

148 HR Transit: 81.9" (308.0cm)

148 HR EXT Transit: 150.4" (382.0cm)

Lengths by Vehicle:

Internal Width: 62.22" (1555mm)

130 Transit: 49 lbs

148 Transit: 58 lbs

148 EXT Transit: 74 lbs
