STAGE 1 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2015-2017 - (MID & HEAVY TUNE) - Van Compass

The Van Compass Stage 1 TOPO 2-Inch Lift Kit is a complete suspension upgrade for 2015–2017 Ford Transit RWD vans, providing a true 2" lift, increased ground clearance, improved ride quality, and better handling while maintaining factory alignment specifications. The kit is available in Mid Tune for passenger vans, lighter camper conversions, and moderately loaded work vans, or Heavy Tune for fully built campers, overland conversions, and heavily loaded work vehicles. Both configurations fit Single Rear Wheel (SRW) and Dual Rear Wheel (DRW) Transits and combine Van Compass TOPO 2.0 lift components with Bilstein B6 front struts and VC-tuned Falcon 2.1 rear monotube shocks.

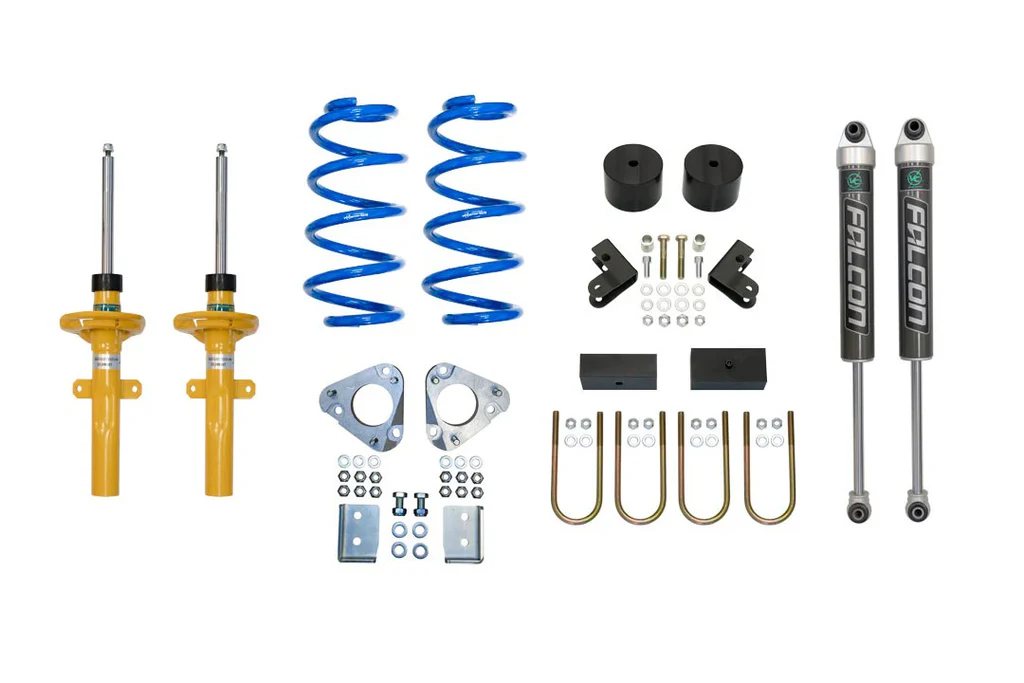

FEATURES & INCLUDED COMPONENTS

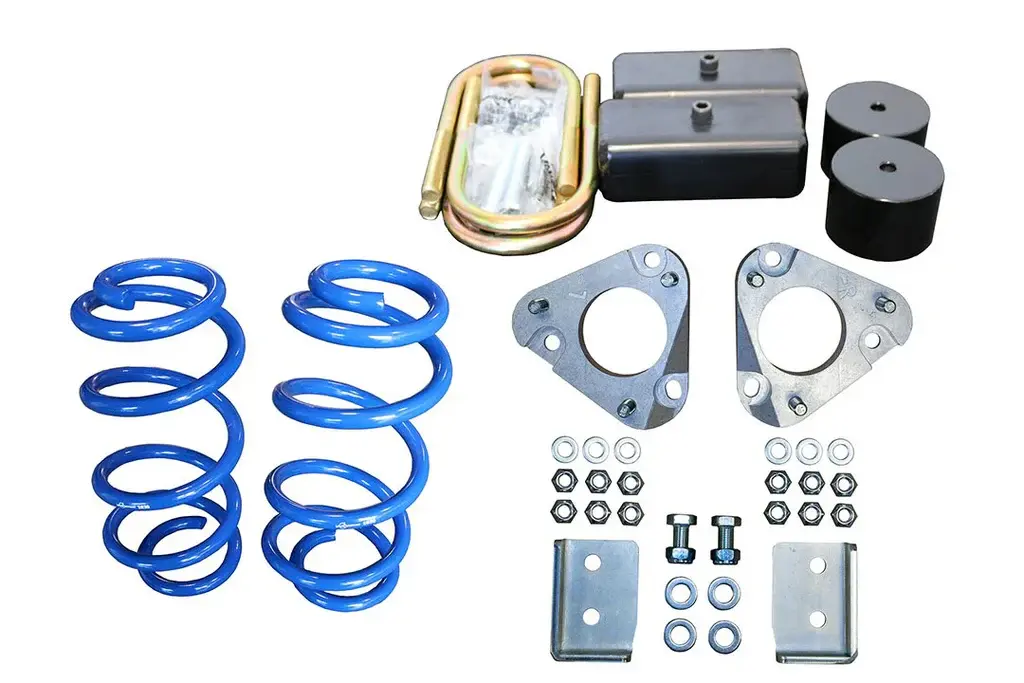

• True 2" suspension lift using a 0.75" camber correction plate, Van Compass-tuned front coil springs, and 2" billet aluminum rear lift blocks

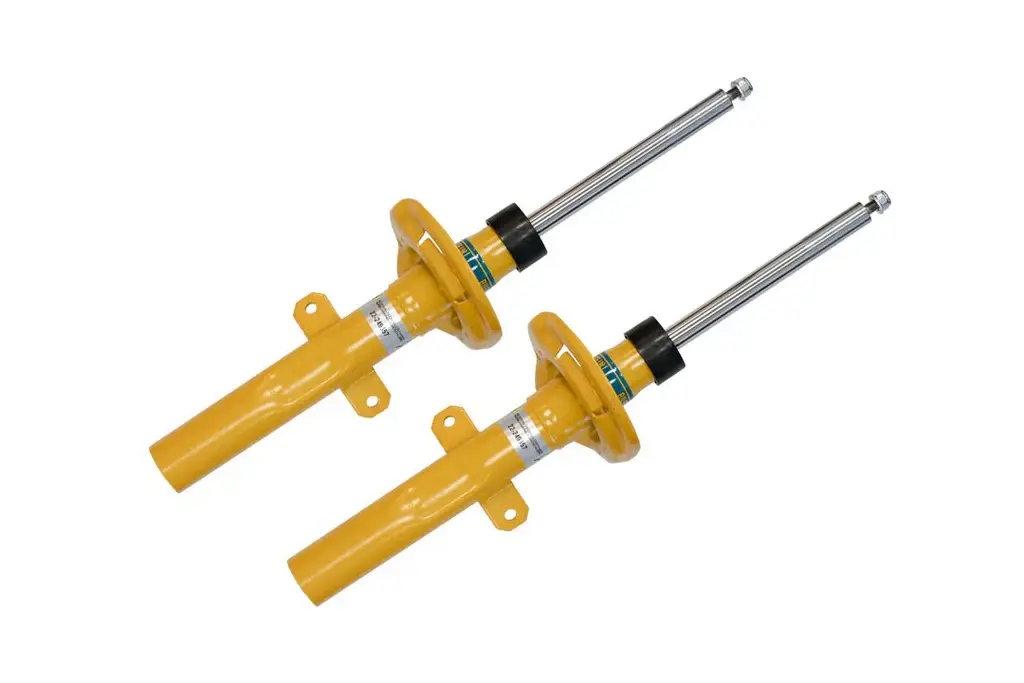

• Bilstein B6 front struts add approximately 0.5" of lift while improving front-end damping and control

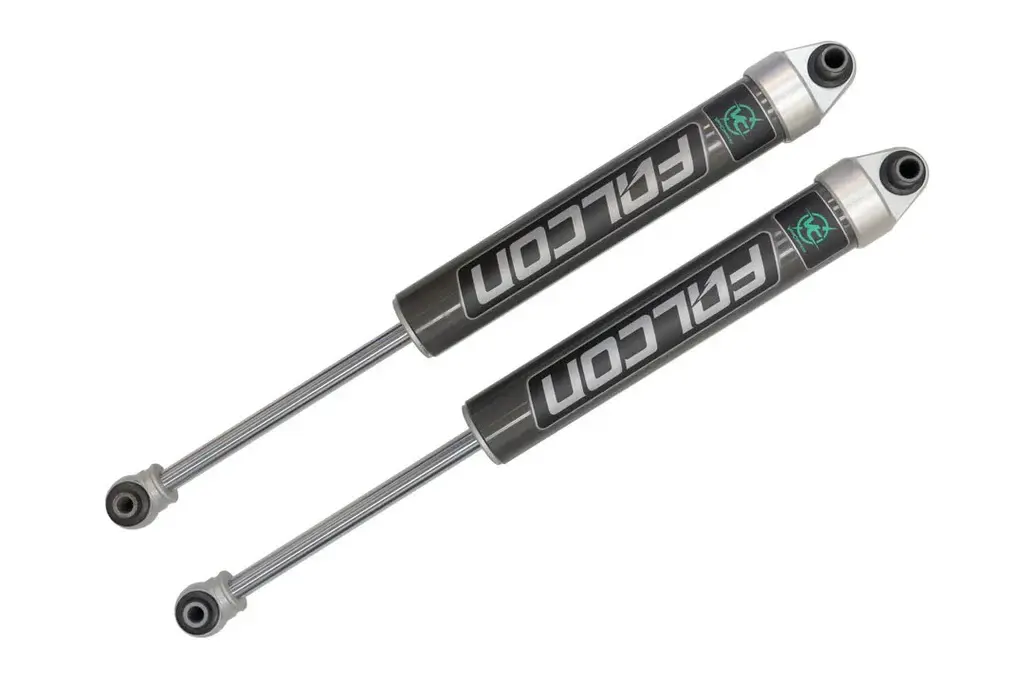

• Falcon 2.1 VC-tuned rear monotube shocks provide improved damping, ride comfort, and sway control; Heavy Tune shocks are specifically calibrated for increased vehicle weight
• High-clearance rear shock relocation brackets improve ground clearance and protect the shock shafts from trail damage
• Complete TOPO 2.0 front and rear lift kit, front strut kit, rear shocks, brackets, hardware, and installation instructions included

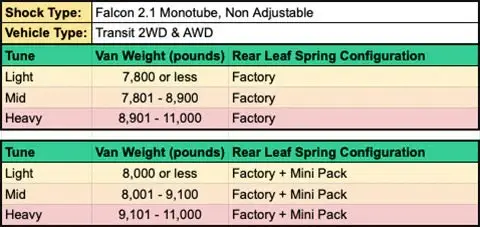

TUNE OPTIONS, FITMENT & INSTALLATION

• Mid Tune (7112-M): Recommended for passenger vans, lighter camper builds, or moderately loaded work vans
• Heavy Tune (7112-H): Recommended for fully built camper vans, overland/conversion builds, high-roof campers, and heavily loaded work vehicles
• Compatibility: 2015–2017 Ford Transit RWD, SRW or DRW
• Maximum recommended tire size: 265/75R16; minor inner pinch-seam trimming may be required
• Ground clearance: Up to 12.75" under the front crossmember with 265/75R16 tires
• Installation: A professional alignment is required after installation to ensure proper tire wear and handling.
