STAGE 2 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2015-2017 - LIGHT/MID TUNE & MID/HEAVY TUNE - Van Compass

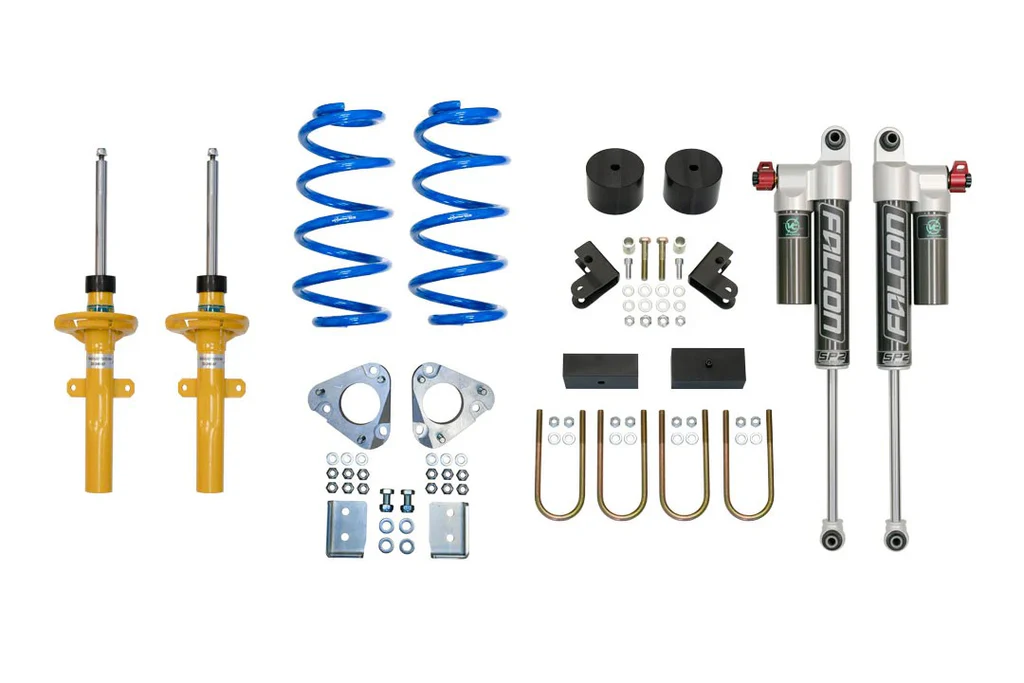

The Van Compass Stage 2 TOPO 2-Inch Lift Kit is a complete suspension upgrade for 2015–2017 Ford Transit RWD vans, providing a true 2" lift, increased ground clearance, improved handling, and adjustable rear damping. The system is available in Light/Mid Tune for passenger vans, light camper builds, and moderately loaded work vans, or Mid/Heavy Tune for full camper conversions, high-roof builds, and heavily loaded work vans. Both configurations fit Single Rear Wheel (SRW) and Dual Rear Wheel (DRW) Transits and include Bilstein B6 front struts, VC-tuned Falcon 3.3 SP2 adjustable rear reservoir shocks, rear lift blocks, bump stop spacers, and high-clearance shock relocation brackets.

FEATURES

• True 2" suspension lift with a 0.75" camber correction plate and approximately 1.25" of front lift

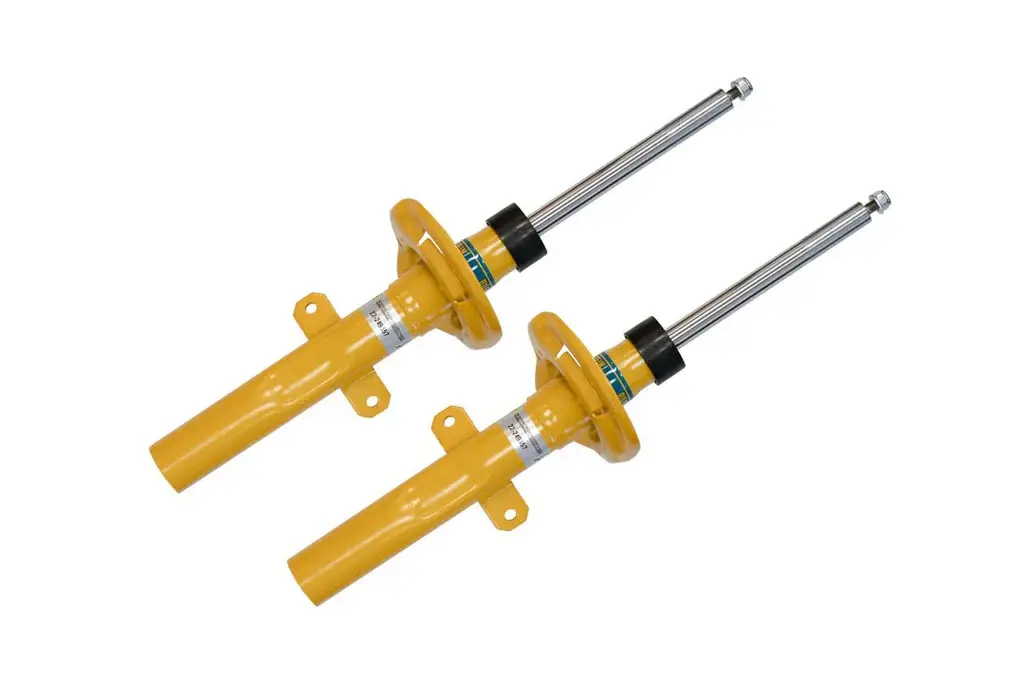

• Bilstein B6 front struts for improved damping, stability, and handling

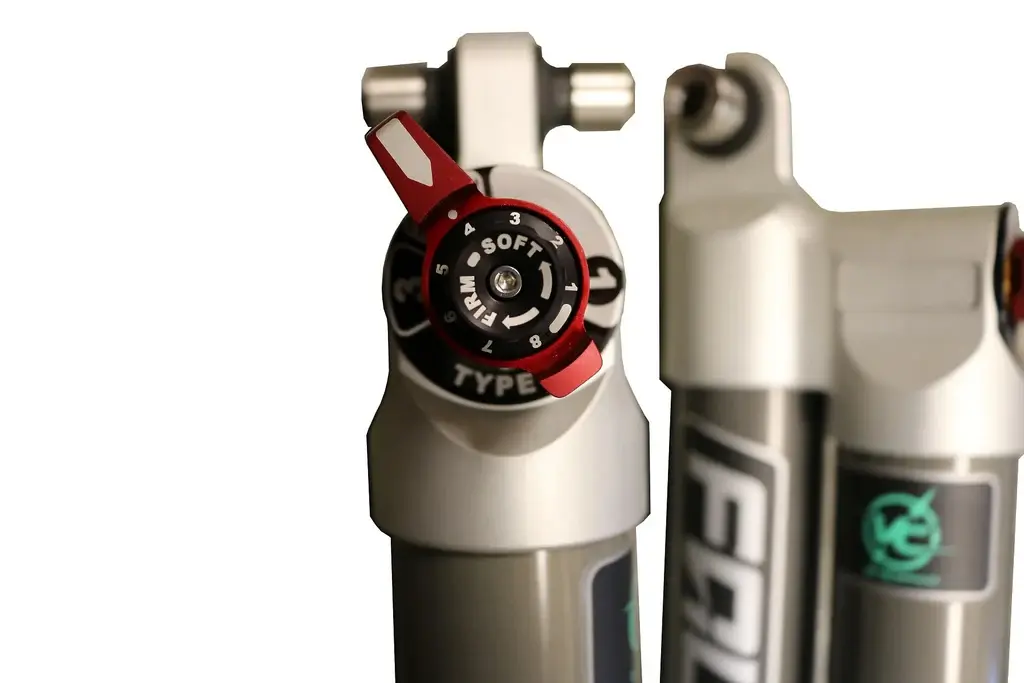

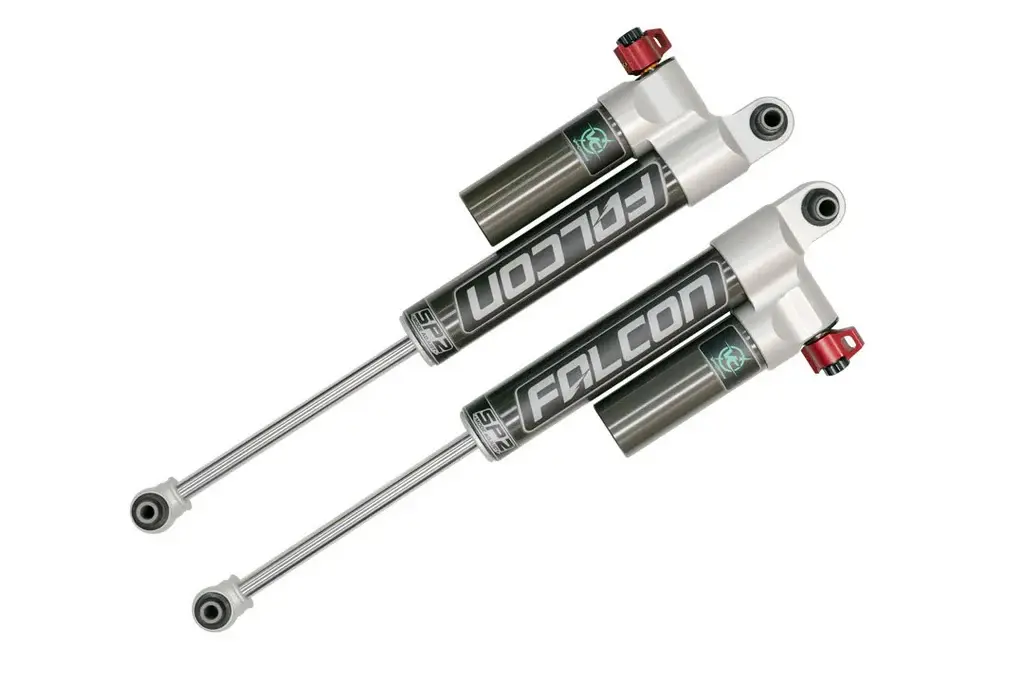

• Falcon 3.3 SP2 adjustable rear reservoir shocks with a 10-position Fast Adjust knob
• 2" billet aluminum rear lift blocks and bump stop spacers
• High-clearance rear shock brackets improve axle clearance and reduce the risk of bottoming out
• Improved ride comfort, body-roll control, sway resistance, and ground clearance
• Includes required installation hardware and instructions

TUNE OPTIONS & FITMENT

• Light/Mid Tune (7114-LM): Designed for passenger vans, light/mid camper builds, and DRW work vans with moderate loads. Uses light/mid-tuned front springs and is compatible with tires up to 265/75R16; minor inner pinch-weld trimming may be required.
• Mid/Heavy Tune (7114-MH): Designed for full camper conversions, high-roof vans with additional gear, and heavily loaded work vans. Uses mid/heavy-tuned front springs and supports tires up to 265/75R16; minor inner pinch-weld trimming may be required.
• Compatibility: 2015–2017 Ford Transit RWD, SRW or DRW
• Installation: Professional alignment is required after installation. The Mid/Heavy configuration also requires trimming of the factory rear shock mounts for proper clearance.
