STAGE 1 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2018+ - (MID TUNE & HEAVY TUNE) - Van Compass

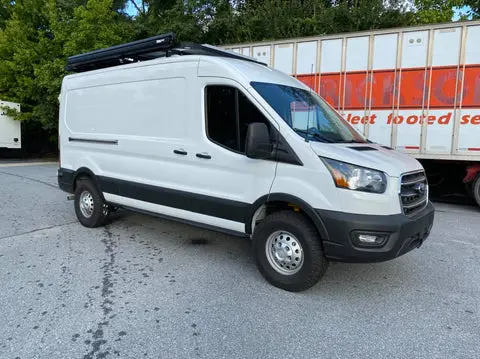

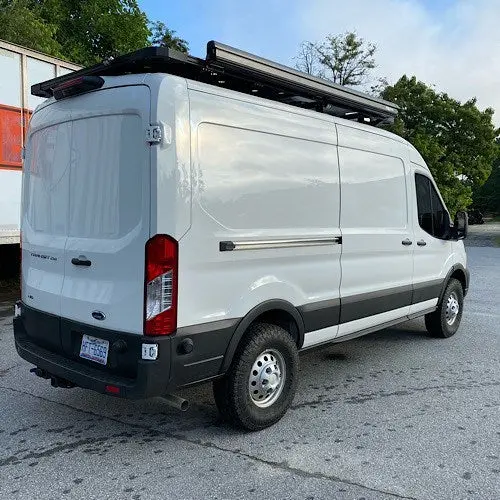

The Van Compass Stage 1 TOPO 2-Inch Lift Kit is a complete suspension upgrade for 2018+ Ford Transit RWD vans, delivering a true 2" suspension lift while improving ride comfort, stability, ground clearance, and off-road capability. The system is available in Mid Tune for stock passenger vans, light camper builds, and DRW work vans, or Heavy Tune for fully built camper vans, upfitted work vans, and heavier cargo setups. Both configurations use Van Compass-tuned components to maintain factory alignment geometry while providing room for larger tires and improved suspension control.

FEATURES & INCLUDED COMPONENTS

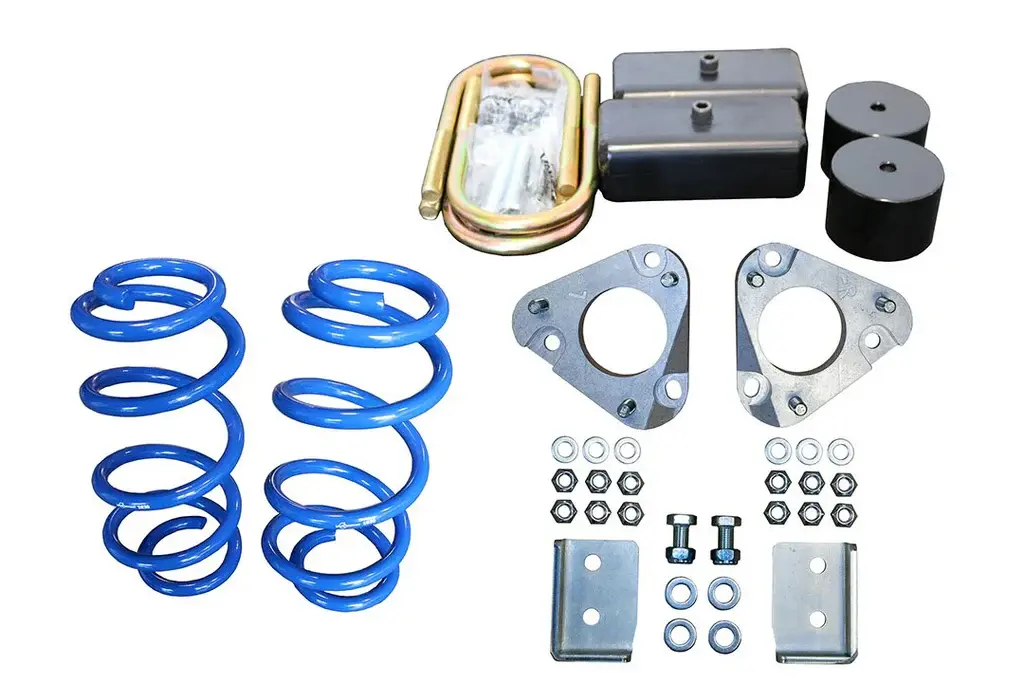

• True 2" lift: A 0.75" camber-correction plate and tuned front coil springs provide 1.25" of front lift, with Bilstein B6 front struts adding approximately 0.5" more lift

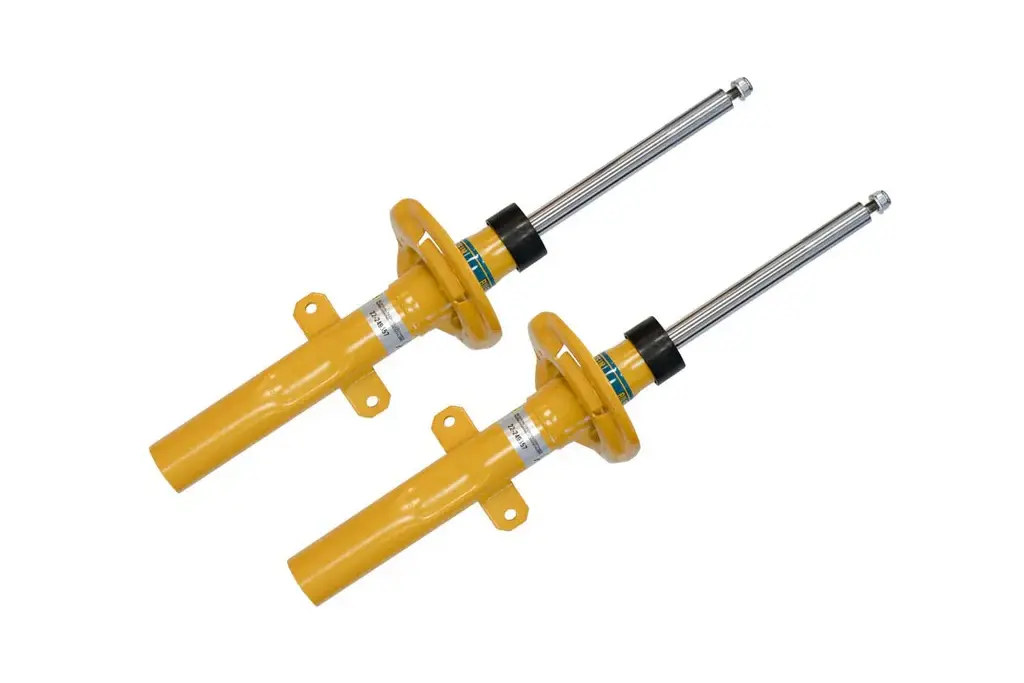

• Bilstein B6 front struts: Improve damping, front-end control, ride quality, and suspension response

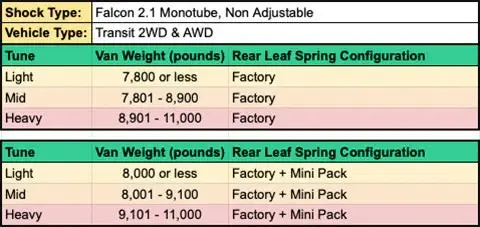

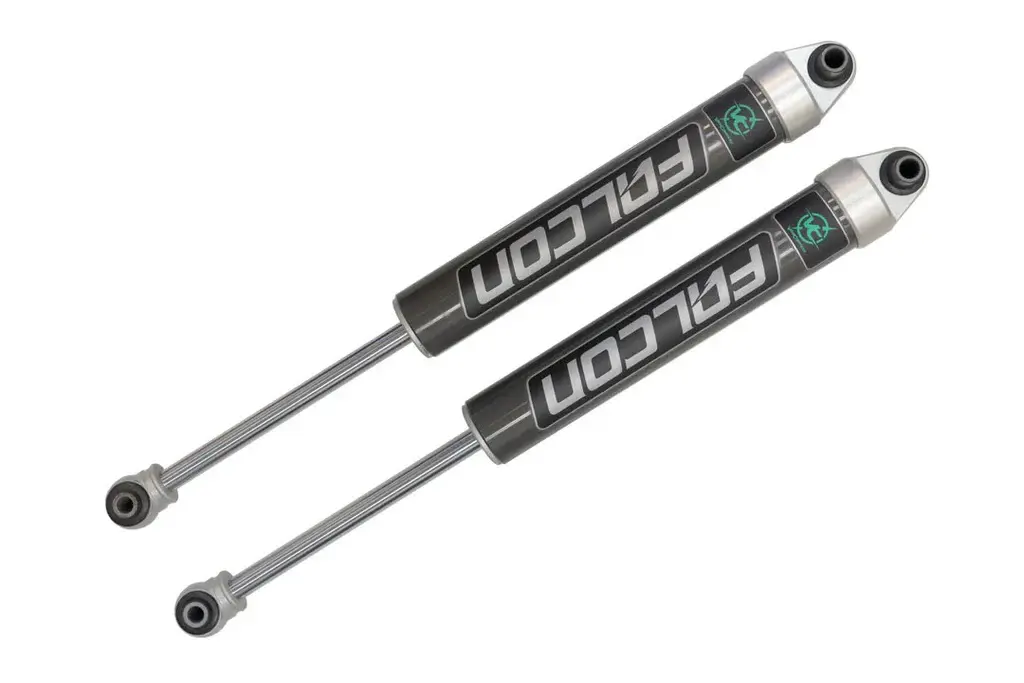

• Falcon 2.1 VC-tuned rear monotube shocks: Improve control over bumps while reducing sway, bounce, and body roll; Heavy Tune shocks are calibrated for increased vehicle weight
• 2" billet aluminum rear lift blocks maintain rear suspension geometry
• High-clearance rear shock brackets improve ground clearance and protect the shock shafts from trail obstacles

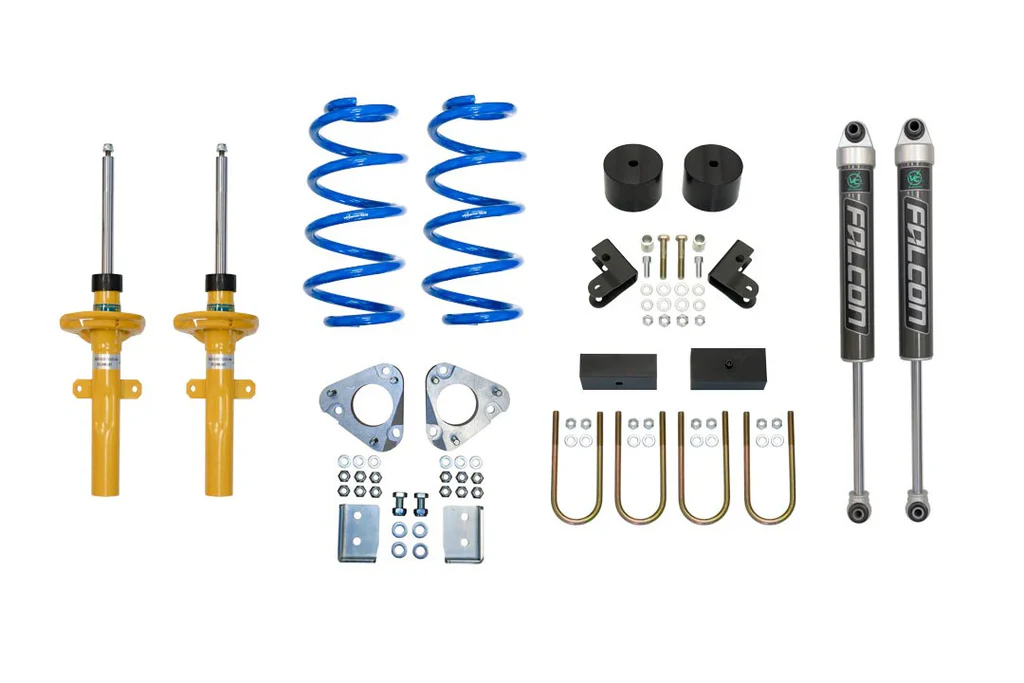

• Included: TOPO 2.0 front and rear lift kit, Bilstein B6 front struts, Falcon 2.1 rear shocks, high-clearance shock brackets, hardware, and installation instructions

TUNE OPTIONS, FITMENT & INSTALLATION

• Mid Tune (7111-M): Ideal for stock passenger vans, light camper conversions, and DRW work vans
• Heavy Tune (7111-H): Designed for fully built camper vans, upfitted work vans, and heavier cargo or high-GVWR applications
• Compatibility: 2018+ Ford Transit RWD, Single Rear Wheel (SRW) and Dual Rear Wheel (DRW)
• Recommended maximum tire size: 265/75R16; minor trimming of the inner pinch seam may be required
• Ground clearance: Up to 12.75" under the front crossmember with 265/75R16 tires
• Installation: A professional wheel alignment is required after installation to maintain proper handling and prevent abnormal tire wear
