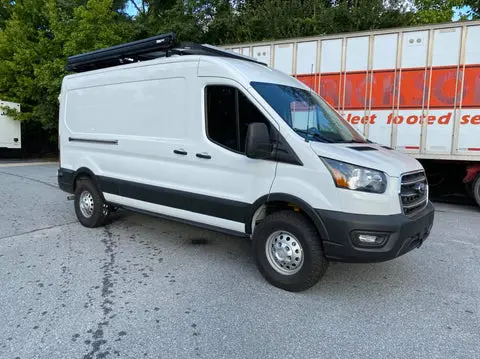

Upgrade your 2020+ Ford Transit AWD with the Van Compass Stage 1 TOPO 2-Inch Lift Kit, engineered specifically around the AWD Transit’s suspension and front CV geometry. Available in Mid Tune and Heavy Tune, this entry-level suspension system provides a true 2" lift while improving ground clearance, stability, ride control, and capability for passenger vans, camper conversions, overland builds, and work vehicles.

FEATURES & INCLUDED COMPONENTS

  • True 2" lift using a 0.75" camber correction plate and tuned front coil springs, providing approximately 1.25" of front lift with increased compression travel.
  • 2" billet aluminum rear lift blocks and bump stop spacers maintain proper suspension geometry.

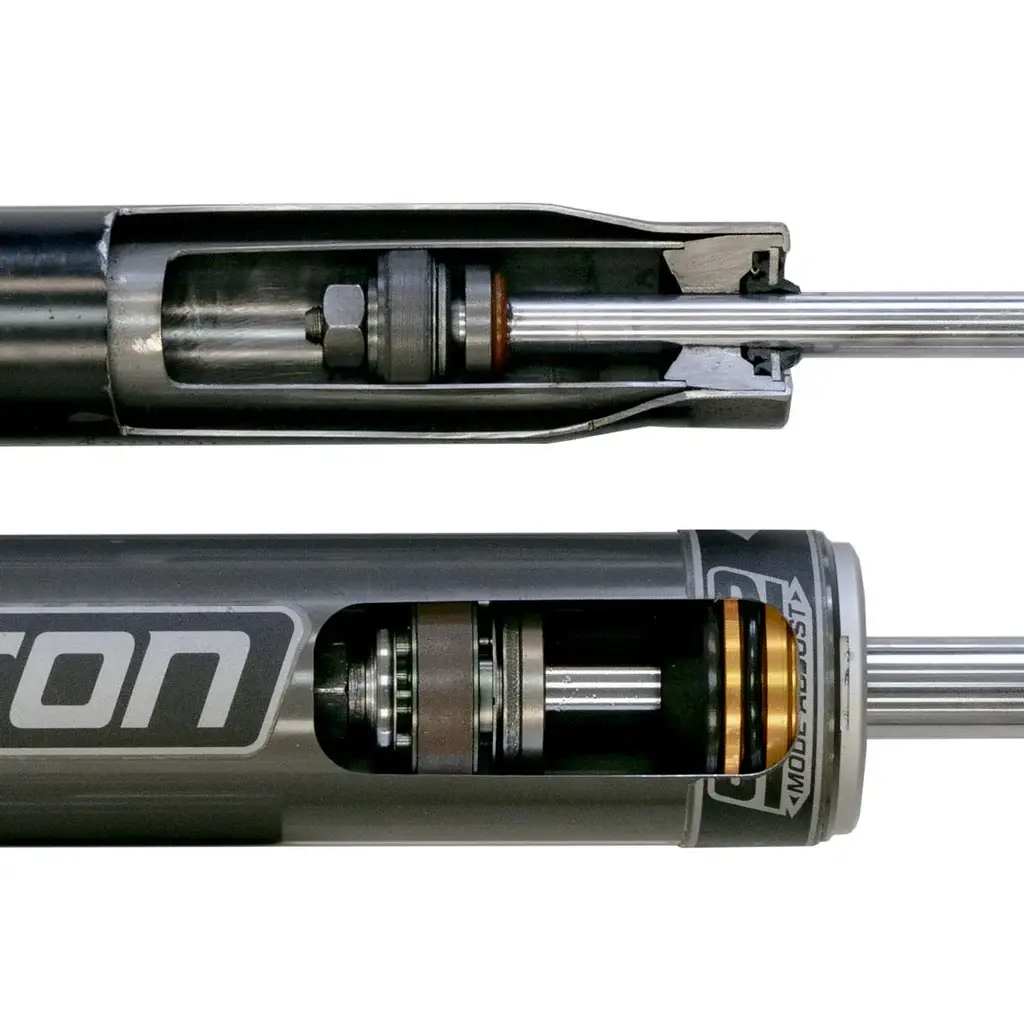

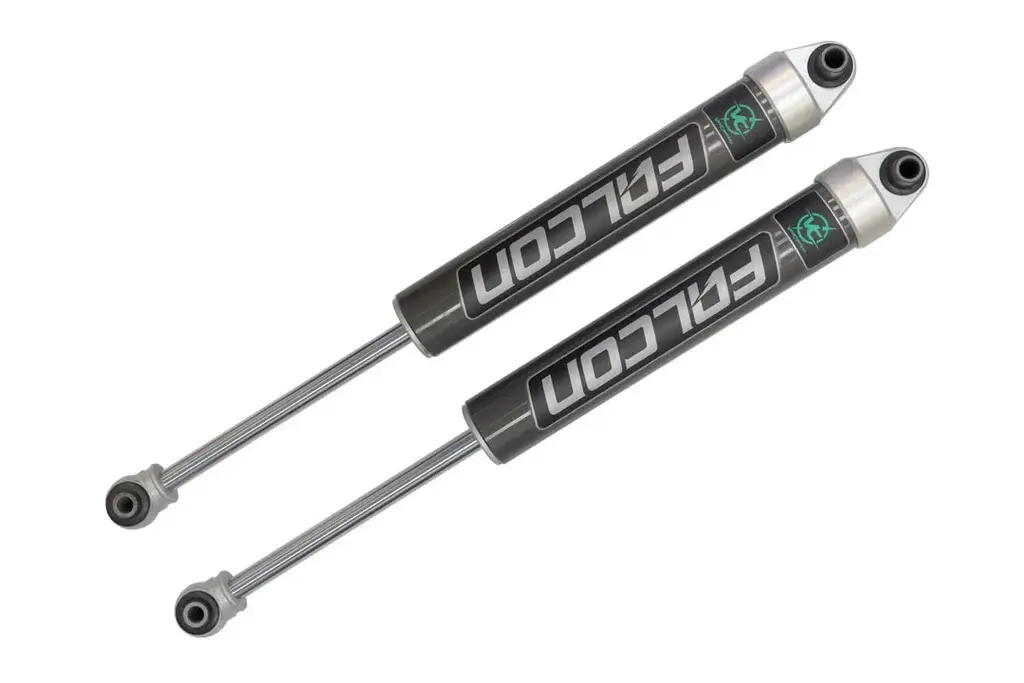

  • VC-tuned Falcon 2.1 monotube rear shocks improve control, reduce body roll and sway, and provide better damping over rough surfaces.
  • High-clearance rear shock relocation brackets allow removal of the factory low-hanging mounts beneath the axle tube for improved ground clearance.

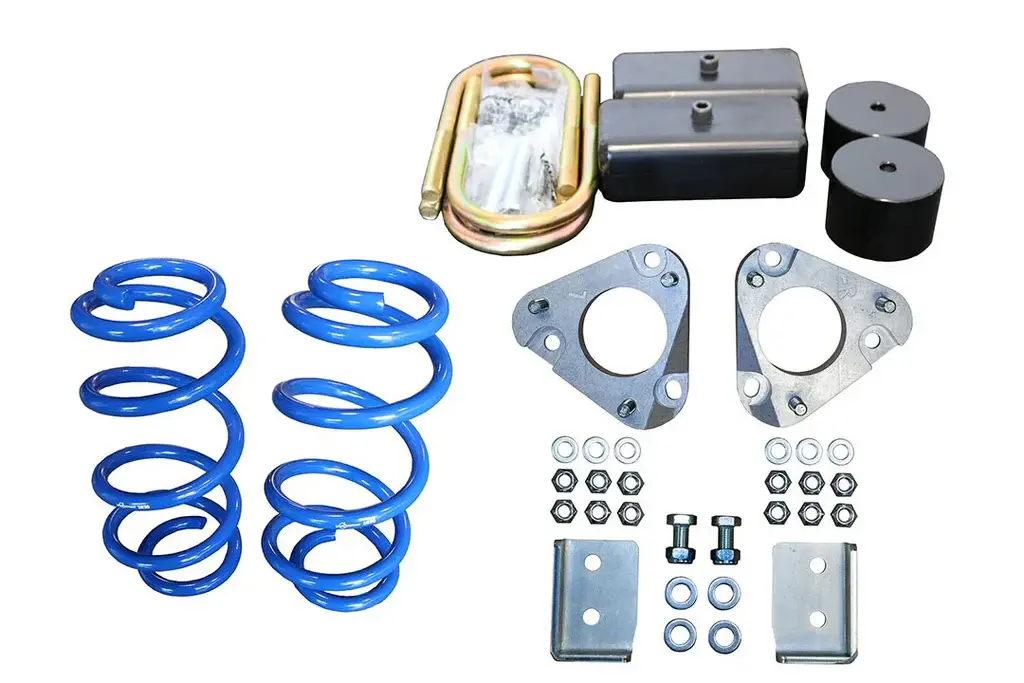

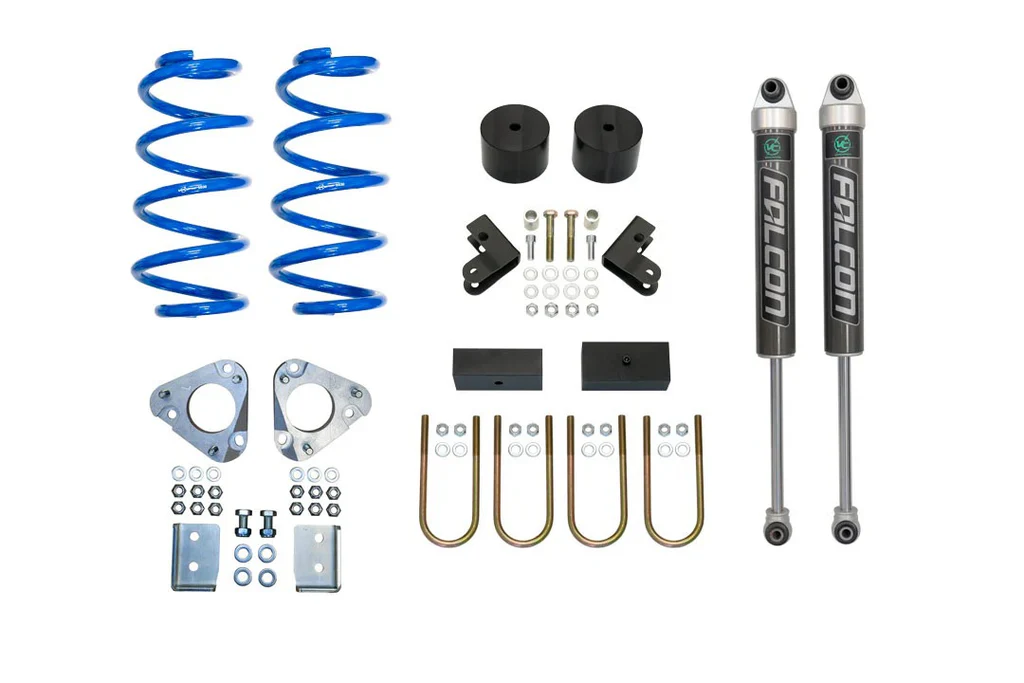

  • Includes TOPO 2.0 front coil springs and camber correction plates, rear lift blocks, bump stop spacers, Falcon 2.1 rear shocks, high-clearance shock relocation brackets, installation hardware, and instructions.

TUNE OPTIONS, FITMENT & IMPORTANT AWD INFORMATION

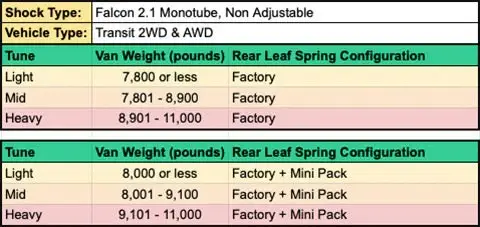

  • Mid Tune (7211-M): Designed for lighter builds, passenger vans, and moderate camper conversions, balancing ride comfort, stability, and load support.
  • Heavy Tune (7211-H): Designed for heavily equipped camper vans, overland builds, and work vehicles carrying higher constant loads, with heavier-rate springs and shocks tuned accordingly.
  • Fitment: 2020+ Ford Transit AWD, including SRW and DRW configurations.
  • Bilstein B6 struts are not included and are not recommended for AWD models, as their increased length can increase CV boot wear and potentially reduce CV joint service life.
  • Professional wheel alignment is required after installation to ensure proper handling and prevent abnormal tire wear.
  • Special order: Non-exchangeable and non-refundable. Allow 2–4 weeks for processing and shipping.
