Stage 4.3 System - 2015-newer - Mercedes Sprinter 2500 awd 4x4 - light to mid - mid to heavy - Van Compass
SKU:
2022323582
⚠️ SPECIAL ORDER Manufacturing times may vary. Please contact us for more information. NON-EXCHANGEABLE / NON-REFUNDABLE
The Van Compass Stage 4.3 Suspension System is a complete handling and ride-quality upgrade for 2015–2022 Mercedes Sprinter 2500 AWD and 4X4 vans. Designed for adventure vans, camper conversions, Class B RVs, and loaded passenger vans, the system combines VC-tuned Falcon 3.3 Fast Adjust Shocks, a rear mini leaf spring pack, and progressive Bump Buddy jounce bumpers to reduce sway, correct rear sag, improve stability, and provide greater control both on and off the road. The Falcon 3.3 shocks feature 10 external firmness settings, allowing the suspension to be quickly adjusted from a softer setting for rough terrain to a firmer setting for highway driving and heavier loads. The rear mini leaf spring pack restores approximately 1.25" of lost ride height, helping level the van while retaining the quiet, comfortable characteristics of the factory suspension.
Key Features

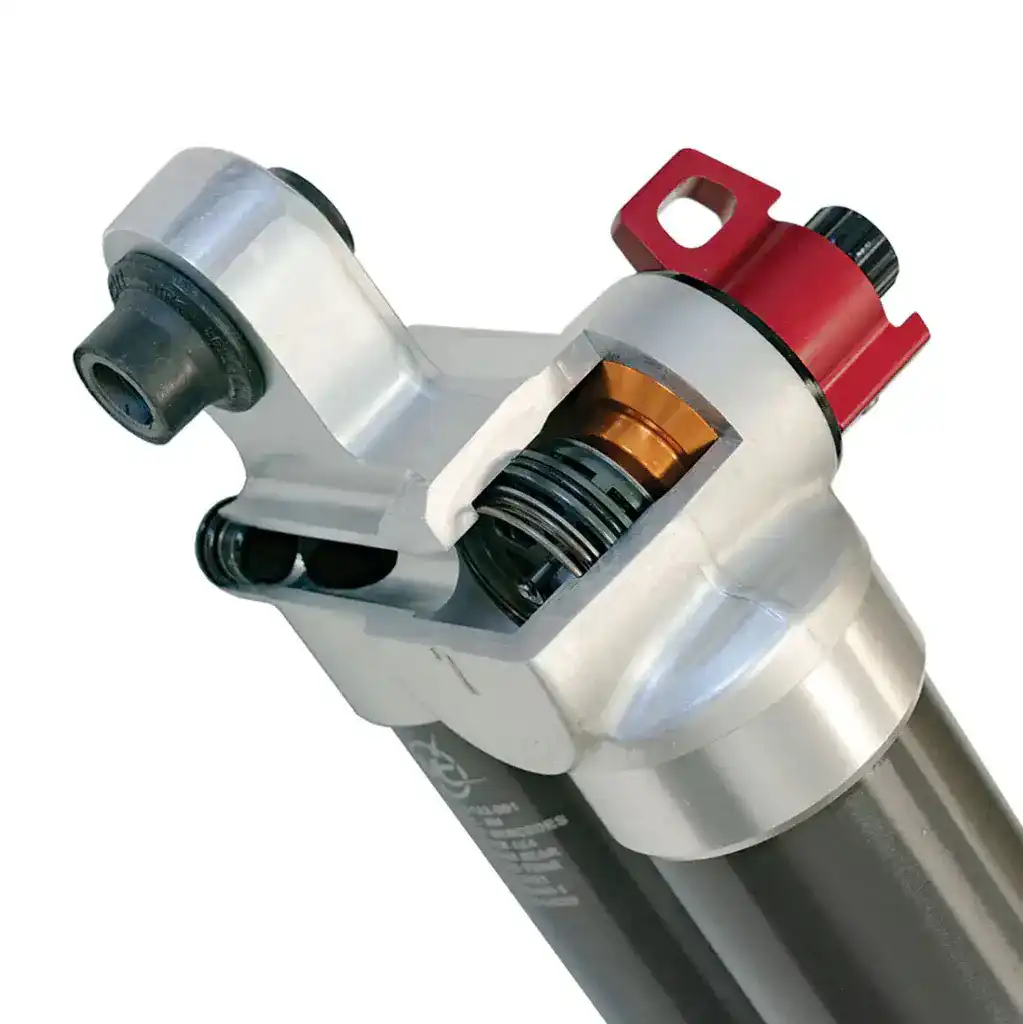

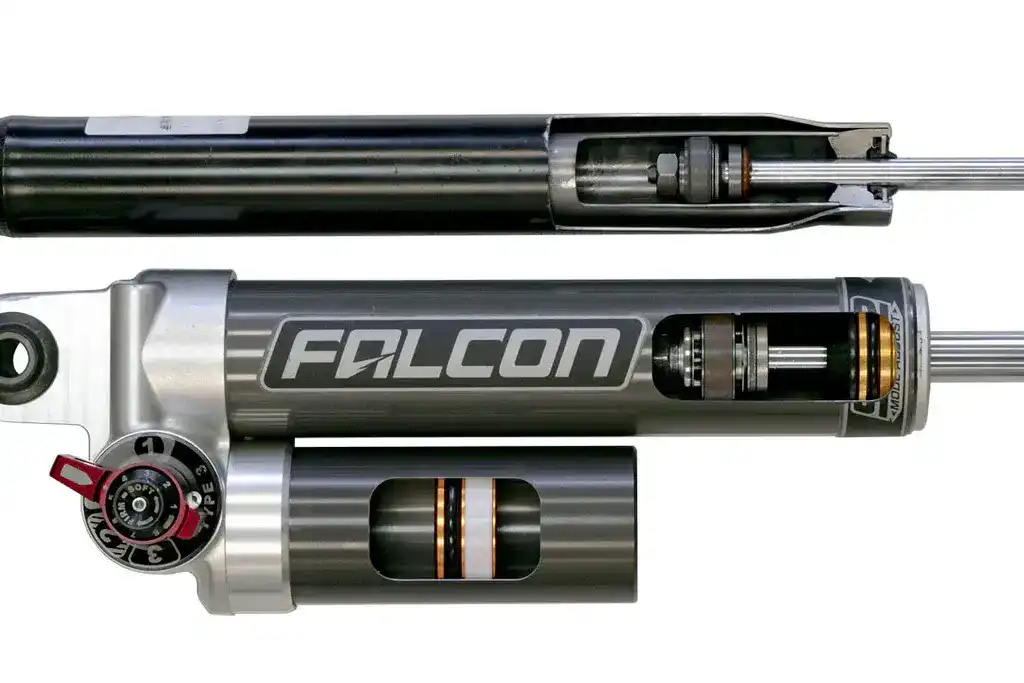

- Falcon 3.3 Fast Adjust Shocks with 10-position external adjustment and VC-specific tuning

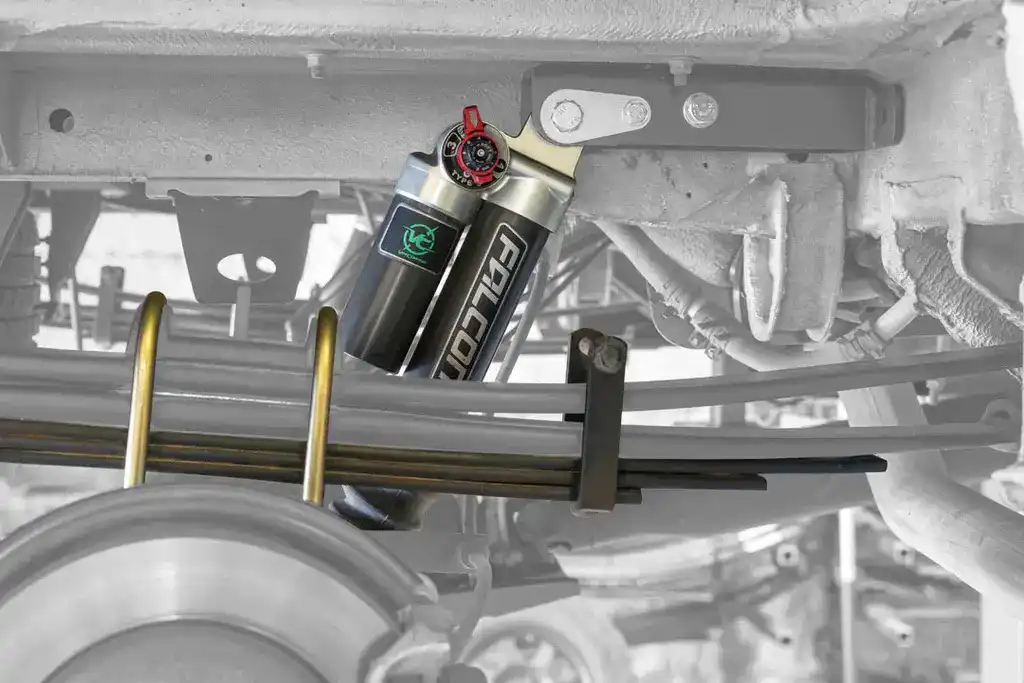

- Rear Mini Leaf Spring Pack to restore approximately 1.25" of ride height and correct rear sag
- Progressive Bump Buddy jounce bumpers for improved spring progression and bottom-out resistance
- Reduced body roll, wind sway, and suspension harshness
- Improved handling on rough pavement, washboard roads, and off-road terrain
- 100% bolt-on installation with no cutting or welding required

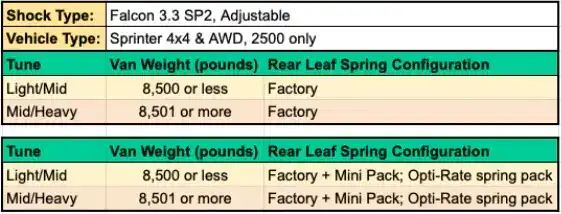

- Available in Light/Mid Tune for lighter builds and Mid/Heavy Tune for vans carrying heavier loads

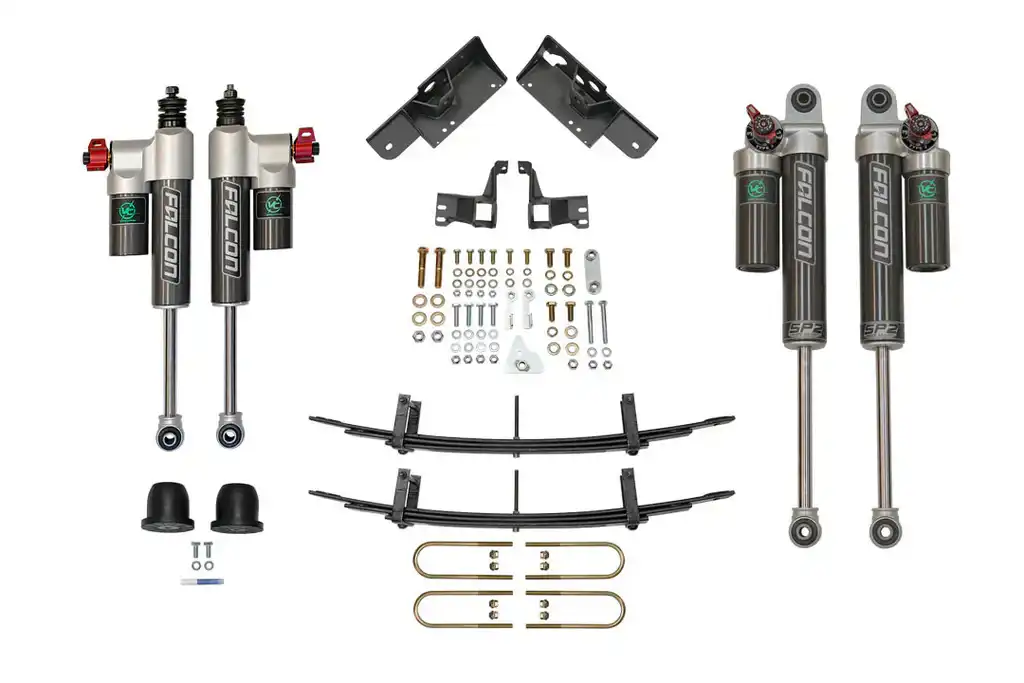

Includes & Fitment
- Falcon 3.3 Fast Adjust front shocks with mounting brackets
- Falcon 3.3 Fast Adjust rear shocks with SP2 adjuster
- Rear mini leaf spring pack
- Front Bump Buddy progressive jounce bumpers
- Dust boots for all four shocks
- Complete mounting hardware and installation instructions
- Vehicle: Mercedes-Benz Sprinter 2500
- Years: 2015–2022
- Drivetrain: AWD / 4X4
Compatibility & Installation
Recommended wheels are 17" x 8.5" with +45 mm offset. Wheels with 6.5" backspacing or +52 mm offset on an 8" wheel require a minimum 14 mm spacer to prevent auxiliary shock contact at full steering angle. Vans equipped with the HD Rear A/C Package may require slight repositioning of refrigerant lines during front shock installation. Not compatible with Sumo Spring Rebel kits SSR-327-47-2 and SSR-327-40-2 due to interference with the shock body.
2015+ VS30 4x4 Falcon Front Shock Installation Instructions
Falcon 3.3 SP2 Rear Shock installation Instructions
Sprinter AWD and 4x4 Front Bump Buddies installation Instructions
Rear Mini Pack Installation Instructions
Falcon 3.3 Shock Settings Guide
Videos: Van Compass STAGE 4.3 SYSTEM 2015-NEWER MERCEDES SPRINTER AWD, 4X4 (2500 ONLY) - LIGHT/MID
----------------------------------------------------
2015+ VS30 4x4 Falcon Front Shock Installation Instructions
Falcon 3.3 SP2 Rear Shock installation Instructions
Sprinter AWD and 4x4 Front Bump Buddies installation Instructions
Rear Mini Pack Installation Instructions
