STAGE 4.3 SYSTEM - SPRINTER 2500 4X4 - 2015 to 2022 - FALCON 3.3 SHOCKS, MINI PACK - LIGHT/MID - MID/HEAVY TUNE - Van Compass

Take your Sprinter’s performance to the next level with the Van Compass STAGE 4.3 SYSTEM -  SPRINTER 2500 4X4, 2015-2022 - FALCON 3.3 SHOCKS, MINI PACK, LIGHT/MID TUNE (7072-LM)—the ultimate upgrade for those who demand superior control, comfort, and confidence on and off the road. Engineered specifically for AWD and 4x4 Sprinter 2500 vans, this Light/Mid Tune system is ideal for lightly built adventure vans, Class B RVs, and passenger vehicles operating near GVWR.

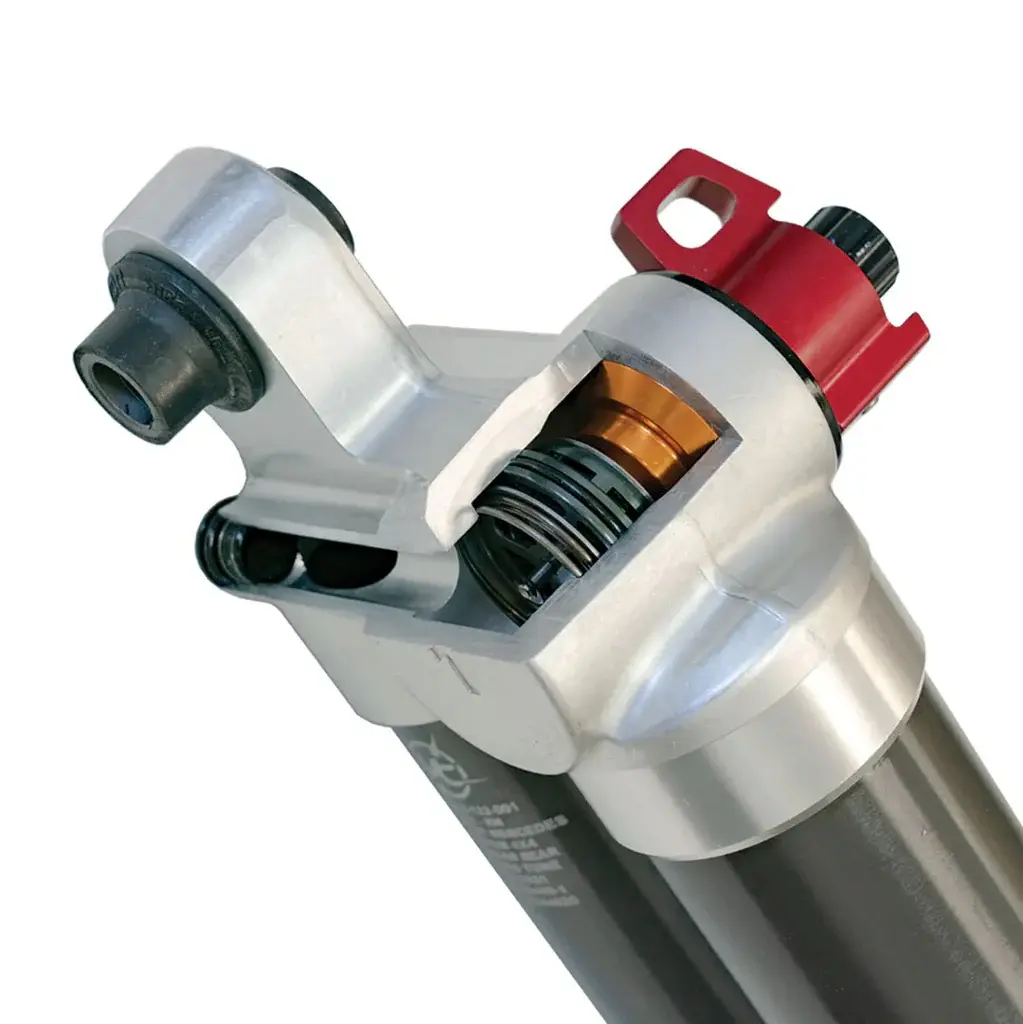

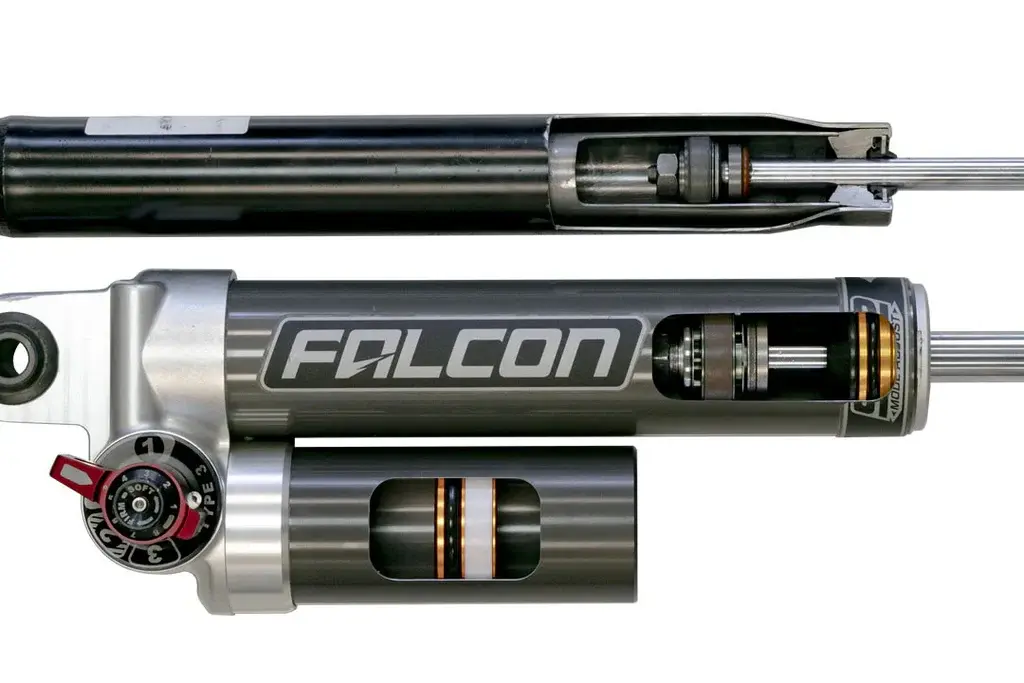

At the core of this system are VC-tuned Falcon 3.3 Fast Adjust Shocks, featuring an intuitive 10-position external adjuster. Easily dial in your desired firmness—soft for off-road flexibility or firm for highway stability—all without tools. The broad adjustment range gives you unmatched control over handling and ride quality, regardless of terrain or payload.

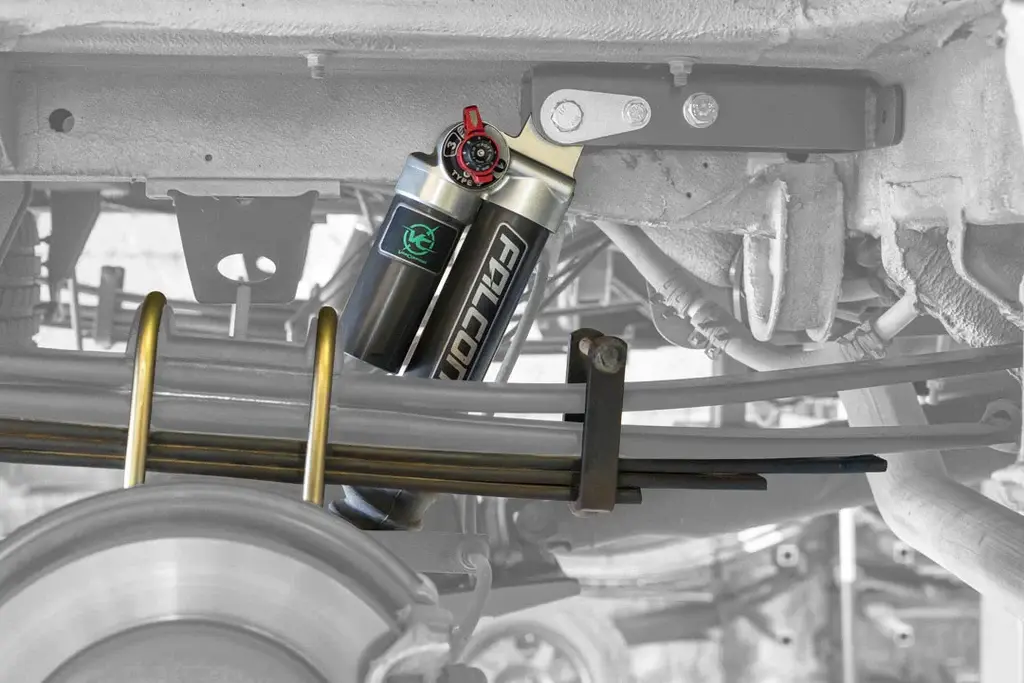

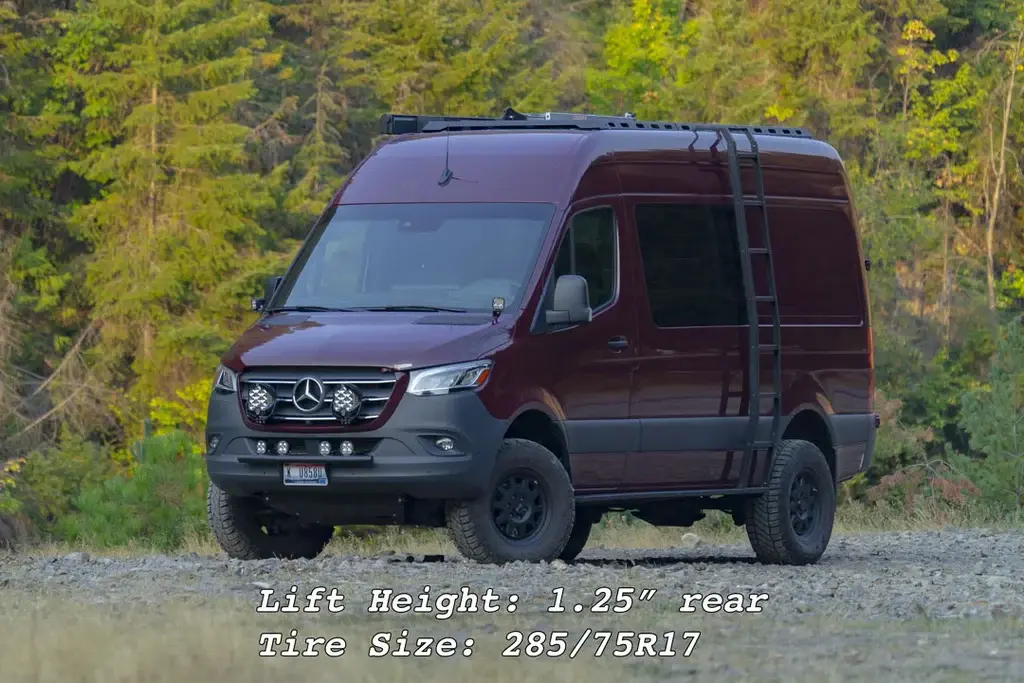

This kit includes a rear mini leaf spring pack that integrates directly with your factory leaf springs to recover approximately 1.25" of rear ride height lost to heavy gear or interior build-outs. The result is a more balanced, level stance with no compromise in ride comfort or noise levels.

The progressive foam Bump Buddy jounce bumpers replace factory rubber stops to increase bottom-out resistance and reduce sway without introducing harshness or noise. Perfect for washboard trails, broken pavement, and fully loaded adventures.

Note:

• Recommended Wheel Size: 17" x 8.5" with +45mm offset

• Wheel Spacers Required: Wheels with 6.5" backspacing or +52mm offset on an 8" wheel require minimum 14mm spacers to clear auxiliary shocks at full steer (e.g., Black Rhino Warlord, Method 701).

• HD Rear AC Package: Use caution during front shock installation—refrigerant lines may need slight repositioning.

• Not Compatible with Sumo Spring Rebel series (SSR-327-47-2 and SSR-327-40-2) due to interference with the shock body.

• VC-Tuned Falcon 3.3 Fast Adjust Shocks with 10 firmness settings

• Rear Mini Leaf Spring Pack restores ride height and levels stance

• Enhanced cornering stability and reduced wind-induced sway

• More effective damping over small and large bumps

• Increased bottom-out resistance for demanding loads

• Improved handling on rough roads and off-pavement conditions

• 100% bolt-on installation—no welding or cutting required

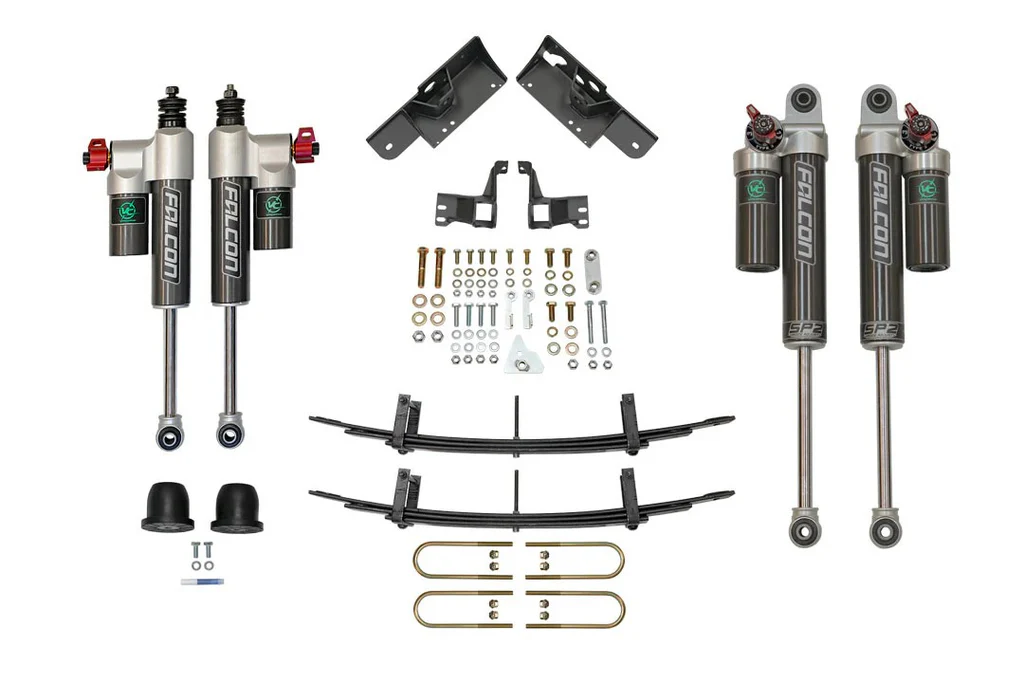

Van Compass STAGE 4.3 SYSTEM -  SPRINTER 2500 4X4, 2015-2022 - FALCON 3.3 SHOCKS, MINI PACK, LIGHT/MID TUNE (7072-LM) Includes:

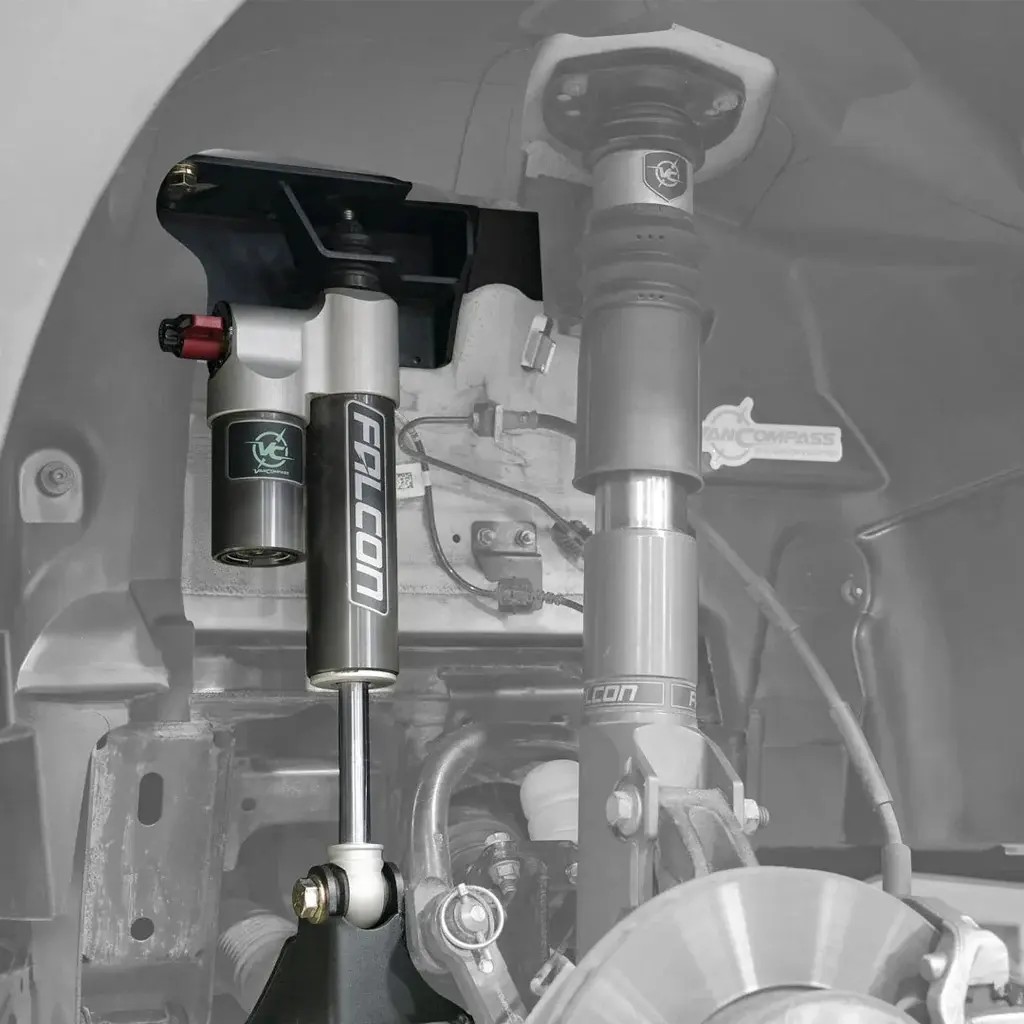

• Falcon 3.3 Fast Adjust Front Shocks with Mounting Brackets

• Falcon 3.3 Fast Adjust Rear Shocks with SP2 Adjuster

• Rear Mini Leaf Spring Pack

• Front Bump Buddy Progressive Jounce Stops

• Dust boots for all four shocks

• Complete hardware and detailed installation instructions

2015+ VS30 4x4 Falcon Front Shock Installation Instructions

Falcon 3.3 SP2 Rear Shock installation instructions

Sprinter AWD and 4x4 Front Bump Buddies installation instructions

Rear Mini Pack Installation Instructions

Falcon 3.3 Shock Settings Guide

Video: Van Compass STAGE 4.3 SYSTEM -  SPRINTER 2500 4X4, 2015-2022 - FALCON 3.3 SHOCKS, MINI PACK, LIGHT/MID TUNE (7072-LM)

Video: Falcon Shocks

Video: How To adjust your Van Compass Falcon Shocks

Upgrade your Sprinter’s handling, comfort, and confidence with the Van Compass STAGE 4.3 SYSTEM - SPRINTER 2500 4X4, 2015-2022- FALCON 3.3 SHOCKS, MINI PACK, MID/HEAVY TUNE (7072-MH), built specifically for AWD and 4x4 Sprinter 2500 vans loaded with gear or built out for adventure. Whether you’re driving a conversion van, Class B RV, or a passenger van consistently near or over GVWR, this kit is engineered to manage the weight and deliver exceptional ride control on pavement and off.

Designed for heavily outfitted vans, this system tackles common handling issues like sway, sag, and harsh impacts. The Falcon 3.3 Fast Adjust Shocks, VC-tuned for Mid/Heavy loads, provide 10 easily selectable firmness levels. Use the external Fast Adjust knob to shift from a compliant off-road ride to a firm, planted feel on the highway—all without tools.

The rear mini leaf spring pack restores up to 1.25" of lost rear ride height due to added weight, correcting rear-end sag and rebalancing your van’s stance. It integrates directly with factory leaf springs, maintaining OE ride comfort and minimizing noise or harshness.

The system also includes progressive foam Bump Buddy jounce bumpers, which deliver smoother spring progression and superior bottom-out resistance. These replace the stiff factory rubber stops to enhance ride quality by reducing harsh impacts and sway, especially under load or during off-camber maneuvers.

Notes:

• Recommended Wheel Size: 17" x 8.5", +45mm offset

• Wheel Spacers Required: Wheels with 6.5" backspacing or +52mm offset on an 8" wide wheel require a minimum 14 mm spacers to clear rear shocks at full steering angle (e.g., Black Rhino Warlord, Method 701).

• HD Rear AC Package: Care required during front shock installation; refrigerant lines may need to be gently repositioned.

• Incompatible With: Sumo Spring Rebel kits SSR-327-47-2 and SSR-327-40-2 due to interference with the auxiliary shock body.

• VC-Tuned Falcon 3.3 Fast Adjust Shocks with 10-position external knob

• Rear Mini Leaf Spring Pack restores ride height and rear balance

• Dramatically improves handling under load

• Reduces sway and body roll in crosswinds

• Enhanced control over broken pavement and rough terrain

• Increased bottom-out protection and shock travel performance

• 100% bolt-on installation—no cutting or welding required

Van Compass STAGE 4.3 SYSTEM - SPRINTER 2500 4X4, 2015-2022- FALCON 3.3 SHOCKS, MINI PACK, MID/HEAVY TUNE (7072-MH) Includes:

• Falcon 3.3 Fast Adjust Front Shocks with Mounting Brackets

• Falcon 3.3 Fast Adjust Rear Shocks with SP2 Adjuster

• Rear Mini Leaf Spring Pack

• Front Bump Buddy Progressive Jounce Bumpers

• Dust boots for all shocks

• Complete hardware and installation instructions

2015+ VS30 4x4 Falcon Front Shock Installation Instructions

Falcon 3.3 SP2 Rear Shock installation instructions

Sprinter AWD and 4x4 Front Bump Buddies installation instructions

Rear Mini Pack Installation Instructions

Falcon 3.3 Shock Settings Guide

Video: Van Compass STAGE 4.3 SYSTEM - SPRINTER 2500 4X4, 2015-2022- FALCON 3.3 SHOCKS, MINI PACK, MID/HEAVY TUNE (7072-MH)

Video: Falcon Shocks

Video: How To adjust your Van Compass Falcon Shocks
