STAGE 4 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2015-2017 - LIGHT/MID TUNE & MID/HEAVY TUNE - Van Compass

The Van Compass Stage 4 TOPO 2-Inch Lift Kit is a complete suspension upgrade for 2015–2017 Ford Transit RWD vans, combining a true 2" lift with upgraded front struts, adjustable rear reservoir shocks, and increased rear spring capacity. Designed for everything from moderately loaded camper builds to heavily equipped work vans and adventure rigs, the system improves ride control, stability, ground clearance, bottom-out resistance, and load support while maintaining a comfortable, tunable ride. Choose the Light/Mid Tune for lighter and moderately loaded builds or Mid/Heavy Tune for heavier campers, cargo vans, and high-payload applications.

FEATURES & INCLUDED COMPONENTS

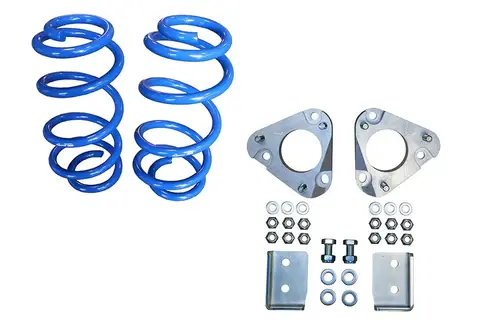

• True 2" suspension lift with a 0.75" camber correction plate and tuned front coil springs providing approximately 1.25" of front lift

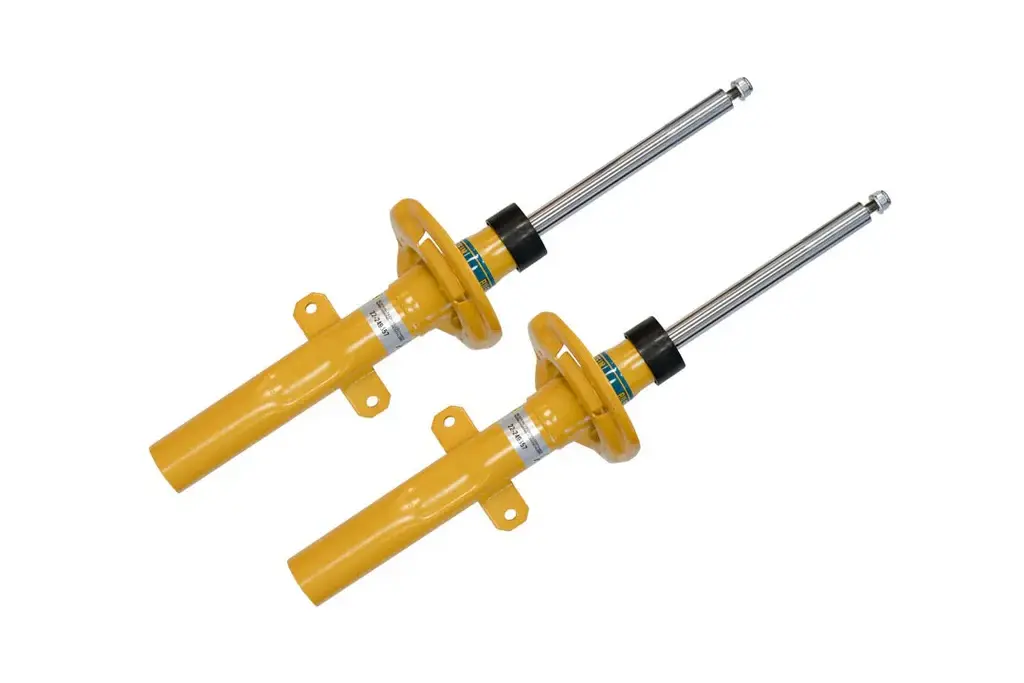

• Bilstein B6 front struts improve front-end damping, stability, and control while increasing compression travel

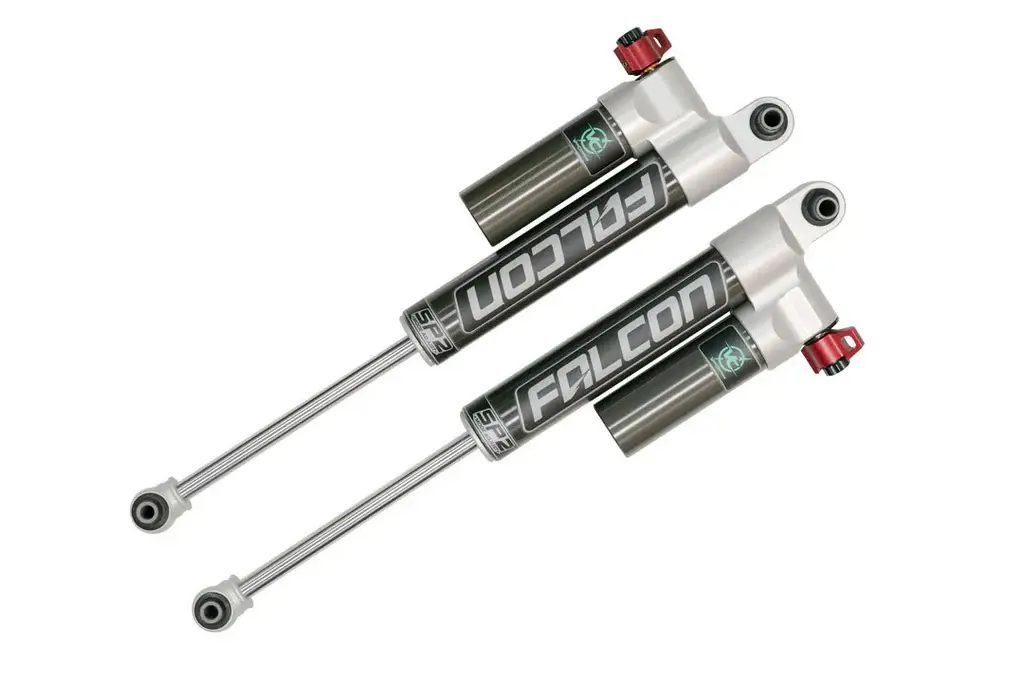

• Falcon 3.3 SP2 adjustable rear reservoir shocks with a 10-position Fast Adjust knob for tuning from plush off-road comfort to firmer highway control

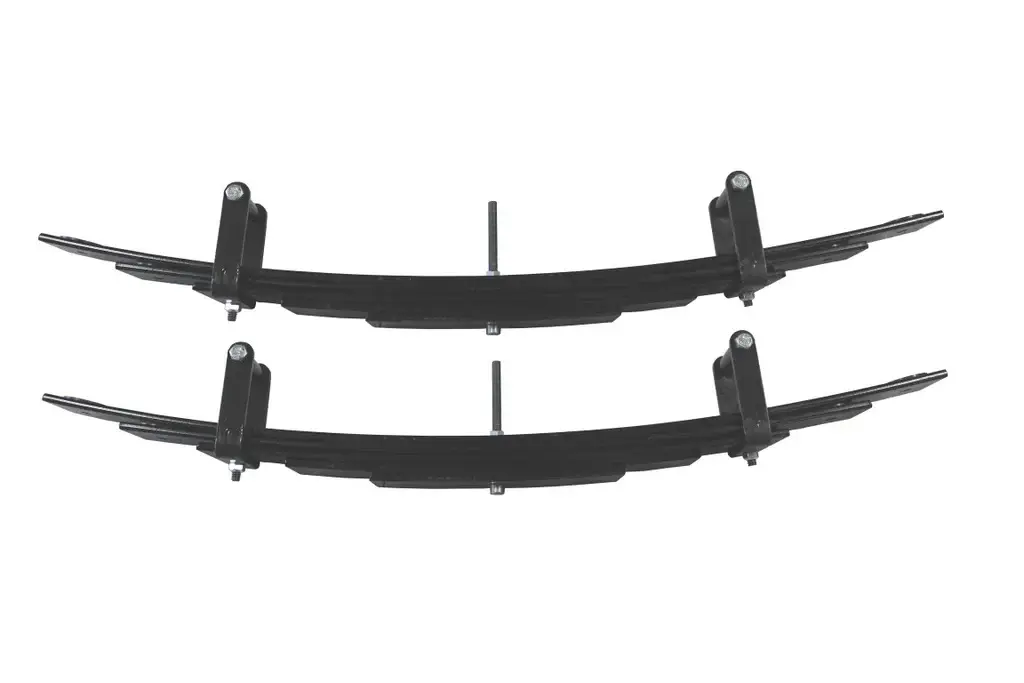

• 5-leaf mini spring pack increases rear spring rate by approximately 10–15% and provides 2.0–2.5" of rear lift, depending on vehicle load
• Mini spring pack works with the factory leaf springs for progressive load support and uses friction-reducing spring tips for quieter operation
• High-clearance rear shock relocation brackets improve axle and ground clearance
• Bump stop spacers included for proper suspension travel

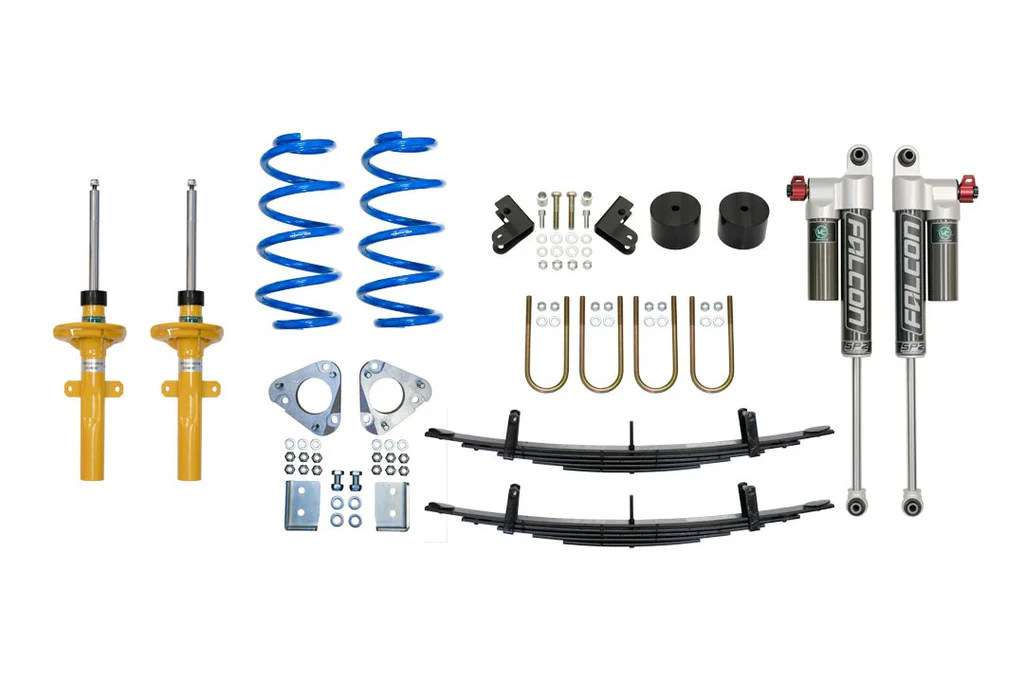

• Included: TOPO 2.0 Front Lift Kit, Bilstein B6 front struts, Falcon 3.3 SP2 rear shocks, 5-leaf mini spring pack, bump stop spacers, high-clearance shock brackets, and required hardware

TUNE OPTIONS, FITMENT & INSTALLATION

• Light/Mid Tune (7118-LM): Designed for lightly to moderately loaded vans, camper builds, touring setups, and adventure rigs; balances ride comfort with improved stability and load support
• Mid/Heavy Tune (7118-MH): Designed for cargo vans, heavily built-out campers, work vans, and increased payloads; provides a higher rear spring rate and firmer suspension control under load
• Compatibility: 2015–2017 Ford Transit RWD
• Installation: A professional wheel alignment is required after installation to maintain proper handling and prevent premature or abnormal tire wear
• Special order: Non-refundable and non-exchangeable; allow 2–4 weeks for processing and shipping
