Looking to improve ride quality, eliminate rear sag, and boost off-road capability for your Van Compass STAGE 3 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2015-2017 - MID TUNE (7116-M) is engineered for 2015–2017 Transit RWD models (Single or Dual Rear Wheel) and delivers a true 2-inch lift with improved comfort, handling, and ground clearance — all without sacrificing ride quality.

Designed specifically for heavier builds and passenger vans, this system provides the ideal balance between load support and smooth driving. Whether you're hauling gear or seeking better terrain performance, the Stage 3 Topo kit enhances both function and form.

Note: Professional alignment is required after installation. Failure to align will result in poor handling and increased tire wear.

• True 2" Lift for aggressive stance and tire clearance

• Improved Stability and Control, especially when fully loaded

• Better Ride Quality on broken pavement and rough roads

• Increased Approach, Breakover & Departure Angles for off-road readiness

• Minimized Rear Sag with a 5-leaf mini pack that increases rear spring rate by 10–15%

• Reduced Body Sway and Harsh Bumps with VC-tuned Falcon 2.1 Monotube Shocks

• Enhanced Front-End Handling with Bilstein B6 Struts and lift-correcting camber plates

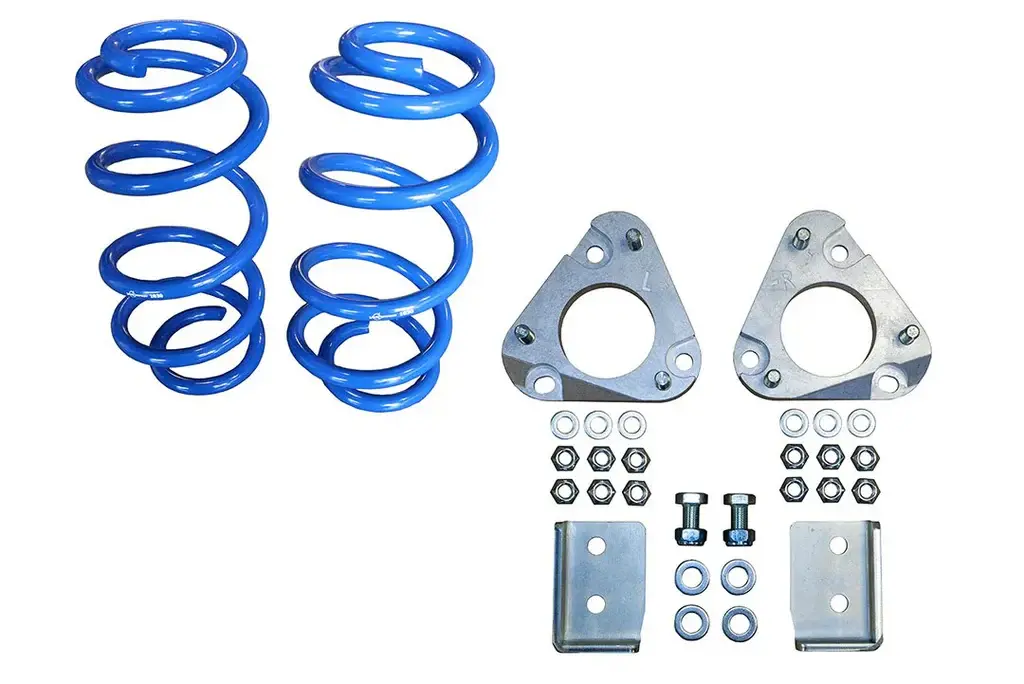

• 0.75" lift camber correction plates with tuned coil springs provide 1.25" of front lift

• Increased compression travel improves responsiveness and cornering

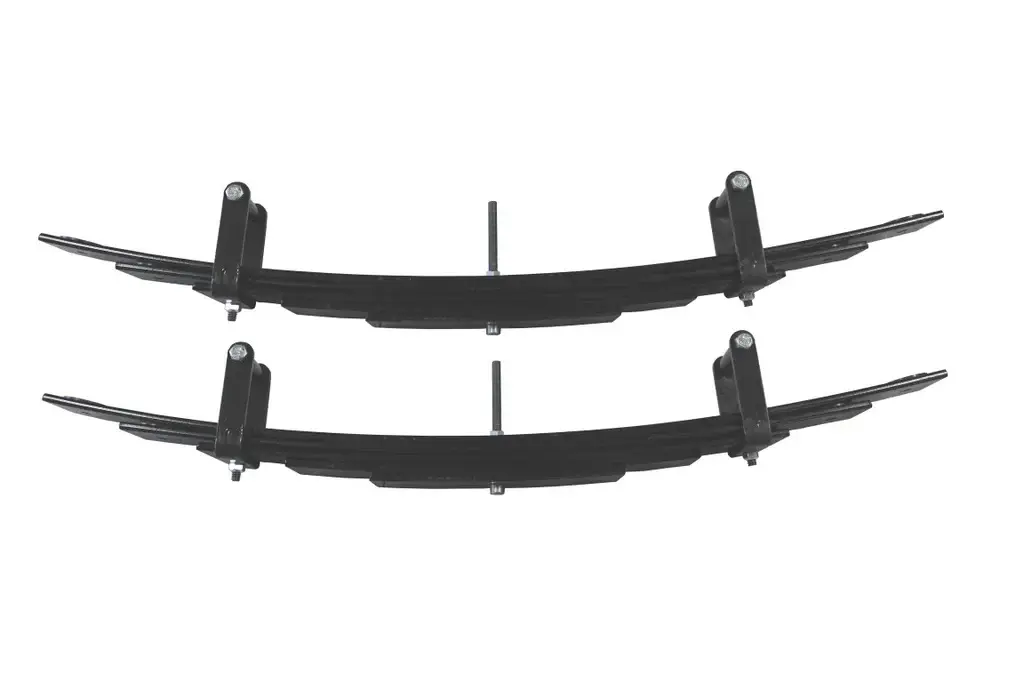

• 5-leaf mini pack works with OEM leaf springs to lift the rear 2.0"–2.5" (based on load)

• Friction-reducing leaf tips ensure a quiet, compliant ride under all conditions

• High-clearance shock relocation brackets included for trimming factory brackets and increasing ground clearance

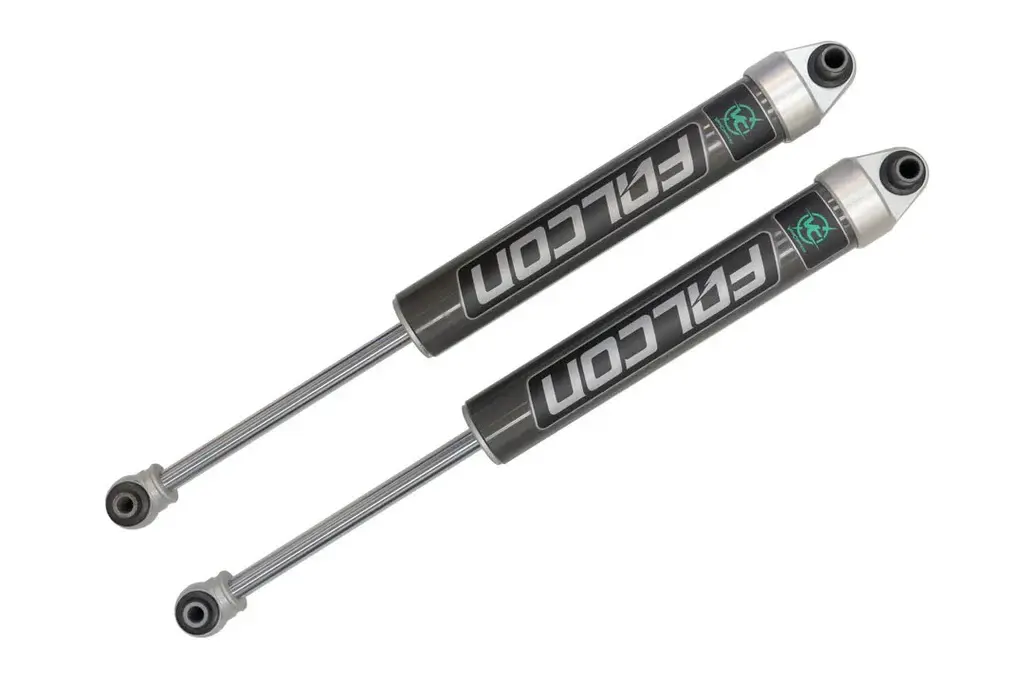

• Falcon 2.1 Monotube Rear Shocks (VC-tuned) provide superior damping, reducing lean and absorbing large and small bumps

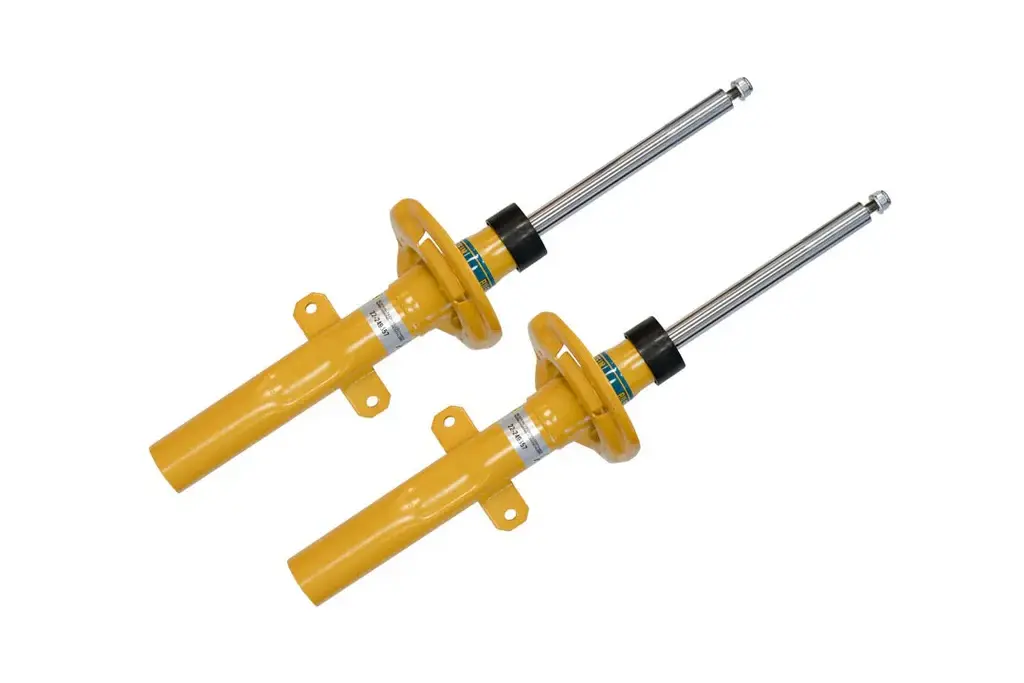

• Bilstein B6 Front Struts deliver increased damping and front-end stability

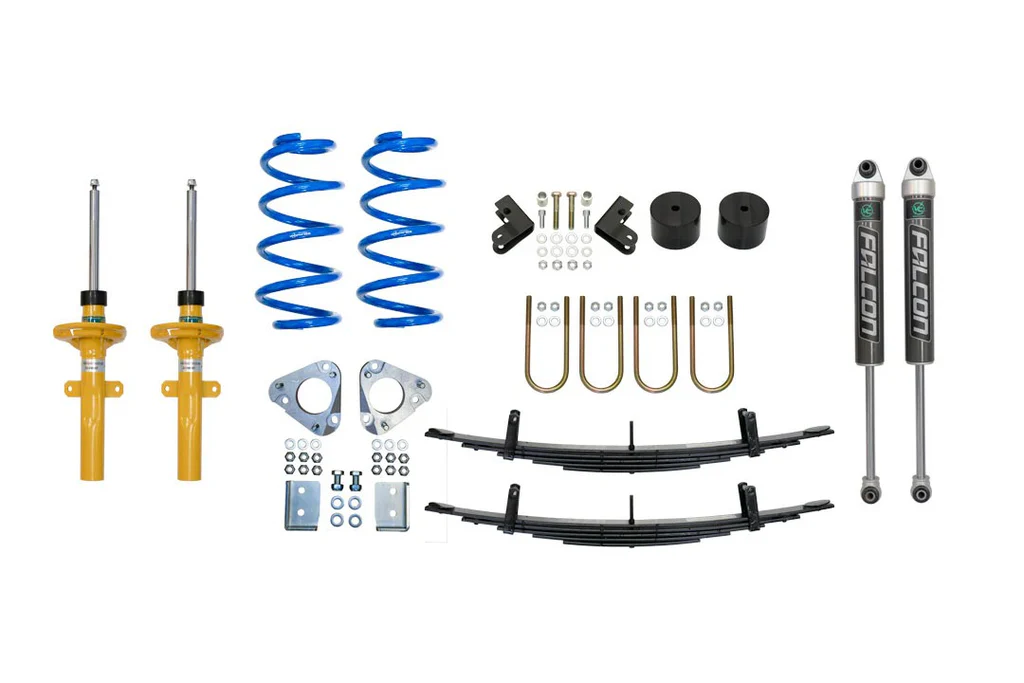

Van Compass STAGE 3 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2015-2017 - MID TUNE (7116-M) Included:

• Topo 2.0 Front Lift Kit

• Bilstein B6 Front Strut Kit (pair)

• Tuned Falcon 2.1 Rear Shocks (pair)

• 5-Leaf Mini Spring Pack with Bump Stop Spacers

• High-Clearance Rear Shock Relocation Brackets

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Rear Leaf Pack Installation Instructions

2013+ Transit Rear Falcon 2.1 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

Video: Van Compass Ford Transit RWD (2013+) Stage 3 Topo 2.0 System (Single or Dual Rear Wheel)

Video: 2020 Ford Transit AWD Front suspension overview

If you're driving a heavily built-out Ford Transit RWD — loaded with gear, equipment, or a full-time camper setup — the Van Compass STAGE 3 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2015-2017 - HEAVY TUNE (7116-H) is engineered specifically for your needs. Designed for 2015–2017 Transit RWD models (Single or Dual Rear Wheel), this suspension upgrade delivers a reliable 2-inch lift while dramatically improving ride comfort, vehicle control, and load support under demanding conditions.

The Heavy Tune version of the Stage 3 Topo system is calibrated for significantly heavier vans, making it ideal for overlanders, full-time vanlifers, and service vehicles carrying constant payloads. Whether on highways, forest roads, or remote trails, this kit offers enhanced durability and performance with a smoother, more controlled ride.

Note: Professional alignment is required after installation. Failure to align properly may result in abnormal tire wear and compromised handling.

• True 2" Lift provides aggressive stance and tire clearance

• Heavy-Duty Coil Springs and tuned shocks for optimized support and ride quality under heavier loads

• Improved Ride Stability with less sway and more predictable handling, even when fully loaded

• Increased Bottom-Out Resistance on rough terrain or potholes

• Better Handling and Road Feel on uneven or broken pavement

• Improved Off-Road Angles: approach, breakover, and departure

• Precision-engineered 0.75" camber correction plates paired with heavy-tune coil springs deliver 1.25" of front lift

• Increased front-end compression travel improves responsiveness and control

• Heavy-duty 5-leaf mini spring pack increases rear spring rate by 10–15%, lifting the rear 2.0"–2.5" depending on load

• Friction-reducing leaf tips maintain quiet, compliant ride quality

• High-clearance rear shock relocation brackets allow trimming of factory brackets for improved ground clearance

• VC-Tuned Falcon 2.1 Monotube Rear Shocks, designed for heavier builds, reduce sway, absorb harsh impacts, and enhance high-speed control

• Bilstein B6 Front Struts offer improved damping and front-end handling for high-load conditions

Van Compass STAGE 3 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2015-2017 - HEAVY TUNE (7116-H) Included:

• Topo 2.0 Front Lift Kit

• Heavy-Tune Coil Springs & 0.75" Camber Correction Plates

• Bilstein B6 Front Strut Kit (Pair)

• Falcon 2.1 VC-Tuned Rear Monotube Shocks (Pair)

• 5-Leaf Mini Spring Pack with Bump Stop Spacers

• High-Clearance Rear Shock Relocation Brackets

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Rear Leaf Pack Installation Instructions

2013+ Transit Rear Falcon 2.1 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

Video: Van Compass Ford Transit RWD (2013+) Stage 3 Topo 2.0 System (Single or Dual Rear Wheel)

Video: 2020 Ford Transit AWD Front suspension overview
