STRIKER AWD 2" LIFT KIT (COMPLETE) - Sprinter AWD (2023+) 2500 SINGLE REAR WHEEL - Van Compass

Special order: Item cannot be exchanged or refunded.

Please allow 2-4 weeks to process and ship order.

Ready to take your Sprinter further off the beaten path? The Van Compass STRIKER AWD 2" LIFT KIT (COMPLETE) - Sprinter AWD (2023+) 2500 SINGLE REAR WHEEL is the ultimate suspension upgrade for your 2023+ AWD Sprinter 2500 (Single Rear Wheel). Engineered to deliver real off-road performance while preserving the integrity of the factory ride, this complete kit provides a true 2" lift with minimal compromise to handling, alignment, or durability.

This comprehensive lift system is carefully designed to enhance ground clearance and suspension articulation—so your Sprinter can tackle rugged trails and backcountry terrain with confidence.

• True 2" Lift: Increases clearance without drastically altering factory ride dynamics.

• Front Subframe Drop: CNC-machined and precision-welded spacers reposition the front subframe, allowing control arms, tie rods, and CVs to operate within OEM geometry specs for optimal alignment and longevity.

• Rear Suspension Upgrade: Includes a taller Mini Leaf Spring pack, extended sway bar links, shock relocation brackets, and bump stop spacers to prevent overextension and binding during full suspension articulation.

With the correct wheel and some minor fender trimming, this kit supports tires up to 35 x 12.50, giving you the grip and clearance needed for serious off-road adventures. Recommended Wheel Size: 17" x 8.5", +45mm offset

Note: 2023+ AWD Sprinters require wheels with 6" backspacing or less (e.g., 17"x8" +38mm). Wheels with more backspacing or higher offsets (e.g., +52mm) may cause rubbing on the shock reservoir.

Key Features: Van Compass STRIKER AWD 2" LIFT KIT (COMPLETE) - Sprinter AWD (2023+) 2500 SINGLE REAR WHEE

• Complete 2" lift for 2023+ Mercedes Sprinter AWD 2500 (Single Rear Wheel)

• Maintains proper CV, tie rod, and control arm geometry

• Enhanced rear articulation and ride height with 6-leaf Mini Leaf Spring pack

• Shock relocation brackets, extended sway bar links, and bump stop spacers included

• Fits up to 35 x 12.50 tires with correct wheels and minor trimming

• Increases ground clearance and trail capability

• Maintains factory ride feel as much as possible

• Precision-machined and welded components

• High-quality, made in the USA

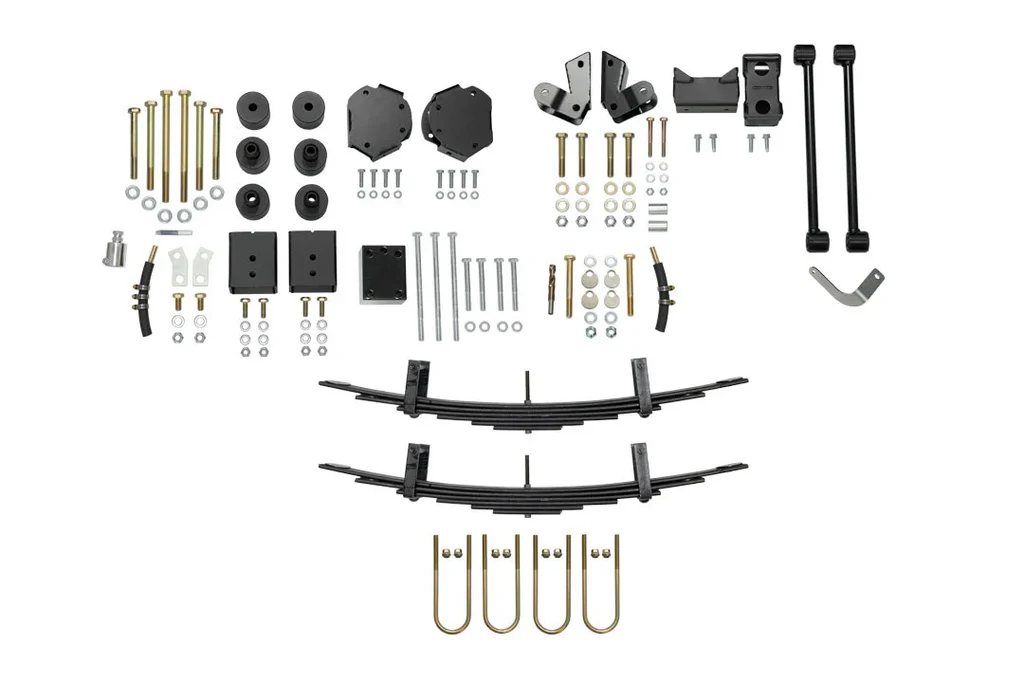

Van Compass STRIKER AWD 2" LIFT KIT (COMPLETE) - Sprinter AWD (2023+) 2500 SINGLE REAR WHEEL Includes:

• Front 2" Strut Spacers

• Front 2" Subframe Drop Spacers

• 2" Engine & Transmission Mount Lift Spacers

• Front Differential Re-clocking Cams

• CNC Machined 2" Steering Shaft Extension

• Low Pressure Power Steering Hose Extension

• Front Brake Line Relocation Brackets

• 6-leaf Mini Leaf Spring Pack (Rear)

• Extended Rear Sway Bar Links

• Rear Lower Shock Relocation Brackets

• Rear Bump Stop Drop Brackets

• Wind Assist or Headlight Leveling Sensor Bracket

• All Necessary Hardware

• Detailed Installation Instructions

Documents: Van Compass STRIKER AWD 2" LIFT KIT (COMPLETE) - Sprinter AWD (2023+) 2500 SINGLE REAR WHEEL

2023+ VS30 AWD Striker 2" Front Kit Installation Instructions

2019+ VS30 4x4 and AWD Striker 2" Rear Kit Installation Instructions

Video: Van Compass STRIKER AWD 2" LIFT KIT (COMPLETE) - Sprinter AWD (2023+) 2500 SINGLE REAR WHEEL
