Upgrade your Ford Transit’s capability and stance with the Van Compass TOPO 2 INCH FRONT AND REAR LIFT KIT - FORD TRANSIT 2018+, BLUE COIL (7097), designed specifically for 2018 and newer Transit vans. This precision-engineered kit delivers a true 2-inch suspension lift while retaining factory alignment specs and ride quality. Compatible with both RWD and AWD, and suitable for single- and dual-rear-wheel (SRW & DRW) models, the TOPO 2.0 kit enhances both on-road comfort and off-road confidence.

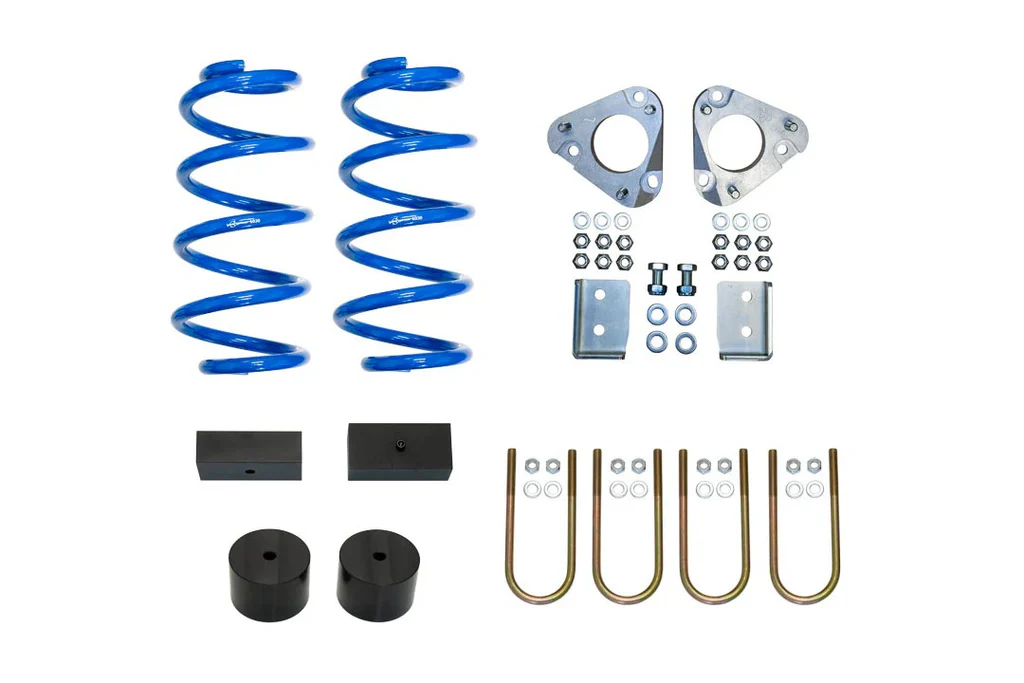

The TOPO 2.0 lift system is designed to work around the packaging limitations and front CV shaft constraints introduced with the 2020 AWD Transit. It includes two core components to safely and effectively raise the front suspension:

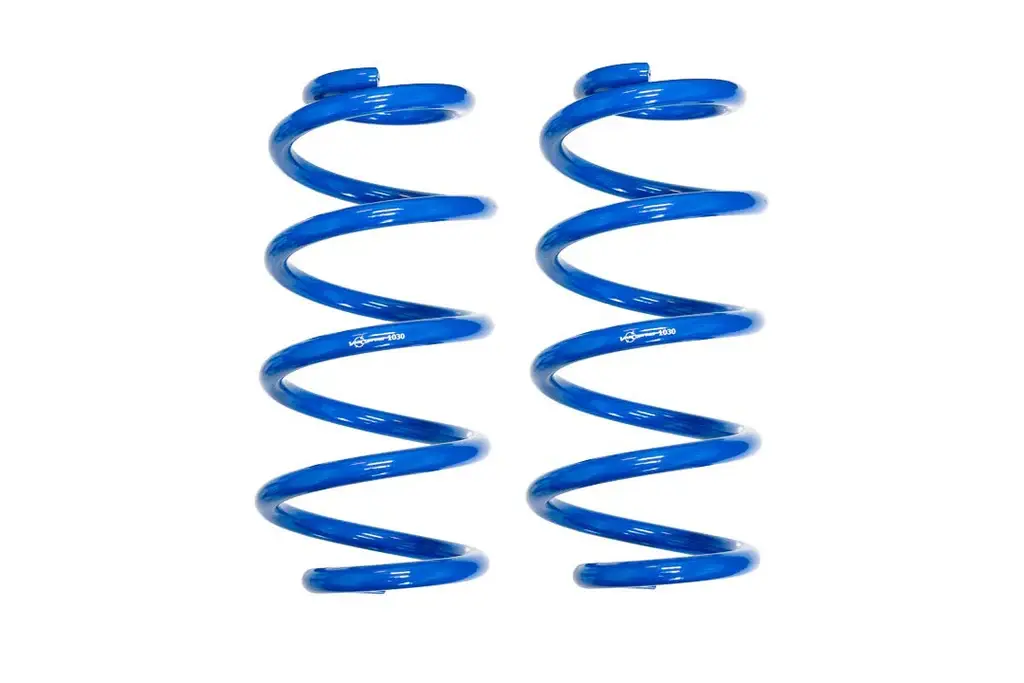

• 1" Blue Coil Springs – Maintain factory spring rate for a comfortable ride, while positioning the suspension 1" higher to improve compression travel and boost front ride height.

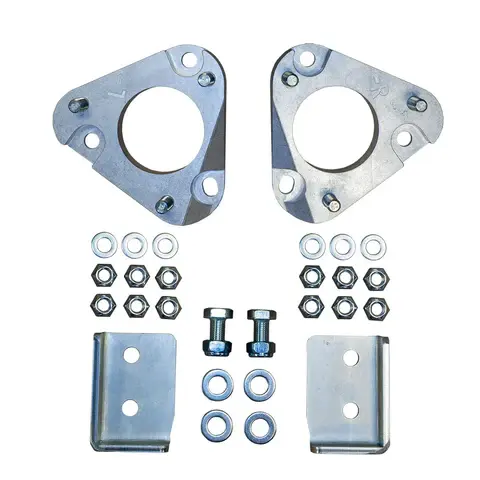

• Custom Van Compass Spacer – Specifically engineered to complement the Transit AWD’s front suspension design, ensuring safe geometry and lift performance.

For RWD Transit vans, pairing this kit with Bilstein B6 struts (sold separately) can deliver an additional ½ inch of front lift and noticeably improve ride quality and control. The Bilstein B6 features a higher coil perch, offering enhanced preload for greater lift and damping precision.

While this kit works with AWD models, Bilstein B4 and B6 struts are not recommended for AWD configurations. The longer strut body (~¼”) may overextend suspension droop, potentially causing minor binding in the passenger-side CV joint. Use of Bilstein struts on AWD is at your discretion and may reduce CV lifespan.

• Recommended maximum tire size: 265/75R16

• May require minor pinch weld trimming (instructions included)

• Achieve up to 12.75” of ground clearance at the front crossmember with Bilstein struts and larger tires

• Typical front lift observed: ~1.25” over stock, depending on van weight

• Full installation instructions and hardware included

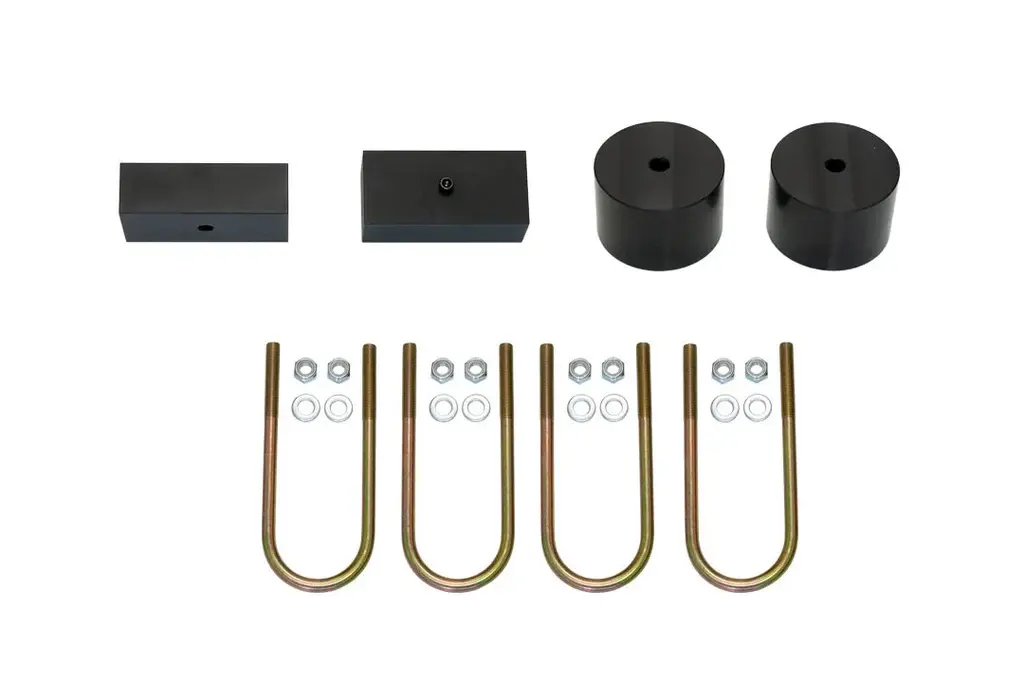

• Rear lift components not specified in this content — inquire for complete kit details if needed

• True 2” lift for improved clearance and off-road capability

• Compatible with 2018+ Ford Transit (AWD & RWD, SRW & DRW)

• Blue coil springs provide OEM-level ride quality with added lift

• Custom spacer engineered for front suspension geometry

• Optional Bilstein B6 struts (RWD only) add ½” lift and improved damping

• Supports up to 265/75R16 tires with minor trimming

• Maintains factory alignment specs and ride quality

2015+ Transit Topo Front Kit Installation Instructions

2015+ Transit Topo Rear Kit Installation Instructions

Video: Van Compass TOPO 2 INCH FRONT AND REAR LIFT KIT - FORD TRANSIT 2018+, BLUE COIL (7097)
