STAGE 4 TOPO 2 INCH LIFT KIT - FORD TRANSIT AWD 2020+, (LIGHT/MID TUNE & MID/HEAVY TUNE) - Van Compass

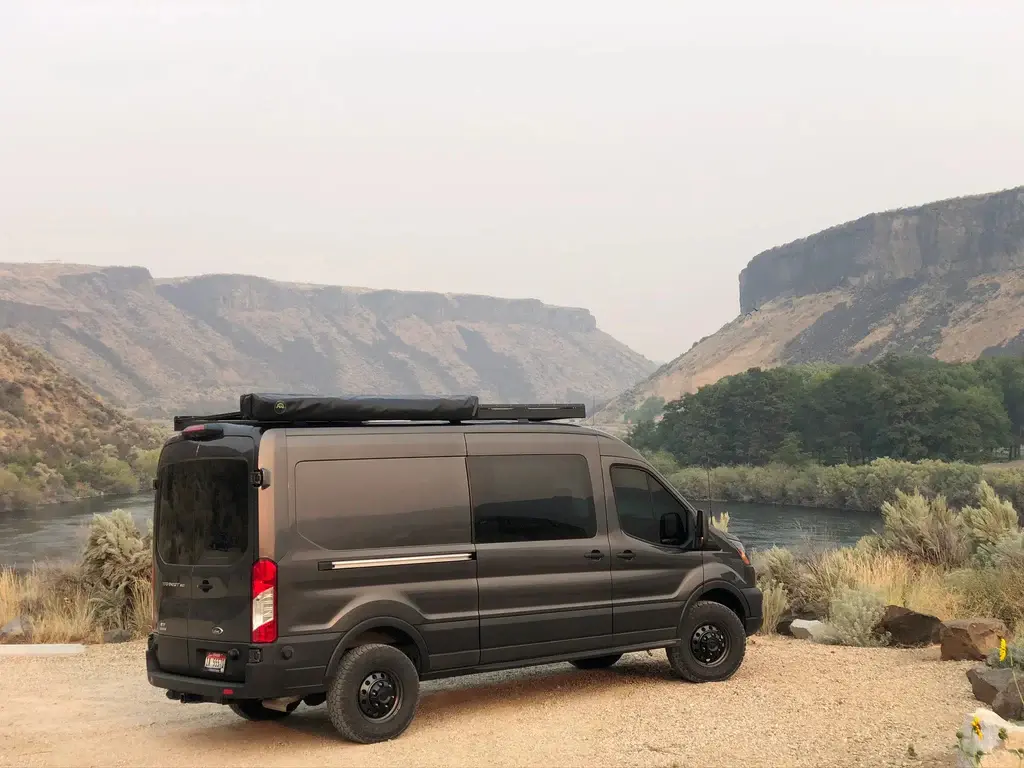

Upgrade your 2020+ Ford Transit AWD SRW with the Van Compass Stage 4 TOPO 2-Inch Lift Kit, the most comprehensive TOPO suspension package for AWD Transit builds. Designed for light-to-mid and mid-to-heavy applications, it combines a true 2" lift, increased rear spring rate, and adjustable damping to improve ground clearance, load support, stability, and ride control while preserving the AWD platform's suspension geometry.

FEATURES & INCLUDED COMPONENTS

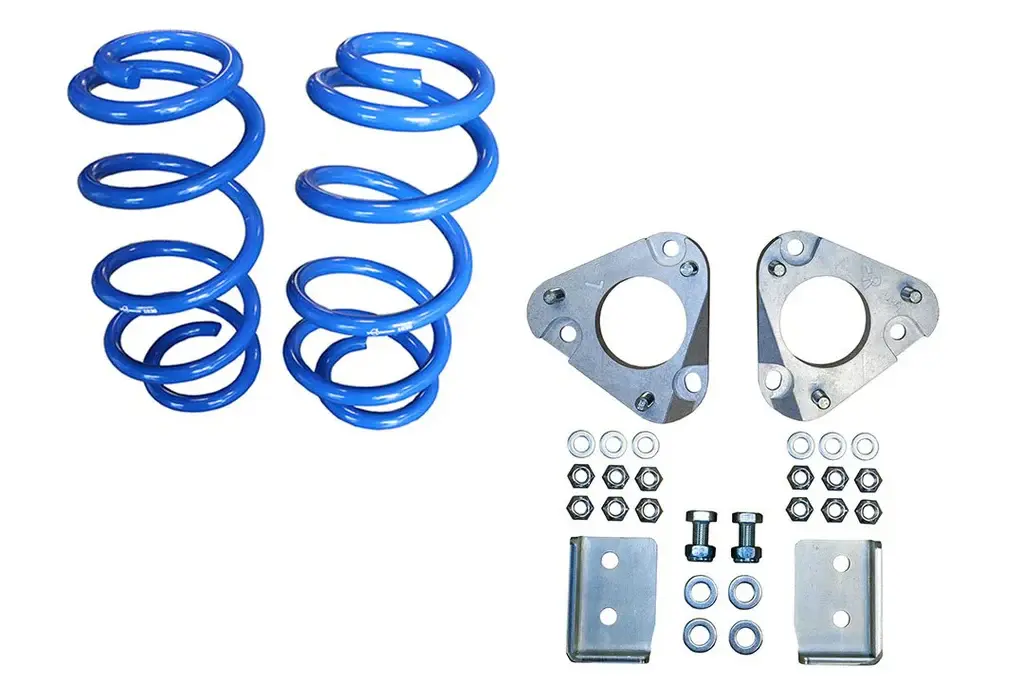

• True 2" lift with a 0.75" camber correction plate and tuned front coil springs providing approximately 1.25" of front lift and increased compression travel.

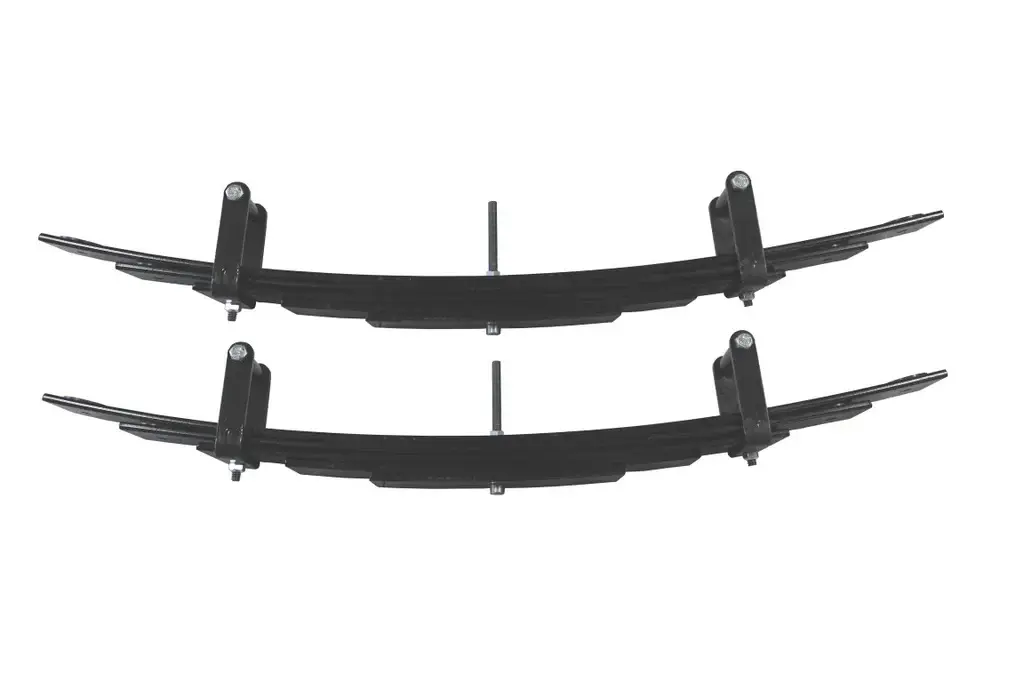

• 5-leaf rear mini spring pack increases rear spring rate by 10–15% and provides approximately 2.0–2.5" of rear lift, depending on load. Friction-reducing leaf tips provide quiet, smooth suspension movement.

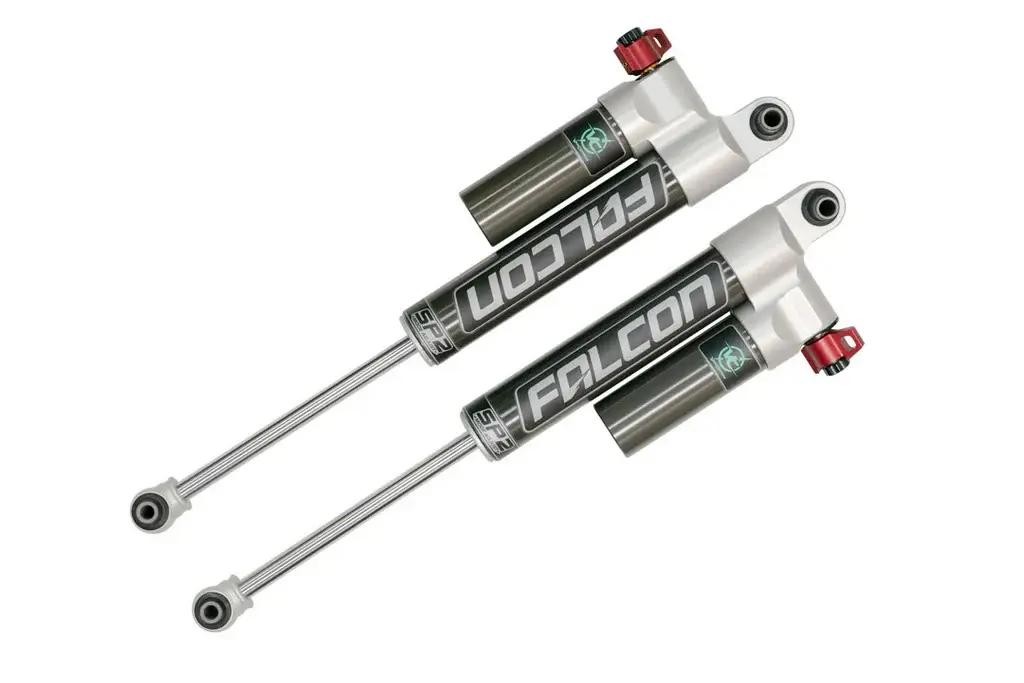

• VC-tuned Falcon 3.3 SP2 adjustable rear reservoir shocks feature a 10-position Fast Adjust system for adapting damping to different loads, road conditions, and terrain.
• High-clearance rear shock relocation brackets improve axle-tube clearance; factory mounts require trimming for installation.

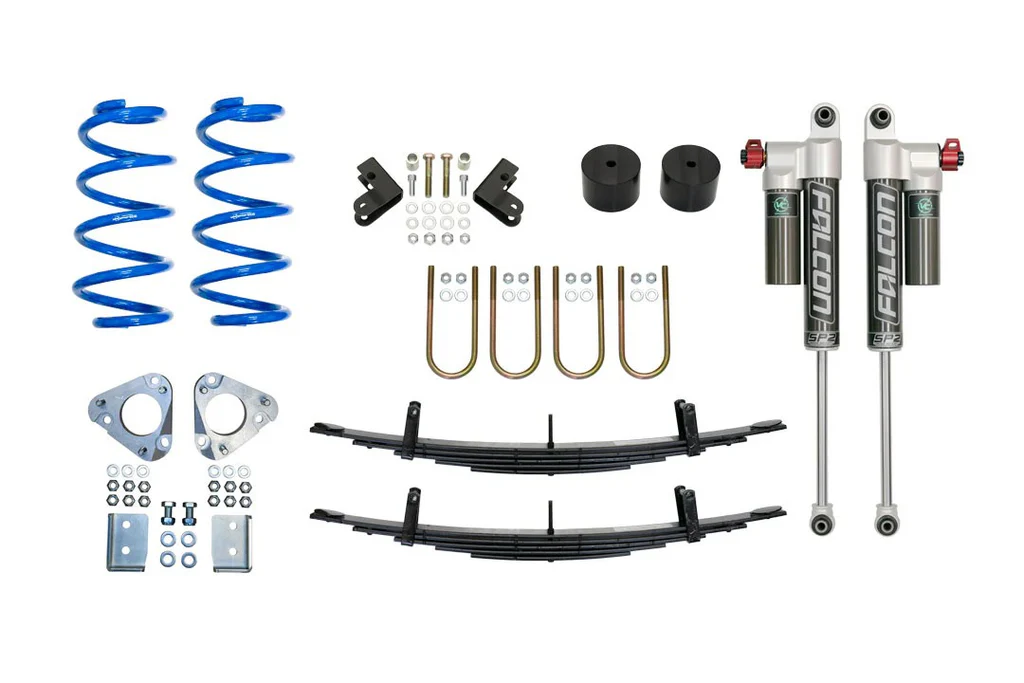

• Includes the TOPO 2.0 front lift kit with camber correction plates, Falcon 3.3 SP2 rear shocks, 5-leaf rear mini spring pack with bump stop spacers, high-clearance shock relocation brackets, and required hardware.

TUNE OPTIONS, FITMENT & IMPORTANT AWD INFORMATION

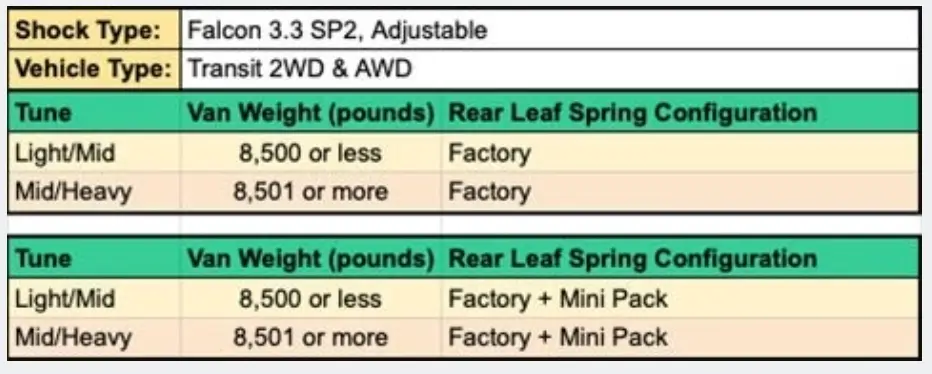

• Light/Mid Tune (7214-LM): Designed for daily drivers, passenger vans, lighter camper builds, and moderate loads, balancing ride comfort, stability, and adjustability.
• Mid/Heavy Tune (7214-MH): Designed for fully built camper vans, work vans, and adventure rigs carrying heavier constant loads, providing increased rear support and improved resistance to sag and bottoming.
• Fitment: 2020+ Ford Transit AWD SRW.
• Bilstein B6 struts are not compatible with AWD Transit models; their additional length may cause CV-boot damage. They are not included with this kit.
• Professional wheel alignment is required after installation to prevent uneven tire wear and handling issues.
• Special order: Non-exchangeable and non-refundable. Allow 2–4 weeks for processing and shipping.

2013+ Transit Topo Front Kit Installation Instructions  2013+ Transit Rear Falcon 3.3 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions  2013+ Transit Rear Leaf Pack Installation Instructions

Falcon 3.3 Shock Settings Guide

Video: Van Compass Ford Transit AWD (2020+) Stage 4 Topo 2.0 System (Single Rear Wheel)

Video: 2020 Ford Transit AWD front suspension overview  Video: How to adjust your van compass falcon shocks
