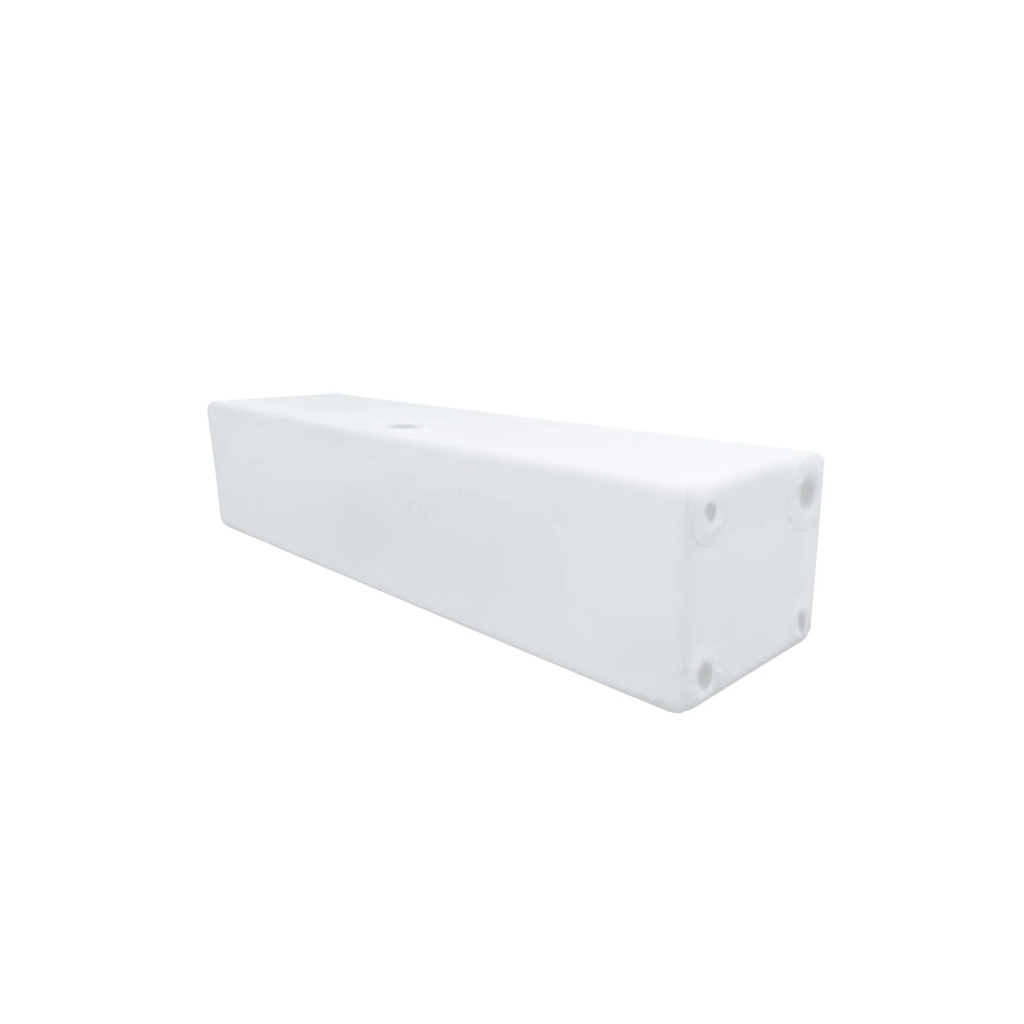

Transit Undermount Water Tank (10 Gallon)

Maximize usable space in your Ford Transit with this low-profile 10.43-gallon undermount water tank, designed to fit within the van’s undercarriage on either the driver or passenger side. Made from linear low-density polyethylene, the tank is food-grade, CSA-approved, and BPA-free, making it suitable for freshwater or grey water applications. Its compact design preserves ground clearance and can also be used as an interior freshwater tank in other van applications.

FEATURES & OPTIONS

• 10.43 US gallons / 39.4 L capacity
• Designed to mount beneath the Ford Transit chassis without modifications

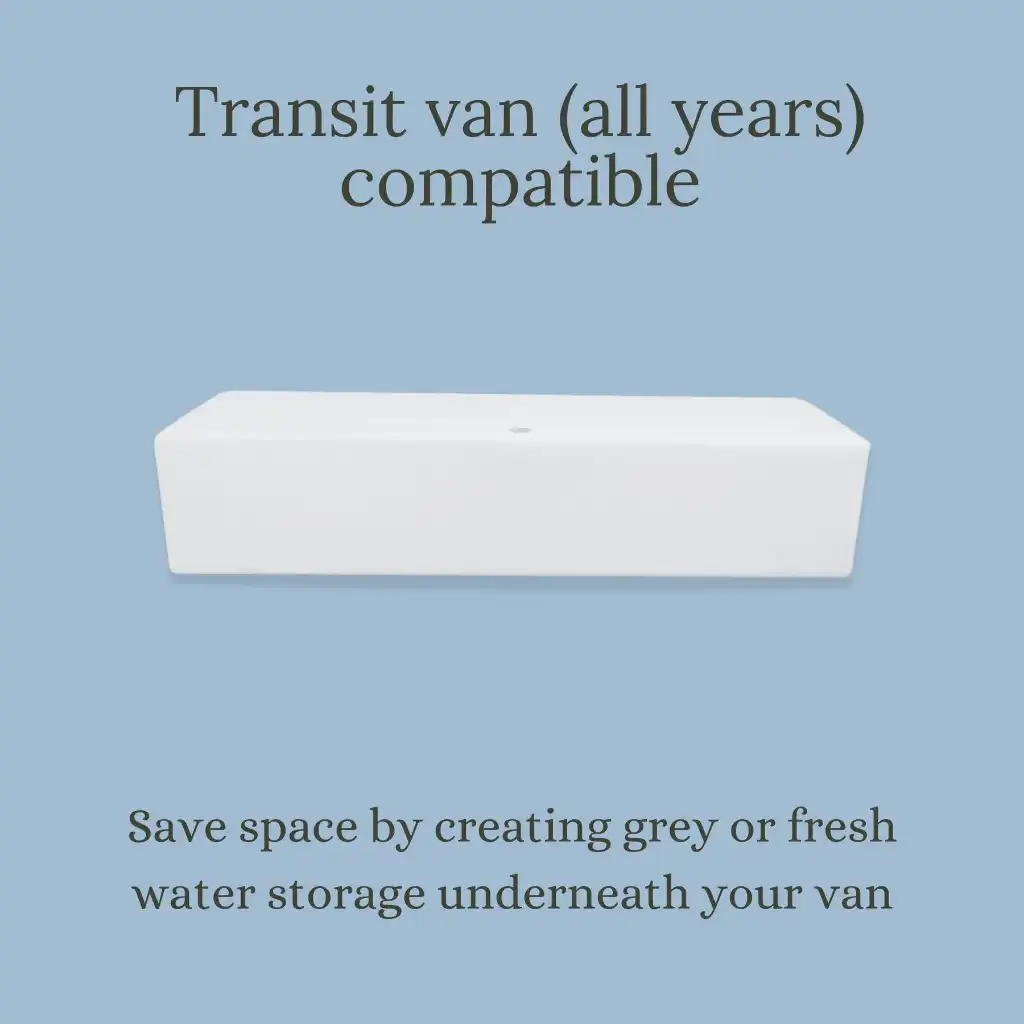

• Compatible with all Ford Transit wheelbases
• Can be mounted on the driver or passenger side
• Low-profile design helps maintain ground clearance
• Food-grade, CSA-approved and BPA-free polyethylene construction
• Can be used for freshwater or grey water
• Can also be used as an interior freshwater tank in any van
• Optional Grey Water Fittings Kit or Fresh Water Fittings Kit available
• Optional Aluminum Strapping Kit uses heavy-duty, weather-resistant 1/8" × 1½" aluminum fixation; compatible with the passenger side only
• Optional KUS S5U Water Level Sender & Gauge Kit compatible with the dedicated tank fitting
• Can be paired with the 29-gallon Transit Wheel Well Tank or 32-gallon Transit Dually Wheel Well Tank

DIMENSIONS, MOUNTING & PORTS

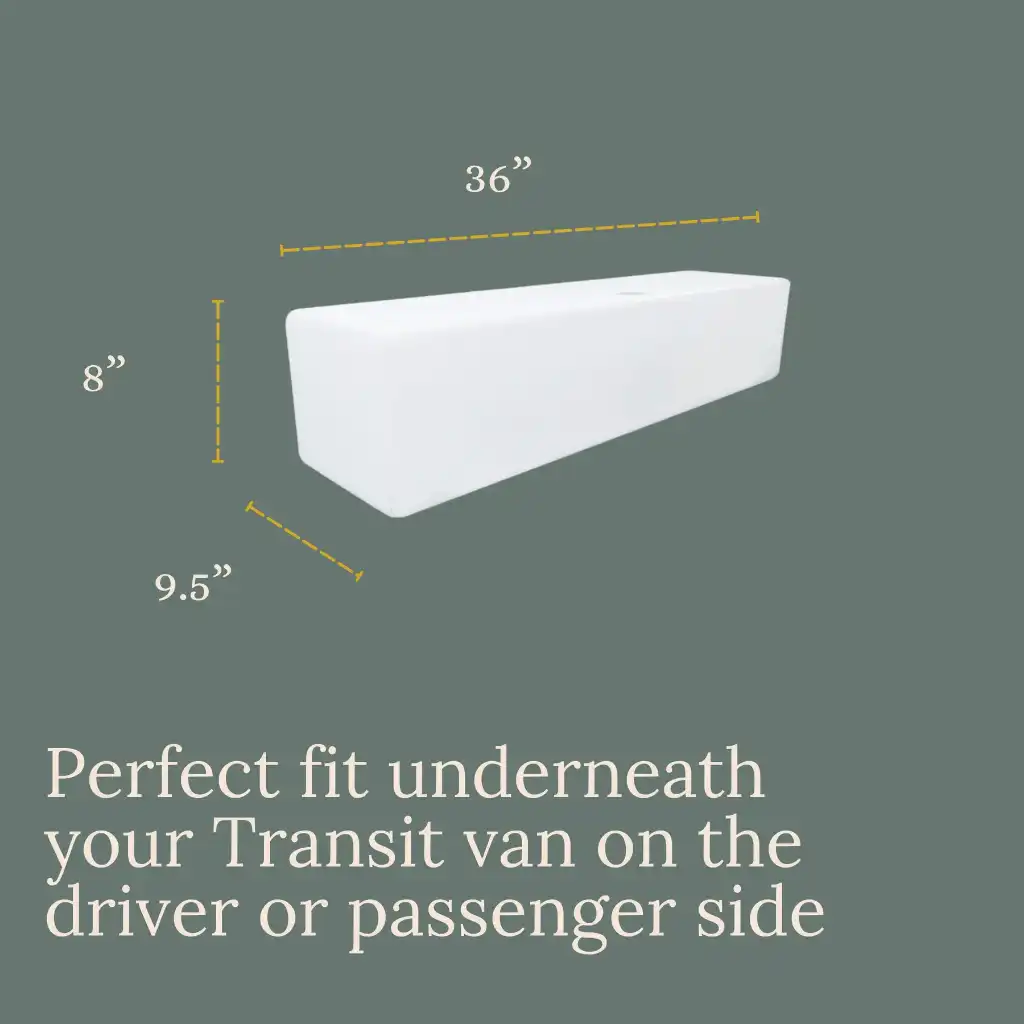

• Dimensions: 36" L × 9.5" W × 8" H
• Passenger-side or driver-side mounting; the supplied aluminum fixation kit is passenger-side only
• For driver-side mounting, use corrosion-resistant aluminum or galvanized slotted fixation with 1/4" rivet nuts, as recommended by the manufacturer

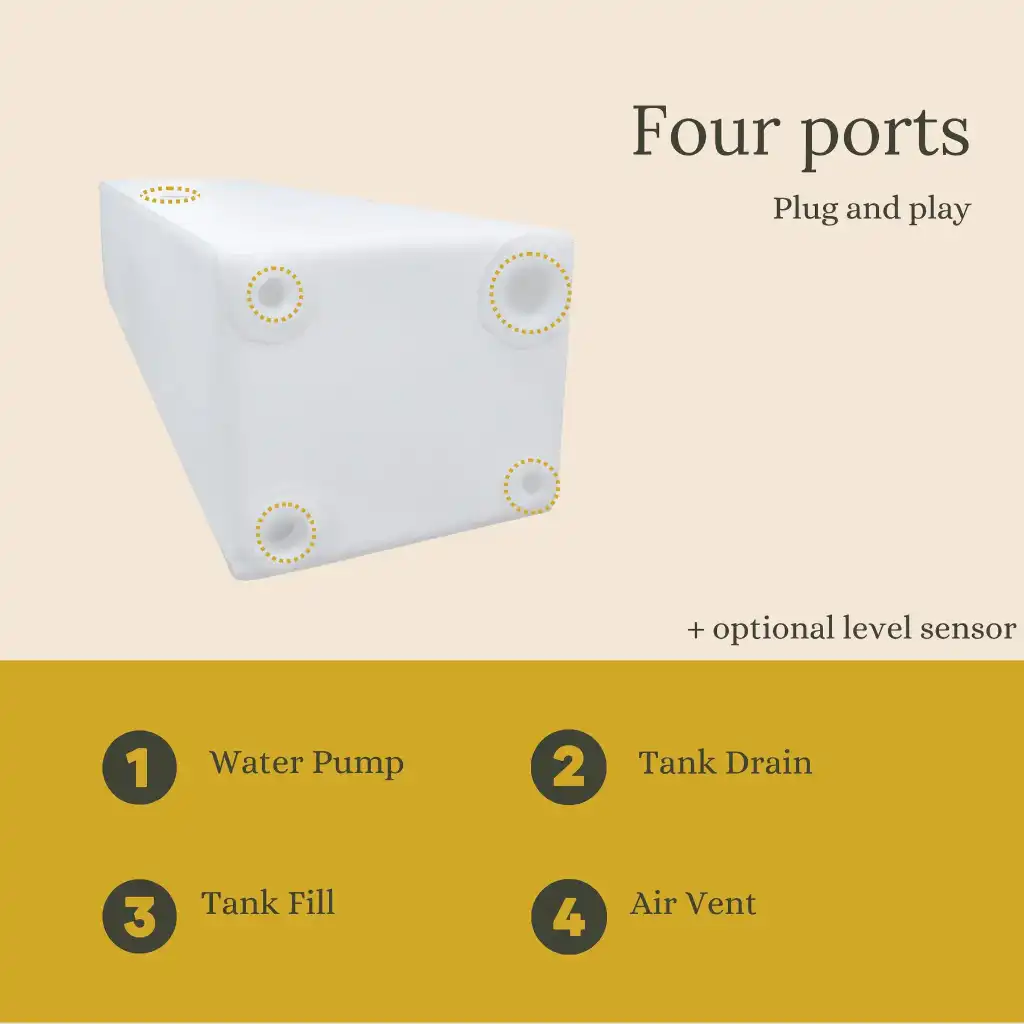

• The end with four fittings—1 × 1¼", 1 × ¾", and 2 × ½"—typically faces the rear of the van, but the tank can be installed in either direction
• 1 × 1½" drill-out membrane port on top
• 1 × 1¼" drill-out membrane port on top
• 1 × 1¼" drill-out membrane port on one end
• 1 × ¾" port on one end
• 2 × ½" ports on one end
• Larger membrane ports must be drilled out before use; the membrane eliminates the need to plug unused ports

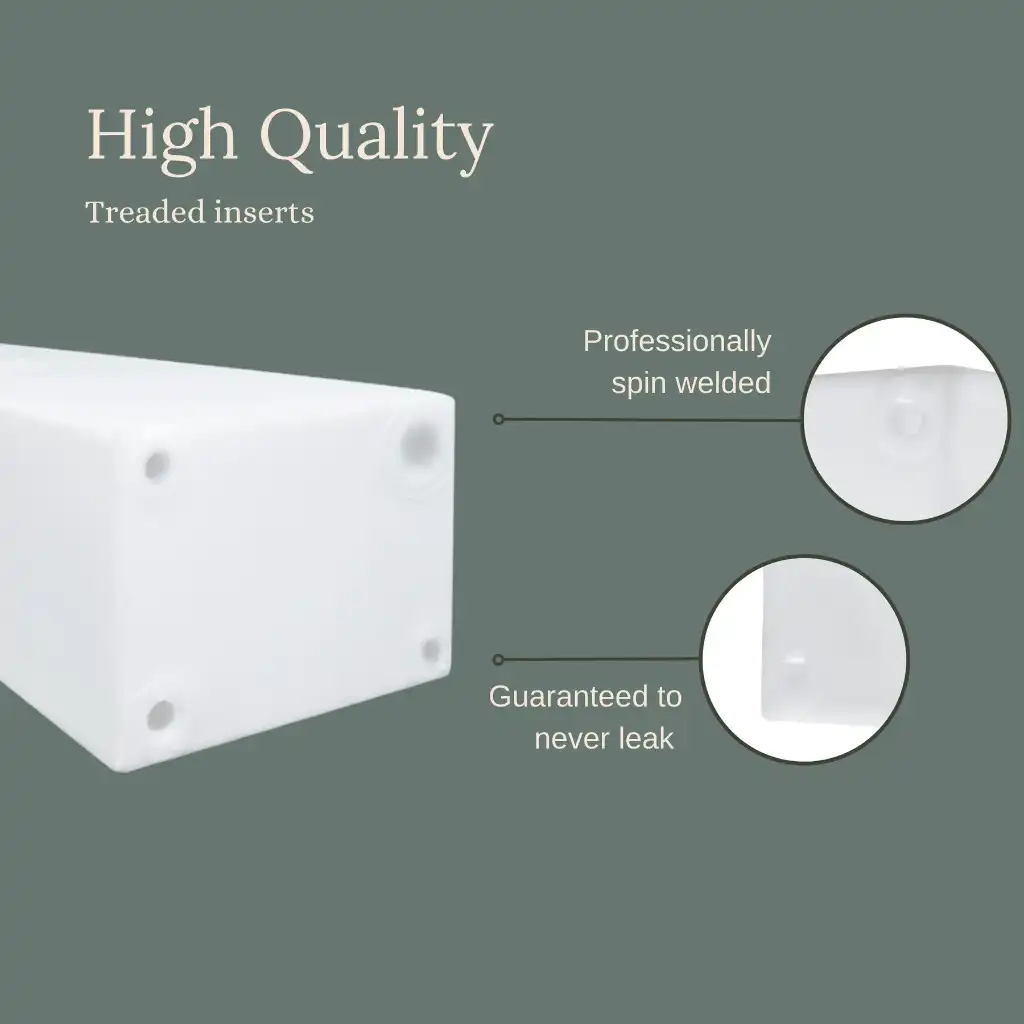

• All ports are female NPT threaded

FITTINGS KIT OPTIONS

• Grey Water Fittings Kit: PVC elbows, ball valve, nipples, poly fittings, plugs, hose clamps, Teflon tape, 5 ft fill hose and 2 ft of ⅝" ID vinyl hose
• Fresh Water Fittings Kit: PVC elbows, ball valve, nipples, poly fittings, hose clamps, Teflon tape, fill port, 5 ft fill hose and 5 ft of ⅝" ID vinyl hose
