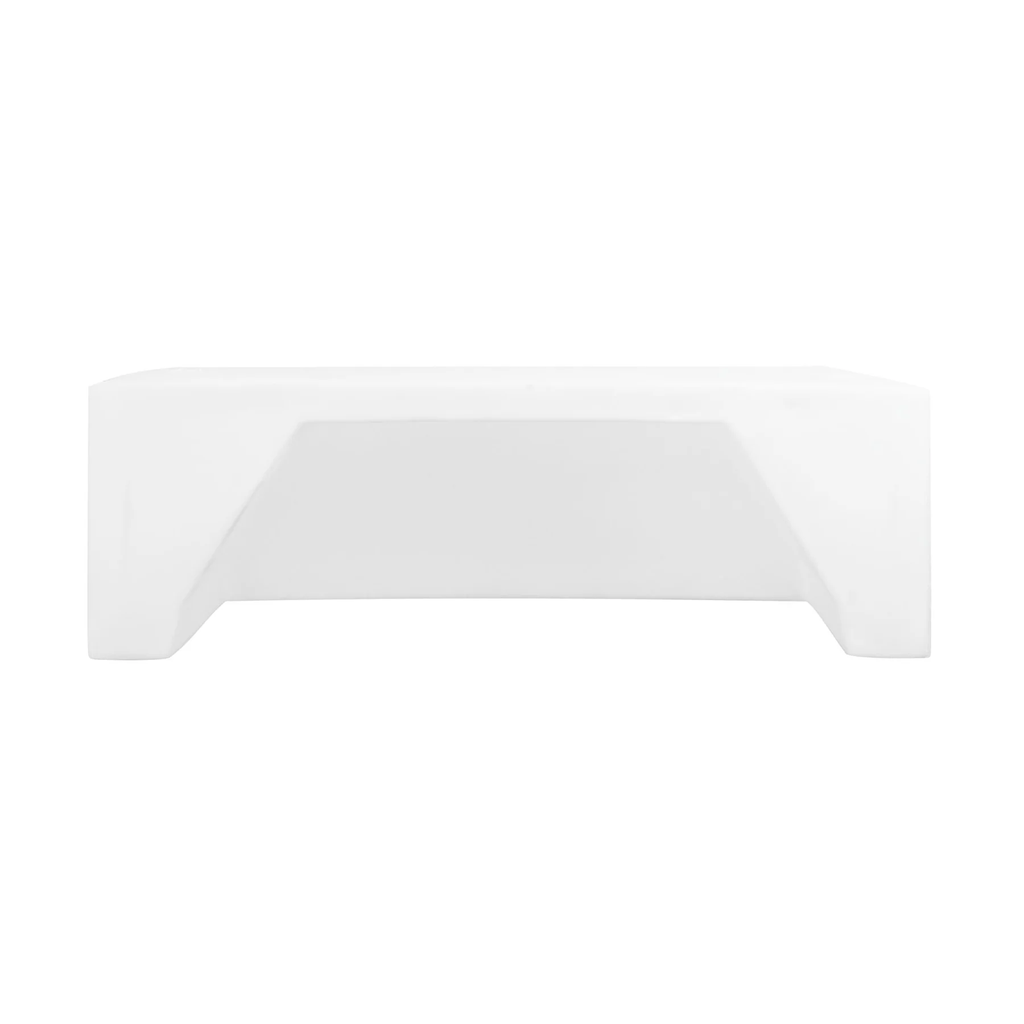

Transit Wheel Well Water Tank (29 Gallon)

Maximize unused space in your Ford Transit with this 29.4-gallon wheel well water tank, designed to fit precisely around the rear wheel wells while providing high-capacity freshwater storage. Its symmetrical design allows the tank to be installed on either the driver or passenger side, while the squared-off top and exterior simplify surrounding van construction. Made from linear low-density polyethylene, the tank is food-grade, CSA-approved, and BPA-free for freshwater use.

FEATURES & OPTIONS

• 29.4 US gallons / 111.2 L freshwater capacity
• Designed to fit around the Ford Transit rear wheel wells
• Compatible with all Ford Transit wheelbases
• Symmetrical design allows installation on the driver or passenger side
• Can be installed with or without the van's flooring already in place
• Squared-off top and exterior make it easier to build around the tank
• Linear low-density polyethylene construction
• Food-grade, CSA-approved and BPA-free for freshwater use
• Tank body around the wheel well can provide additional sound reduction
• Two tanks can be installed, one on each side, for increased water capacity
• Optional Fresh Water Fittings Kit includes plumbing fittings, fill port, hoses, valve, adapters, plugs, clamps and Teflon tape
• Optional Aluminum Fixation Kit includes 2 heavy-duty aluminum straps and mounting hardware
• Optional KUS S5U Water Level Sender & Gauge Kit compatible with the dedicated tank fitting
• Designed to pair with the 17-gallon Transit Undermount Water Tank for additional water storage

DIMENSIONS & PORTS

• Dimensions: 47" L × 15.5" W × 15.5" H
• 1 × 1½" drill-out membrane port on top, at one end
• 2 × 1¼" drill-out membrane ports on top, one at each end
• 2 × 1¼" drill-out membrane ports, one on each end
• 2 × ¾" ports, one on each end
• 4 × ½" ports, two on each end
• Larger 1¼" membrane ports must be drilled out before use; the membrane eliminates the need to plug unused ports
• All ports are female NPT threaded

COMPATIBILITY

• Designed for Ford Transit, all wheelbases
• Fits one standard Transit wheel well; not compatible with Dually wheel wells
• Can be installed on either the passenger or driver side
• Fits around the wheel well with or without flooring installed
