Van Compass 2019+ Mercedes Sprinter AWD 4x4 2500 - Stage 3 System

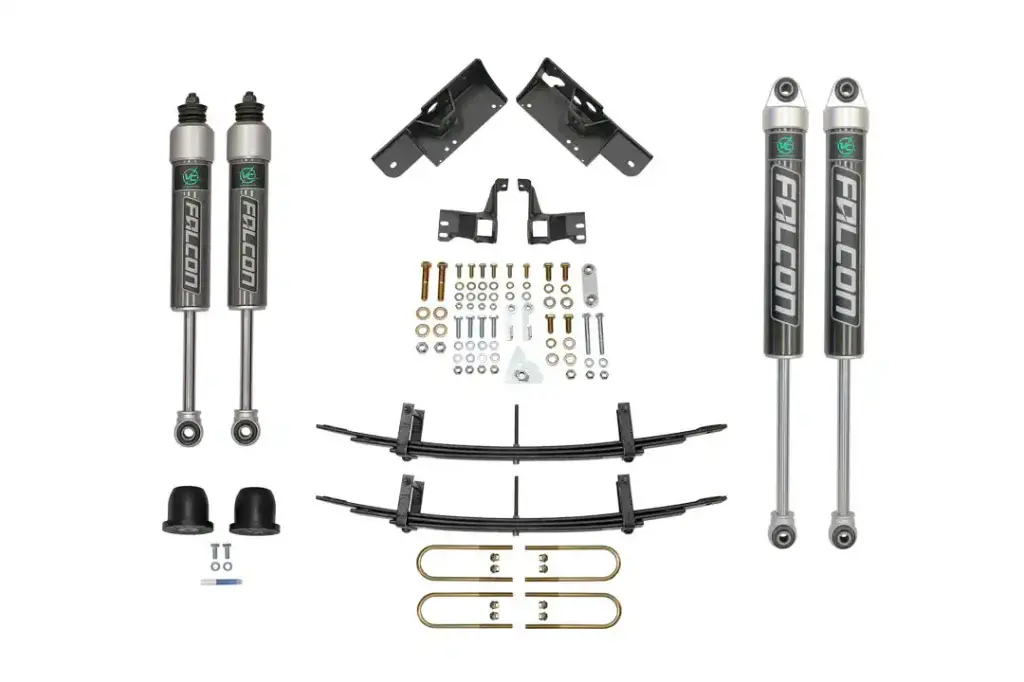

The Van Compass Stage 3 Suspension System – Mid Tune is designed for 2019–present Mercedes-Benz Sprinter 2500 AWD and 4X4 vans experiencing rear sag or seeking improved handling after a camper van, RV, or adventure build. The system combines VC-tuned Falcon 2.1 Monotube shocks, a rear mini leaf spring kit, and progressive front Bump Buddy jounce bumpers to restore approximately 1.25" of lost rear ride height, improve stability, and provide better control over rough roads and off-road terrain while maintaining a comfortable ride.

• Mid Tune Falcon 2.1 Monotube shocks, specifically tuned for Sprinter vans
• Front and rear shocks improve cornering stability, reduce wind sway, and control body movement
• Rear mini leaf springs restore approximately 1.25" of lost ride height and reduce rear sag
• Progressive Bump Buddy front jounce bumpers improve bottom-out resistance and spring progression
• Improved control over small and large bumps, rough roads, and broken pavement
• Includes front shock mounting brackets, dust boots, and required hardware and installation instructions

• Vehicle: Mercedes-Benz Sprinter 2500
• Years: 2019–present
• Drivetrain: AWD and 4X4
• Designed for camper vans, RVs, and adventure builds requiring improved suspension control and ride height

INSTALLATION & COMPATIBILITY

Wheels with 6.5" backspacing or +52 mm offset on an 8" wheel require a minimum 14 mm wheel spacer to prevent tire contact with the auxiliary shocks at full steering angle. Vans equipped with the HD Rear AC Package may require slight repositioning of the refrigerant lines during front shock installation. Not compatible with Sumo Spring Rebel series springs, including part numbers SSR-327-47-2 and SSR-327-40-2, due to interference between the Sumo Spring bracket and shock body.

2015+ VS30 4x4 Falcon Front Shock Installation Instructions     NCV3, VS30 4x4 Falcon 2.1 Rear Shock Installation Instructions

Sprinter AWD and 4x4 Front Bump Buddies installation instructions     Rear Mini Pack Installation Instructions
